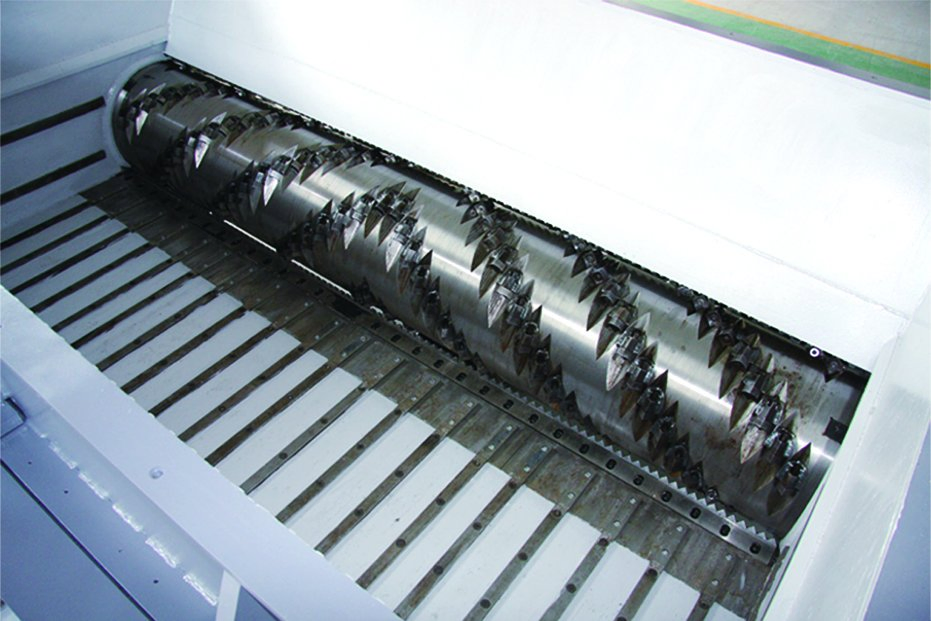

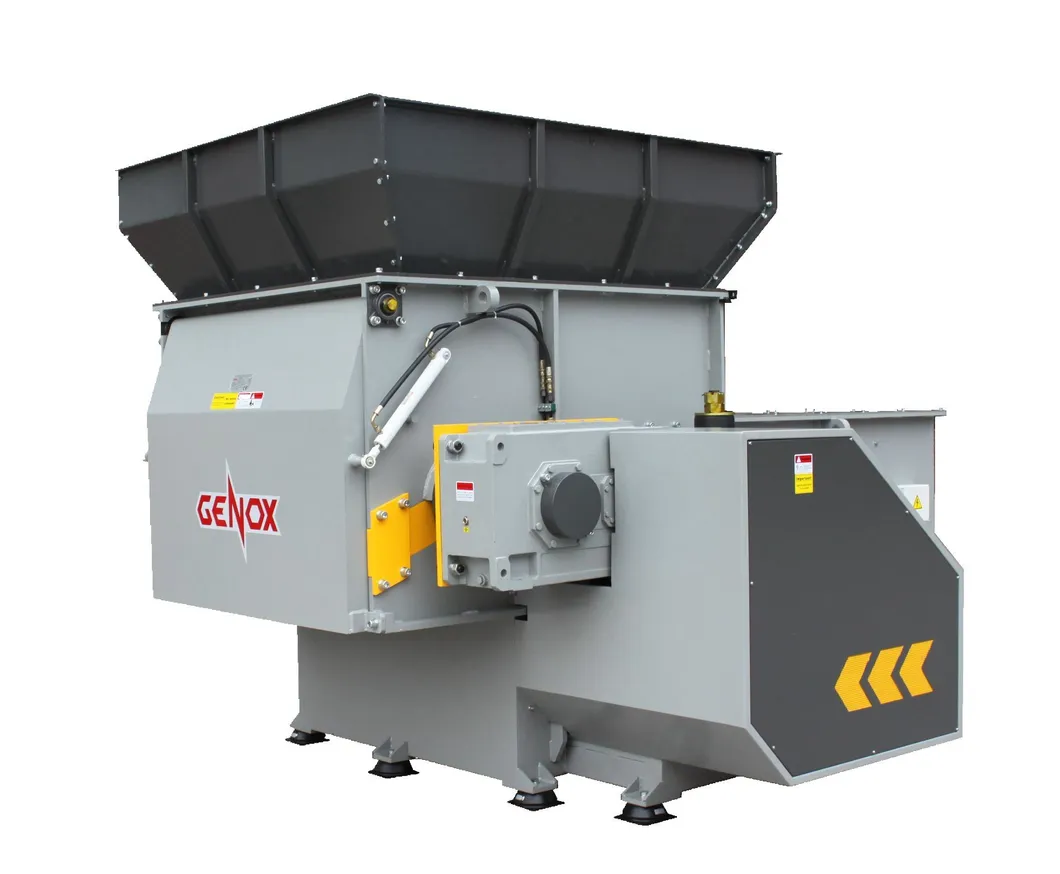

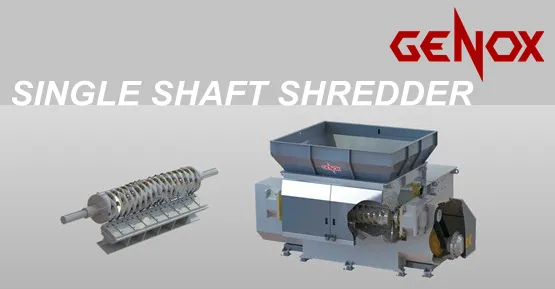

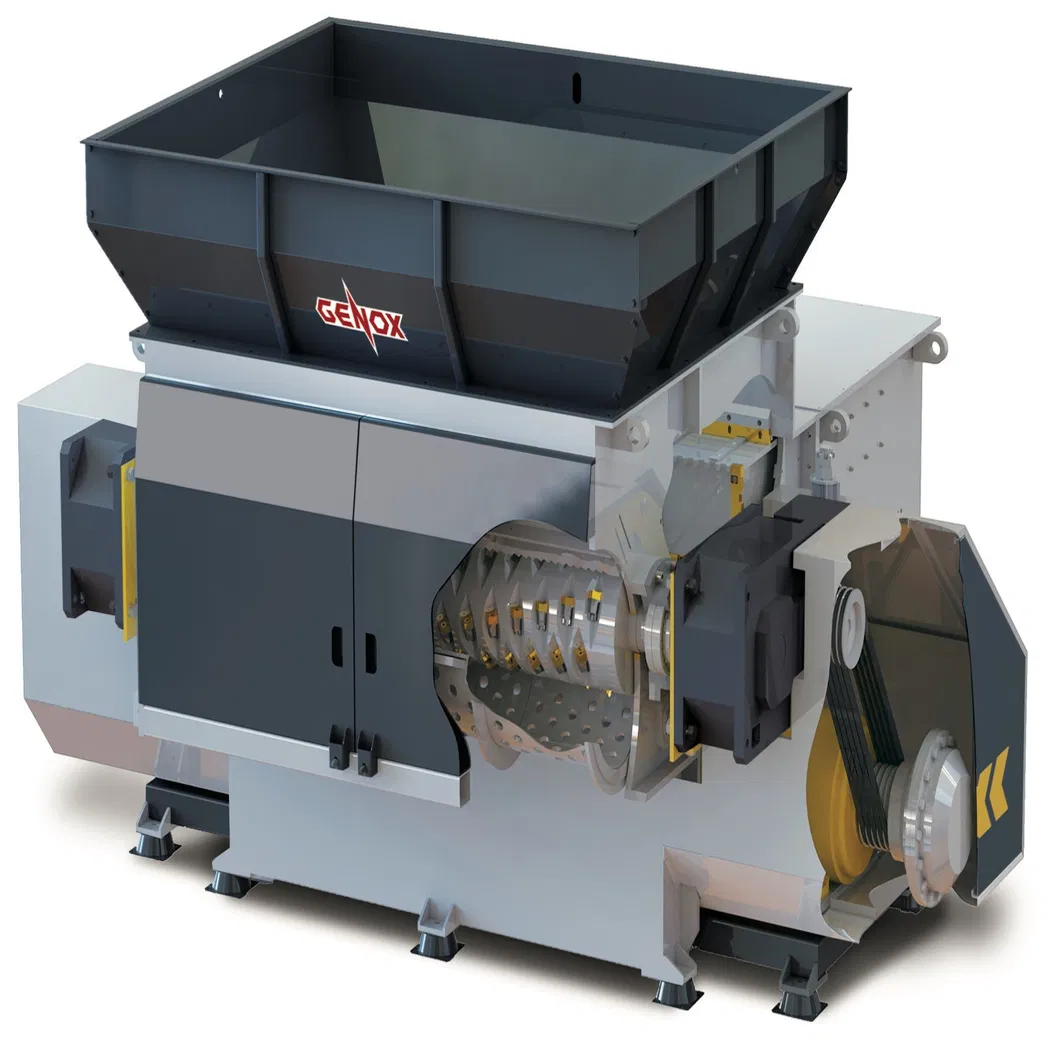

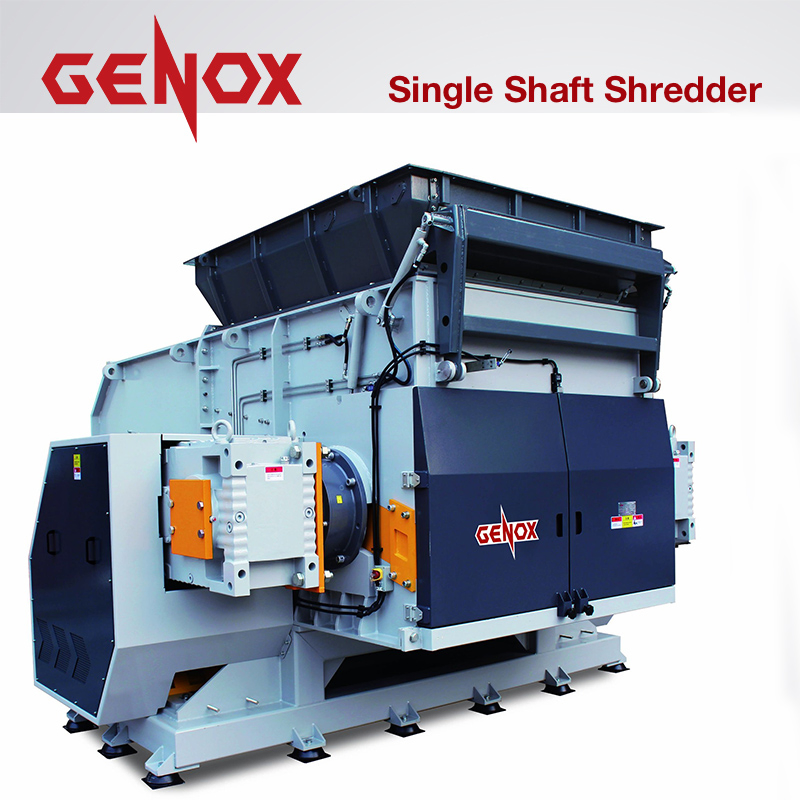

The Series Single Shaft Shredders are heavy-duty size reduction machines designed for processing a wide range of materials. These shredders are ideal for especially hard and voluminous products. The large shredding chamber and loading hopper capacity, combined with the PLC controlled horizontal RAM pusher, ensures optimum feeding of material to the rotor, achieving the most efficient performance. Throughputs typically range between 1,500kg/hr to 12,000kg/hr+ depending on the model and application.
| Model Series | BH1500 | BH2000 |
|---|---|---|
| Feed opening (LXW)(mm) | 1500X1675 | 2000X1675 |
| Ram (mm) | 760 | 760 |
| Rotor diameter (mm) | 480 | 480 |
| Speed (r/min) | 80 | 80 |
| Screen (mm) | 40-100 | 40-100 |
| Rotor knives (pcs) | 84 | 95 |
| Counter knives (pcs) | 6 | 8 |
| Motor power (kw) | 90 | 55+55 |
| Weight (kg) | Approx 10200 | Approx 13800 |
| Dimension (LXWXH)(mm) | 3630X2870X2630 | 3630X4260X2630 |
