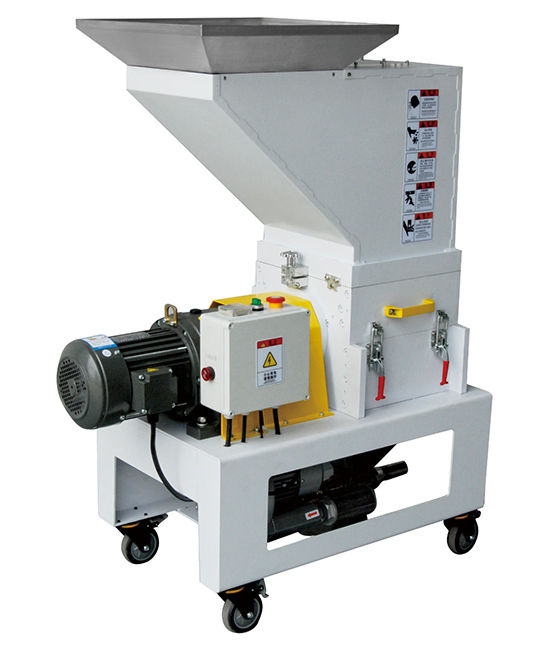

20/25/30/35kg/H Crushing Capacity Low Speed Quiet Machine Side Grinder Series

1 / 5

20/25/30/35kg/H Crushing Capacity Low Speed Quiet Machine Side Grinder Series

Customization:	Available
After-sales Service:	1yers
Warranty:	1yers

Send Inquiry

Product Description

Basic Specifications

Model NO.

RCD-3000

Type

Hard Plastic Crusher

Raw Material

PVC

Structure

Tangential Feed

Knife Classification

Piece Knife Crusher

Automation

Automatic

Computerized

Certification

CE, ISO9001:2008

Transport Package

Wooden Crate

Specification

800*435*1240mm

Production Capacity

500,000 pieces/Year

Packaging & Delivery

Package Size

80.00cm * 43.50cm * 124.00cm

Gross Weight

160.000kg

Product Description

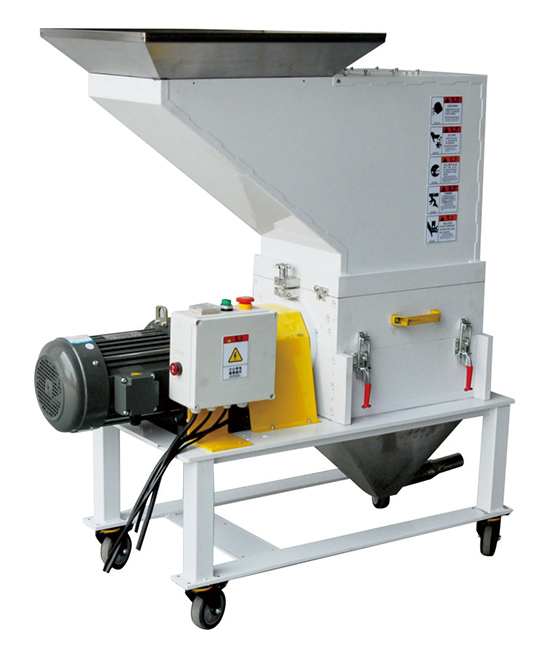

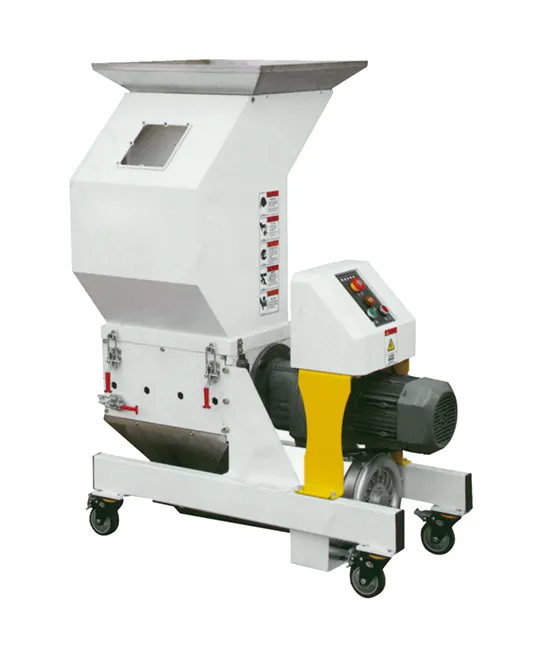

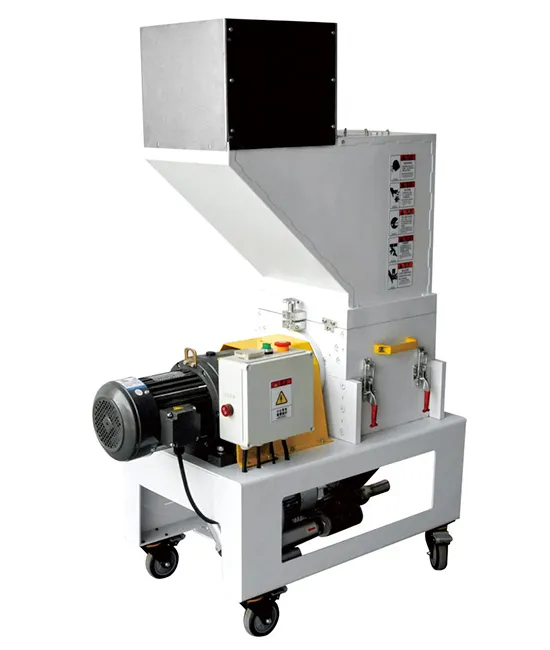

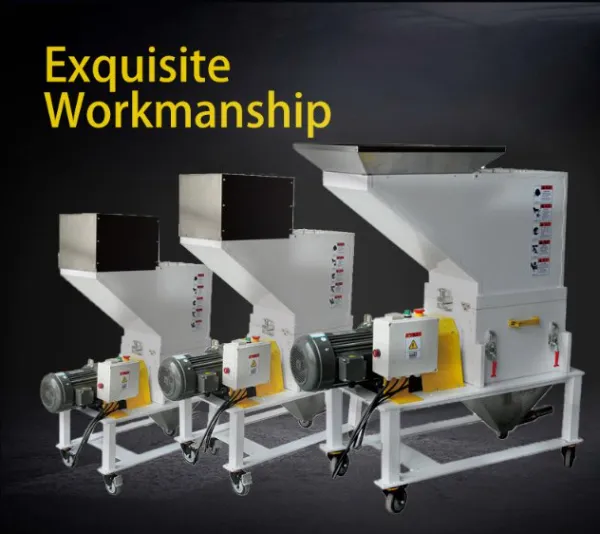

Low Speed Quiet Machine Side Grinder Series

Low Speed Silent Crusher Series

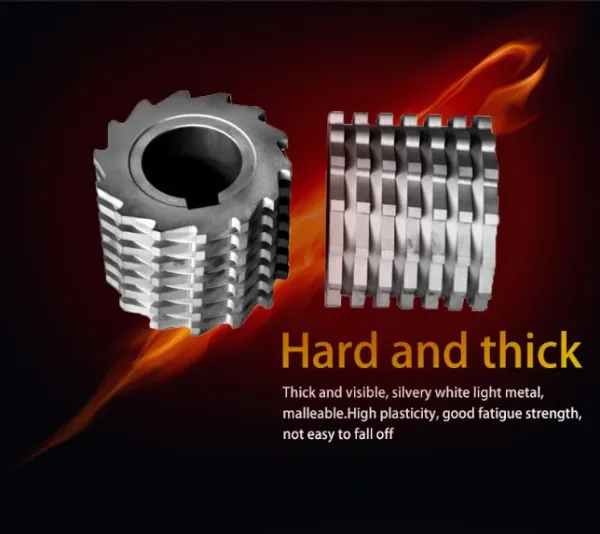

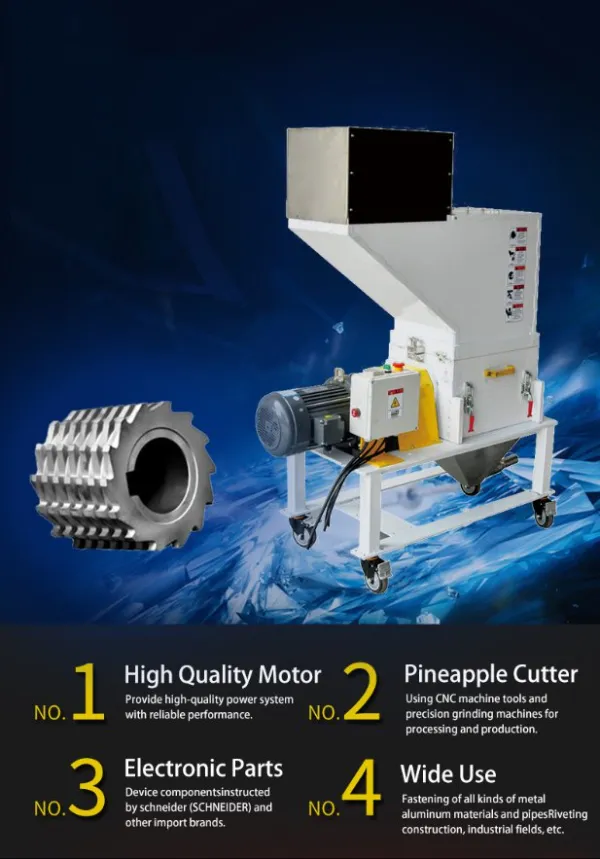

The RCD series cutter adopts a double head "u" design, which improves the service life of the cutter and reduces the cutter replacement cost for customers in the later stage. It is specially designed for crushing soft materials to improve the crushing effect and production capacity.

Technical Parameters

Model Parameter	RCD-3000	RCD-5000	RCD-5000L
Power	2.2kw	3.7kw	3.7kw
Rotor diameter (mm)	185	185	185
Width of rotor (mm)	395	395	395
Rotor speed (r/min)	150	150	150
Moving knives (P)	30	45	45
Fixed knives (P)	10	15	15
Crushed capacity	75-150kg/h	100-200kg/h	100-200kg/h
Machine weight	160kg	200kg	220kg

Material & Application Samples

Material: PA+G30
Size: 85X65X27mm
Machine: GDL-2000

Material: PC
Size: 95X80X40mm
Machine: GDL-3000

Material: PBT+G30
Size: 155X75X36mm
Machine: GDL-5000

Product Gallery

Frequently Asked Questions

What materials is the RCD-3000 crusher suitable for?

The RCD-3000 is specifically designed for hard and soft plastic materials, particularly PVC and PC, providing an efficient crushing effect.

What are the advantages of the low-speed silent design?

The low-speed operation significantly reduces noise pollution in the workspace while maintaining high torque for effective crushing and reducing heat generation.

How does the "U" design cutter benefit the user?

The double-head "U" design improves the service life of the cutter blades, leading to fewer replacements and lower long-term maintenance costs for the customer.

Is the machine easy to operate?

Yes, the machine is both automatic and computerized, ensuring precision control and ease of use for high-capacity production environments.

What certifications does this product hold?

Our crushers are manufactured under strict quality standards and carry both CE and ISO9001:2008 certifications for safety and reliability.

What is the production capacity of this series?

Depending on the specific model (RCD-3000 to RCD-5000L), the capacity ranges from 75kg/h up to 200kg/h, with a total annual output potential of 500,000 pieces.
