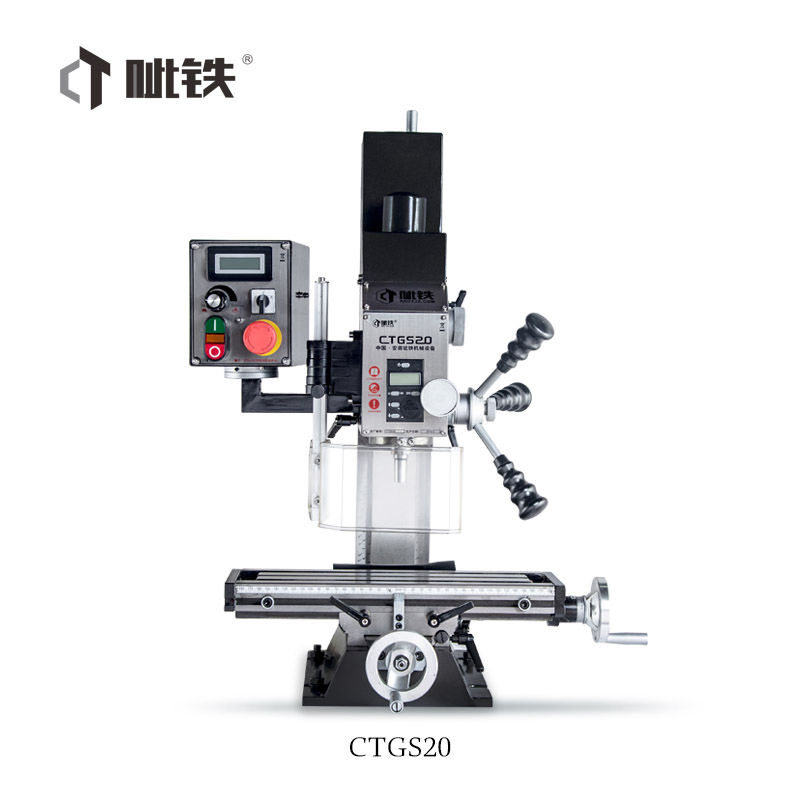

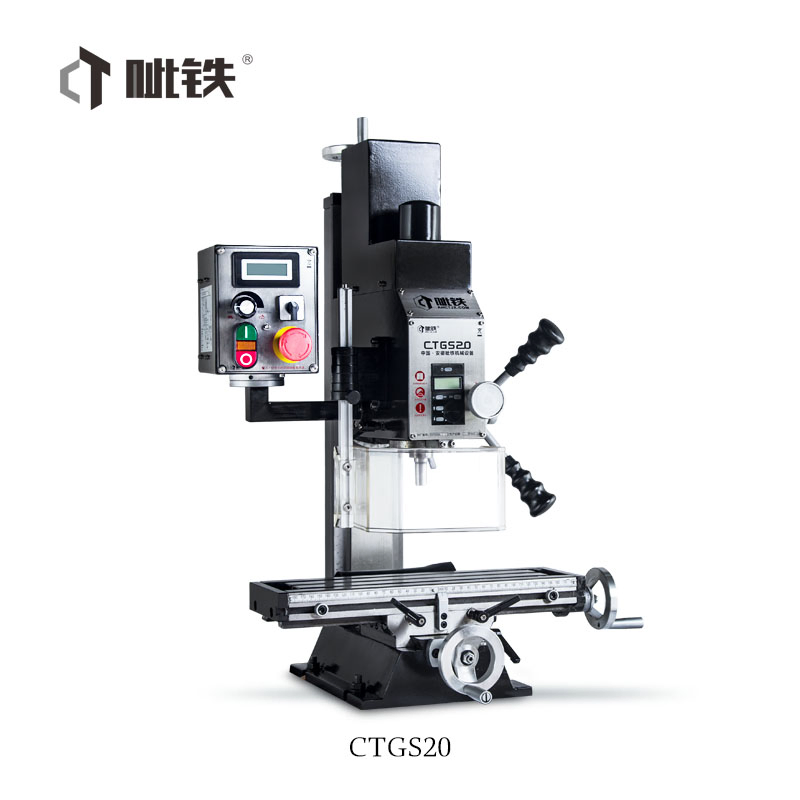

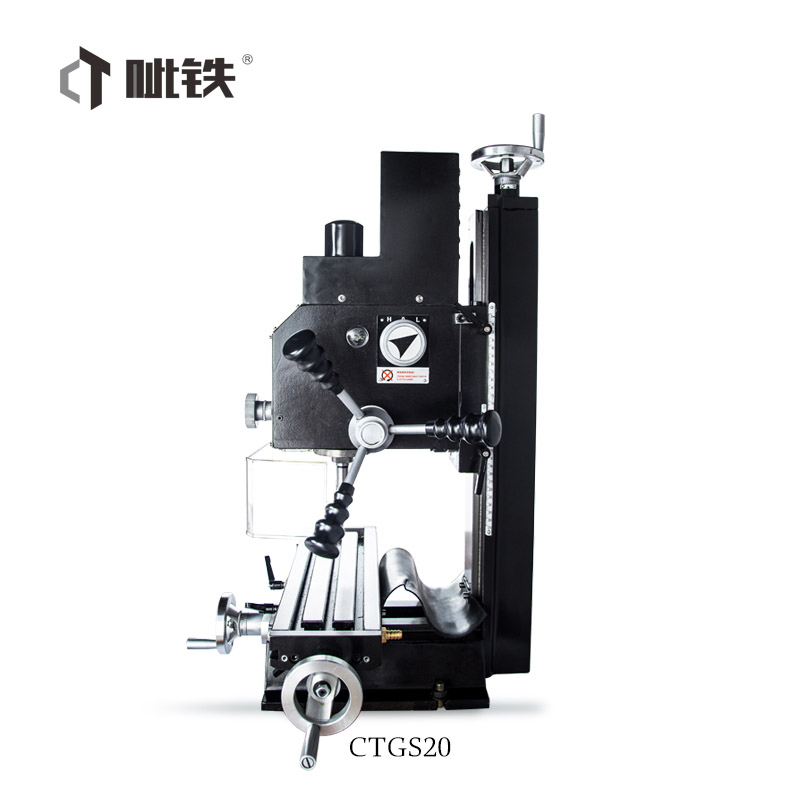

Drilling Machine for Cutting out Gaskets and Drilling Operations Factory Supplier Ctgs20
Drilling Machine for Cutting out Gaskets and Drilling Operations Factory Supplier Ctgs20
Drilling Machine for Cutting out Gaskets and Drilling Operations Factory Supplier Ctgs20
Drilling Machine for Cutting out Gaskets and Drilling Operations Factory Supplier Ctgs20
Drilling Machine for Cutting out Gaskets and Drilling Operations Factory Supplier Ctgs20
1 / 5
Drilling Machine for Cutting out Gaskets and Drilling Operations Factory Supplier Ctgs20
Drilling Machine for Cutting out Gaskets and Drilling Operations Factory Supplier Ctgs20
Drilling Machine for Cutting out Gaskets and Drilling Operations Factory Supplier Ctgs20
Drilling Machine for Cutting out Gaskets and Drilling Operations Factory Supplier Ctgs20
Drilling Machine for Cutting out Gaskets and Drilling Operations Factory Supplier Ctgs20

Drilling Machine for Cutting out Gaskets and Drilling Operations Factory Supplier Ctgs20

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info.
Model NO.
CTGS20
Structure
Desktop
Milling Cutter Type
Three Blade Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Transport Package
Standard Wooden Packing
Specification
480*440*840mm
Origin
China
HS Code
8458190000
Production Capacity
10000
Product Description & Technical Specifications
Max. Drilling capacity20mm
Max. milling capacity52mm
Max. vertical milling capacity16mm
Table size400*120mm
T-slots size10mm
X spindle travel230mm
Y spindle travel145mm
Z spindle travel200mm
Spindle taperMT2/M10
Spindle travel50mm
Spindle box rotation angle±90°
Spindle speeds100~3000 rpm
Motor Power600W
Net weight/gross weight60/80kg

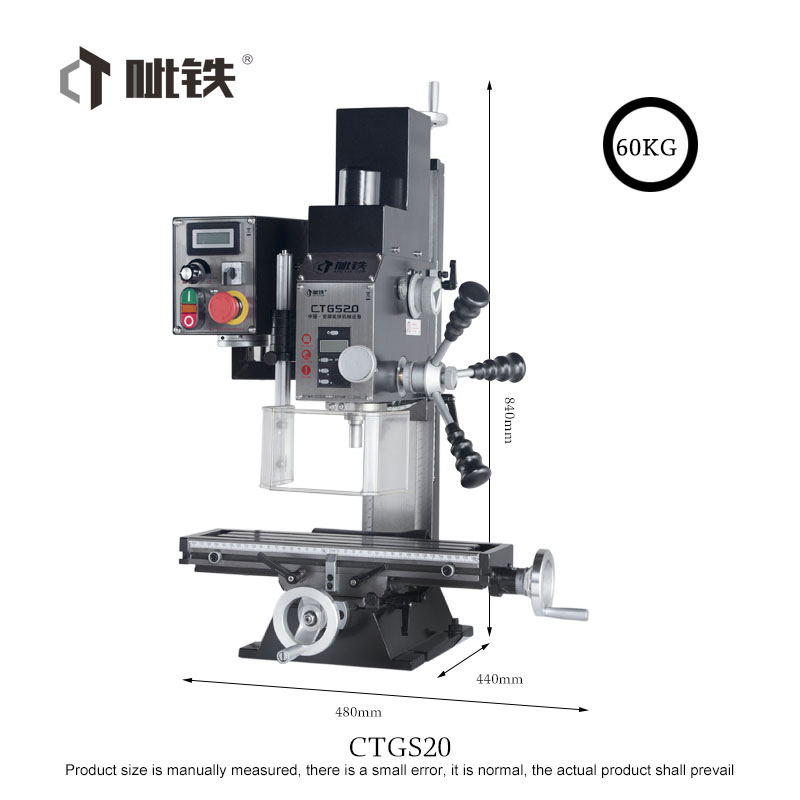

Overall dimensions480x440x840mm
Package Size520*520*840mm
Product Display

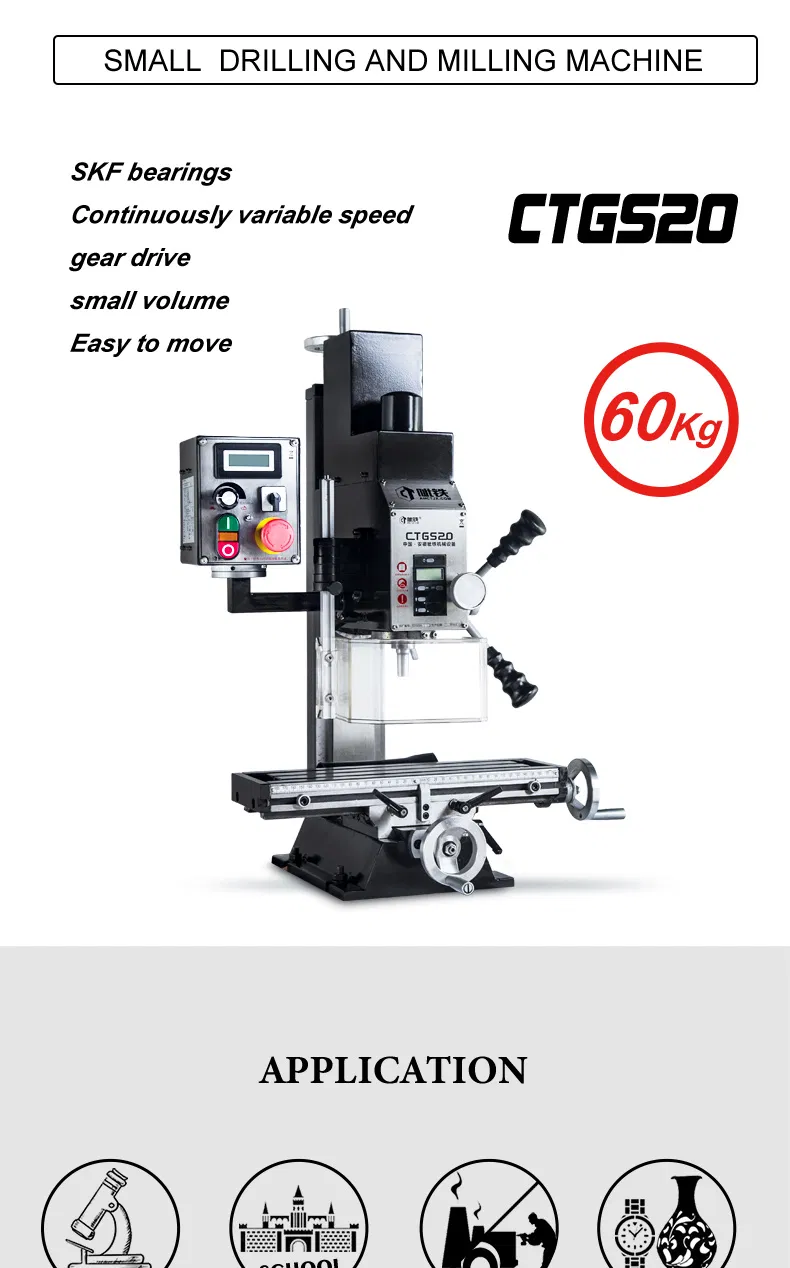

Drilling Machine CTGS20 Details 1

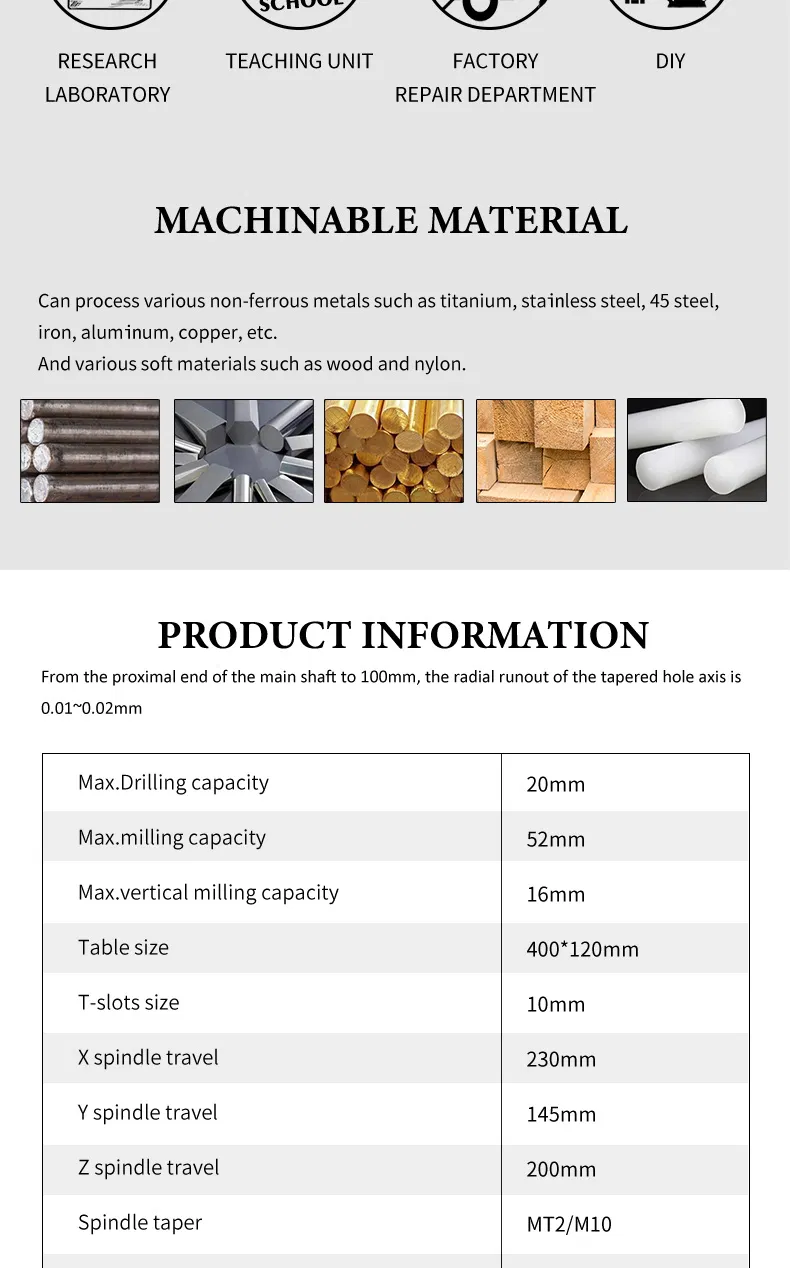

Drilling Machine CTGS20 Details 2

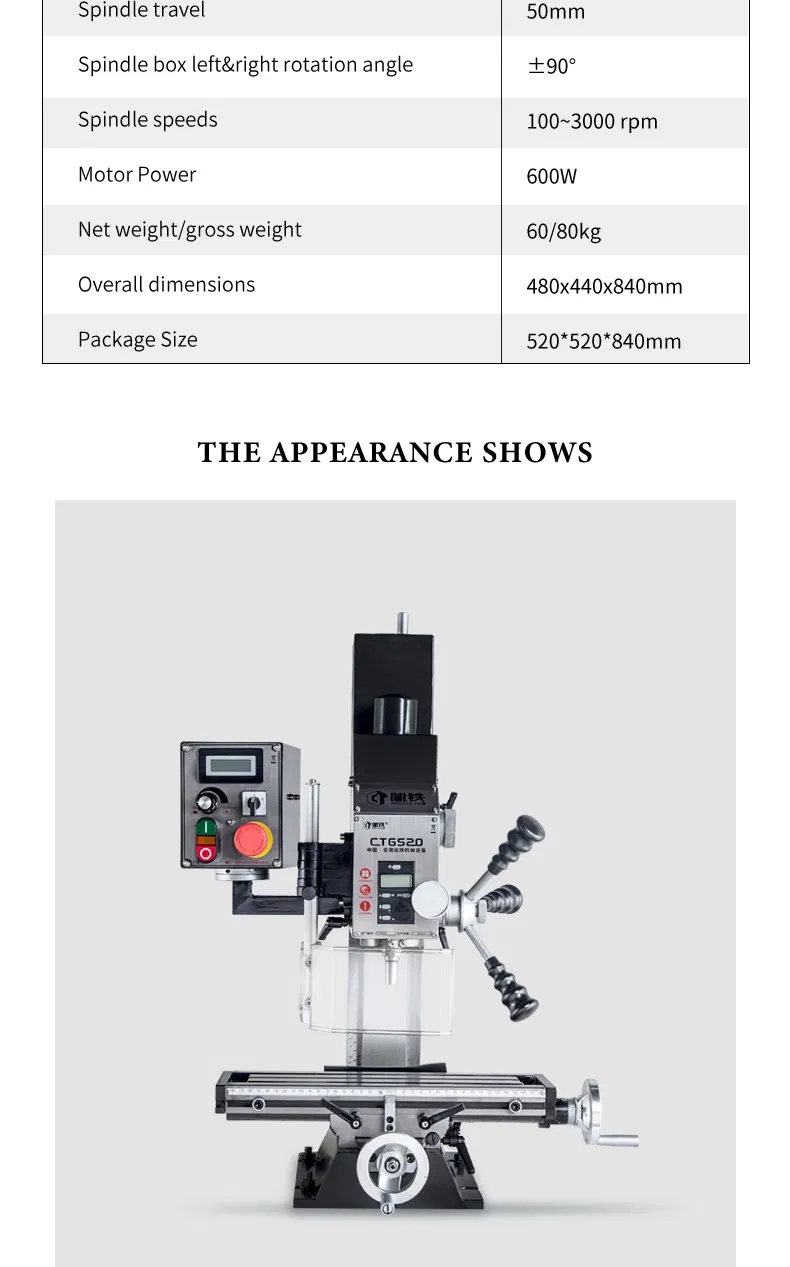

Drilling Machine CTGS20 Details 3

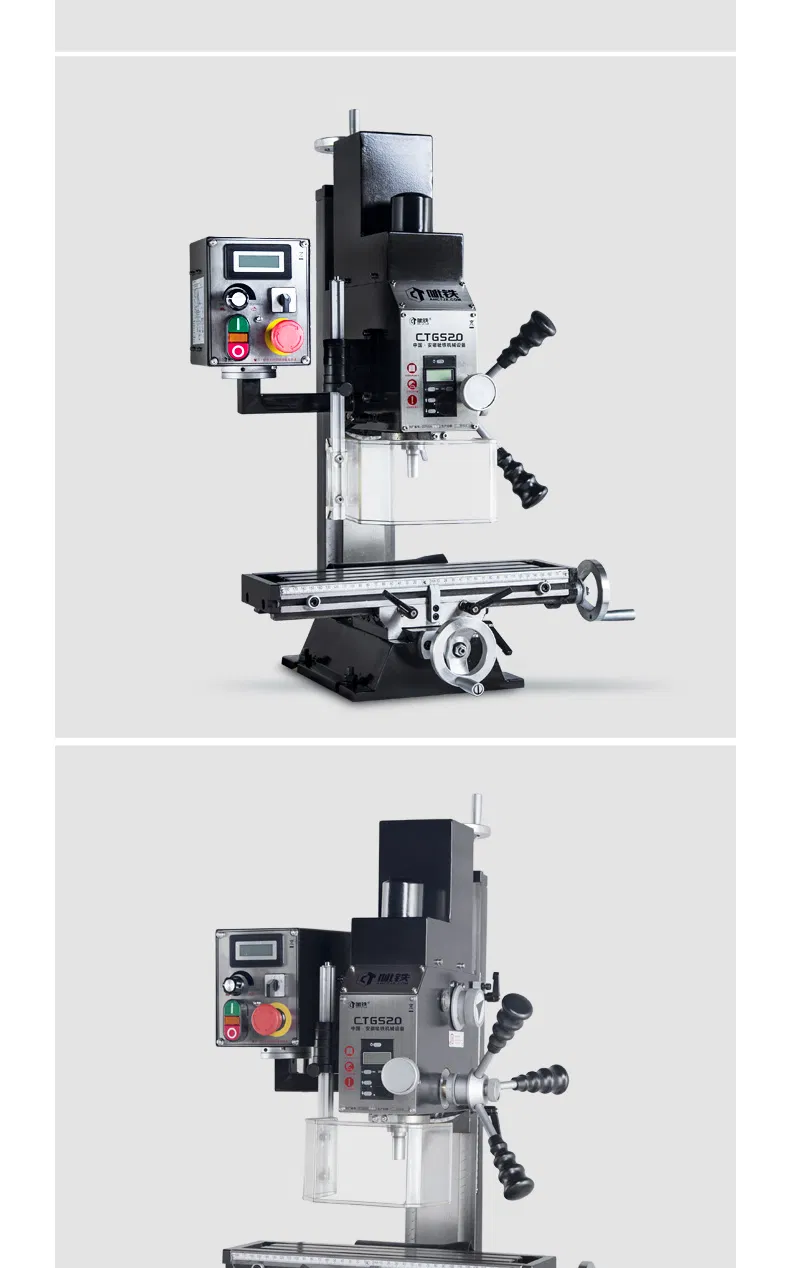

Drilling Machine CTGS20 Details 4

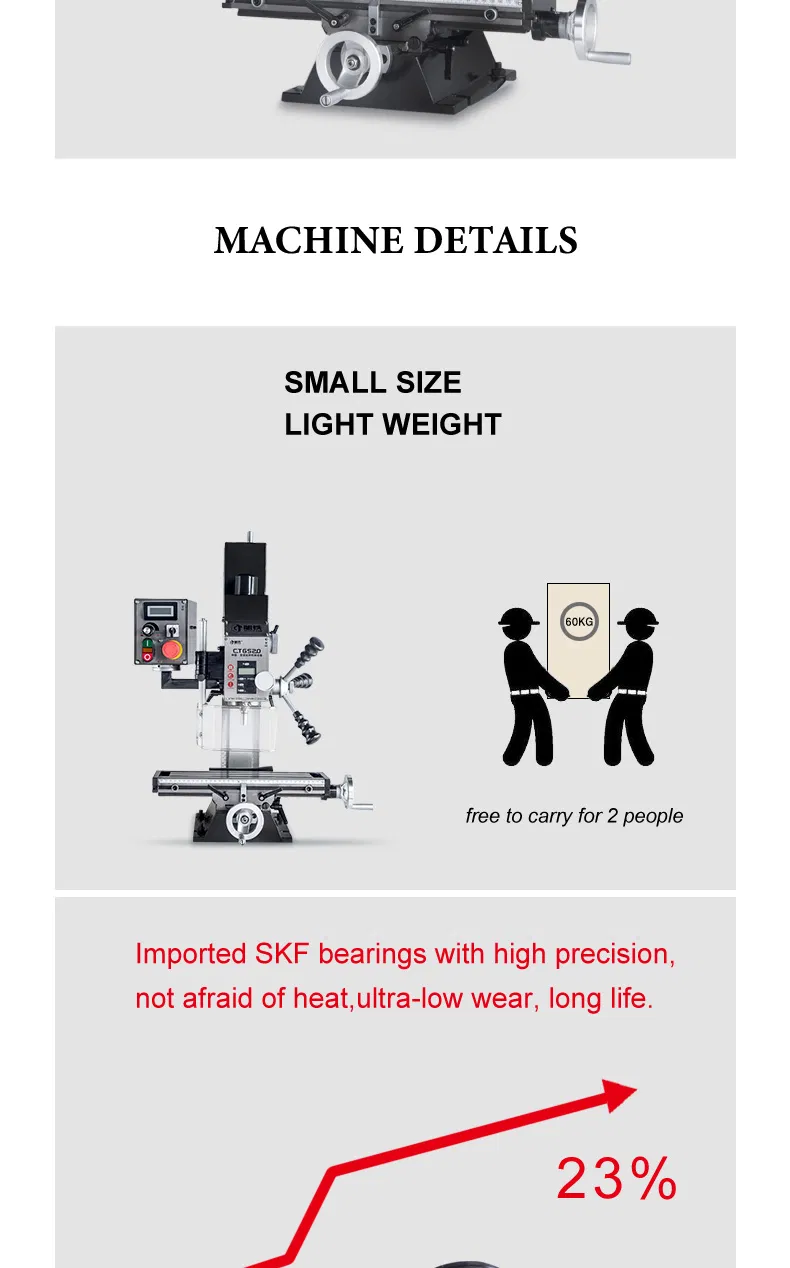

Drilling Machine CTGS20 Details 5

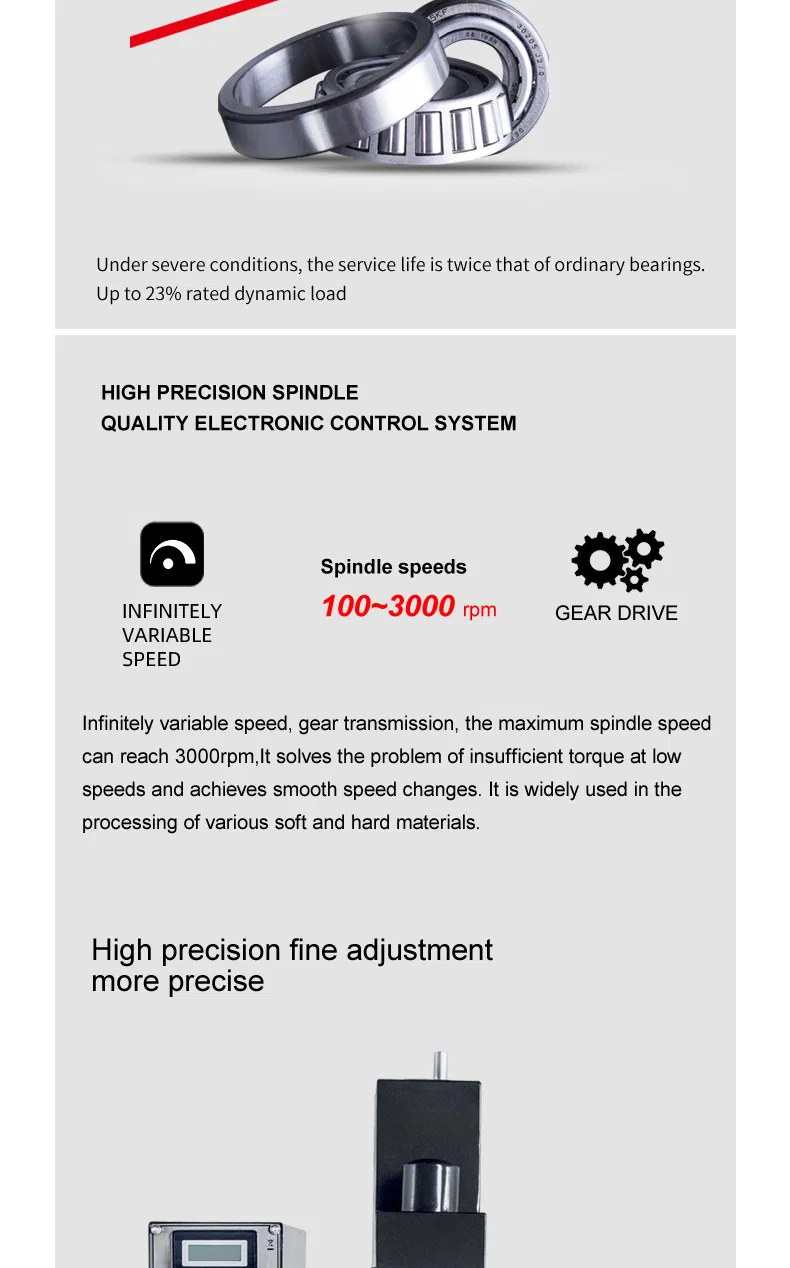

Drilling Machine CTGS20 Details 6

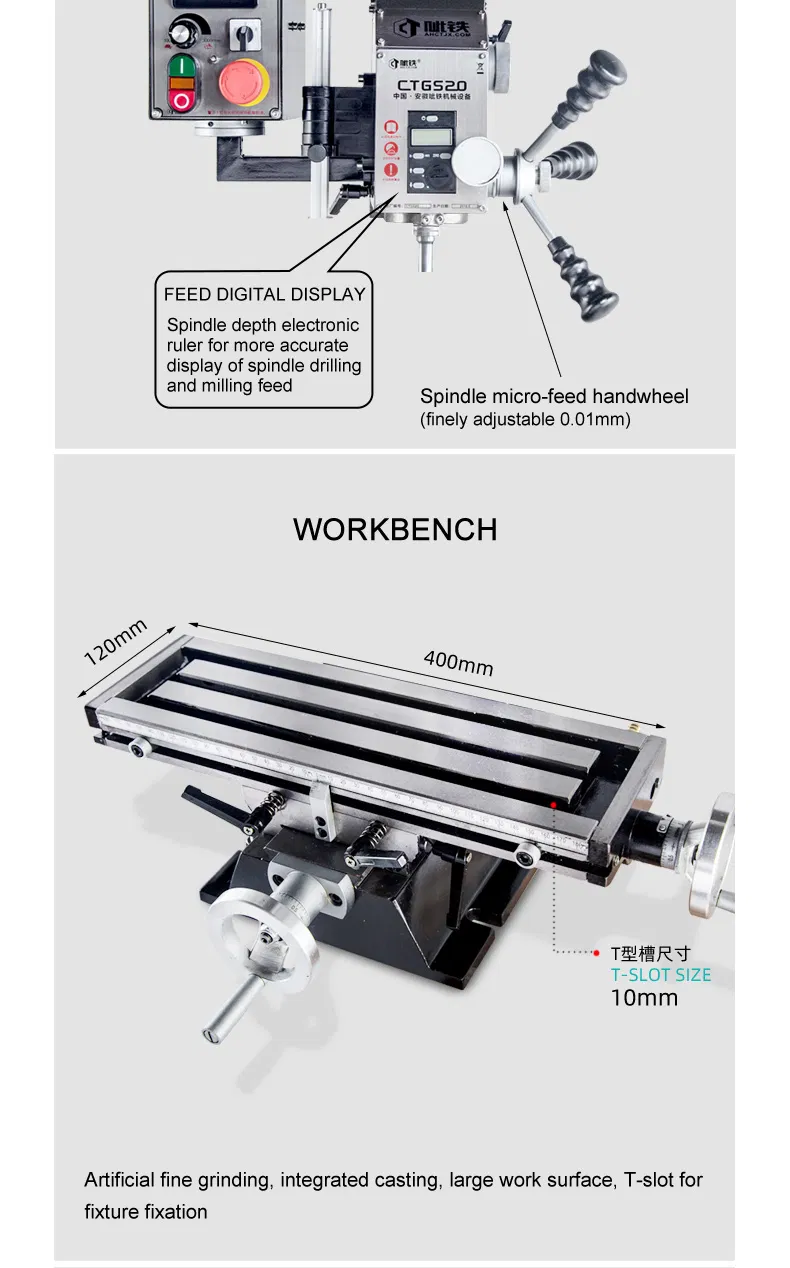

Drilling Machine CTGS20 Details 7

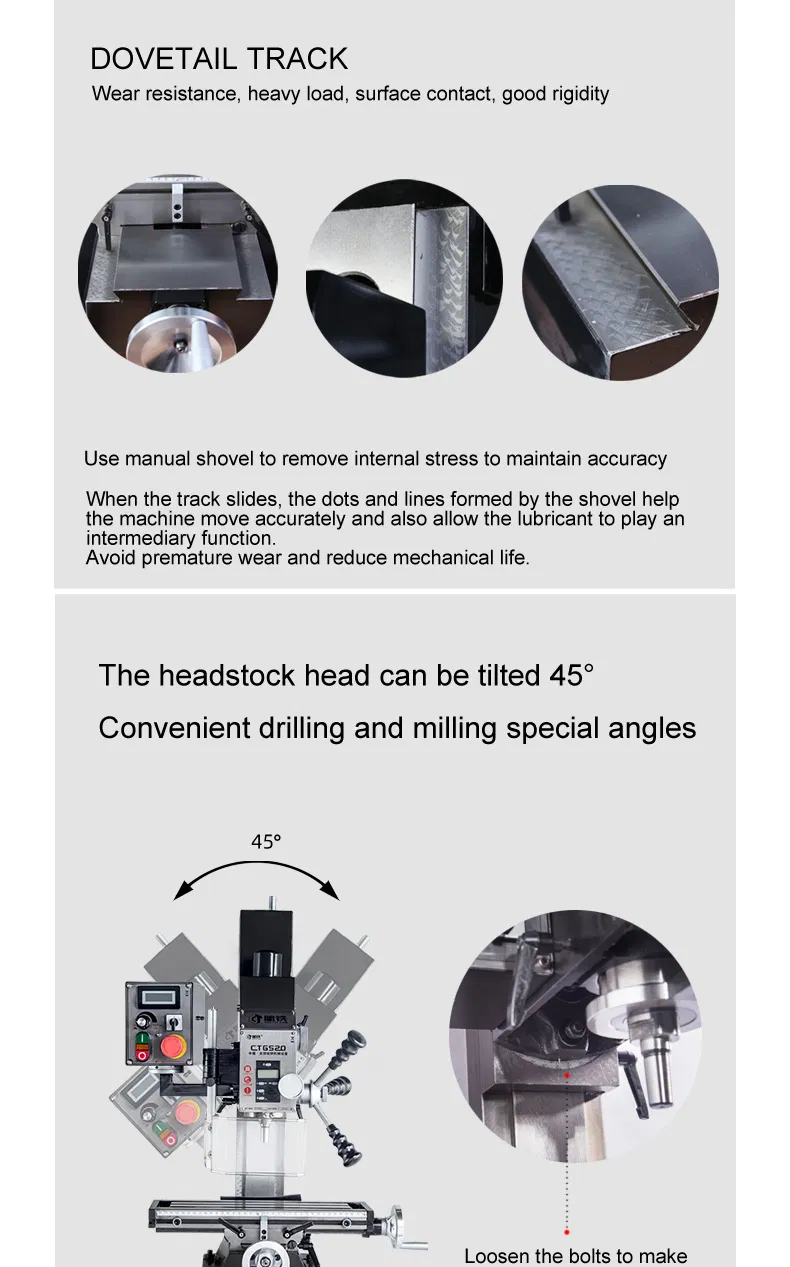

Drilling Machine CTGS20 Details 8

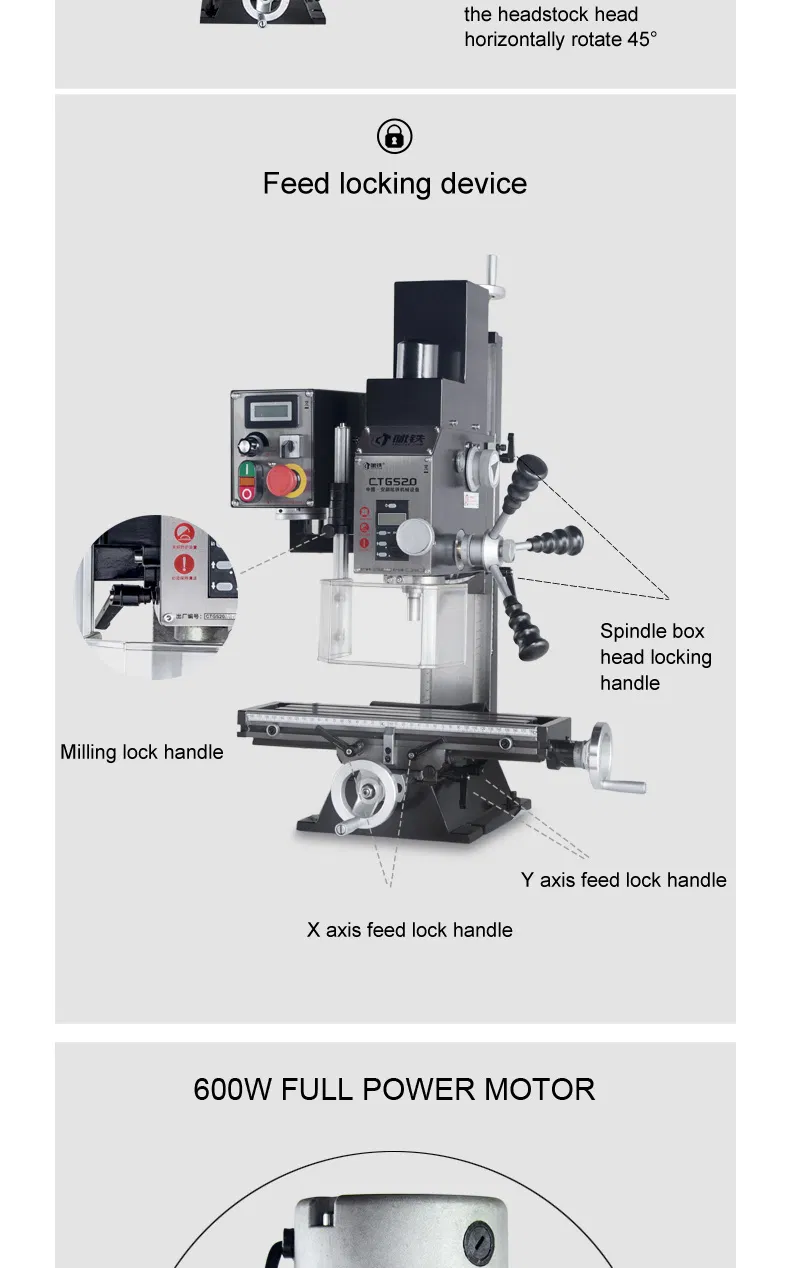

Drilling Machine CTGS20 Details 9

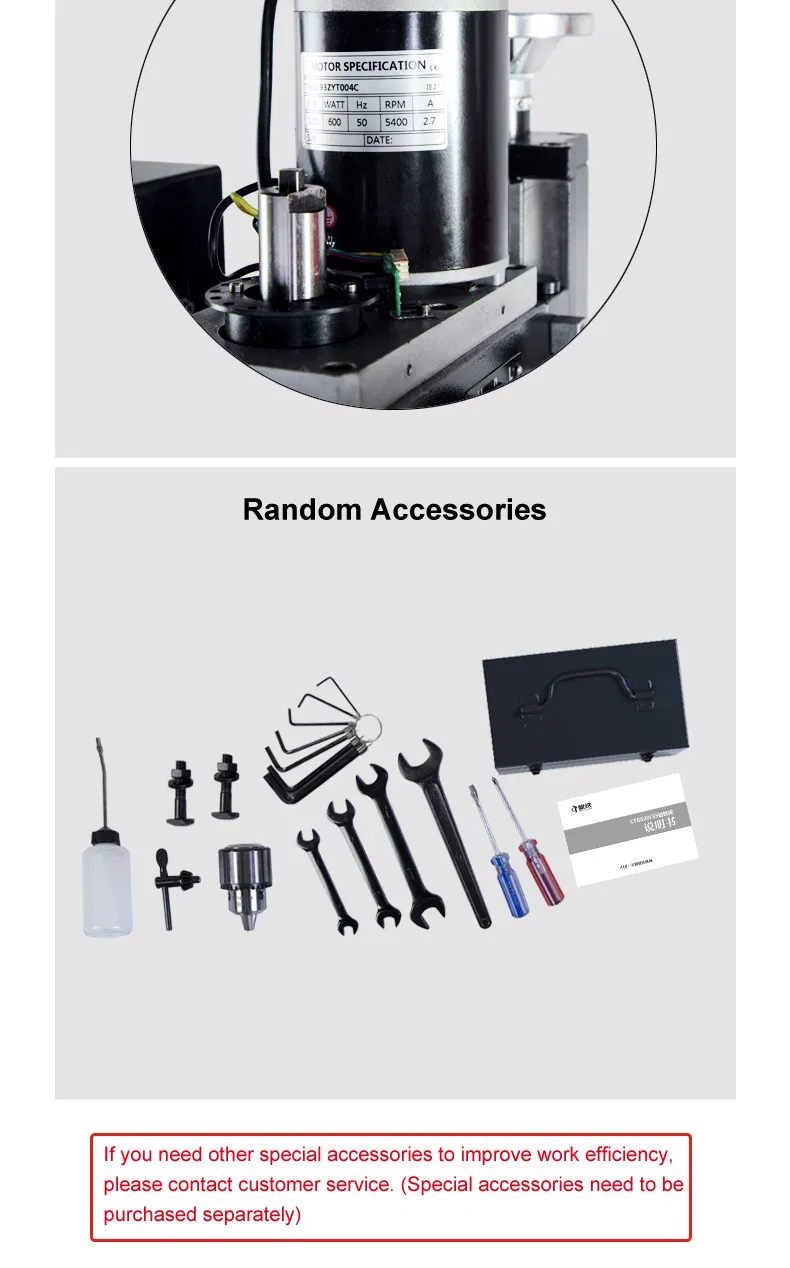

Drilling Machine CTGS20 Details 10
Drilling Machine CTGS20 Details 11
Drilling Machine CTGS20 Details 12
Frequently Asked Questions
What is the maximum drilling and milling capacity of the CTGS20?
The CTGS20 model features a maximum drilling capacity of 20mm, a maximum milling capacity of 52mm, and a vertical milling capacity of 16mm.
Can the spindle head be adjusted for angled operations?
Yes, the spindle box supports left and right rotation angles of up to ±90°, allowing for versatile machining operations.
What is the spindle speed range for this desktop machine?
The machine offers a wide spindle speed range from 100 to 3000 rpm, suitable for various materials and precision requirements.
What type of motor and power supply does the CTGS20 use?
The machine is equipped with a 600W motor, providing reliable power for high-precision manual drilling and milling tasks.
Is the CTGS20 suitable for high-precision industrial use?
Absolutely. With CE and ISO 9001 certifications, this high-precision desktop machine is designed to meet rigorous quality standards for industrial and workshop environments.
How is the product packaged for international transport?
The machine is shipped using standard wooden packing to ensure it remains protected and in new condition during transit.
