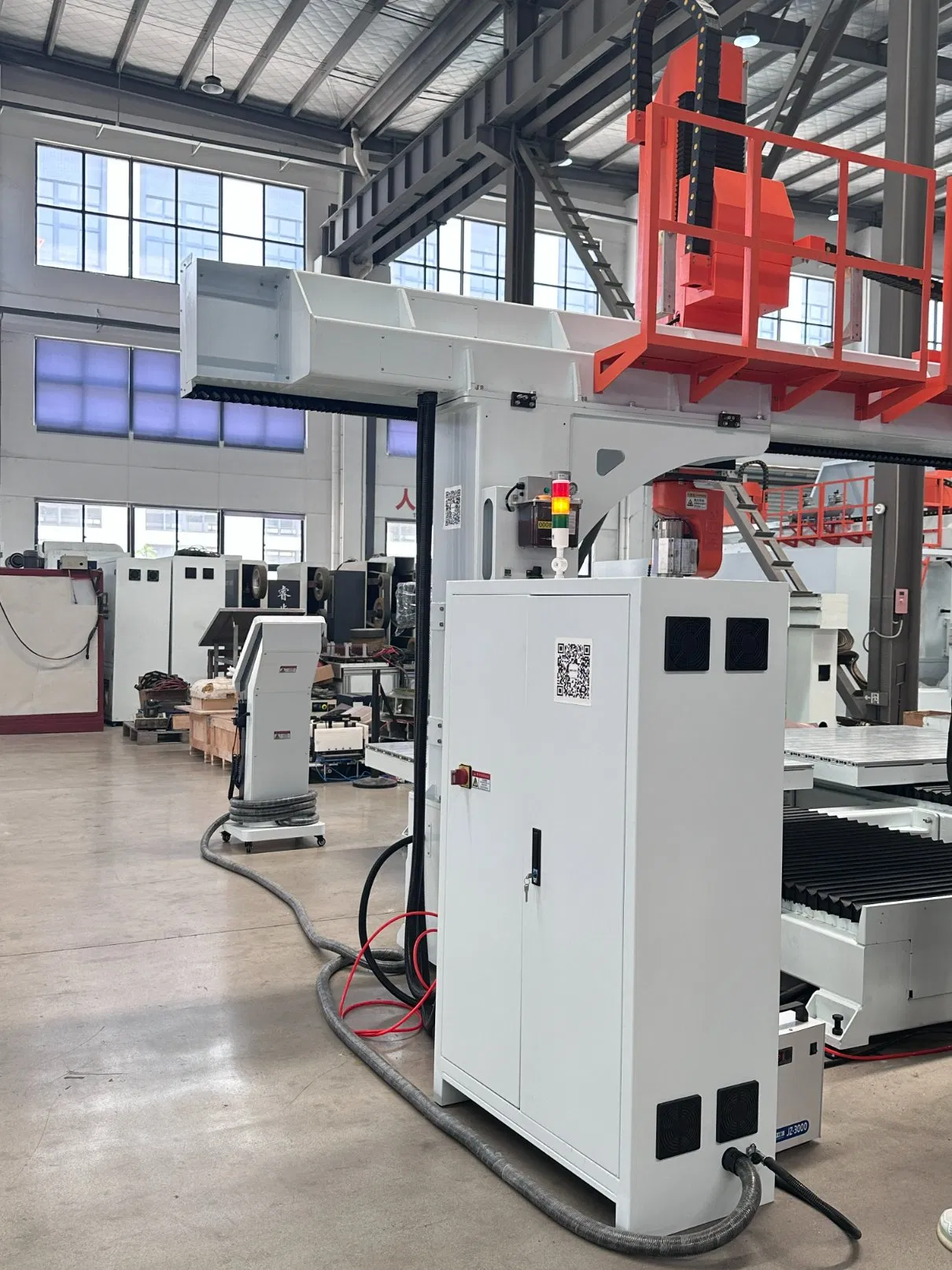

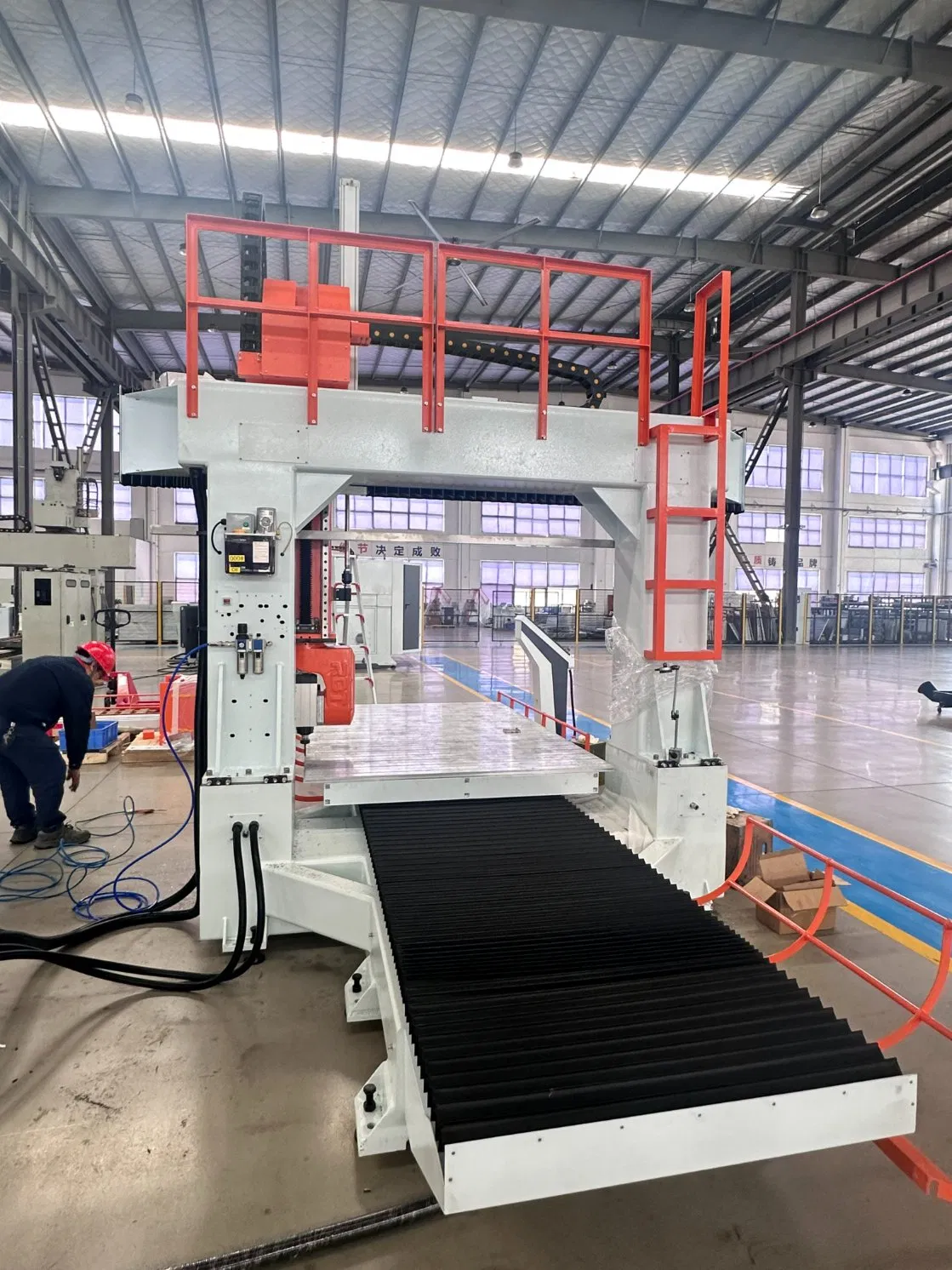

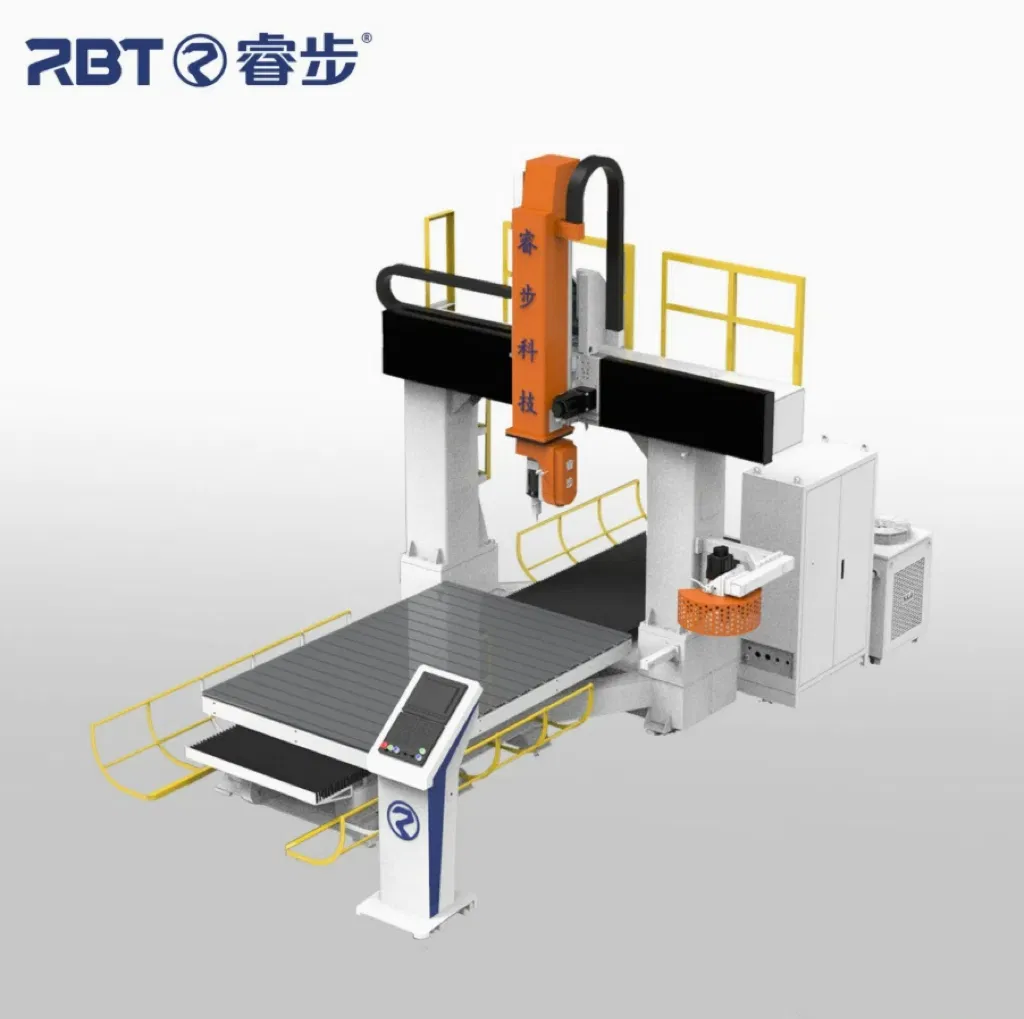

Custom Gasket Cutting 5 Axis CNC Router for PU/Nitrile/EPDM Foam
Custom Gasket Cutting 5 Axis CNC Router for PU/Nitrile/EPDM Foam
Custom Gasket Cutting 5 Axis CNC Router for PU/Nitrile/EPDM Foam
Custom Gasket Cutting 5 Axis CNC Router for PU/Nitrile/EPDM Foam
Custom Gasket Cutting 5 Axis CNC Router for PU/Nitrile/EPDM Foam
1 / 5
Custom Gasket Cutting 5 Axis CNC Router for PU/Nitrile/EPDM Foam
Custom Gasket Cutting 5 Axis CNC Router for PU/Nitrile/EPDM Foam
Custom Gasket Cutting 5 Axis CNC Router for PU/Nitrile/EPDM Foam
Custom Gasket Cutting 5 Axis CNC Router for PU/Nitrile/EPDM Foam
Custom Gasket Cutting 5 Axis CNC Router for PU/Nitrile/EPDM Foam

Custom Gasket Cutting 5 Axis CNC Router for PU/Nitrile/EPDM Foam

Customization: Available
After-sales Service: Life Time
Warranty: One Warranty
Send Inquiry

Product Description

ℹ️ Basic Information
Model NO.
RB-F5-2535-Z08
Application
Composite Material
Weight
3500kg
X Axis Effective Stroke
2500mm
Z Axis Effective Stroke
800mm
C-Axis Rotation Angle
+/- 540 Degree
Z Axis Maximum Speed
20m/Min
Y Axis Effective Stroke
3500mm
Voltage
380V/50Hz
Spindle Power
3-20kw(Customizable)
Specification
5100*2610*3982mm
Production Capacity
200set/Months
🚀 Product Overview

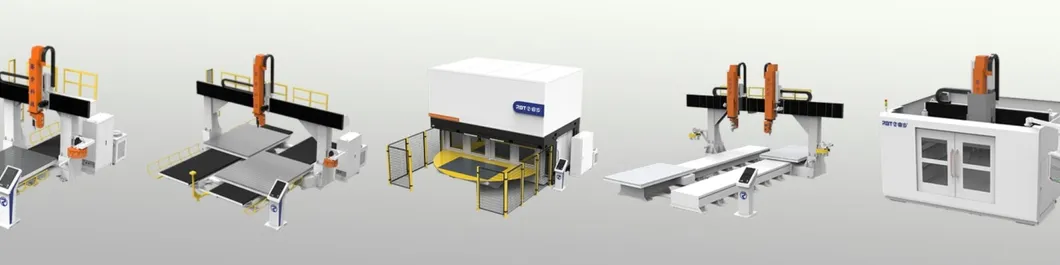

Machining Center Overview

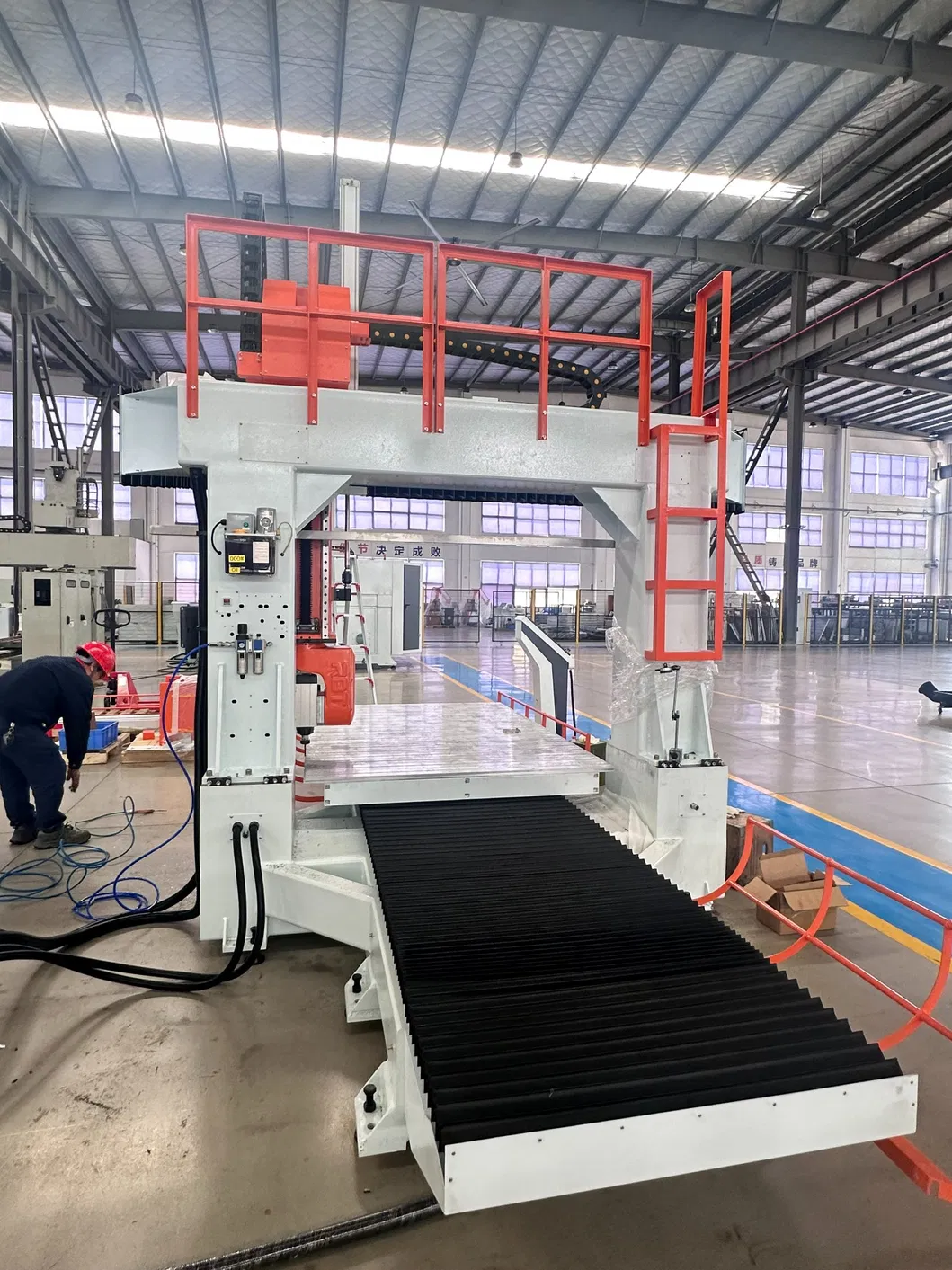

Processing Feature
1. Advanced Processing: Specialized in carbon fiber and composite materials, enabling three-dimensional special-shaped cutting and drilling.

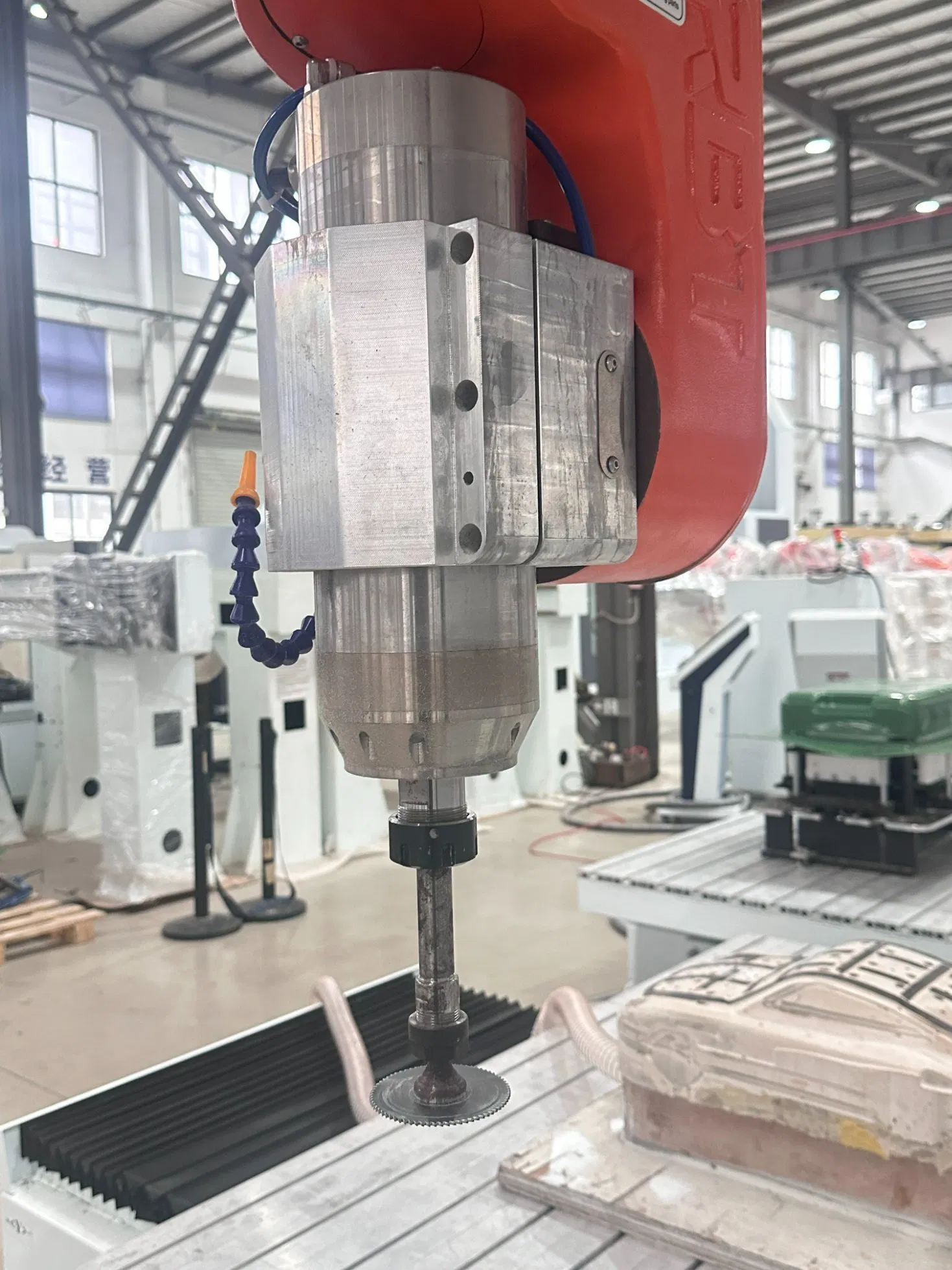

2. Efficient Cutting: High elastic modulus materials are handled with ease using imported high-speed spindles.

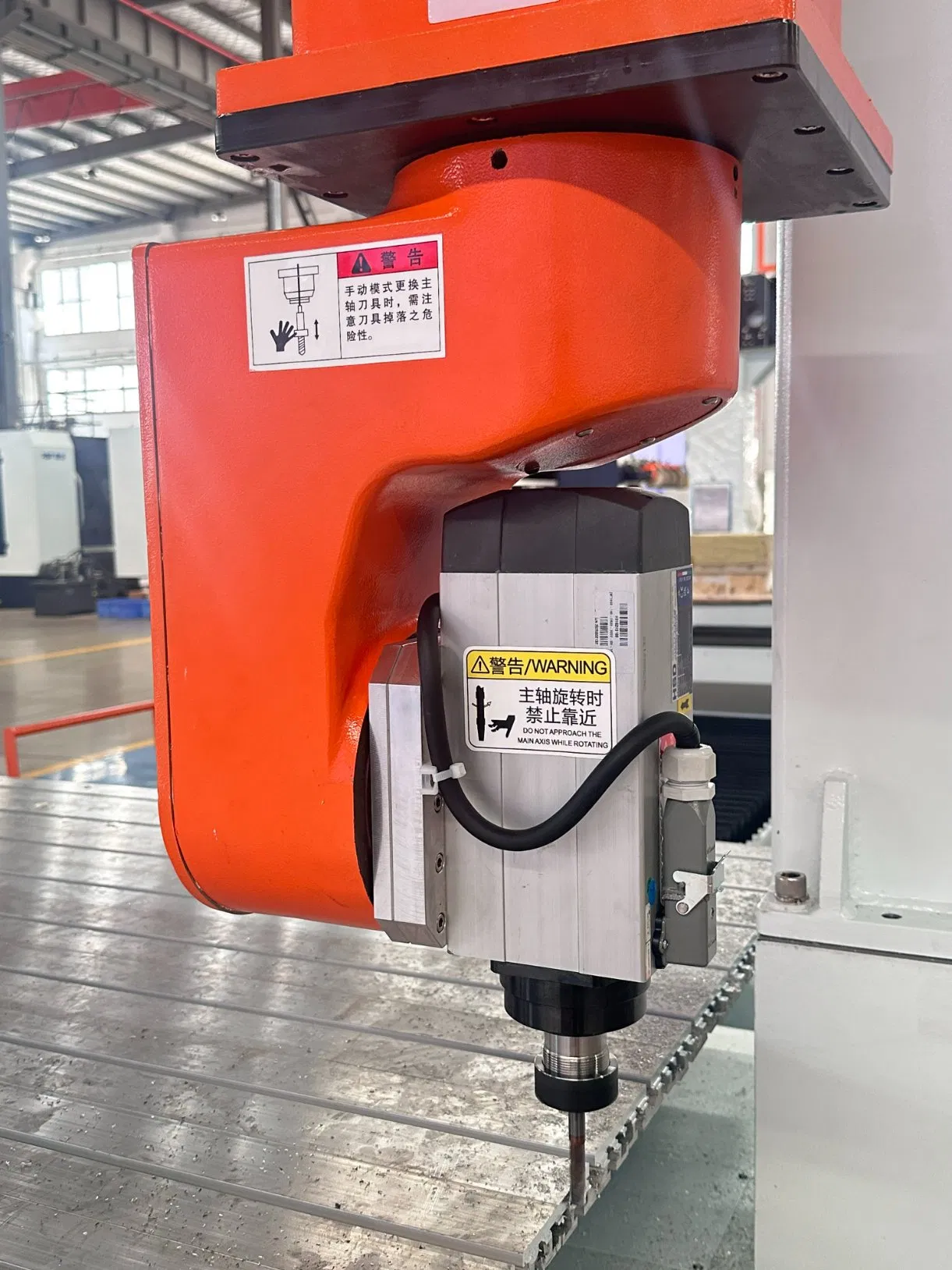

3. Multi-Angle Drilling: Features a double swing head spindle achieving a 360° swing angle for precise drilling.
🖼️ Product Show
Show 1

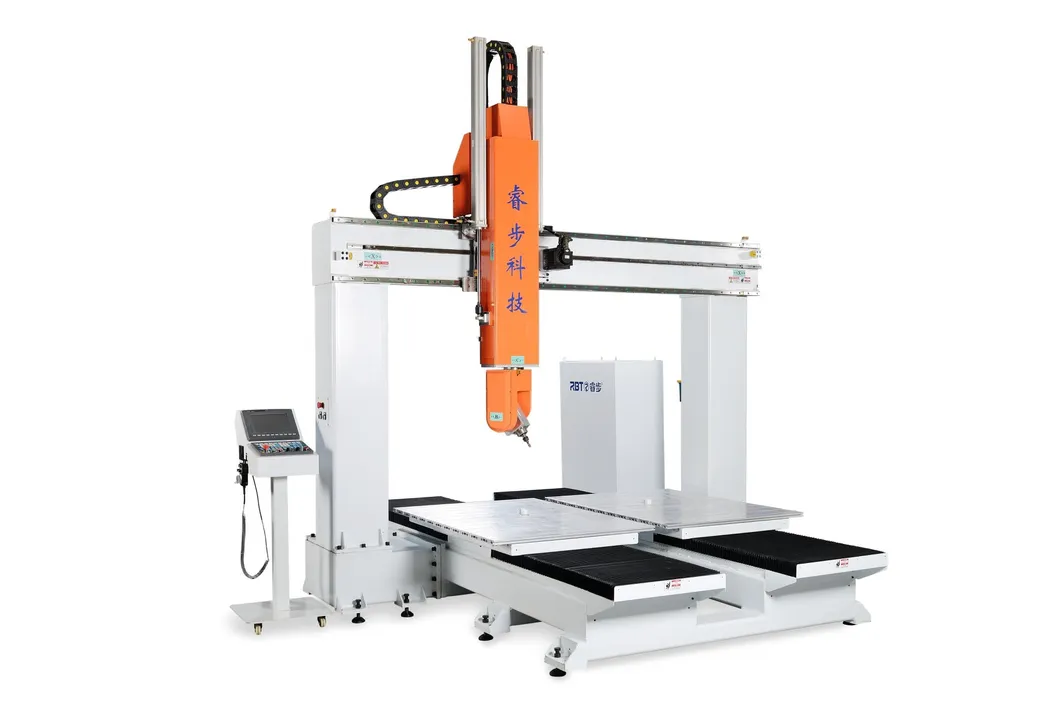

Show 2

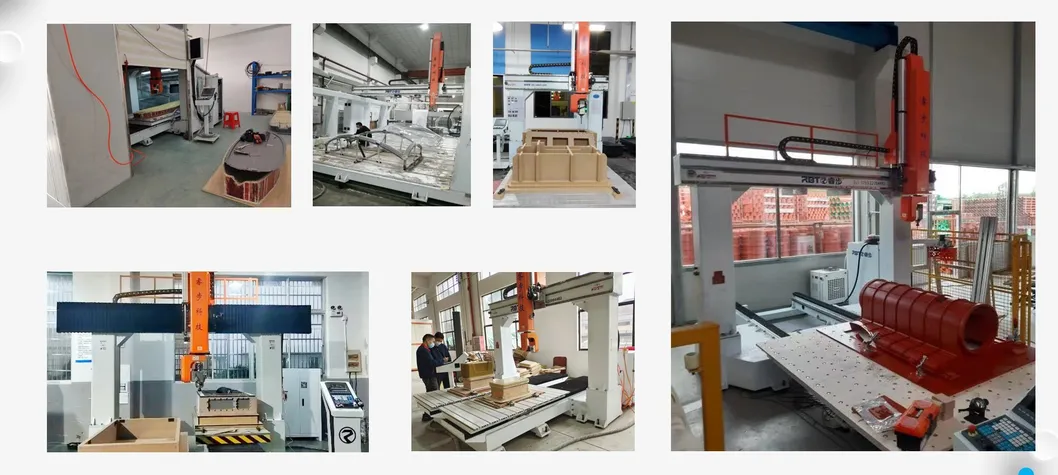

Full Machine View
💎 Product Style

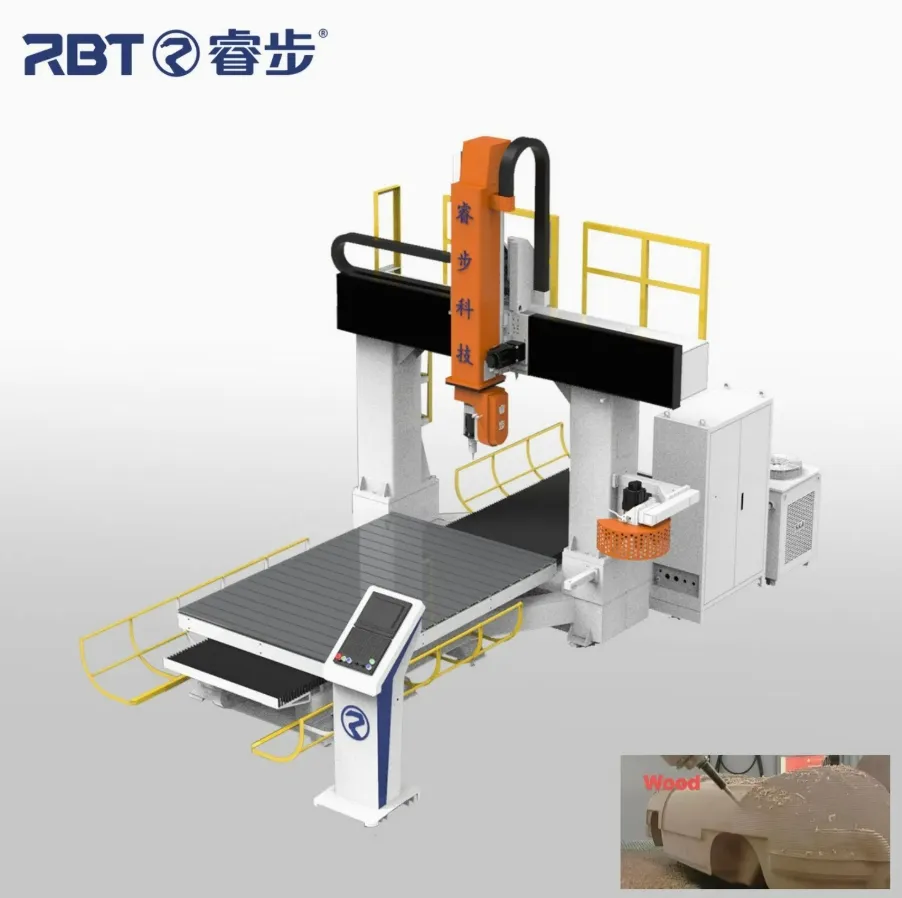

Style 1

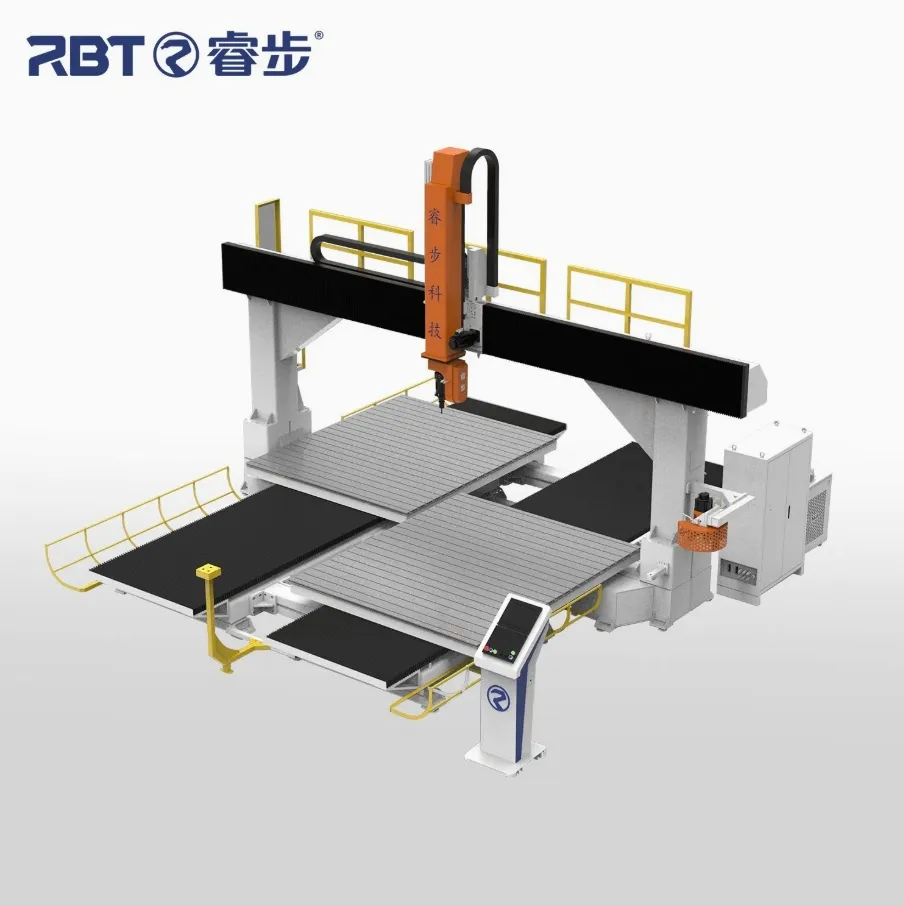

Style 2

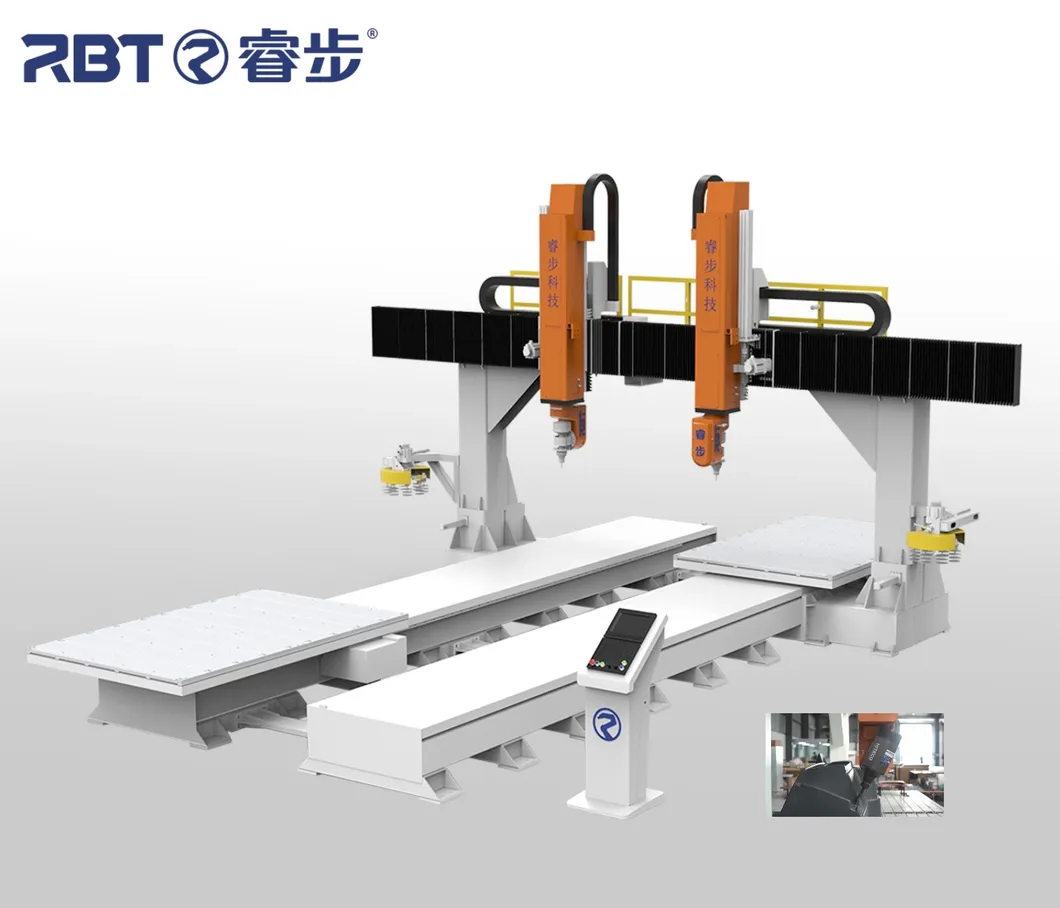

Style 3

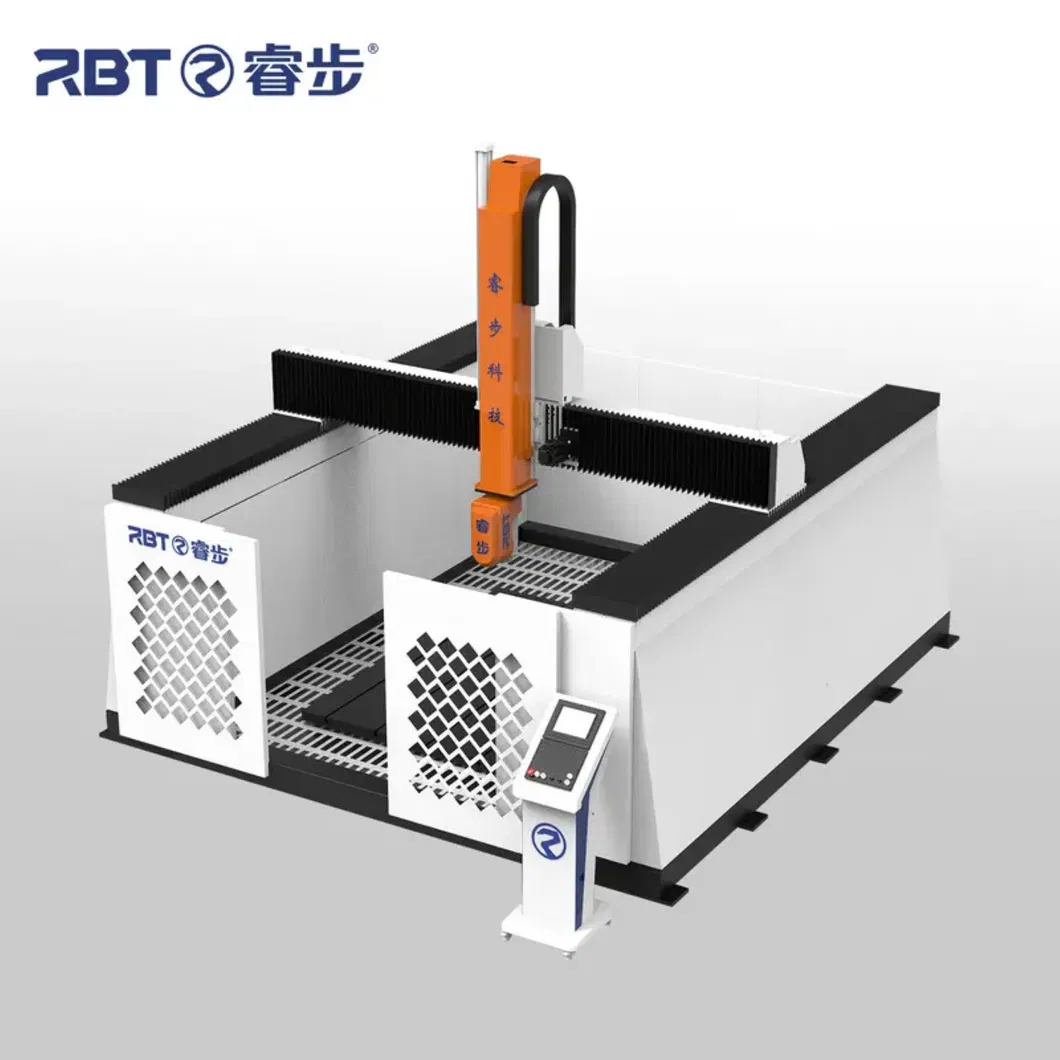

Style 4

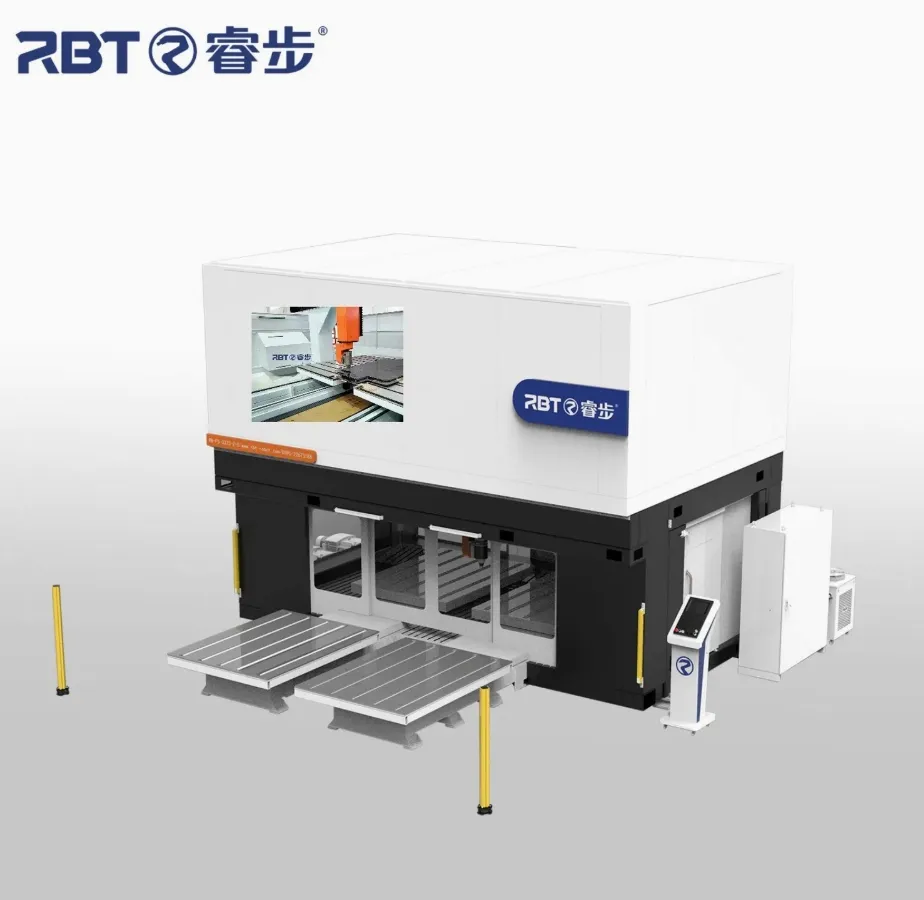

Style 5
Style 6
📊 Product Parameters
Parameter Chart
Product NameNon-mental 5 axis machining center
ScrewTaiwan TBI
Linear GuideTaiwan CSK
RackLiangchi
ServoInovance
Control SystemTaiwan SYNTEC
Electrical ComponentsFrance Schneider
Spindle Power5.5KW/24000rpm/water cooling
Frequency ConverterSinovo
Pneumatic ComponentsTaiwan AirTAC
B-axis Rotation Angle±130°
C-axis Rotation Angle±540°
Repeatability±0.05mm
Total Power14.5KW
Dimensions5100*2610*3982mm
🏆 Certificates & Profile
Certificates
Team 1
Team 2
Team 3

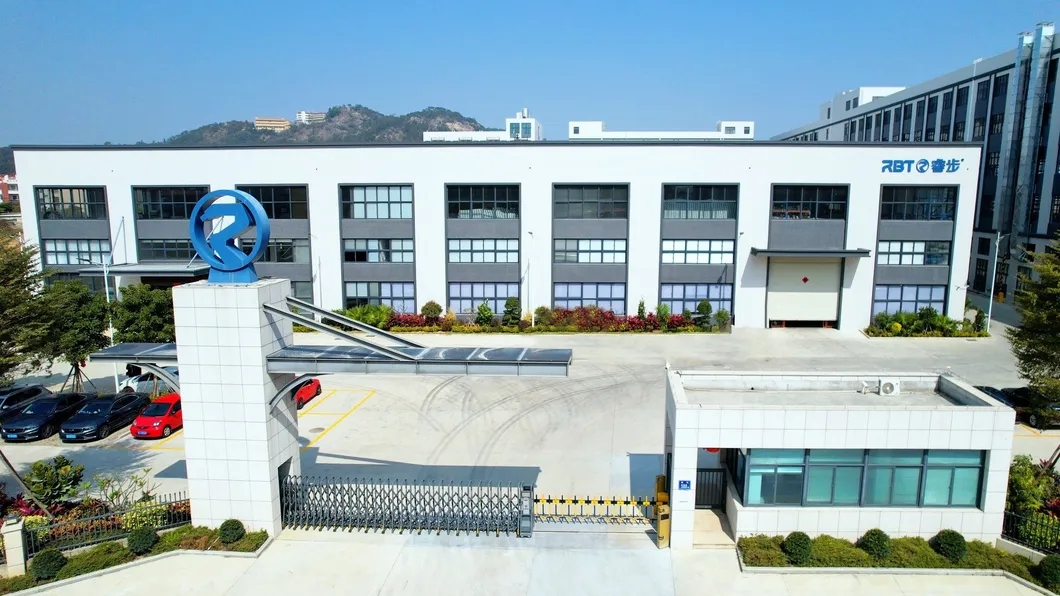

Profile Image

We are an integrated intelligent equipment solution provider specializing in the customization of five-axis machining centers with over 15 years of industry experience. Main products include gantry type, truss type, fully enclosed 5/6 axis machining centers, and non-standard automatic production lines.

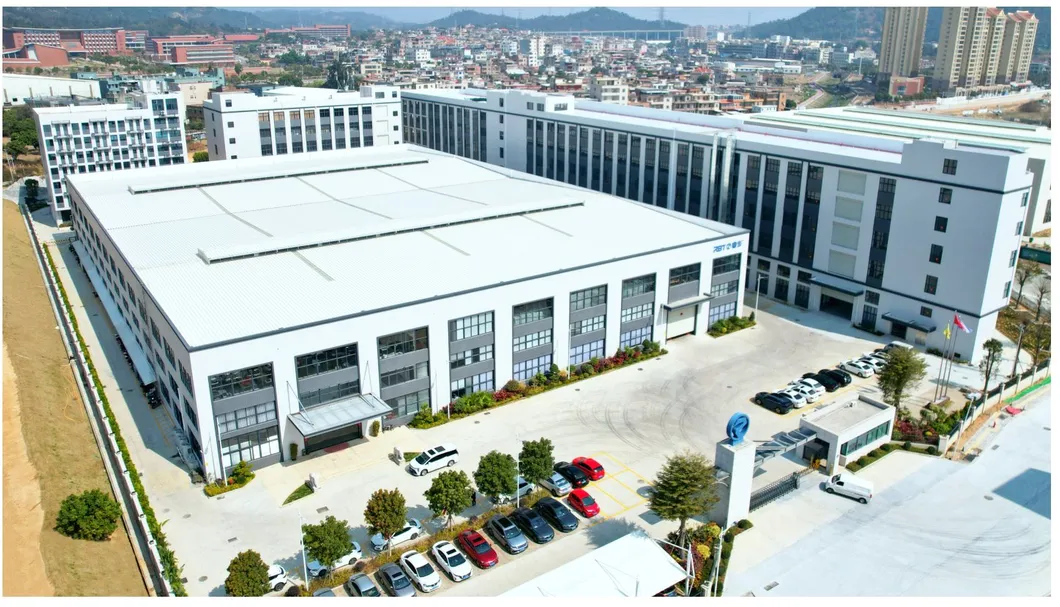

Facility 1

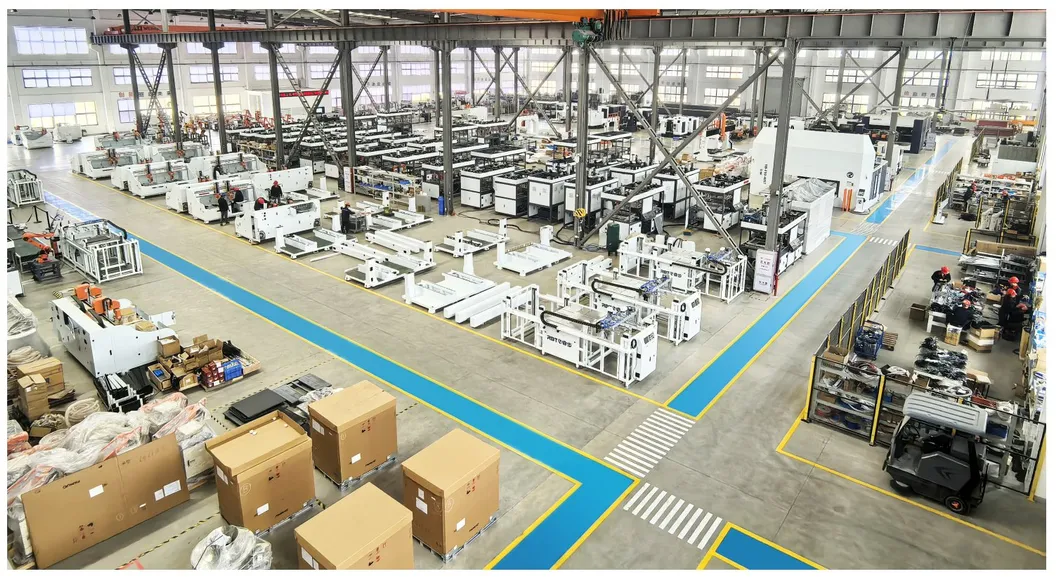

Facility 2
Process View Equipment View 1 Equipment View 2 Workshop
❓ Frequently Asked Questions
Why choose our equipment?
We are committed to offering high-quality products with superior performance at competitive prices, backed by in-time delivery and comprehensive 7/24 after-sale services.
Do you produce machines based on specific samples?
Yes, we can produce the machine you require based on your samples or technical drawings, including specialized molds and fixtures.
What payment terms do you accept?
Normally, a 50% deposit is required in advance, with the 50% balance settled before shipment. Irrevocable L/C at sight is also acceptable.
What certifications do your products have?
All products meet ISO9001 Quality System standards and have acquired CE and ISO certificates.
What is the typical delivery time?
It usually takes 15 to 30 days after receiving your deposit. Standard products are often in stock for immediate delivery, while customized orders take more time.
How is the after-sales service handled?
We arrange technical staff for installation and training at your site. We also offer 24h online video support and provide full English manuals and instruction videos.
