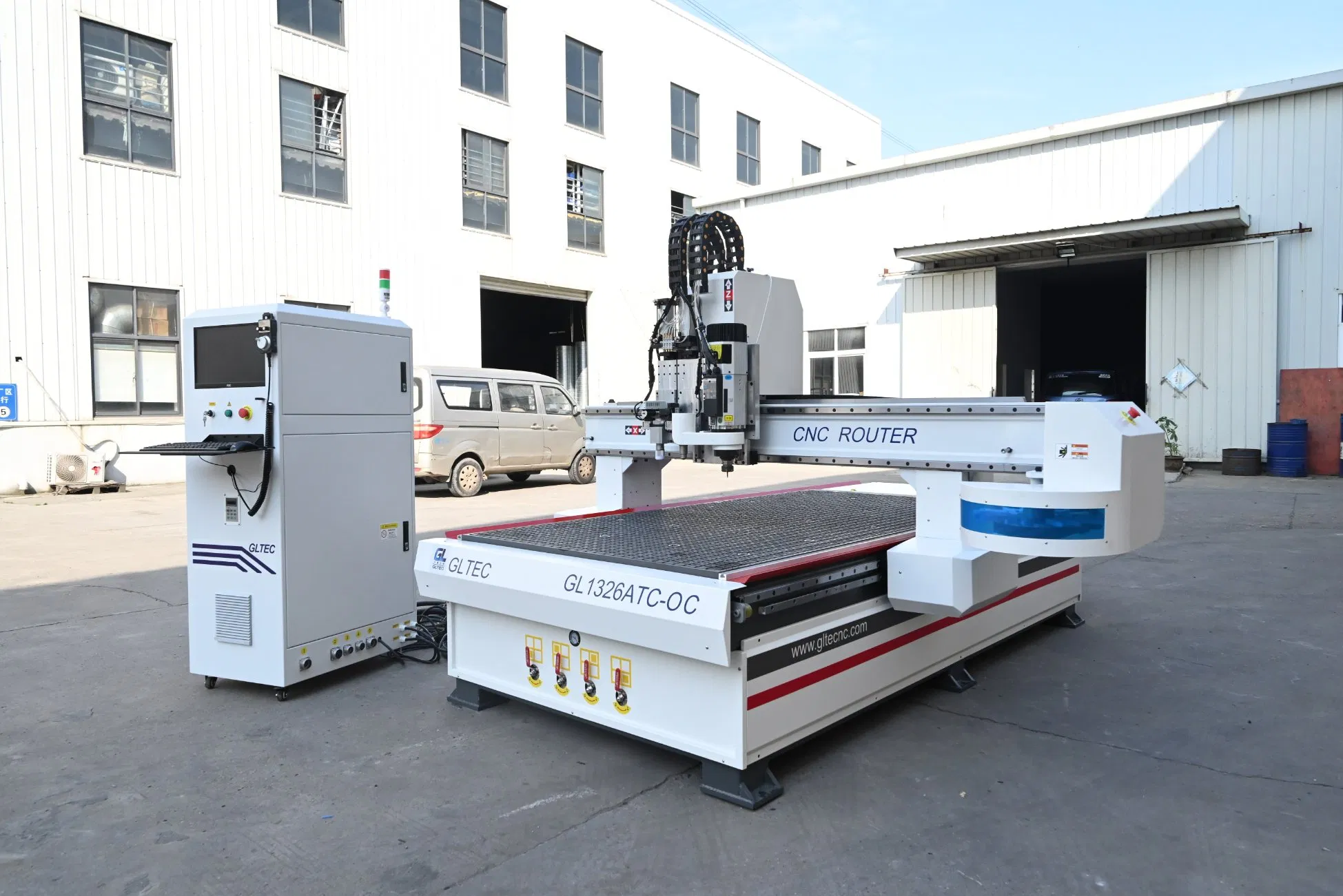

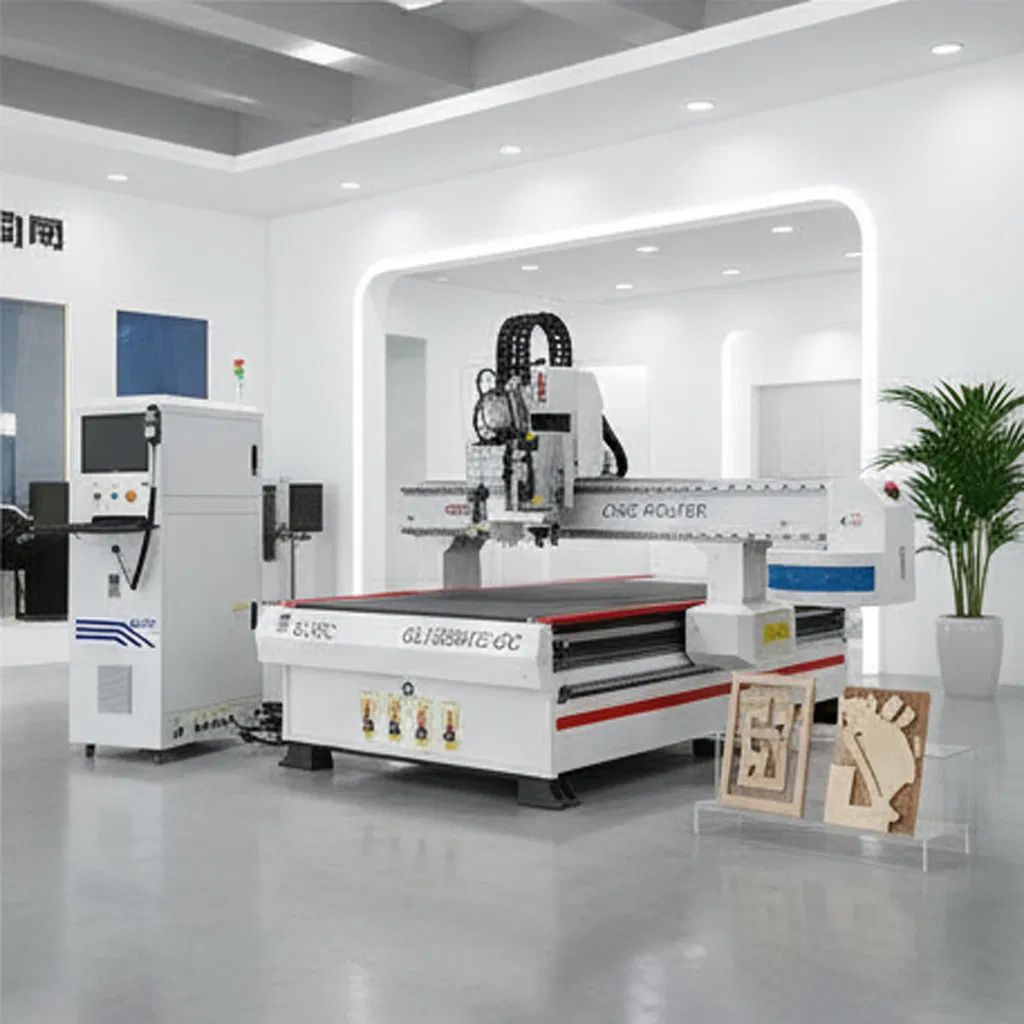

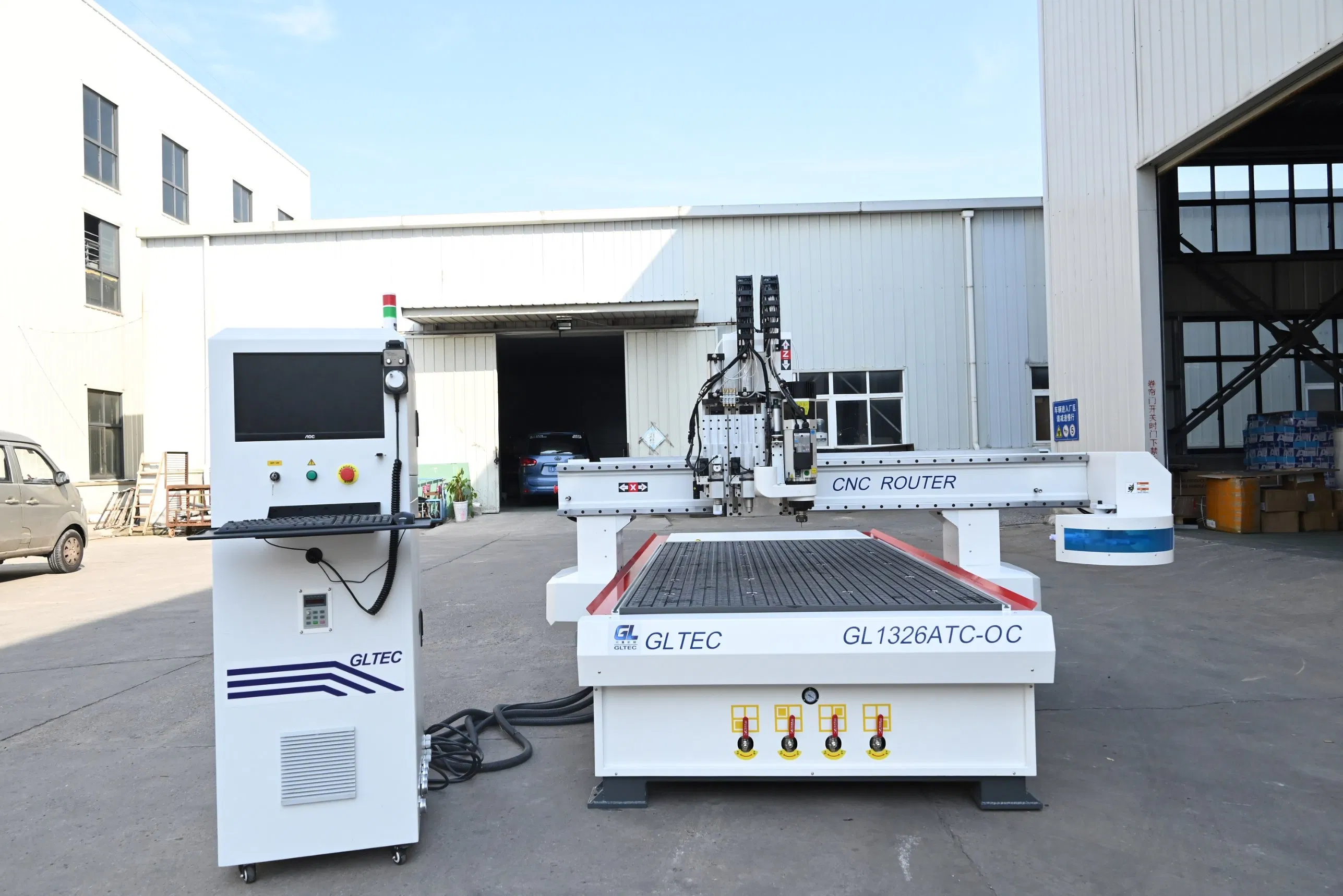

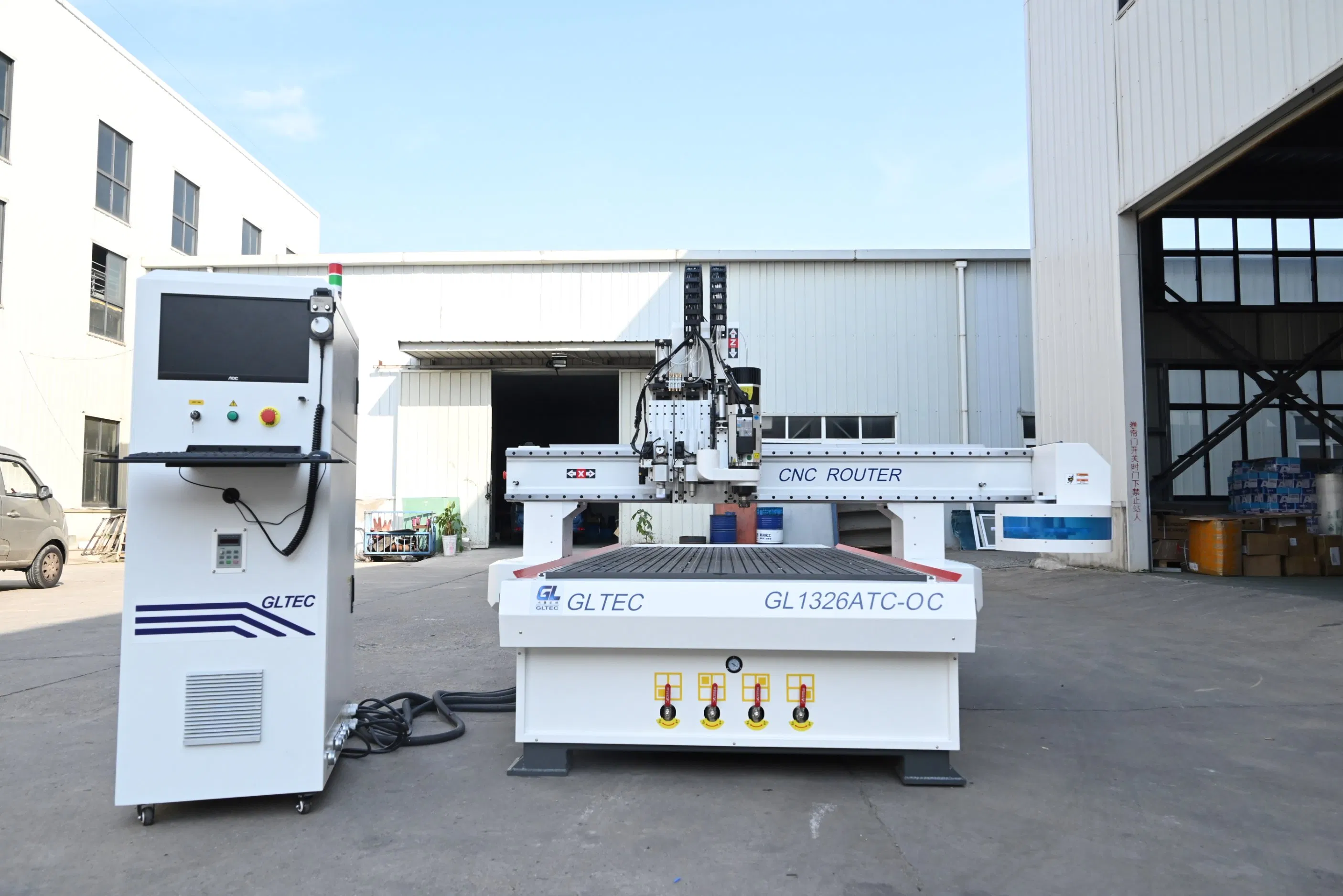

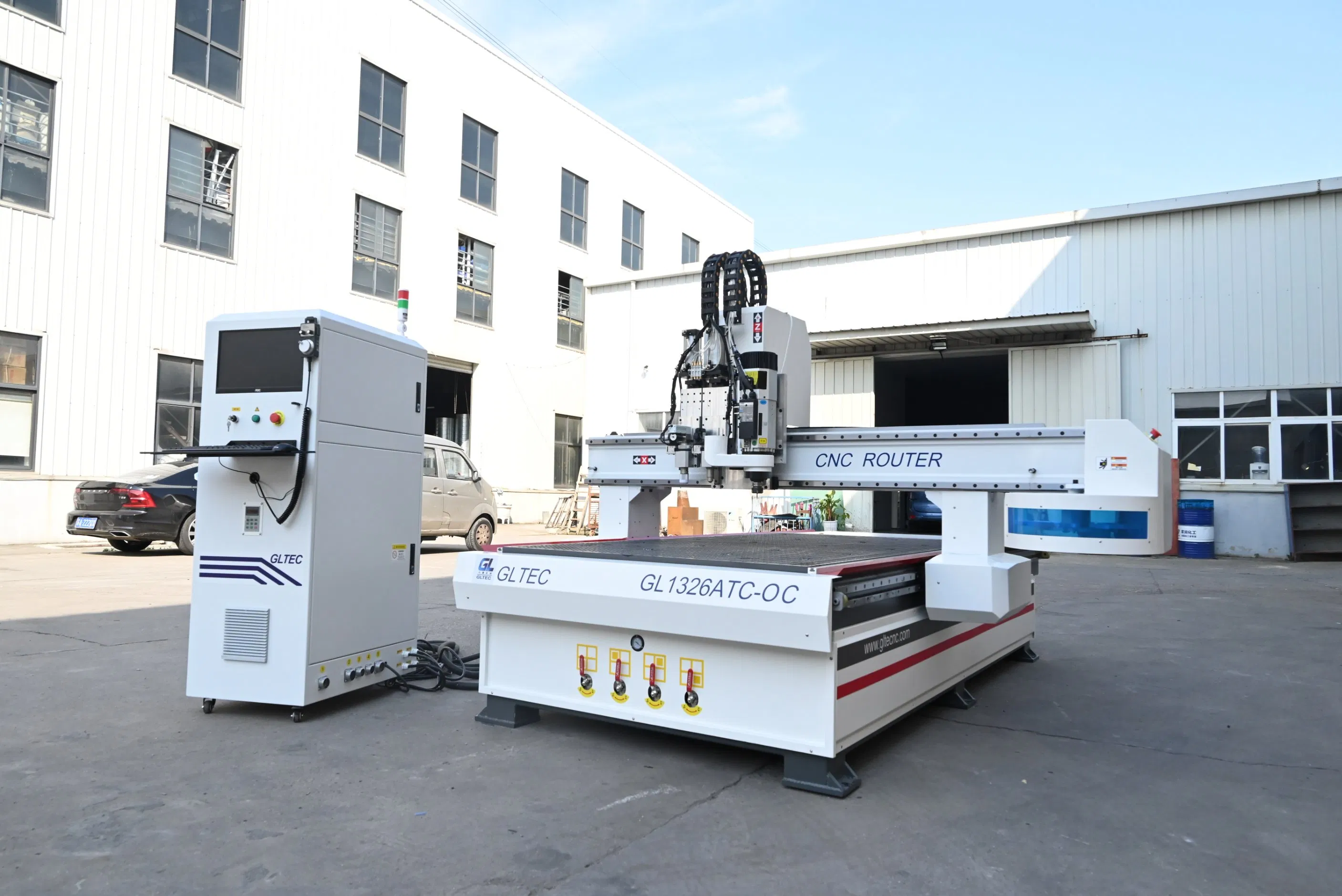

Knife Cutting Machine with Atc Eot for Acrylic MDF Cardboard Hollow Board

Customization: Available
After-sales Service: 2 Years
Warranty: 2-year

Product Description

📊

Basic Information

Model NO.UT1326ATC-OC
CertificationCE
ConditionNew
ControlAutomatic
ApplicationPaper, Plastic, Leather, EVA Foam, Thin Acrylic, Aluminum Composite
Power SourceElectric
Spindle Power9kw ATC Spindle
Knife SystemOscillating + Creasing + CCD Camera
Table TypeVacuum
Tool ChangerLinear or Carrousel; 8 Tools
Package Gross Weight1400.000kg
📸

Detailed Photos & Main Parts

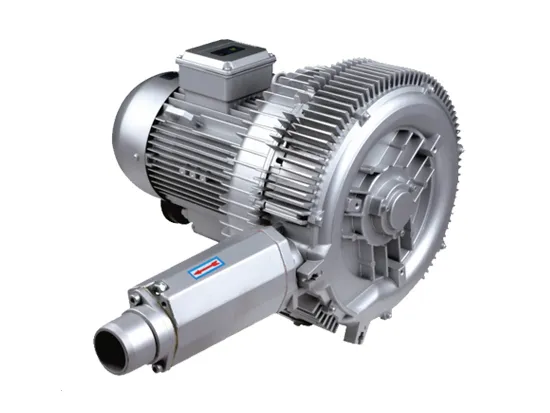

7.5KW Pump

7.5KW Pump

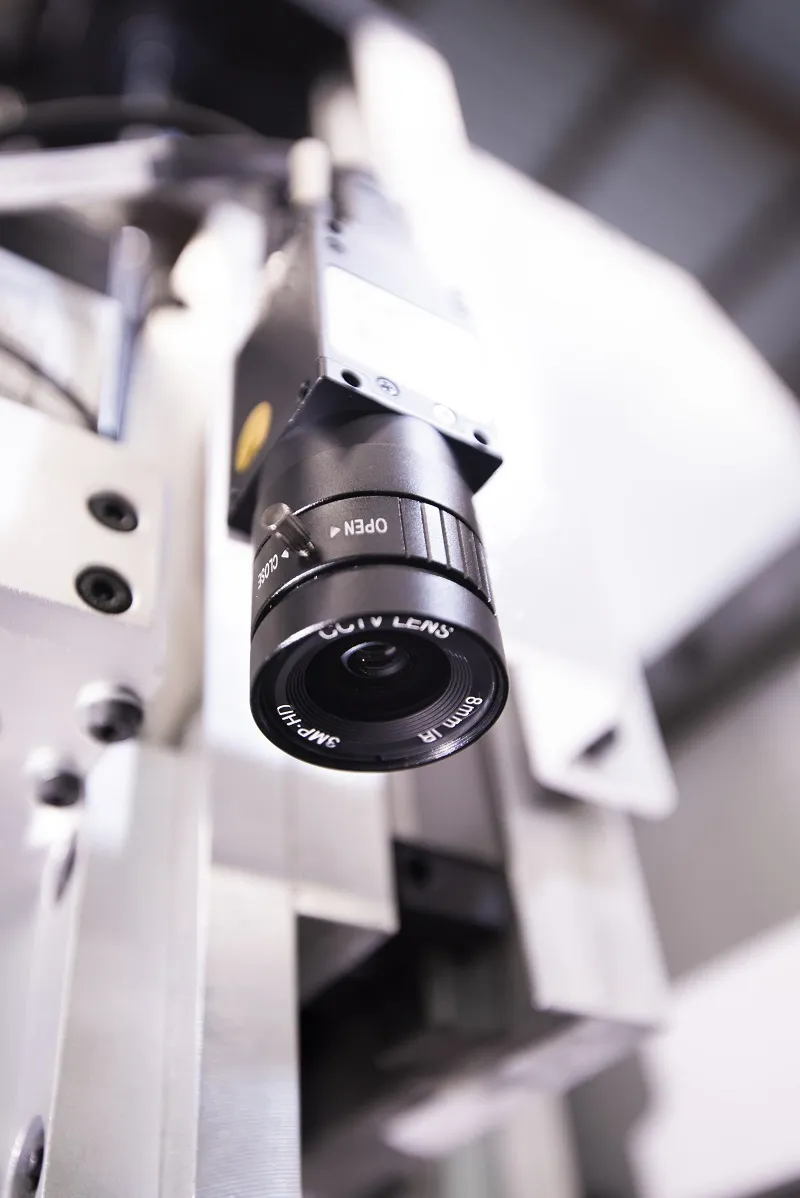

CCD camera

CCD Camera

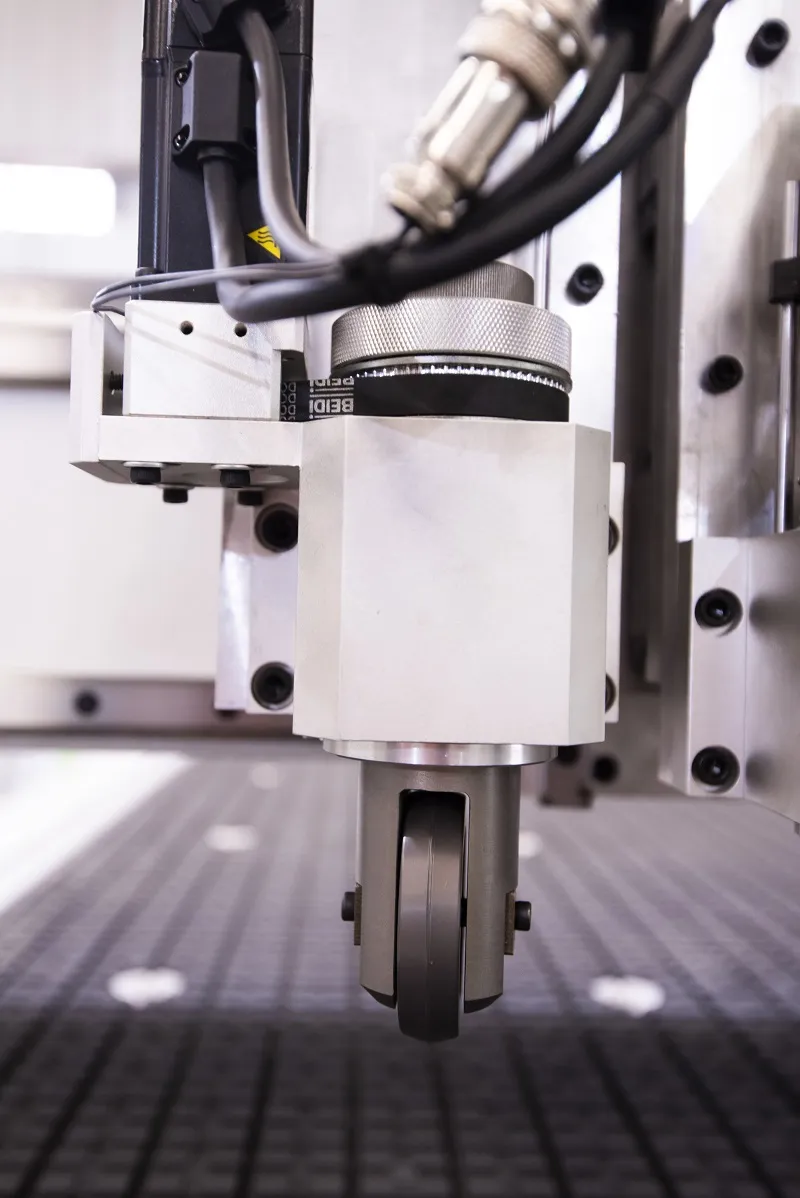

Creasing Head

Creasing Head

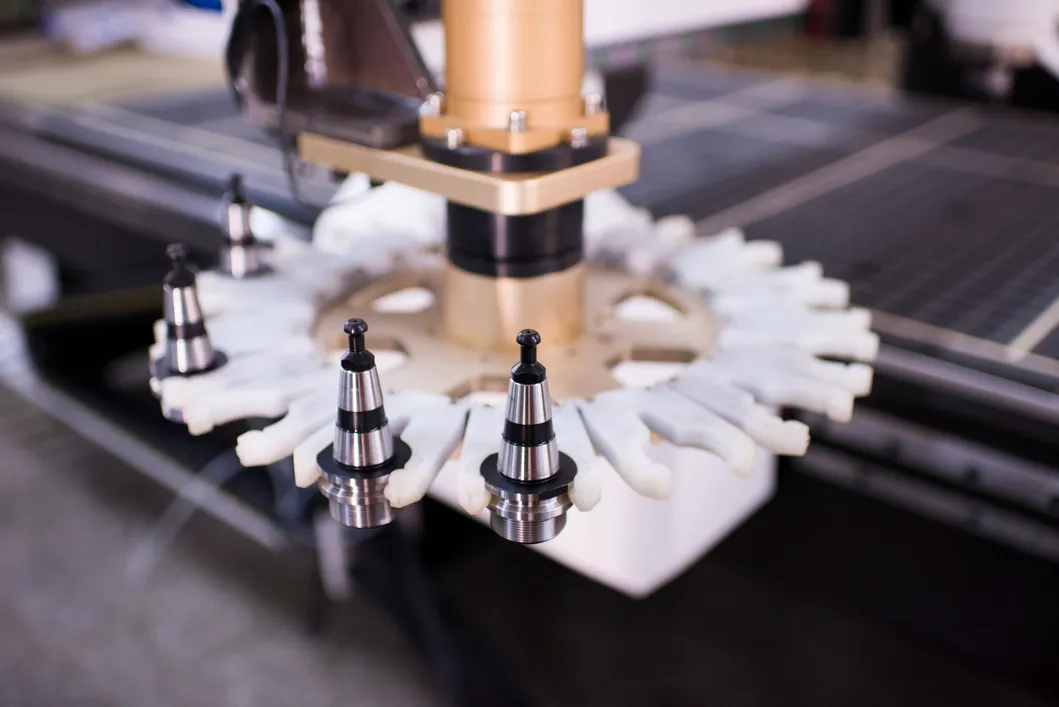

Carrousel Tool Changer

Carrousel Tool Changer

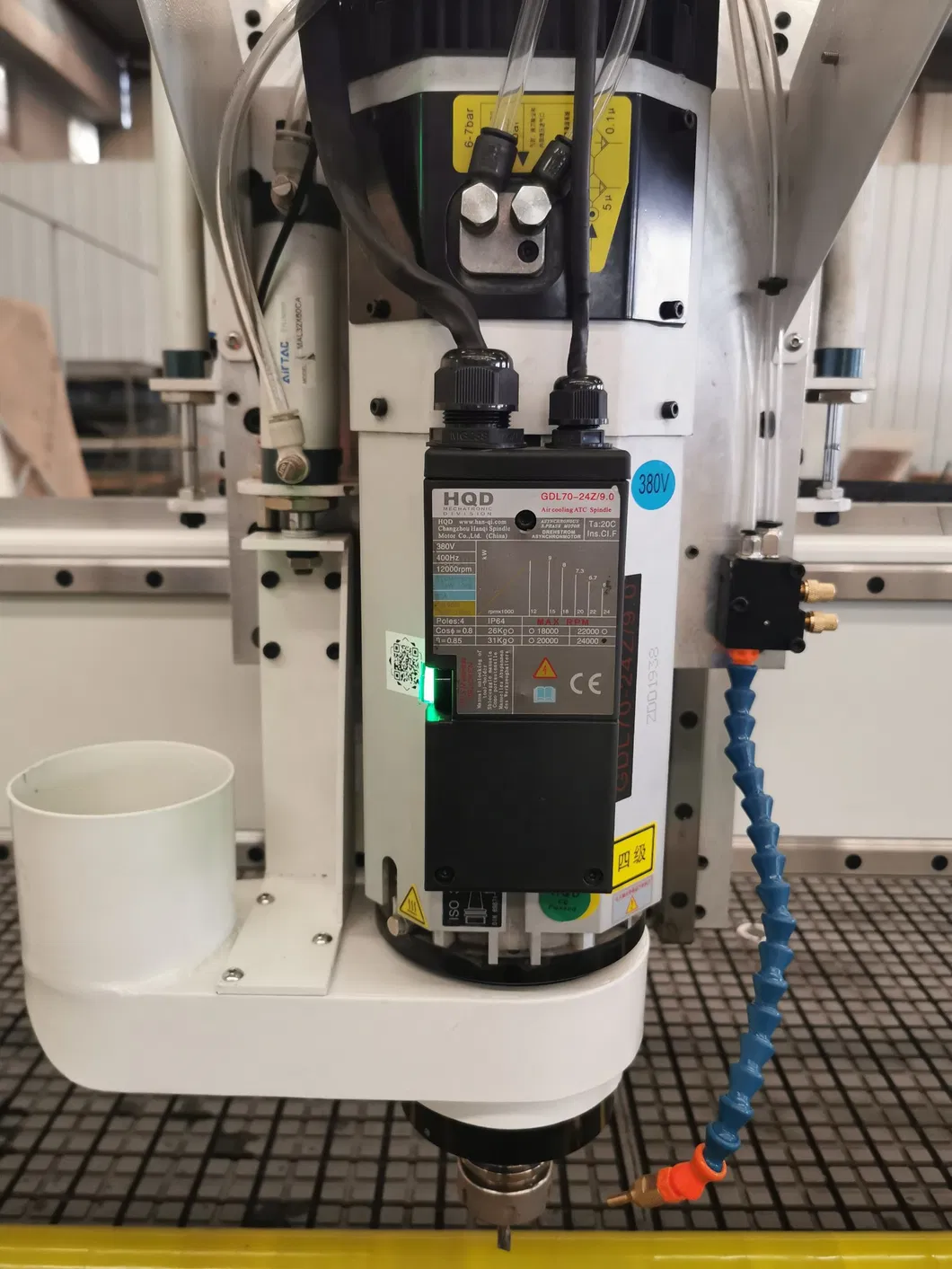

ATC Spindle

9KW ATC Spindle

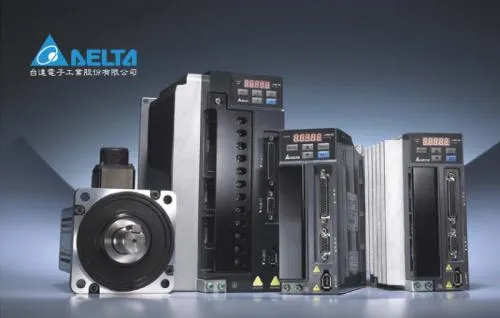

Servo Motor

Servo Motor and Driver

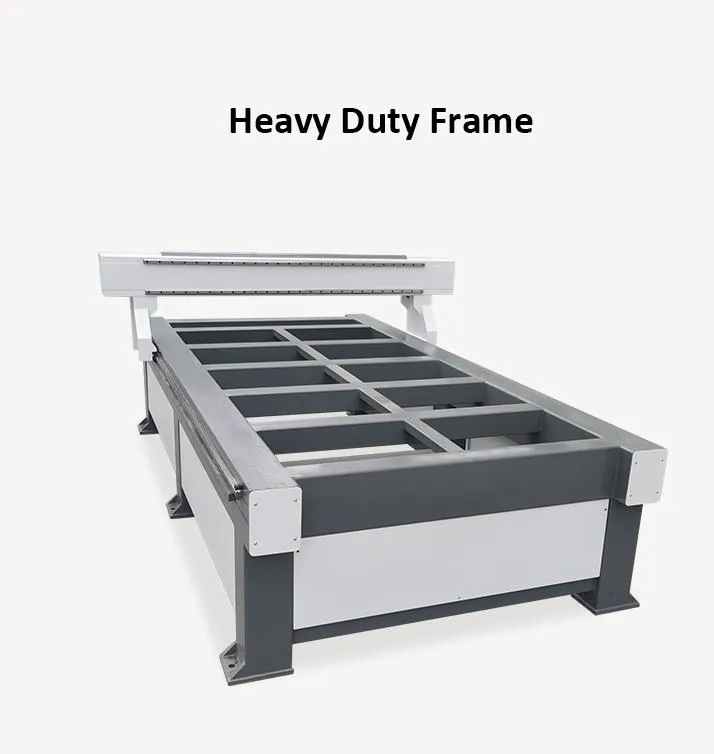

Heavy Duty Frame

Heavy Duty Frame

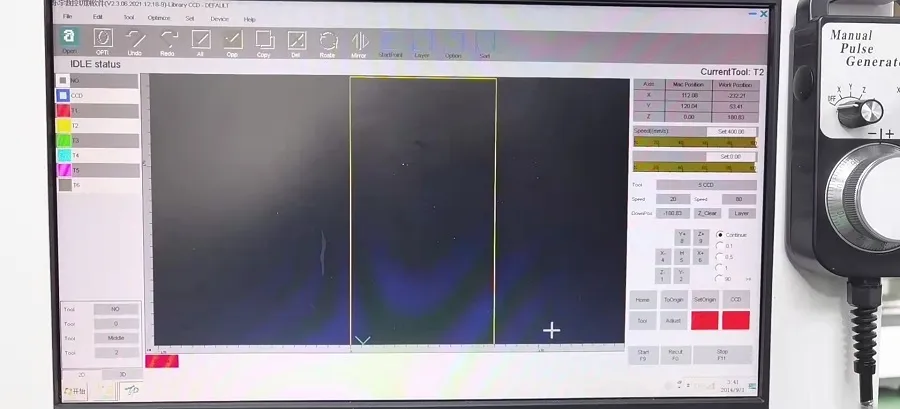

Controller

Controller System

Oscillating Head

Oscillating Head

⚙️

Technical Parameters

XYZ Travel Size1300 X 2500 X 220mm
Transmission TypeXY rack/ Z ball screw
Table TypeVacuum
Spindle Speed18000rpm
Max Travel Speed45000mm/min
Processing Accuracy±0.05mm
Repeat Positioning±0.01mm
Overall Weight1500KG
📝

Product Highlights & Applications

Applicable Industries:

  • Automobile: Car Mats, leather seats, Aluminum Composite
  • Advertising: Acrylic, Flag Banner, KT board, Foam Board, MDF, Plastic
  • Packaging: EVA Foam, Kraft Paper, corrugated paper, cardboard, hollow board

Technical Highlights:

  • Welded large-size rectangular tube processed by high-precision gantry milling for maximum stability.
  • Equipped with high-power spindle for processing both soft and high-hardness materials in one machine.
  • Y-axis dual motor drive with planetary reducer ensures high speed without deformation or shaking.
  • Automatic refueling lubrication system for easy maintenance.
  • Strict compliance with CE electrical standards for circuit design and safety protection.
  • Fine processing quality with clear edge contours and smooth bottom surfaces.
Certifications
Packaging & Shipping
Exhibition
🏢

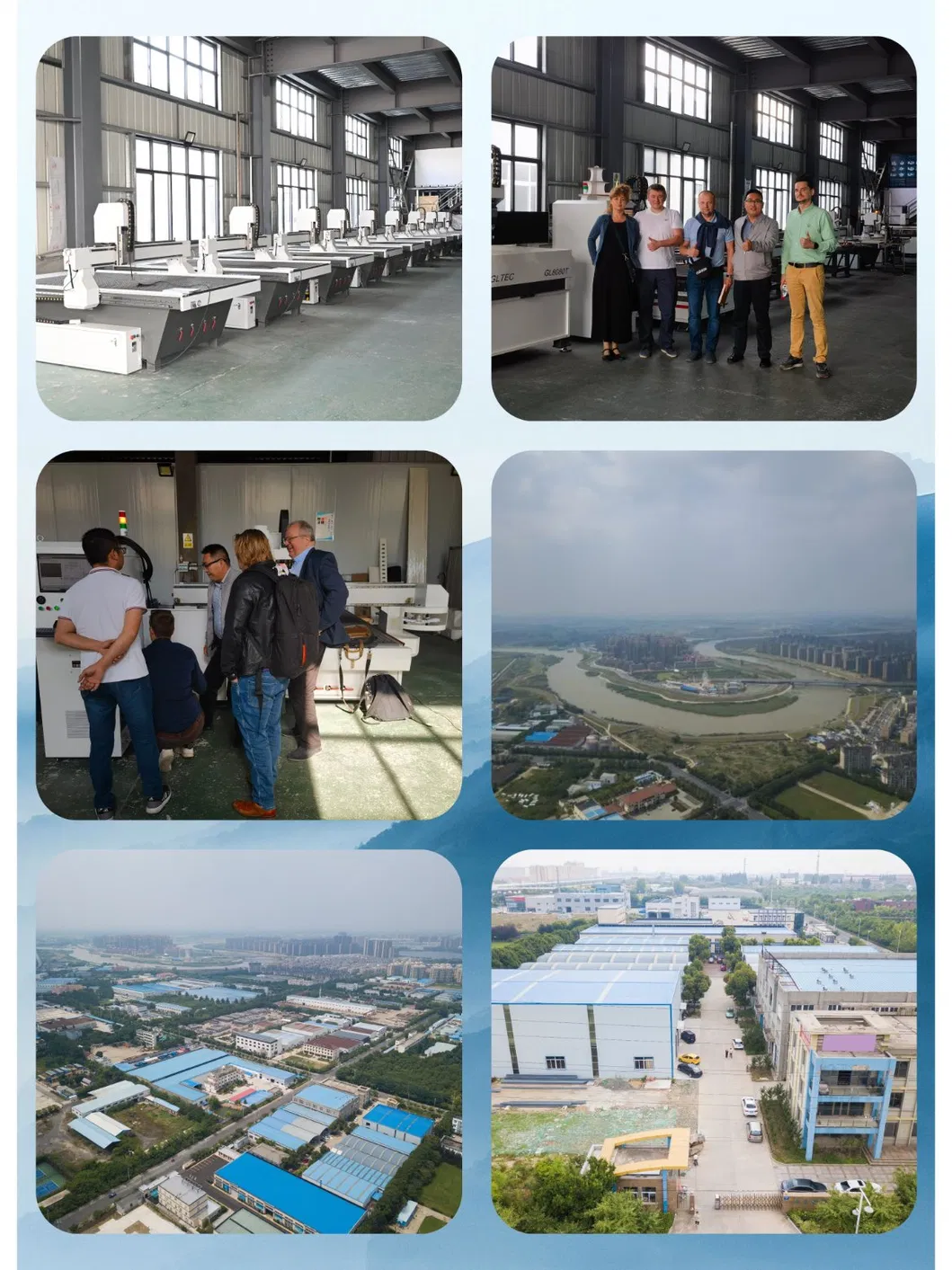

Professional Profile

We are a dynamic and innovative manufacturer at the forefront of CNC Technology. Established in 2008, with a vision to provide cutting solutions and services, we have been making significant strides in the markets of signmaking, metal working, woodworking, automotive interior, package, etc.

Our company is proud to have a highly skilled talent team. The members are experts in their respective fields, dedicated to innovation and continuous improvement, constantly striving to develop new technologies to meet the diverse needs of customers.

Frequently Asked Questions

1. What materials can this machine cut? This machine is versatile, handling soft materials like leather, EVA foam, and cardboard, as well as harder materials like thin acrylic, MDF, and aluminum composite using its 9KW spindle.
2. How does the integrated knife system benefit production? The system combines an oscillating knife for soft materials, a creasing tool for packaging folds, and a CCD camera for precision contour recognition, making it a multi-purpose powerhouse.
3. What is the advantage of the ATC (Automatic Tool Changer)? Equipped with 8 tool slots (linear or carrousel), it allows the machine to switch between different tools automatically, significantly reducing manual labor and downtime.
4. Is the machine stable during high-speed operation? Yes, the heavy-duty frame and dual-motor Y-axis drive ensure the machine operates at speeds up to 45,000mm/min without deformation or vibration.
5. Does the machine require frequent maintenance? Maintenance is simplified with an automatic lubrication system. Regular checks of the vacuum pump and linear guides ensure long-term performance.
6. What voltage is required for operation? The machine operates on AC380V 50HZ, suitable for standard industrial power environments.
