Basic Information
Spindle Layout
Spindle Over
Spindle Number
Single-Spindle
X,Y,Z Working Area
2000mmx3000mmx300mm
Table Surface
T-Slot and Vacuum Table
X, Y Structure
Rack and Pinion Drive, Hiwin Rail Linear Bearings
Drive Motors
Yaskawa Servo Motor
Production Capacity
100 Sets/Month
Product Description

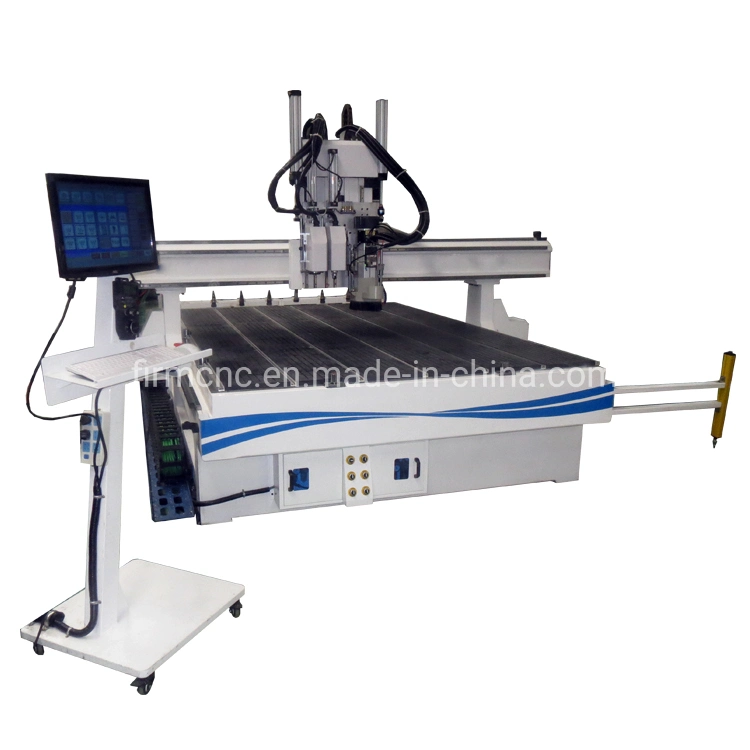

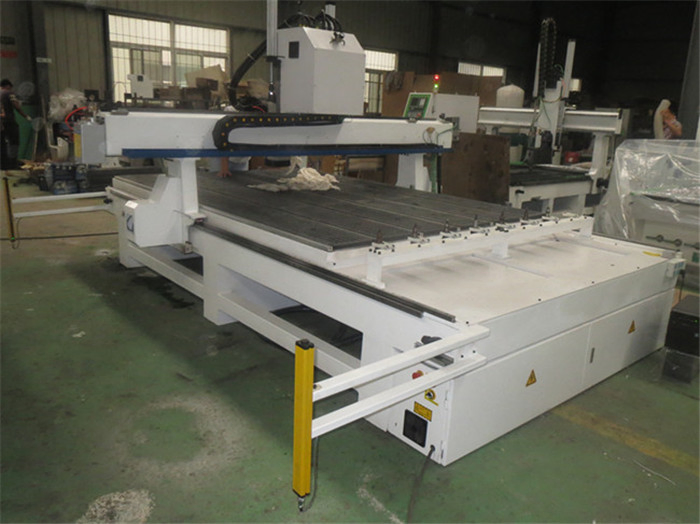

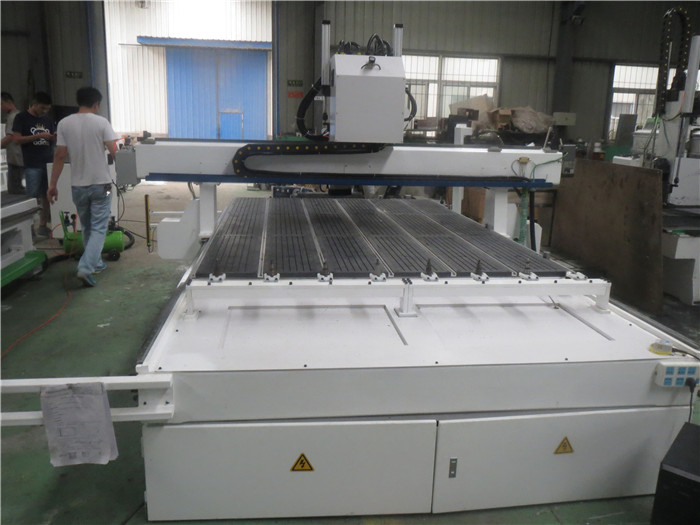

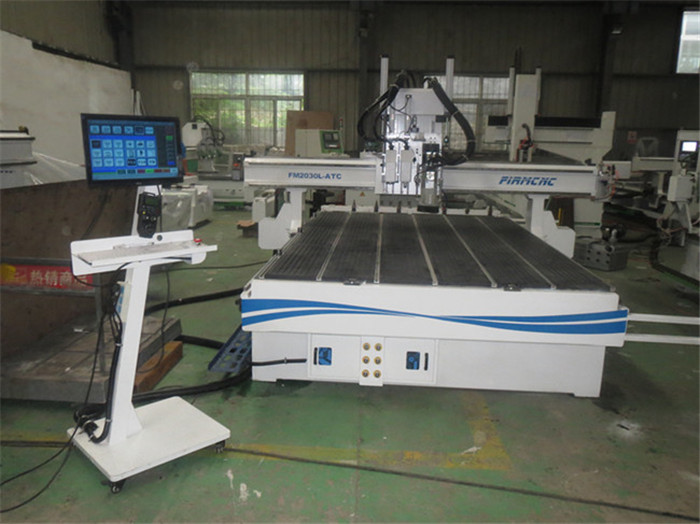

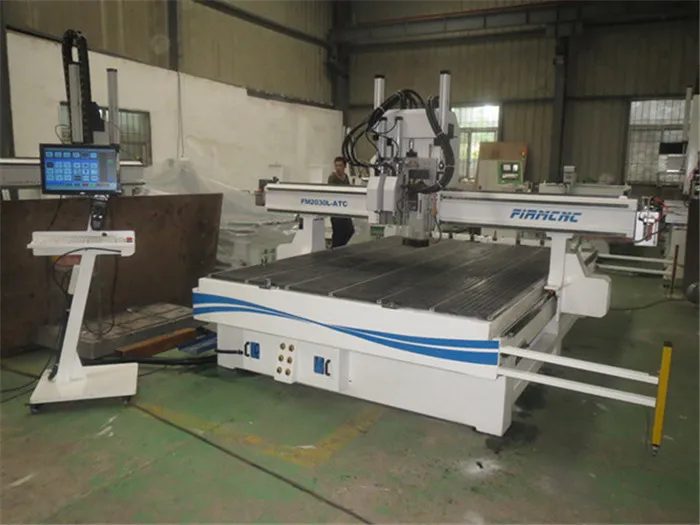

CNC Router Oscillating Knife and Tangential Knife for Corrugated Cardboard
1
Free Samples
Evaluation samples available upon request.
2
German Technology
Equipped with German ECOCAM EOT-2 & TCT-1 tools.
3
Precision Control
Syntec 10A-4E control system with CCD camera.
- Auto Tools Changer functionality.
- CE, SGS, and ISO certified quality standards.

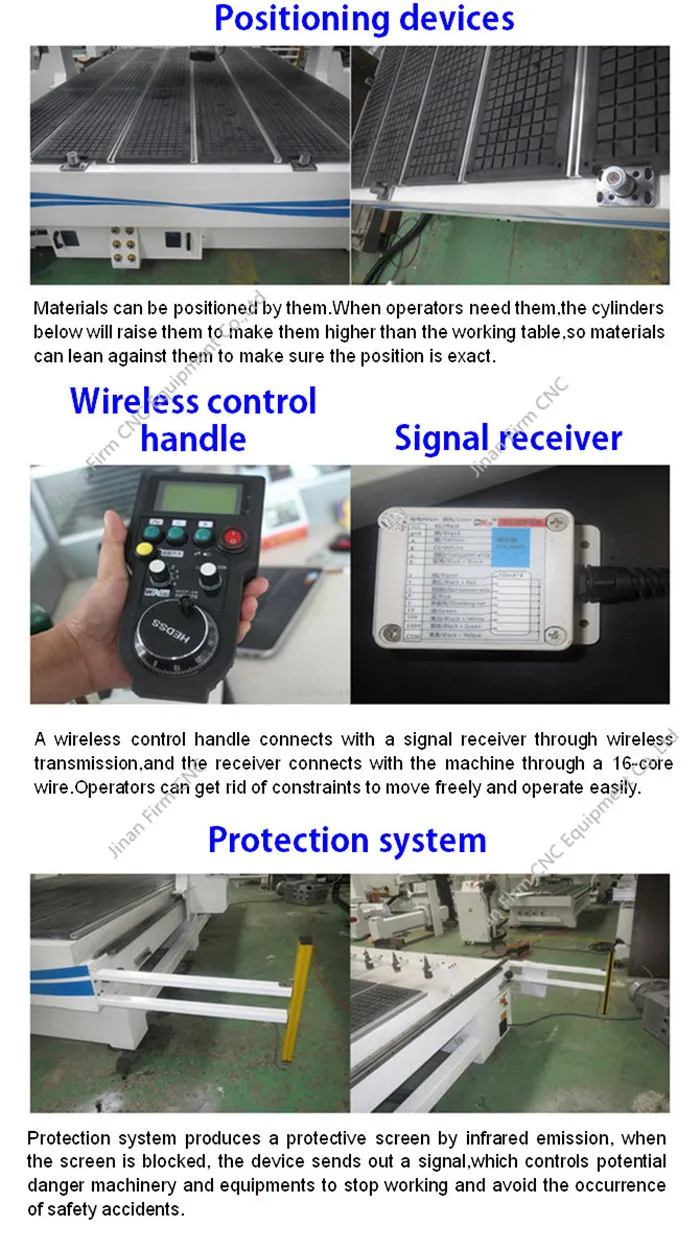

- Advanced Protection system meeting European safety standards.
- 8mm welded steel tube heavy-duty structure.
- Vacuum and T-slot combined table surface.
- 24 hours online technology support.
Technical Parameters
| Description |
Parameter |
| X,Y,Z Working Area | 2000mm x 3000mm x 300mm |
| Table Size | 2200mm * 4000mm |
| Repositioning Accuracy | ±0.03mm |
| Table Surface | Vacuum and T-slot Combined |
| X, Y Structure | Rack and Pinion Drive, HIWIN Rail Linear Bearings |
| Z Structure | HIWIN Rail Linear Bearings and TBI Ball Screw |
| Max. Working Speed | 25000mm/min |
| Spindle Power | 6.6KW |
| Inverter | 7.5KW Delta Inverter |
| Drive Motors | Yaskawa Servo System |

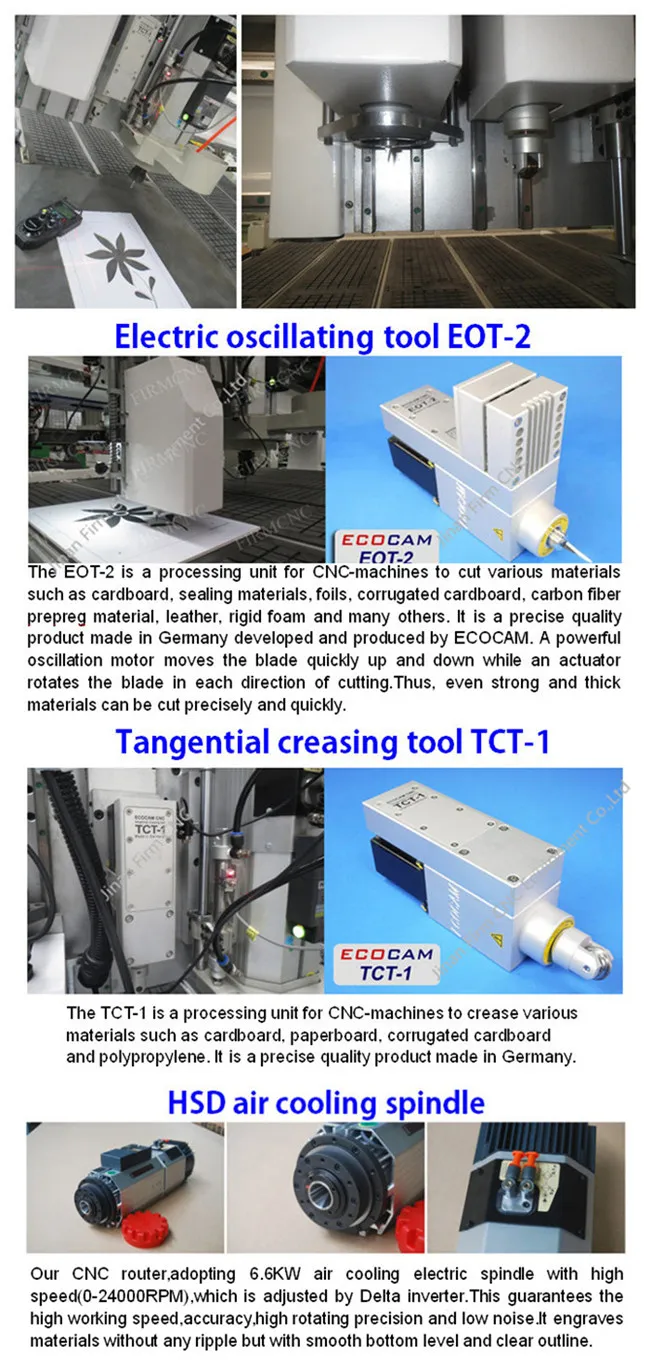

| Electric Oscillating Tool | German ECOCAM EOT-2 |
| Tangential Creasing Tool | German ECOCAM TCT-1 |
| Industrial Camera | German DMK72AUC02 (CCD) |
| Operating System | Syntec 10A-4E control system |
| Software Compatibility | Artcam Software, Type3 Software |
Suitable Materials & Applications
This CNC multifunctional machine is versatile and feature-rich, designed for both cutting and engraving.
Materials: Brass, aluminum, plastic, acrylic, wood, MDF, laminated stickers, expanded PVC, stadur (foam board), and various types of cardboard (normal or falconboard).

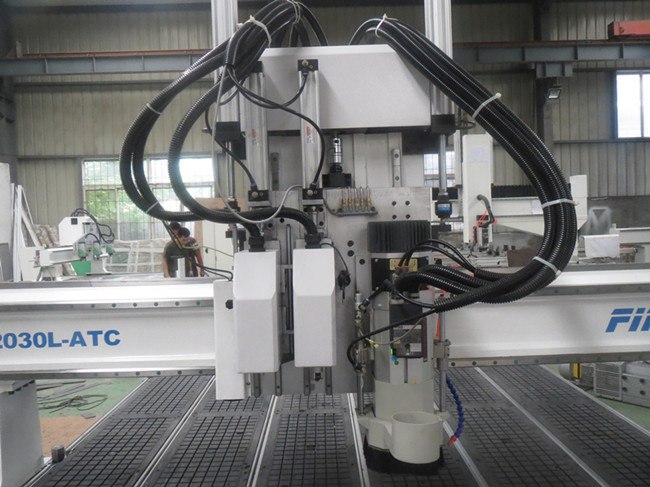

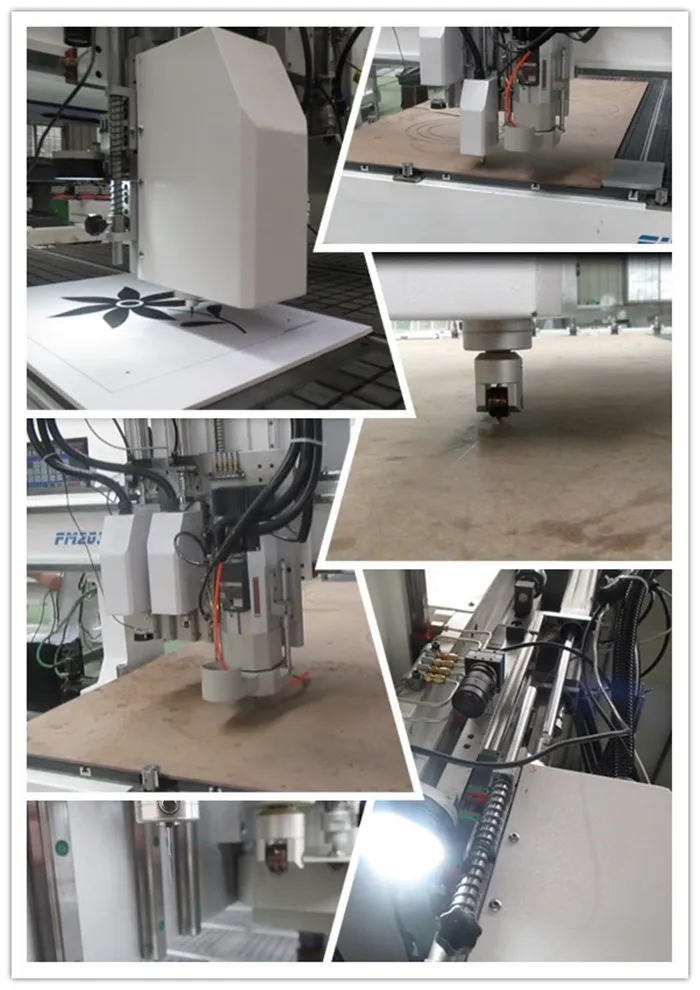

Special Feature: The multifunctional cutting head with CCD camera can capture shapes directly for automatic precision cutting.
Packing & Shipment
Space-optimized for container loading to ensure safe and cost-effective transport.
- Inside: Water-proof plastic film package with foam protection.
- Outside: Solid seaworthy wood box package.
- Base: Heavy-duty steel tube support.
Frequently Asked Questions
1. What is the warranty period for this CNC machine?
The machine comes with a comprehensive 1-year guarantee.
2. How is after-sales technical support provided?
We provide 24/7 technical support via various online platforms, email, and instant messaging to ensure minimal downtime.
3. Is the machine difficult to install?
No, we provide a complete English version manual and operation video CD to guide you through the setup and operation process.
4. What are the standard payment terms?
Typically, we require a 30% T/T deposit, with the remaining 70% T/T balance paid before shipping. We also support Western Union and other methods.
5. Can you arrange international shipment?
Yes, for FOB or CIF terms, we handle the shipment logistics. For EXW terms, clients can arrange shipment through their preferred agents.
6. What certifications does the equipment hold?
Our machines hold international quality certificates including CE and ISO9001:2008, with UL/CE certified electrical components.
