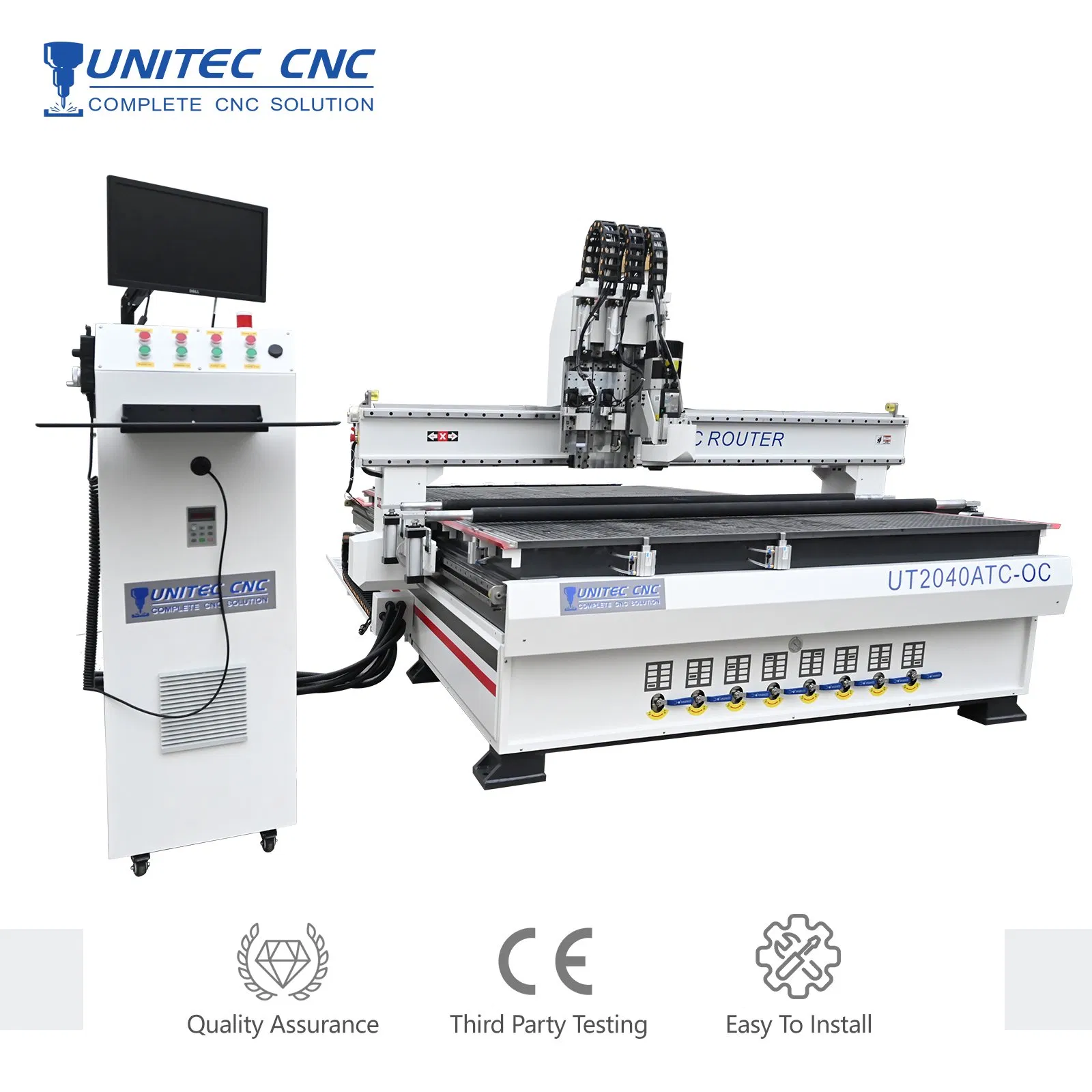

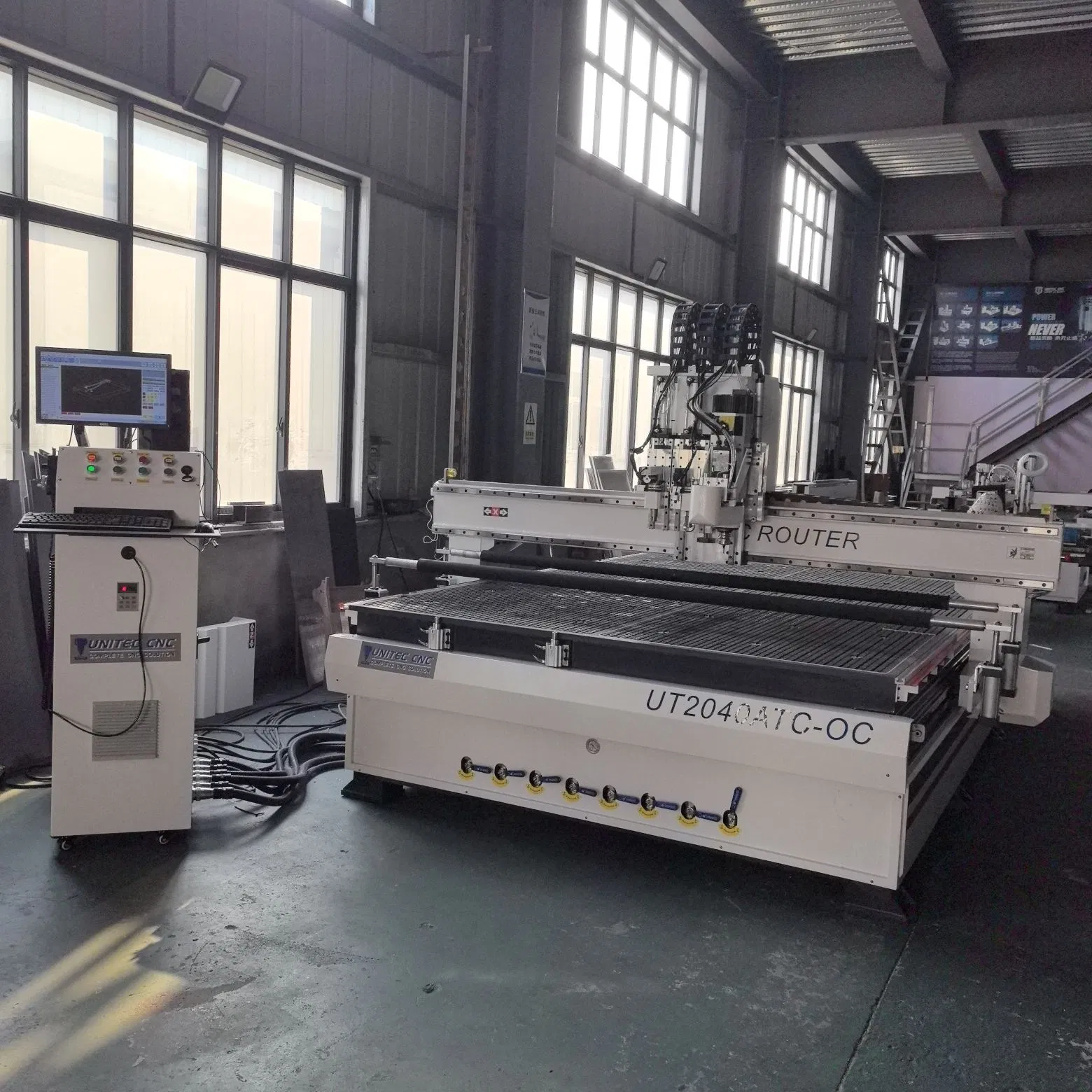

Deepit Cutter
1 / 5

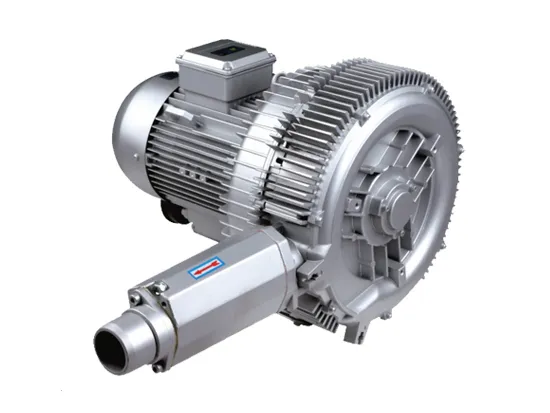

7.5KW Pump
CCD Camera

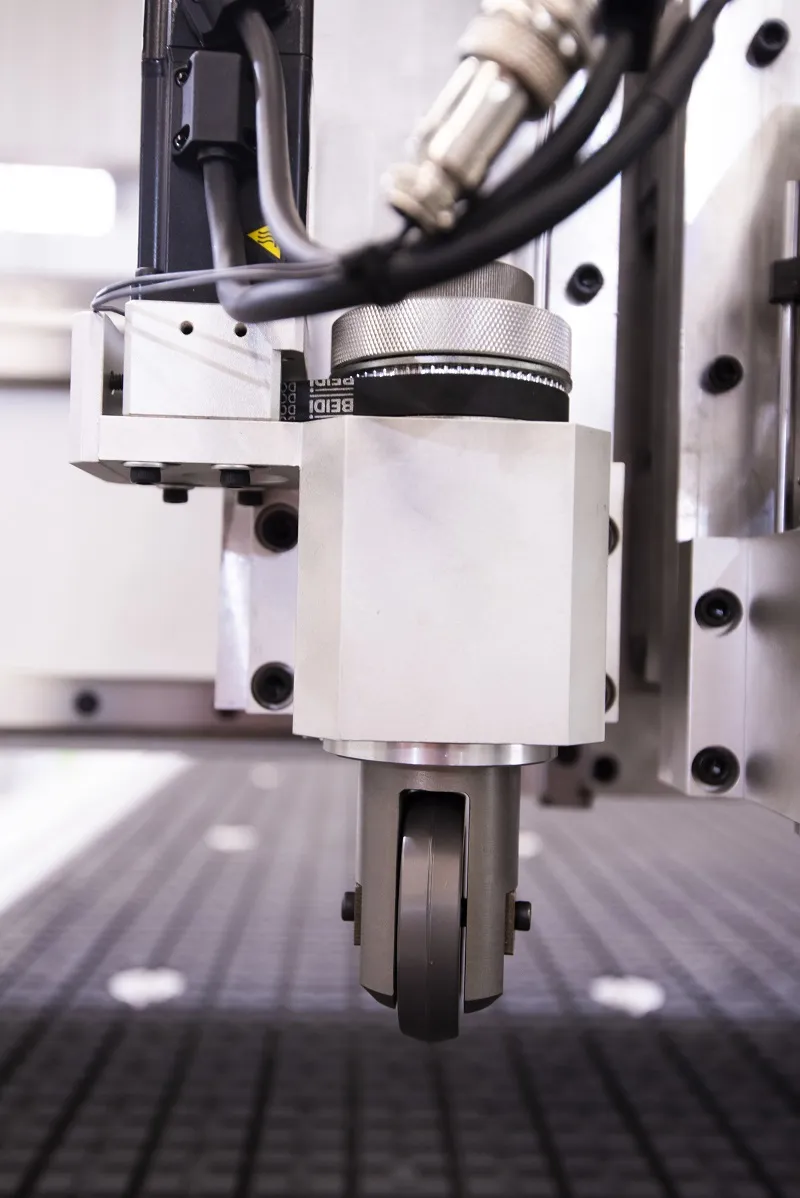

Creasing Head

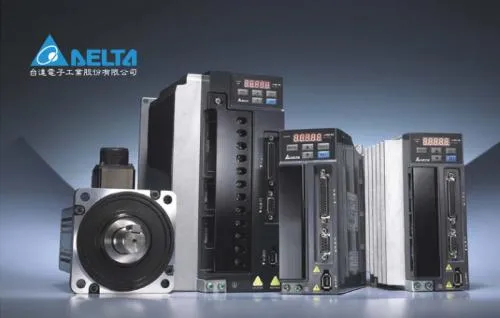

Servo Motor and Driver

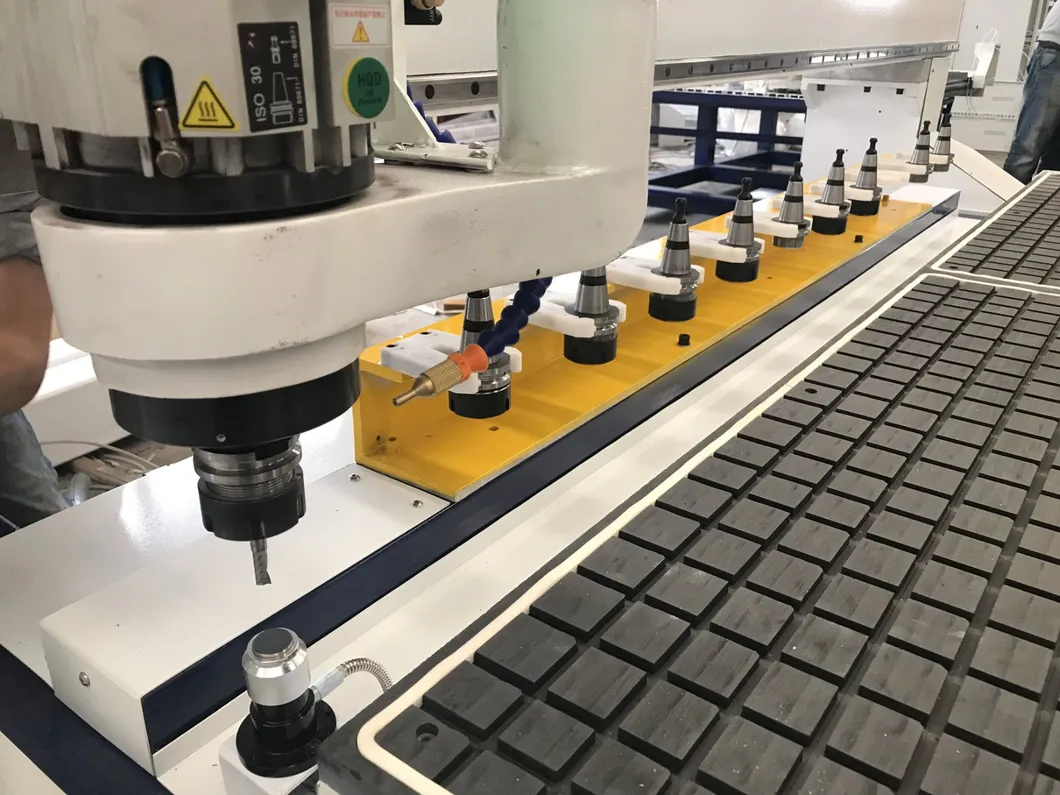

Linear ATC

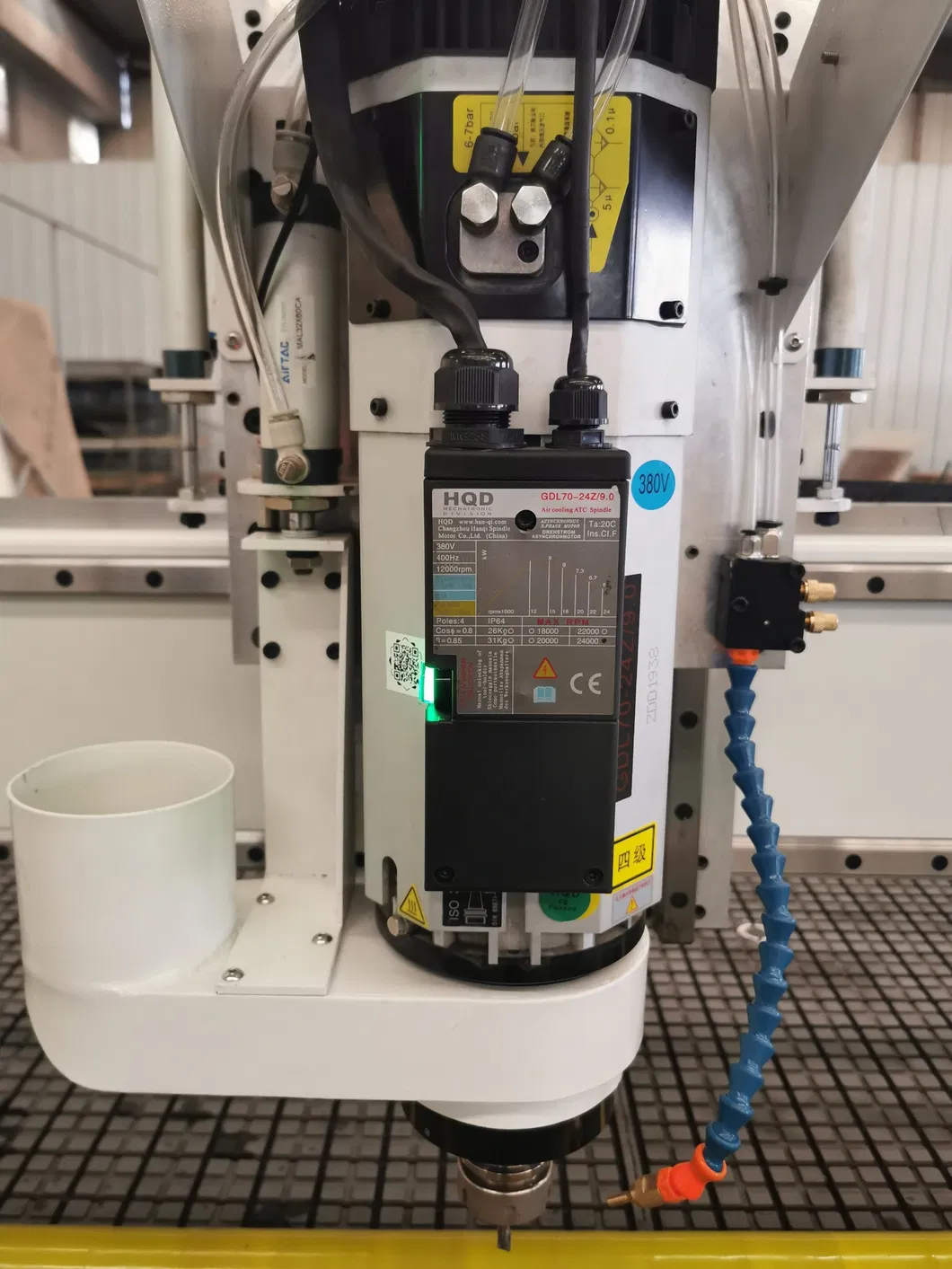

9KW ATC Spindle

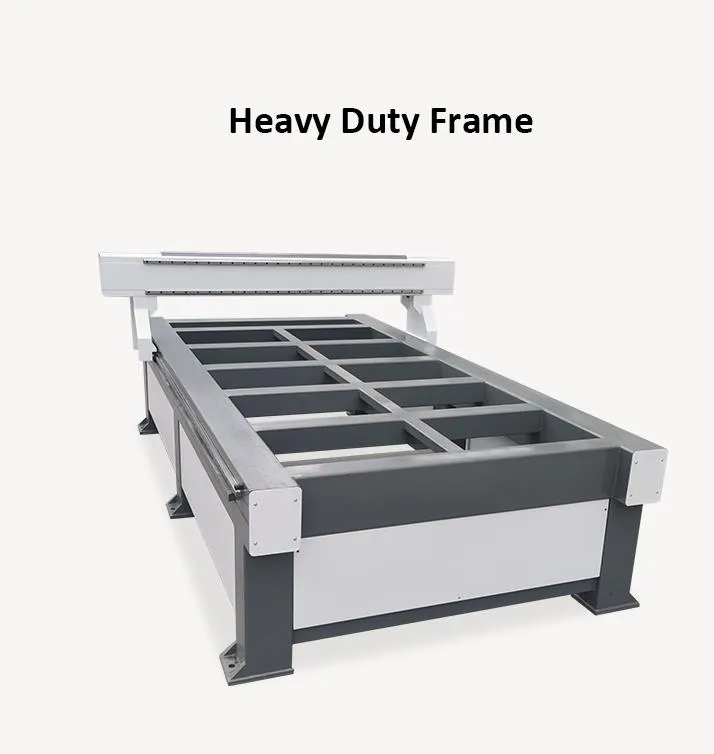

Heavy Duty Frame

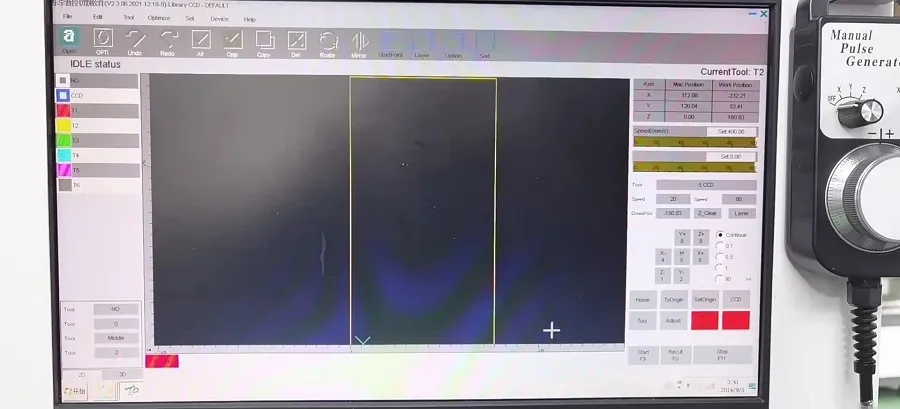

Leyu Controller
Oscillating Head
| XYZ Travel Size | 2000 X 4000 X 220mm |
| Max Working Size | 2000 X 4000 X 220mm |
| Transmission Type | XY rack / Z ball screw |
| Spindle Speed | 18000rpm |
| Tool Changer | Linear or Carrousel; 8 Tools |
| Max Travel Speed | 45000mm/min |
| Max Work Speed | 25000mm/min |
| Processing Accuracy | ±0.05mm |
| Overall Dimension | 2300 X 5250 X 1900mm |
Automobile: Car Mats, leather seats, Aluminum Composite.
Advertising: Acrylic, Flag Banner, KT board, Foam Board, Corrugated paper, Reflective Strips, MDF, Plastic.
Packaging: EVA Foam, Kraft Paper, Cardboard, Hollow board, Grey board.

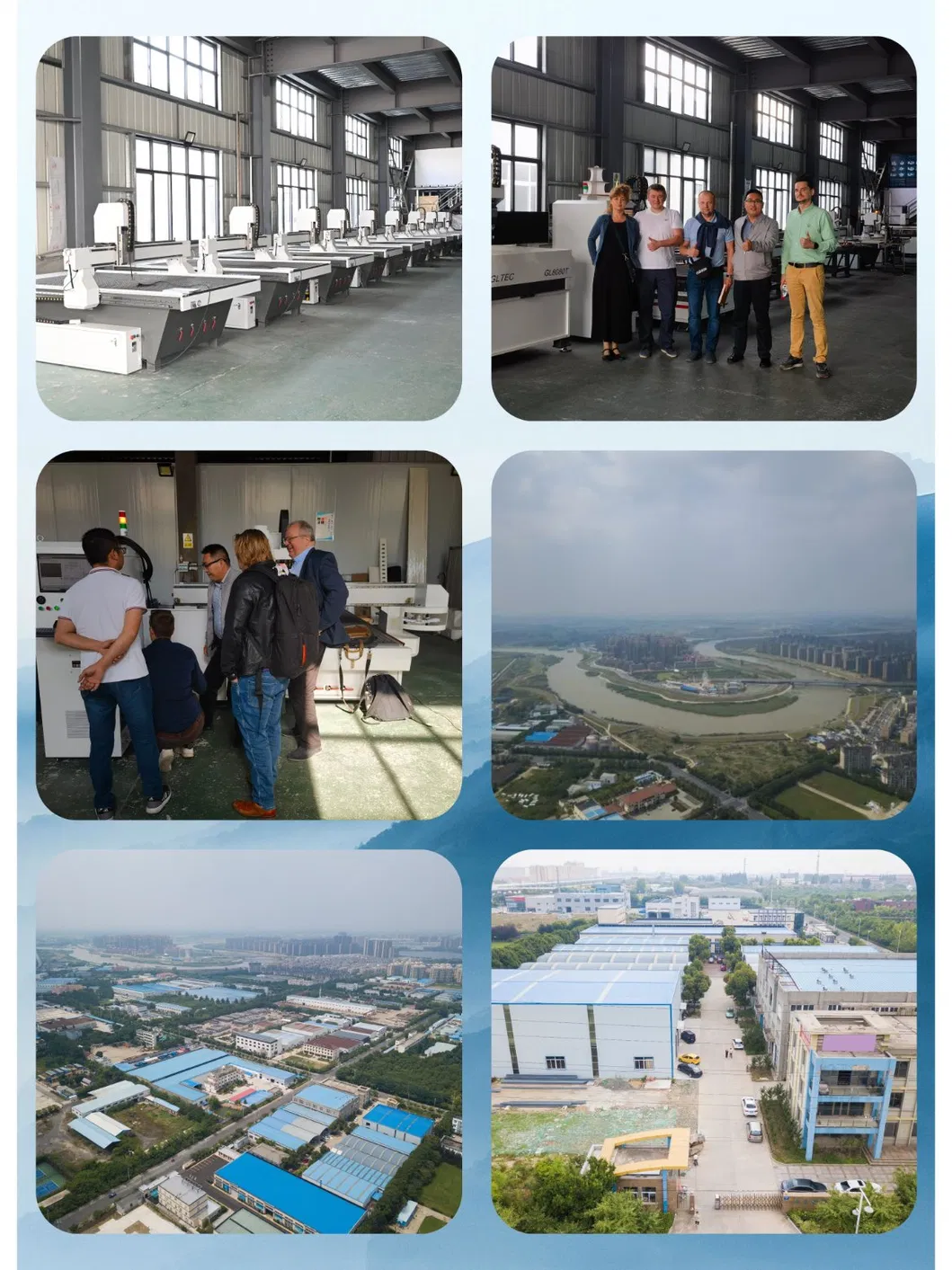

The company is a dynamic and innovative manufacturer at the forefront of CNC Technology. Established in 2008, with a vision to provide cutting solutions and services, significant strides have been made in the markets of signmaking, metal working, woodworking, automotive interior, package, etc.
We provide a wide range of products, such as CNC Router machines, CO2 Laser Cutting Machines, Fiber Laser Cutting machines and Digital Cutting Machines. We are staffed by a team of highly talented and dedicated professionals committed to excellence.

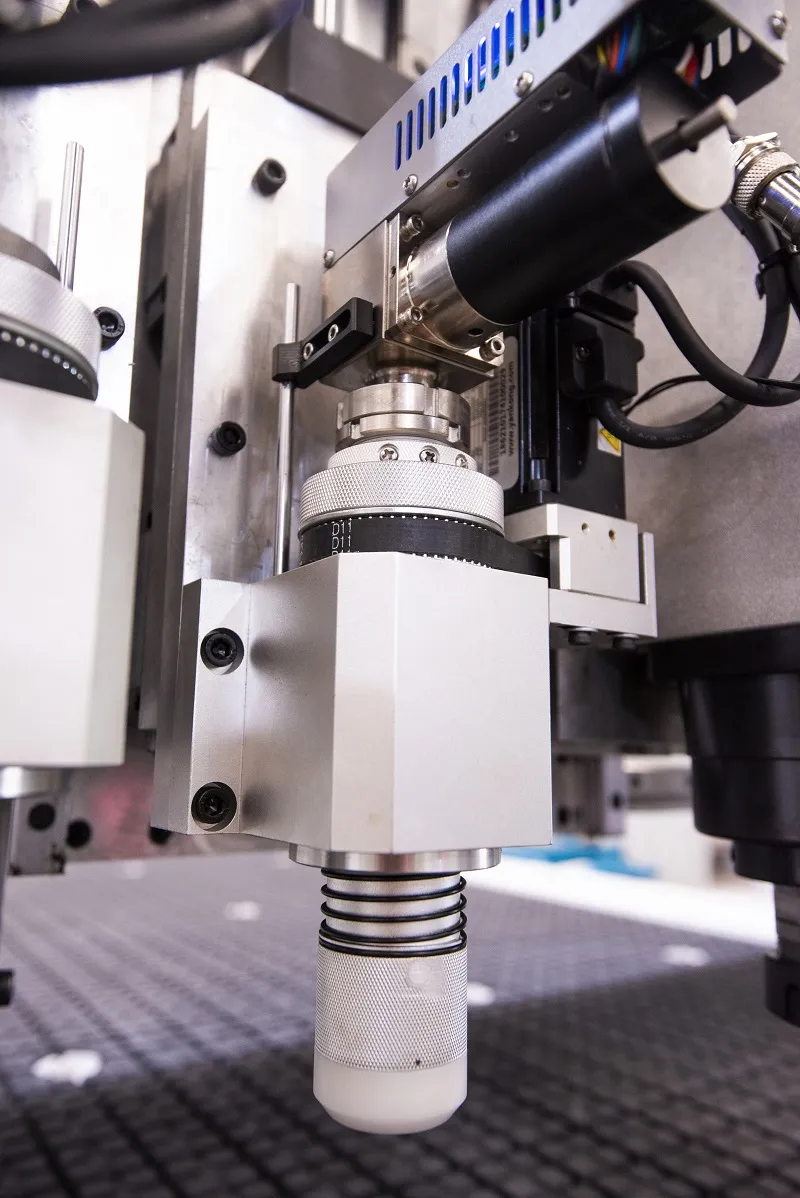

The oscillating knife is ideal for soft materials such as car mats, leather, EVA foam, corrugated paper, cardboard, and flag banners.
Yes, with its 9KW high-power spindle, the machine can process hard materials including aluminum composites, acrylic, and MDF.

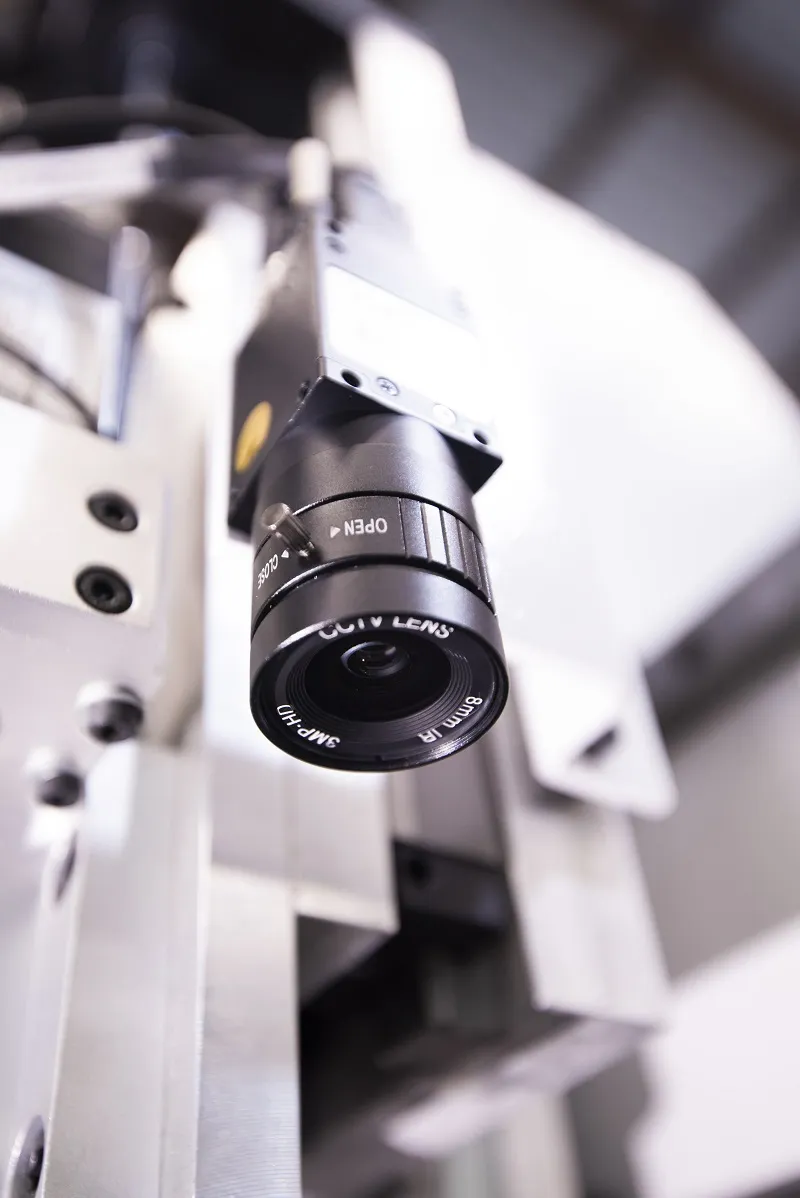

The CCD camera system is used for visual positioning and contour cutting, ensuring high precision for printed materials in the advertising industry.
Yes, this model features a Linear ATC (Automatic Tool Changer) system with 8 tool slots to improve production efficiency without manual intervention.
The machine is equipped with an automatic refueling lubrication system. Regular maintenance can be performed easily with a single touch.
The machine is fully compliant with CE electrical standards for circuit design and production safety.
