CNC Digital Advertising Industry Kt Board Acrylic Cutter with Vibration Milling Cutting Machine

Customization: Available
After-sales Service: 2 Years
Warranty: 2-year

Product Description

Basic Information
Model NO. UT2040AT2-OC
Certification CE
Control Automatic
Application Paper, Plastic, Leather, EVA Foam, Thin Acrylic, Aluminum Composite
Power Source Electric
Spindle Power 6kw Italy Hsd Spindle
Knife System Oscillating + Creasing + CCD Camera
Motor Taiwan Delta AC Servo Motor
Table Type Vacuum
Production Capacity 200PCS/Year
Packaging & Delivery
Package Size 230.00cm * 480.00cm * 190.00cm
Package Gross Weight 2600.000kg
Transport Package Plywood
Main Parts & Detailed Photos

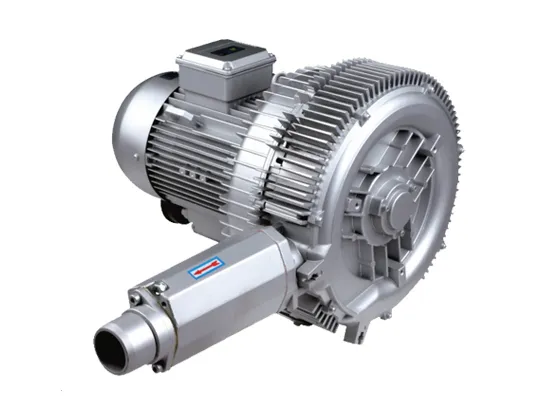

7.5KW Pump

7.5KW Pump

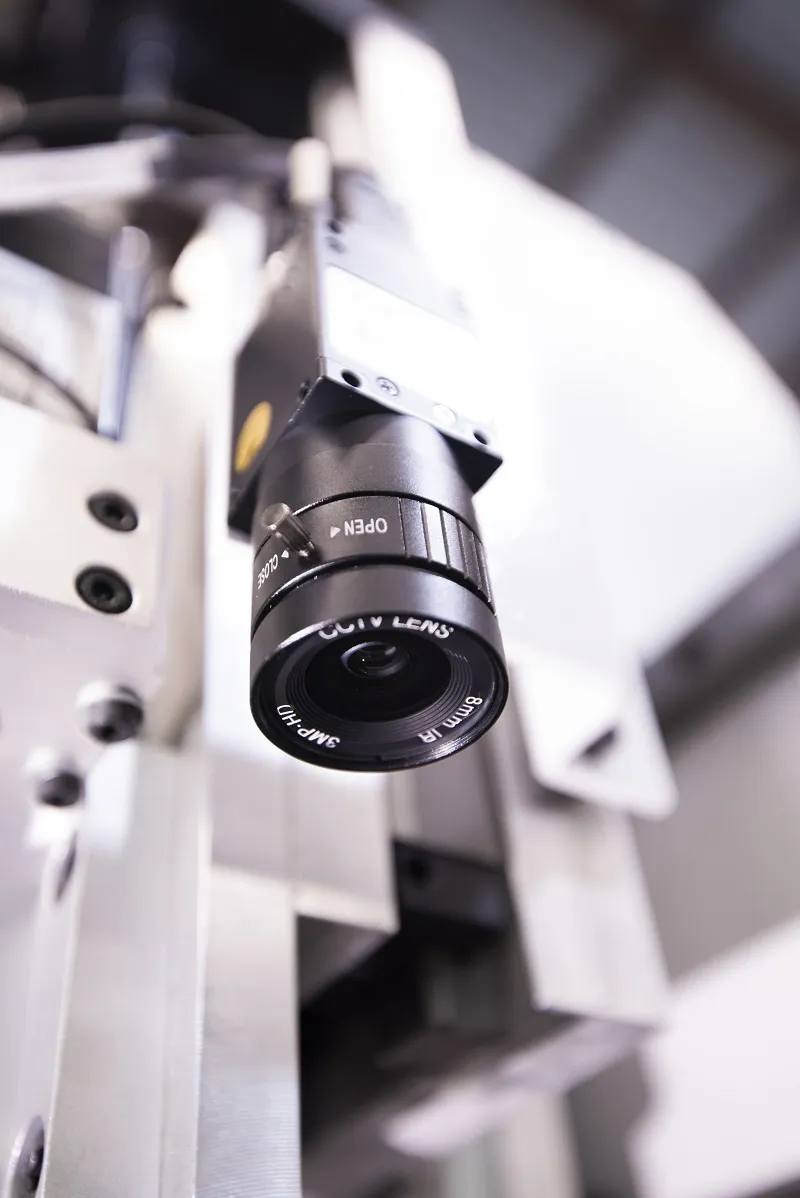

CCD camera

CCD camera

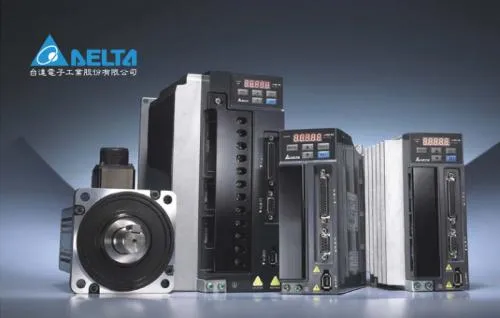

Delta Servo Motor and Driver

Delta Servo Motor

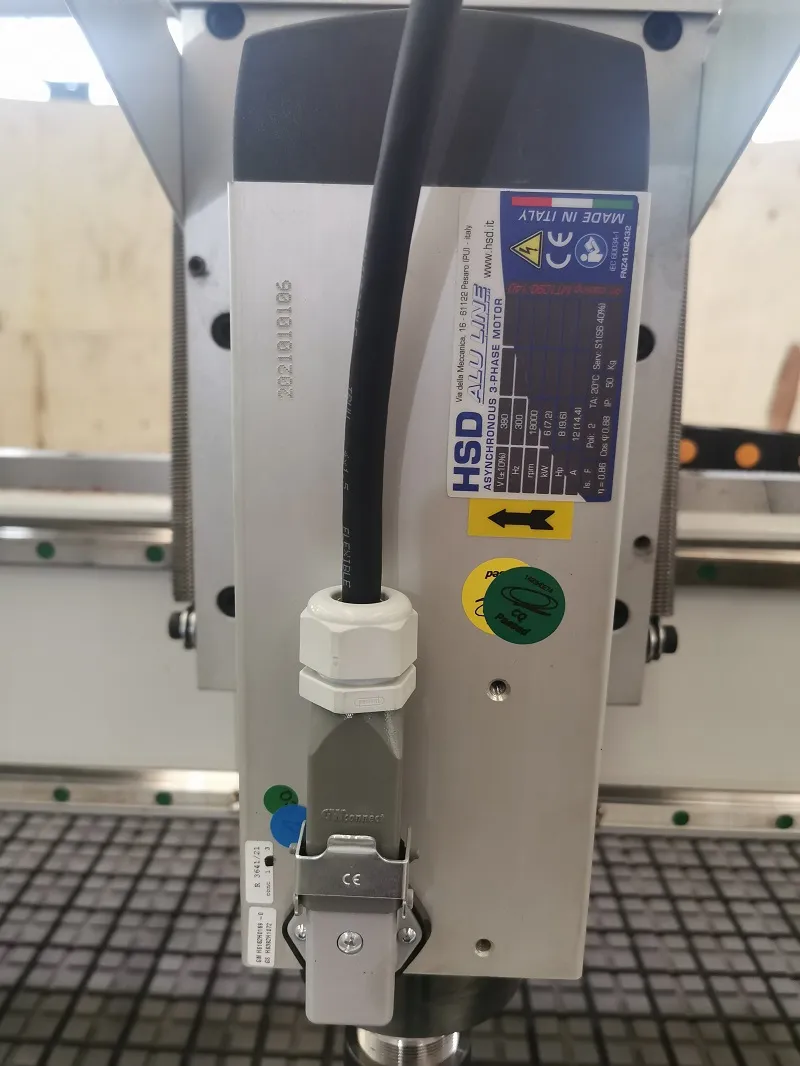

6KW Italy HSD Spindle

HSD Spindle

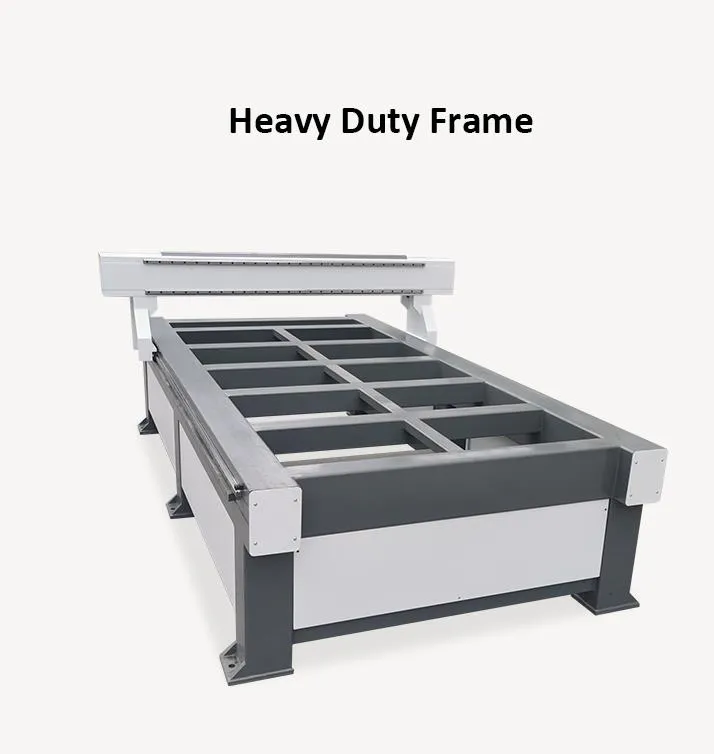

Heavy Duty Frame

Heavy Duty Frame

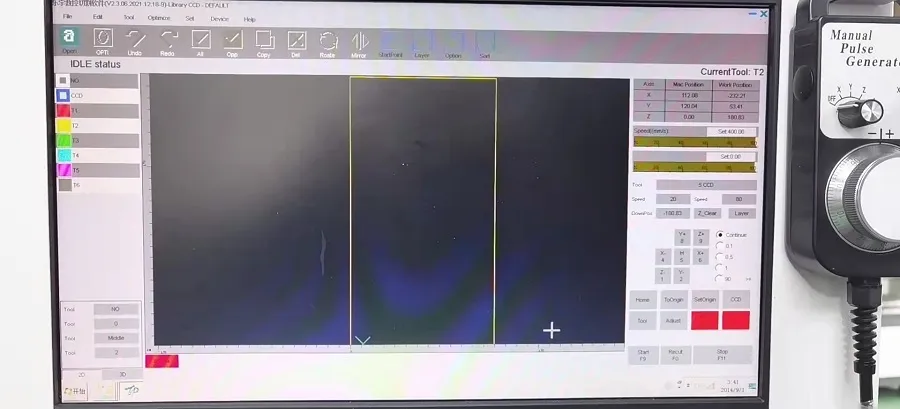

Leyu Controller

Leyu Controller

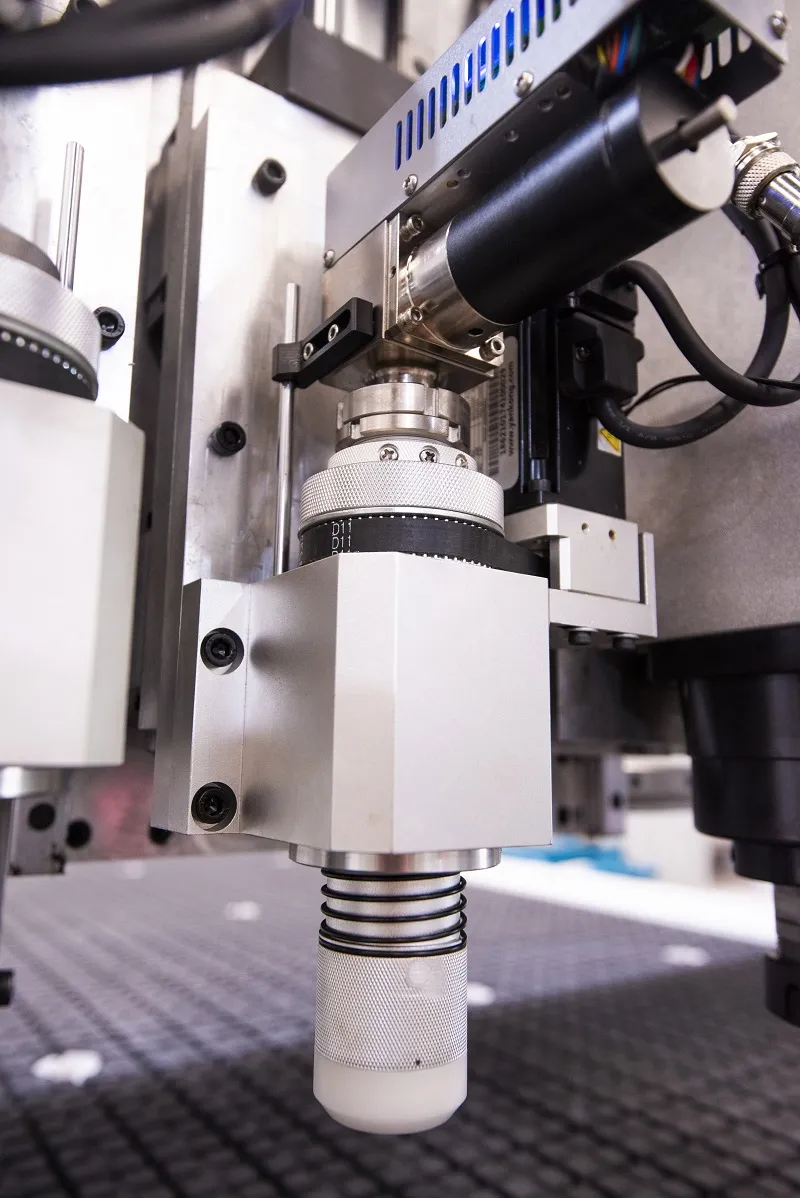

Oscillating Head

Oscillating Head

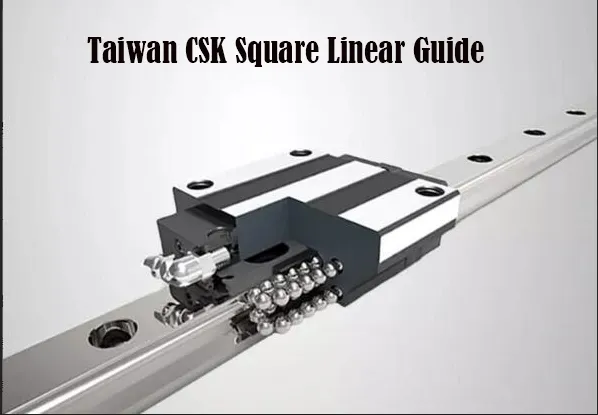

Linear Guide

Linear Guide
Technical Parameters
XYZ Travel Size2000 X 4000 X 220mm
Max Working Size2000 X 4000 X 220mm
Transmission TypeXY rack / Z ball screw
Vacuum Pump2 Pcs of 7.5KW Vacuum pump
Spindle Speed18000rpm
Max Travel Speed45000mm/min
Max Work Speed25000mm/min
Processing Accuracy±0.05mm
Repeat Positioning±0.01mm
File FormatG code or PLT
Product Description
Applicable Industries and Materials:
• Automobile Industry: Car Mats, leather seats, Aluminum Composite
• Advertising industry: Acrylic, Flag Banner, KT board, Foam Board, corrugated paper, Reflective Strips, MDF, Plastic
• Packaging industry: EVA Foam, Kraft Paper, corrugated paper, cardboard, hollow board, Grey board

Machine Highlights

  • Large-size rectangular tube welded as a whole with high-precision gantry milling for extreme stability.
  • Equipped with high-power spindle for both soft and high-hardness materials.
  • Y-axis driven by dual motors and planetary reducer for high-speed operation without deformation.
  • Automatic refueling lubrication system for easy regular maintenance.
  • Fast processing speed with fine quality, clear edge contours, and smooth bottom surfaces.
  • CE electrical standards compliant with reliable protection devices on all moving parts.
Certifications
Certifications
Packaging & Shipping
Packaging and Shipping
Exhibition
Exhibition
Company Profile

The manufacturer is a dynamic and innovative manufacturer at the forefront of CNC Technology. Established in 2008, the company has been making significant strides in the markets of signmaking, metal working, woodworking, automotive interior, and packaging.

Our team consists of highly skilled experts dedicated to innovation and continuous improvement. We have established strong relationships with world-class suppliers such as Italy HSD, Japan Yaskawa, and Taiwan Delta to ensure the premium quality of our machines.

Our products are exported to more than 100 countries and regions worldwide, including the United Kingdom, United States, Germany, and Japan, backed by efficient technical support and consulting services.

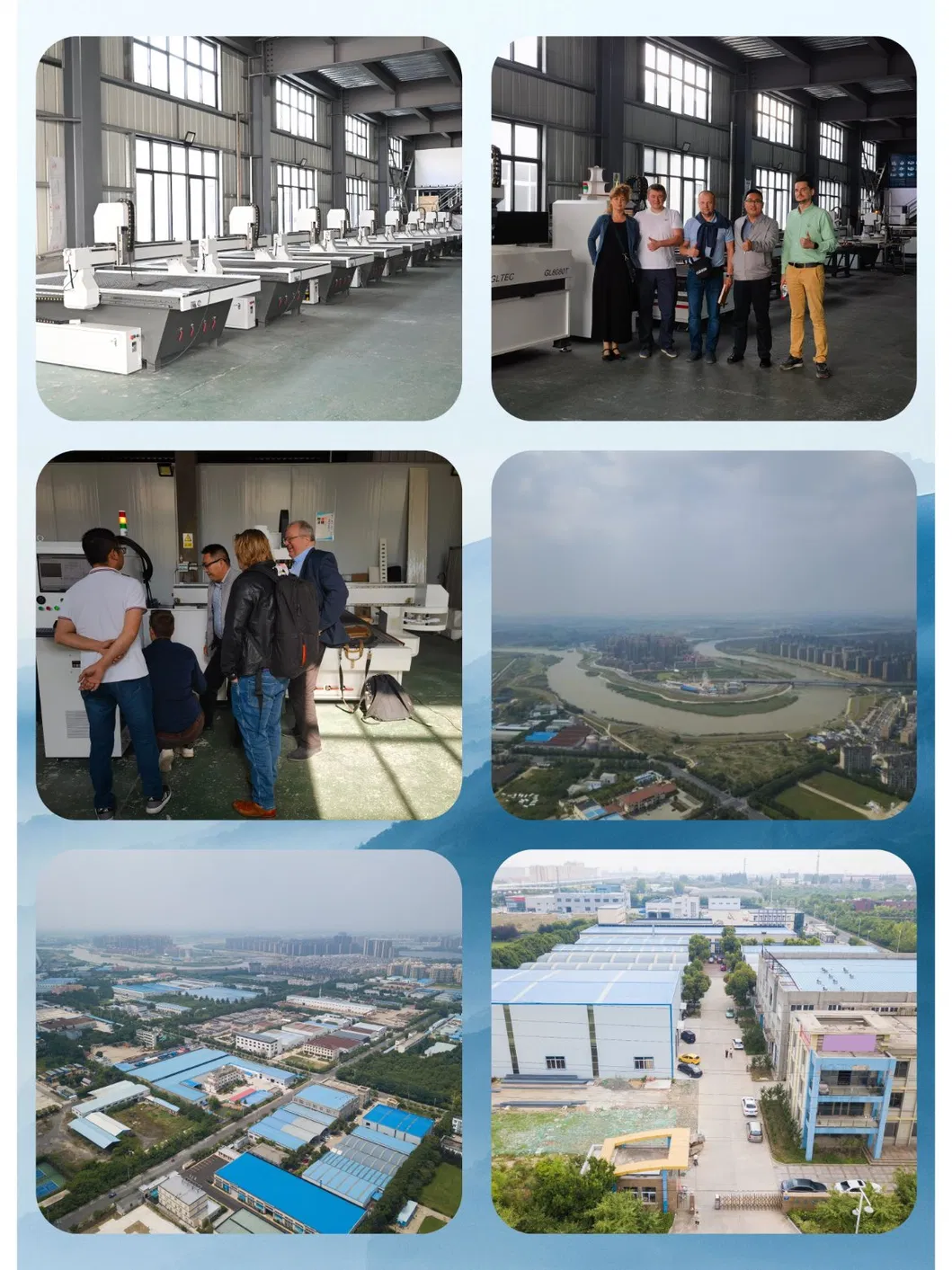

Factory Overview
Frequently Asked Questions
Q1: What materials can this digital cutting machine process? It is ideal for soft materials like leather, paper, and EVA foam, as well as harder materials like thin acrylic and aluminum composite.
Q2: What type of spindle is used in this machine? The machine is equipped with a high-performance 6KW Italy HSD Spindle for versatile processing.
Q3: How is the precision of the cutting? The machine offers a processing accuracy of ±0.05mm and a repeat positioning accuracy of ±0.01mm.
Q4: What motor system does the machine use? It utilizes Taiwan Delta AC servo motors for stable and powerful operation.
Q5: Is the table suitable for small pieces of material? Yes, the machine features a vacuum table type which securely holds various material sizes during the cutting process.
Q6: Does the machine require manual lubrication? No, it comes with an automatic refueling lubrication system that can be activated with a single touch.
