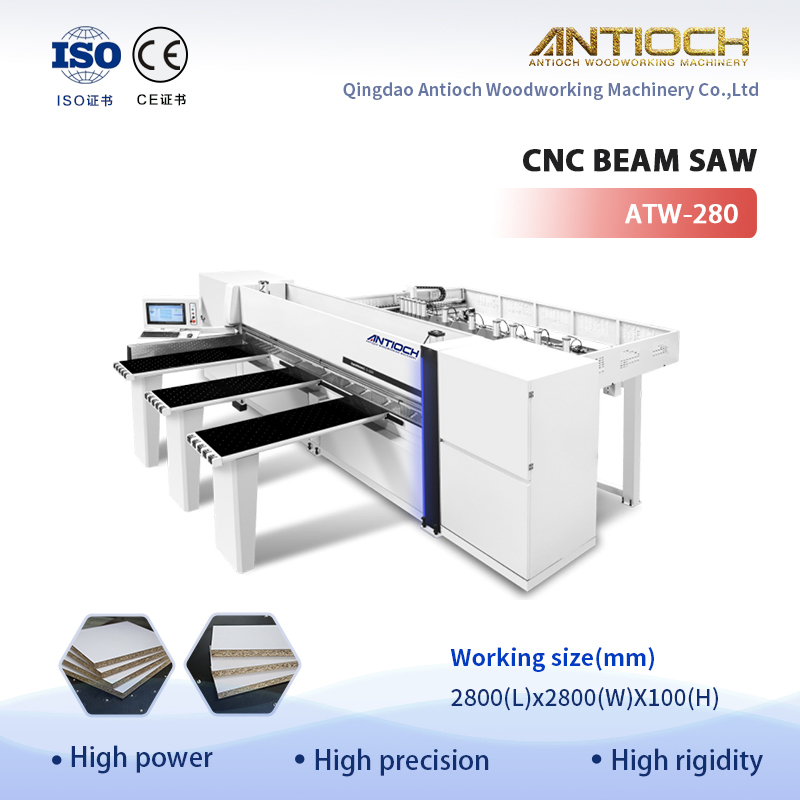

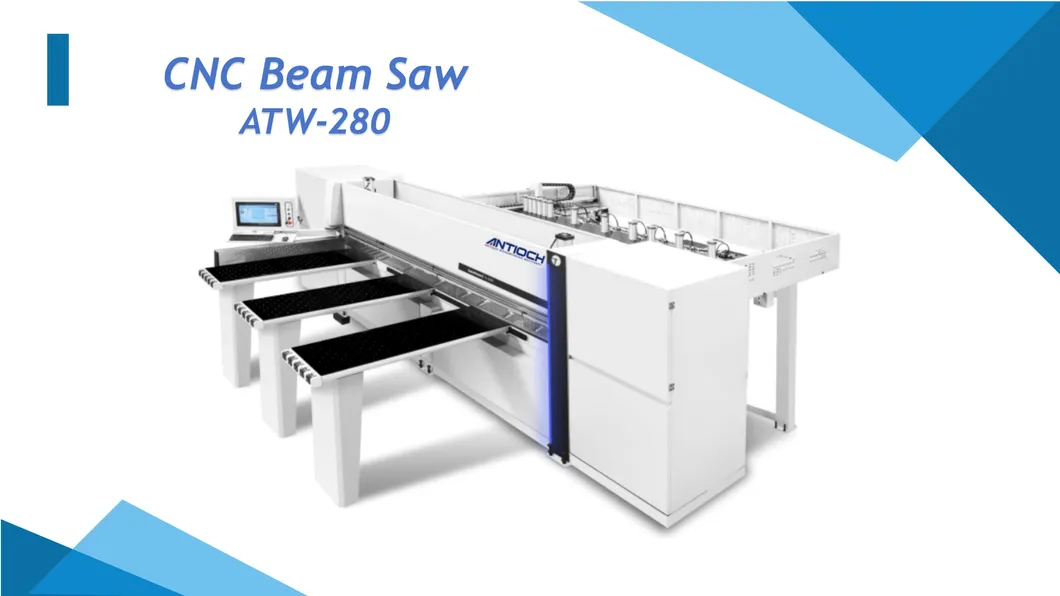

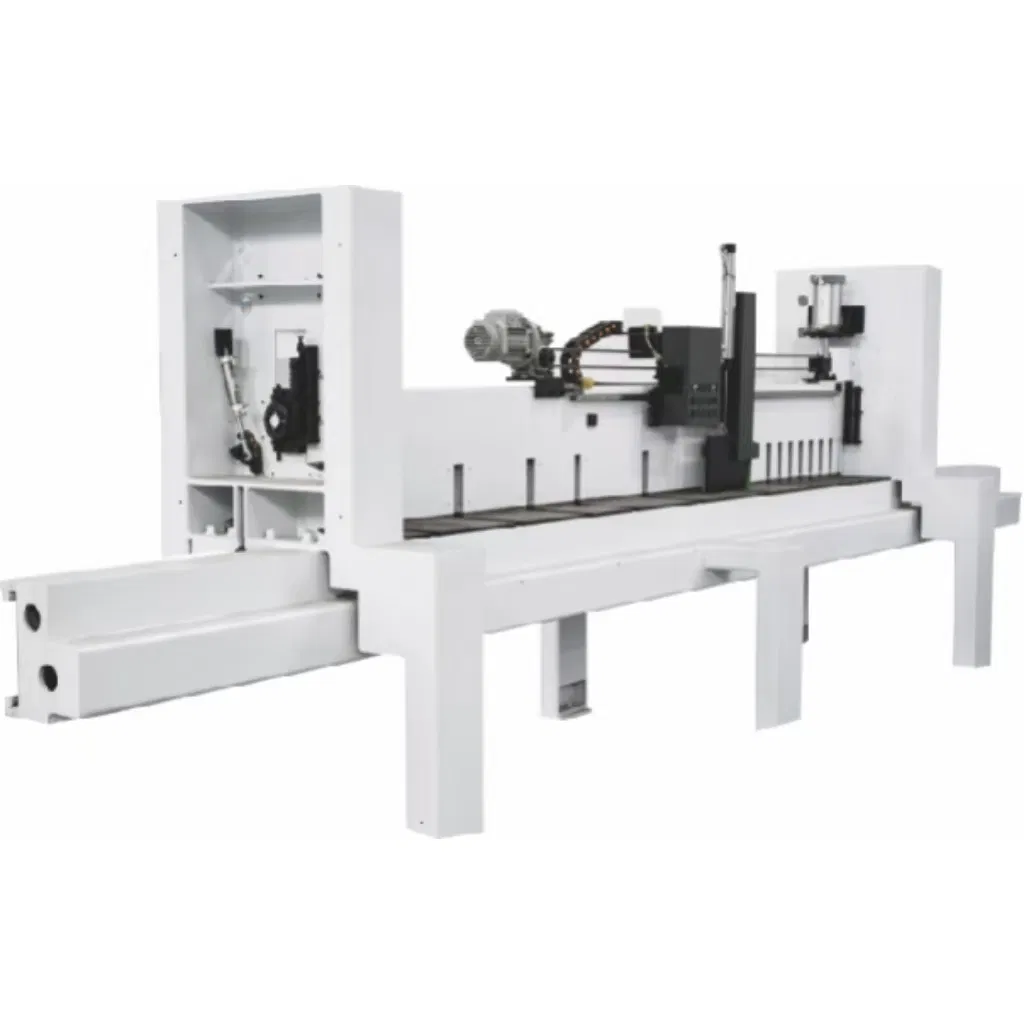

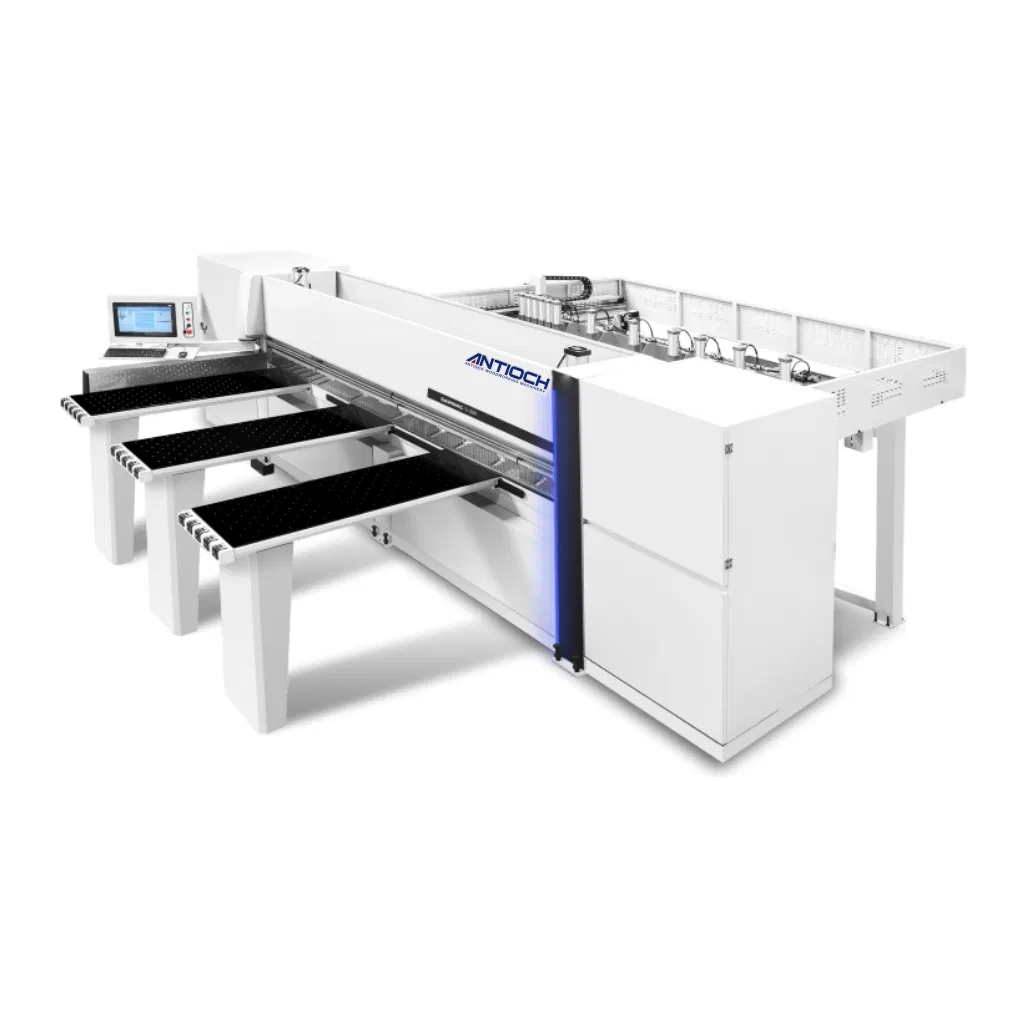

Hot Sale Woodworking MDF Multi Layer Board Cutting CNC Beam Saw Machine for Precision Solid Wood Cutting
| No. | Item Description | Specification |
|---|---|---|
| 1 | Length/width of blade cutting | 2800mm |
| 2 | Max thickness of blade cutting | 100 / 120 *(Options) |

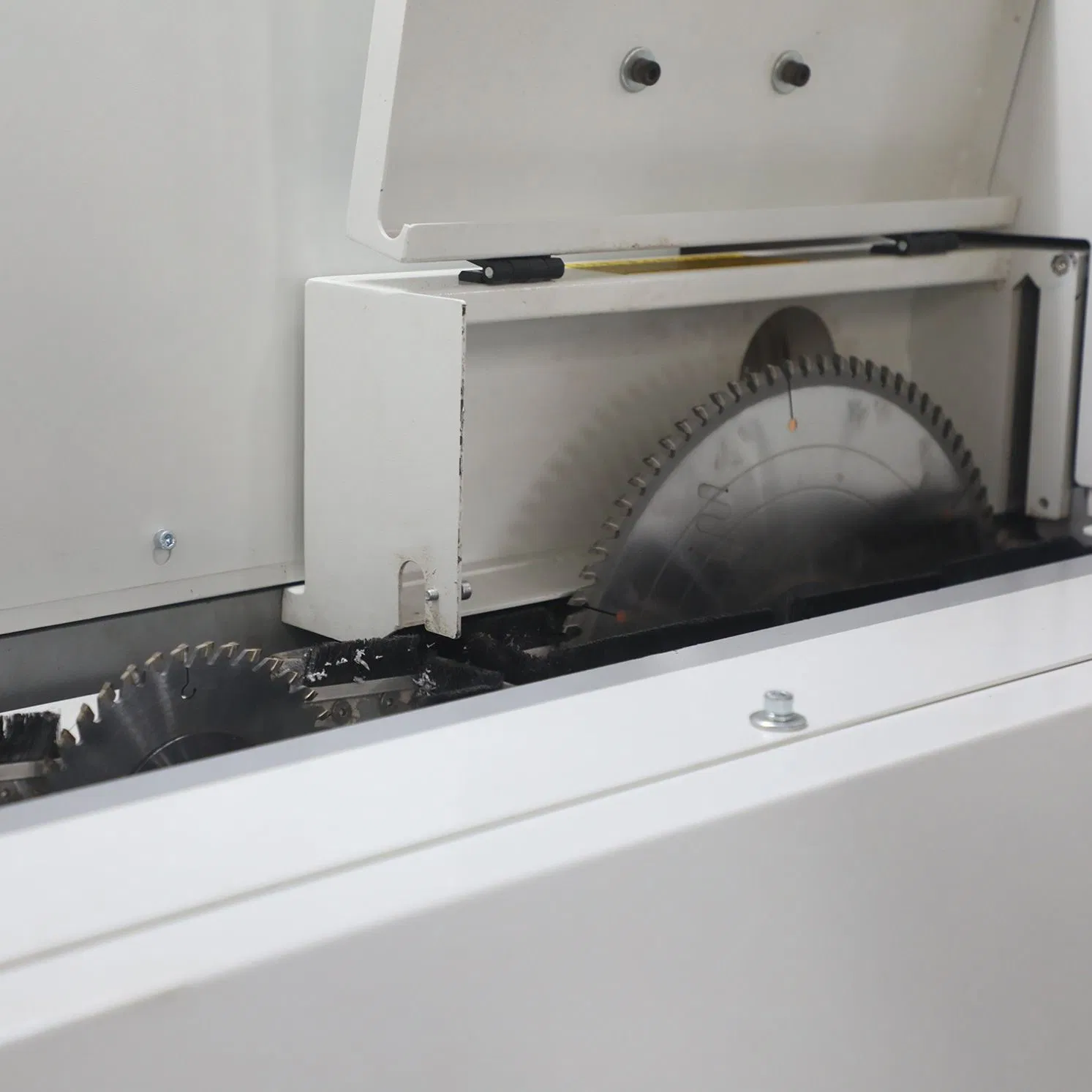

| 3 | Main blade diameter | Φ450mm |
| 4 | Axis diameter of main blade | Φ75mm |
| 5 | Scoring blade diameter | φ210mm |
| 6 | Axis diameter of scoring blade | φ50mm |
| 7 | Main blade speed | 4800 r/min |
| 8 | Going speed of blade table | 100m/min Adjustable |
| 9 | Backing speed of blade table | 120m/min Adjustable |
| 10 | Delivery speed | 100m/min |

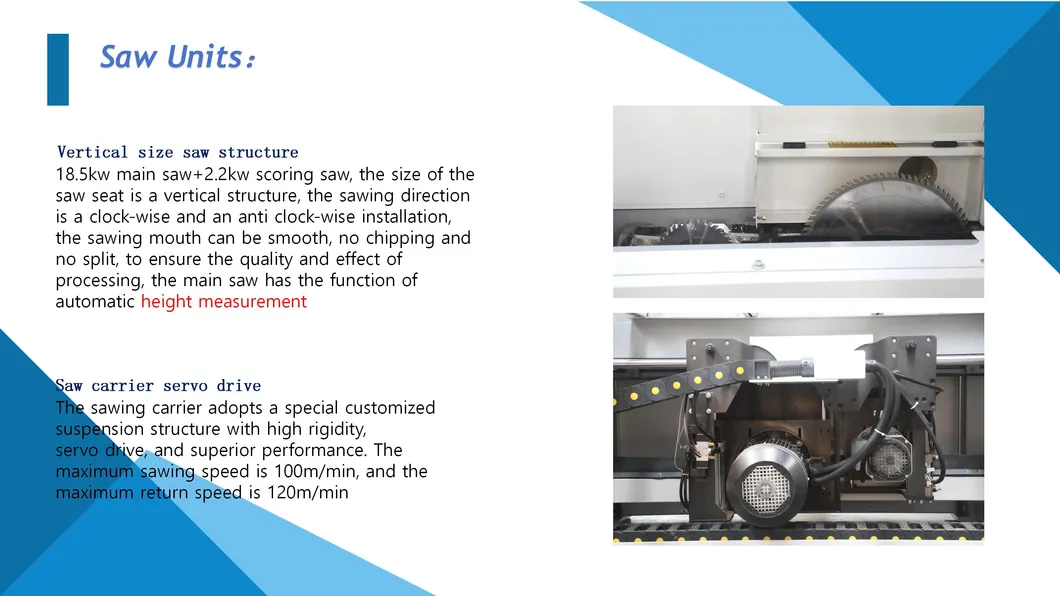

| 11 | Voltage of main blade | 18.5KW |
| 12 | Voltage of score blade | 2.2KW |

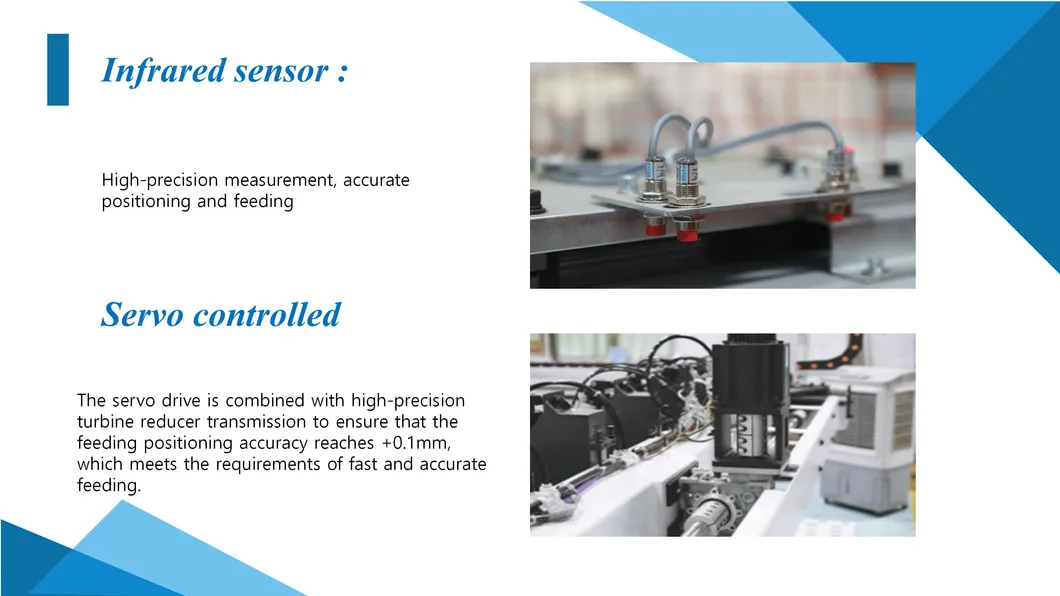

| 13 | Driving motor of blade table | 1.8KW Servo |
| 14 | Loading positioning motor | 1.8KW Servo |
| 15 | High pressure fan | 4/2.2KW |
| 16 | Total voltage | 30.5KW |
| 17 | Air press | 5-8kg/cm² |

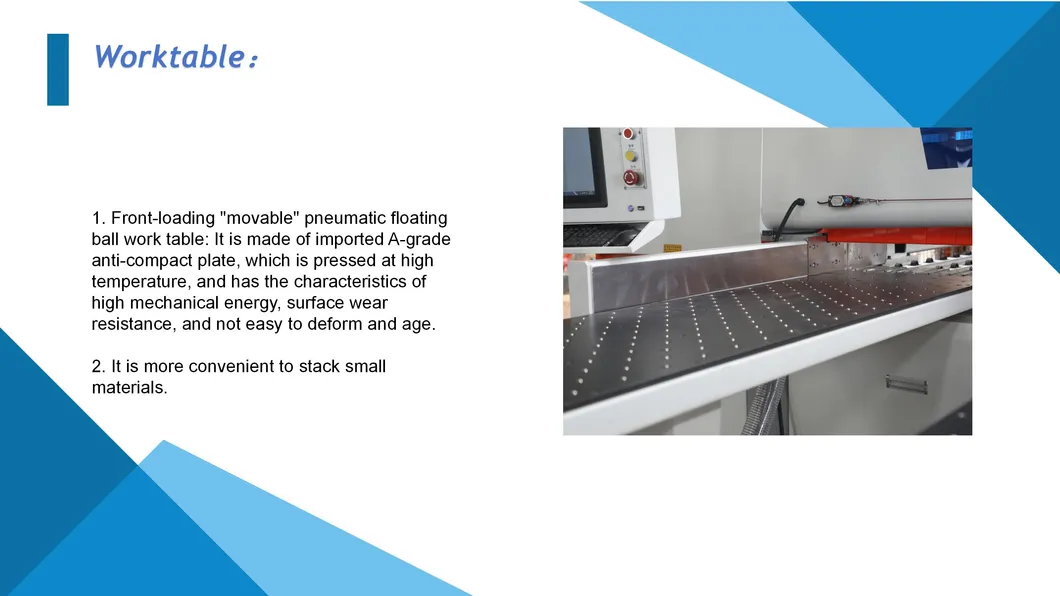

| 18 | Worktable height | 950mm |
| 19 | Net weight | 3800KG |

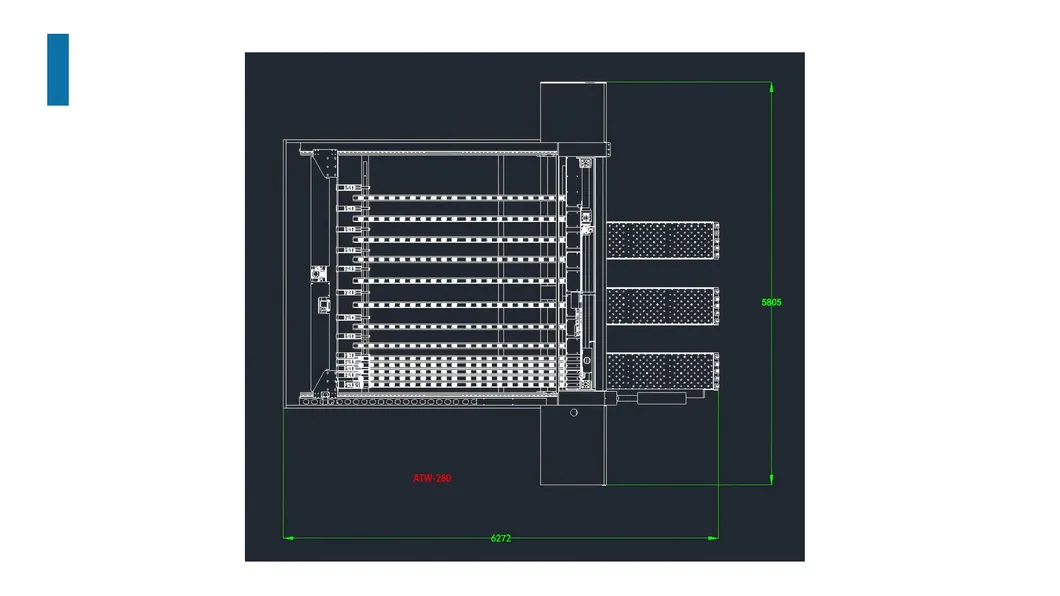

| 20 | Machine Size(L*W*H) | 5100*6300*1900mm |
1. Warranty: 12 months from arrival at the buyer's location.
2. Testing: Videos or pictures are provided before delivery to ensure optimal condition.
3. Training: Provided via videos and pictures. Overseas engineer dispatch is available upon request (costs borne by buyer).
4. Support: Life-time online service for daily use issues. Free replacement for warranted parts broken under normal use.
