Window Patching Machine for Cardboard with Punching and Creasing Hstc-650A

Customization: Available
Warranty: One Year
Type: Paperboard

Product Description

Technical Specifications

Model NO.
HSTC-650A
Type
Laminated PVC
Automation
Automatic
Certification
CE
Condition
New
Max Speed
5000 PCS/Hour
Motor Power
2.2kw
Weight
3000kgs
Dimensions
6500X1200X1600mm
Capacity
200 Sets/Month

Product Overview

Window Patching Machine For Cardboard With Punching And Creasing HSTC-650A

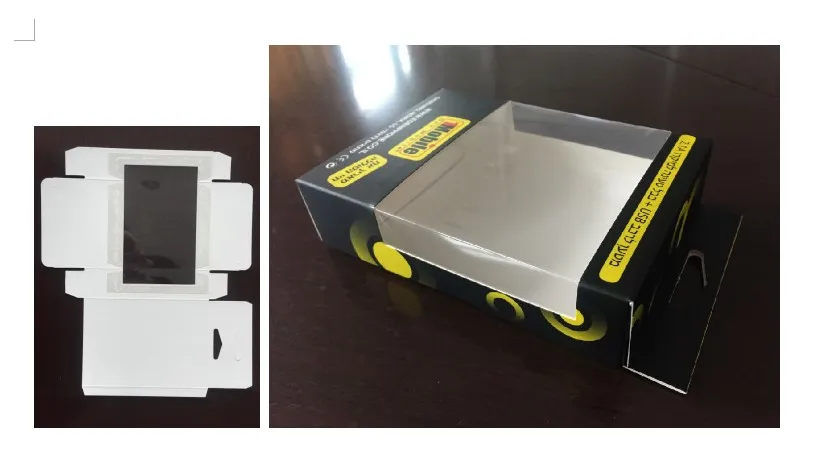

This advanced equipment is widely used for window patching in liquor boxes, gift boxes, tissue boxes, cosmetic boxes, and toy boxes. It features comprehensive functionality including window film cutting, creasing, punching, gluing, and card patching.

🔹 High-Quality Components: Equipped with precision electric parts from industry leaders such as Yaskawa and Omron to ensure stability and longevity.

🔹 Servo-Controlled Feeding: The paper feeder is driven by a servo motor, allowing for intermittent movement during feeding. This reduces belt wear and ensures products are conveyed steadily and orderly.

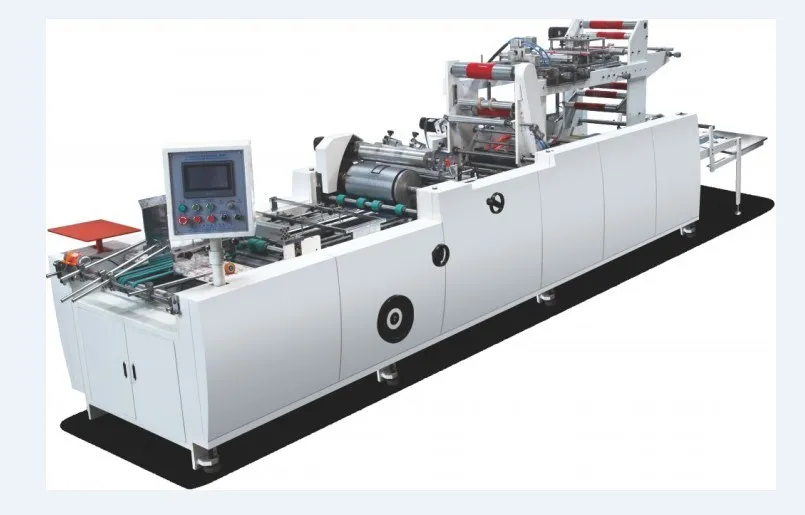

Window Patching Machine HSTC-650A

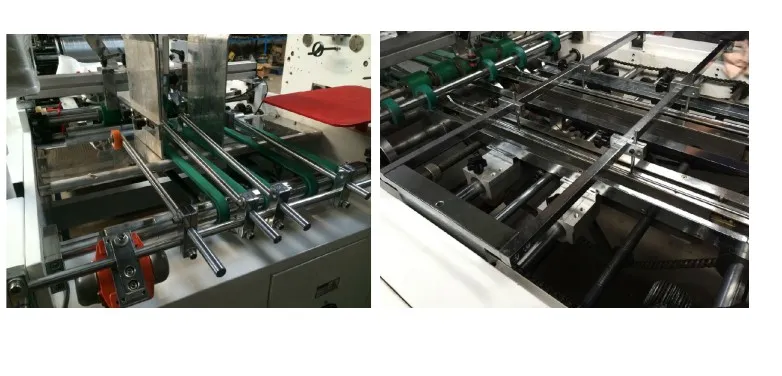

🔹 Adjustable Conveying: Features four conveying chains with adjustable pushing blocks, making it compatible with various paper shapes and sizes.

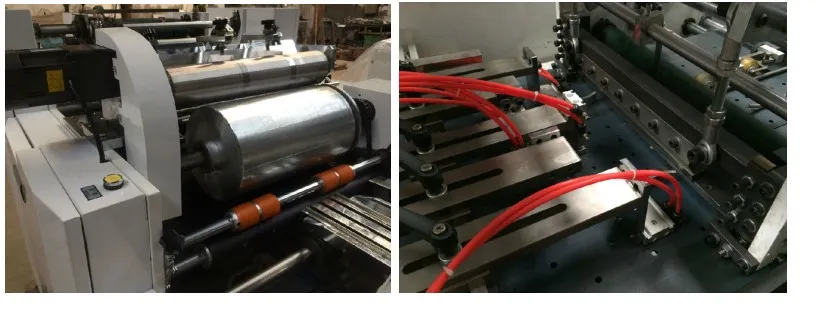

Machine Conveying System

🔹 Precision Creasing & Punching: The creasing and punching unit can move laterally in one step. Punching is controlled by dual cylinders for flexible positioning, with an integrated box for scrap collection. Film feeding is servo-controlled, allowing for non-stop adjustments of film length.

Creasing and Punching Unit

Detailed Parameters

Parameter Unit Specification (HSTC-650A)
Cardboard Weight g/m² 200-1000
Output Per Hour pieces 5000
Blank Length mm 100-550
Blank Width mm 100-650
Film Length mm 30-300
Film Width mm 60-300
Film Thickness mm 0.05-0.25
Connected Load kw 7

Product Gallery

Frequently Asked Questions

What types of boxes can this machine process?
The HSTC-650A is ideal for window patching on liquor boxes, gift boxes, tissue boxes, cosmetic boxes, and toy boxes.
What is the maximum production speed of the HSTC-650A?
The machine can reach a maximum output of 5000 pieces per hour, depending on the material and dimensions.
Can I adjust the film length while the machine is running?
Yes, because the film feeding is controlled by a servo motor, the film length can be adjusted without stopping the machine.
What range of cardboard weight is supported?
The machine supports cardboard weights ranging from 200g/m² to 1000g/m².
How is the waste from the punching process handled?
The machine includes a specialized collection box where all scrap from the punching process is neatly gathered.
Are the electrical components reliable for long-term use?
Yes, the machine utilizes high-end electrical parts from reputable brands like Yaskawa and Omron for maximum reliability.
