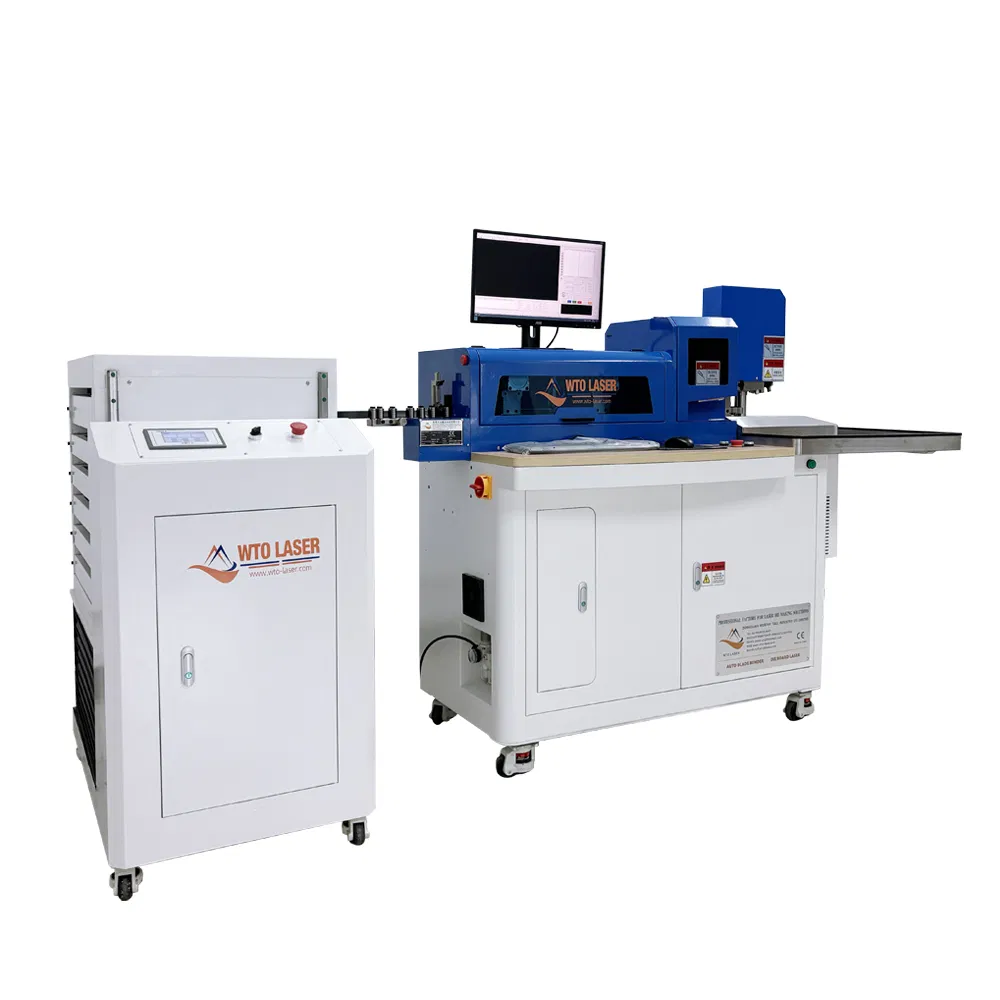

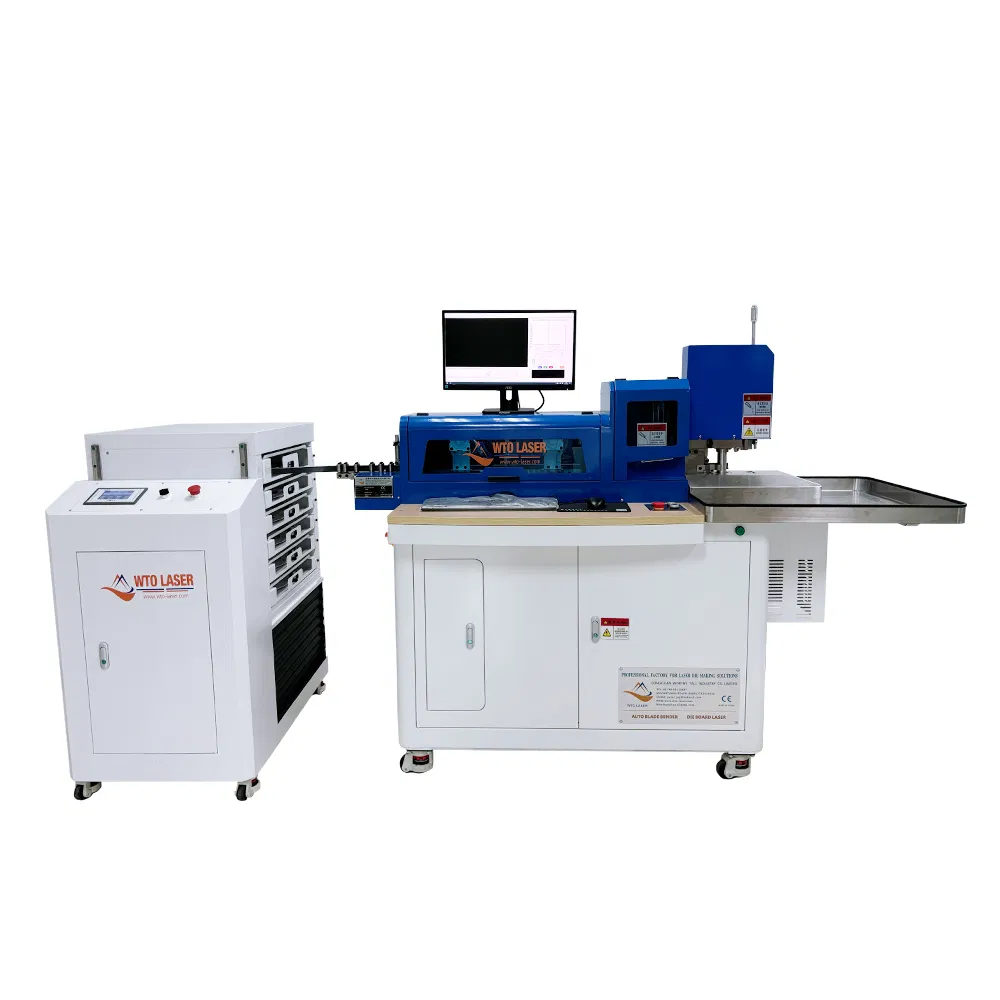

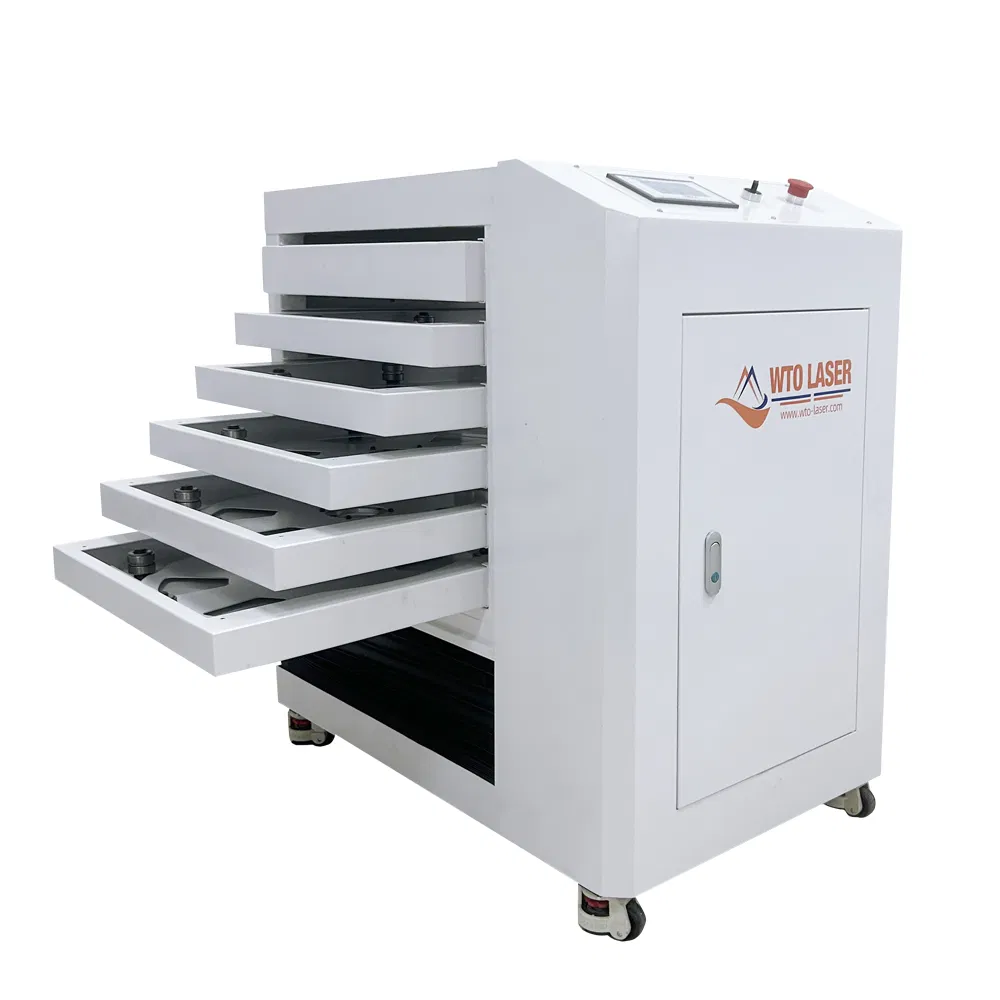

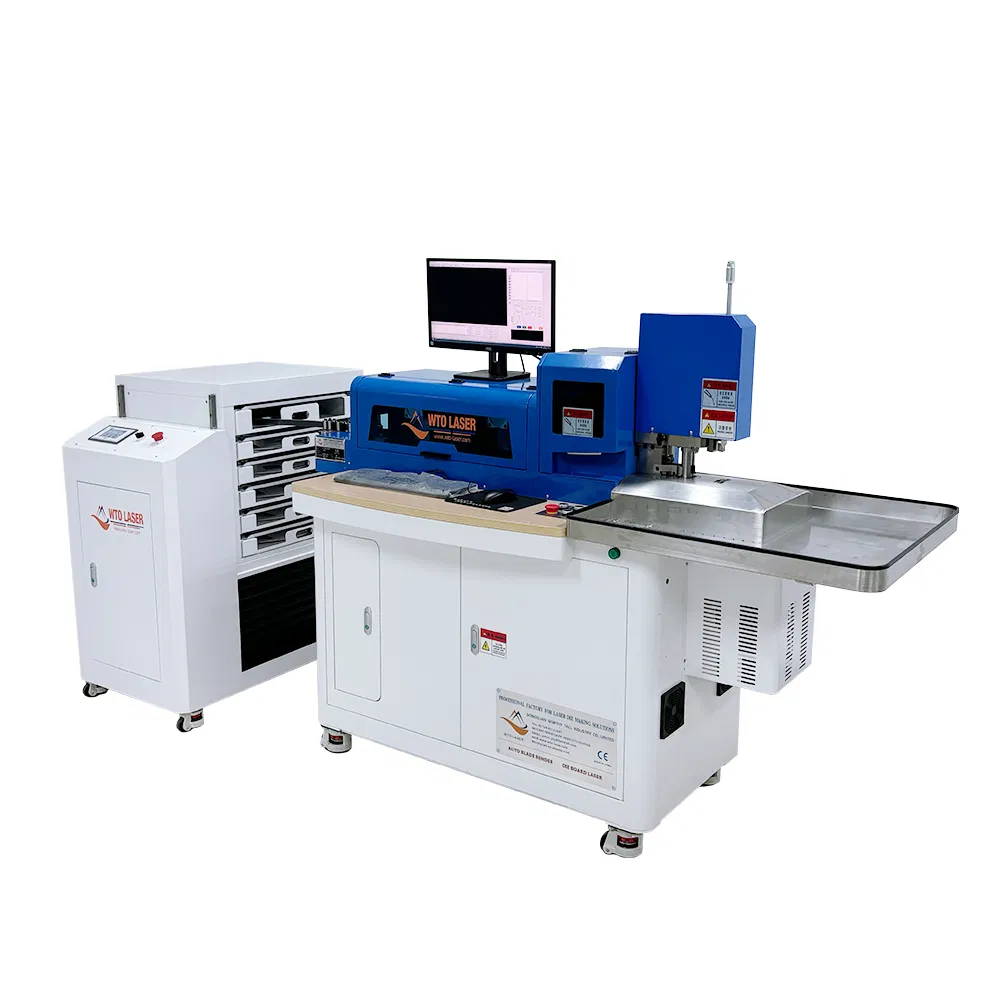

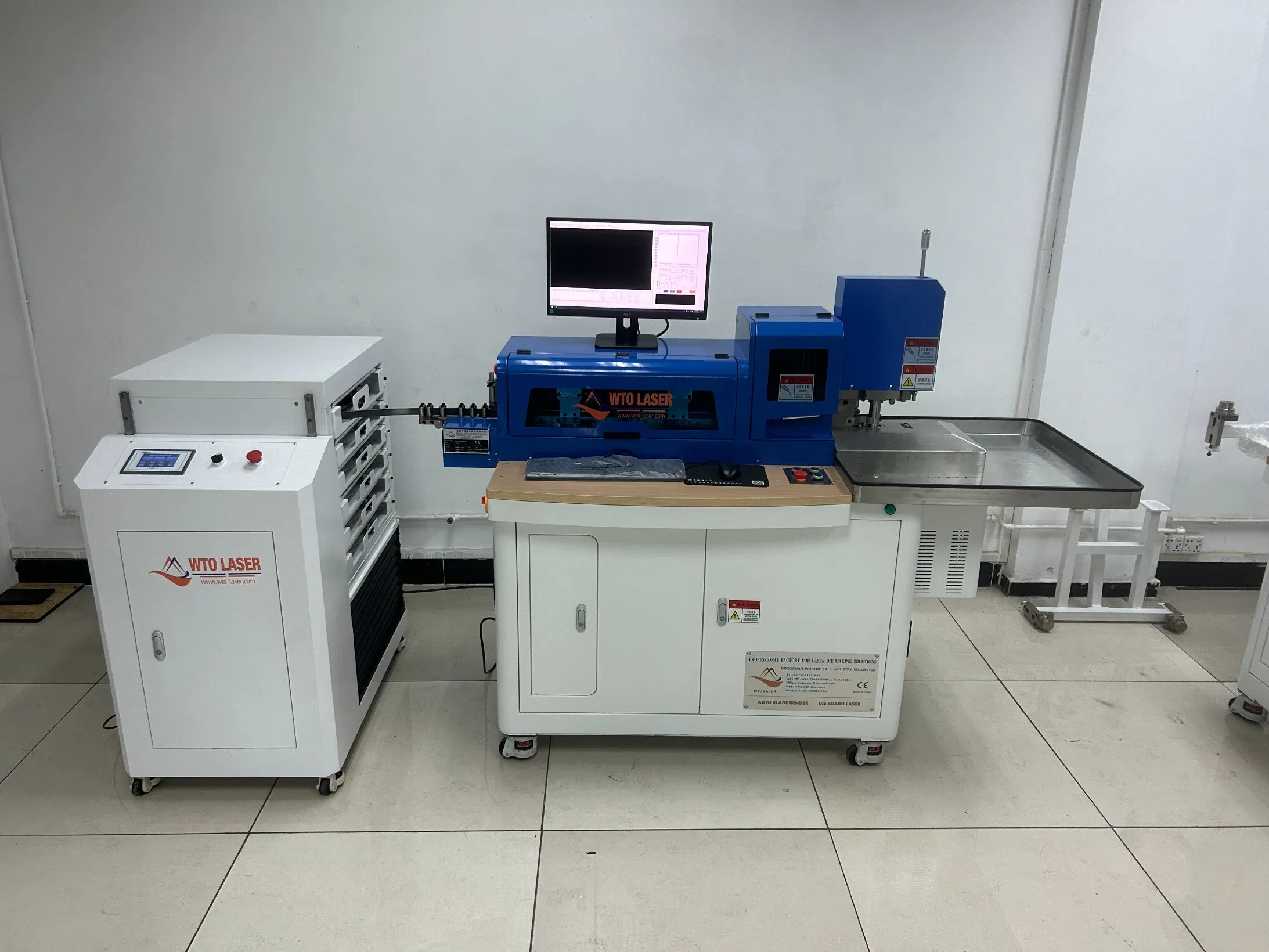

Auto Cutting Fold Creasing Bend Machine 4PT Bender for Die Cutting

Basic Specifications

Warranty

Lifetime

Condition

New

Certification

CE

Automation

Automatic

Suitable for

Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel

Type

Cnc Bending Machine

Weight

620kg

Raw Material

Steel Blade

Service

Engineers Available Overseas

Blade Thickness

0.45/0.53/0.71/1.05/1.42mm

Feeding Precision

0.03mm

Motor

Panasonic Servo Motor

HS Code

8462221000

Dimensions

1200*600*1600

Product Description

Technical Specifications

Specifications	Steel Rule Blade thickness(mm)
Steel Rule Blade Size	0.71 (2PT)	1.07 (3pt)	1.42 (4PT)
Steel Rule Blade Height	8-60mm	8-60mm	8-60mm
Maximum bending angle	100°	100°	100°
Min bending radius (90°)	0.5mm	0.6mm	1mm
Feeding Accuracy	0.03/300mm (Panasonic Servo Motor & HIWIN Screw Guide)
Bending Flatness	0.2/100mm (Shimpo Reducer)
Power Supply	Single Phase 1.8kw \| 110V/220V \| 50HZ/60HZ

Main Features

Auto Bending, Bridging, Slotting, Cutting, Lipping, Broaching, Nicking, Perforation with 0.45-1.42mm thick blades.

Feeding: Screw Guide system for high-speed accuracy.
Cutting: Automatic steel rule cutting system.
Bridging: Automatic width and height adjustment.
Lipping: Precision automatic lipping.

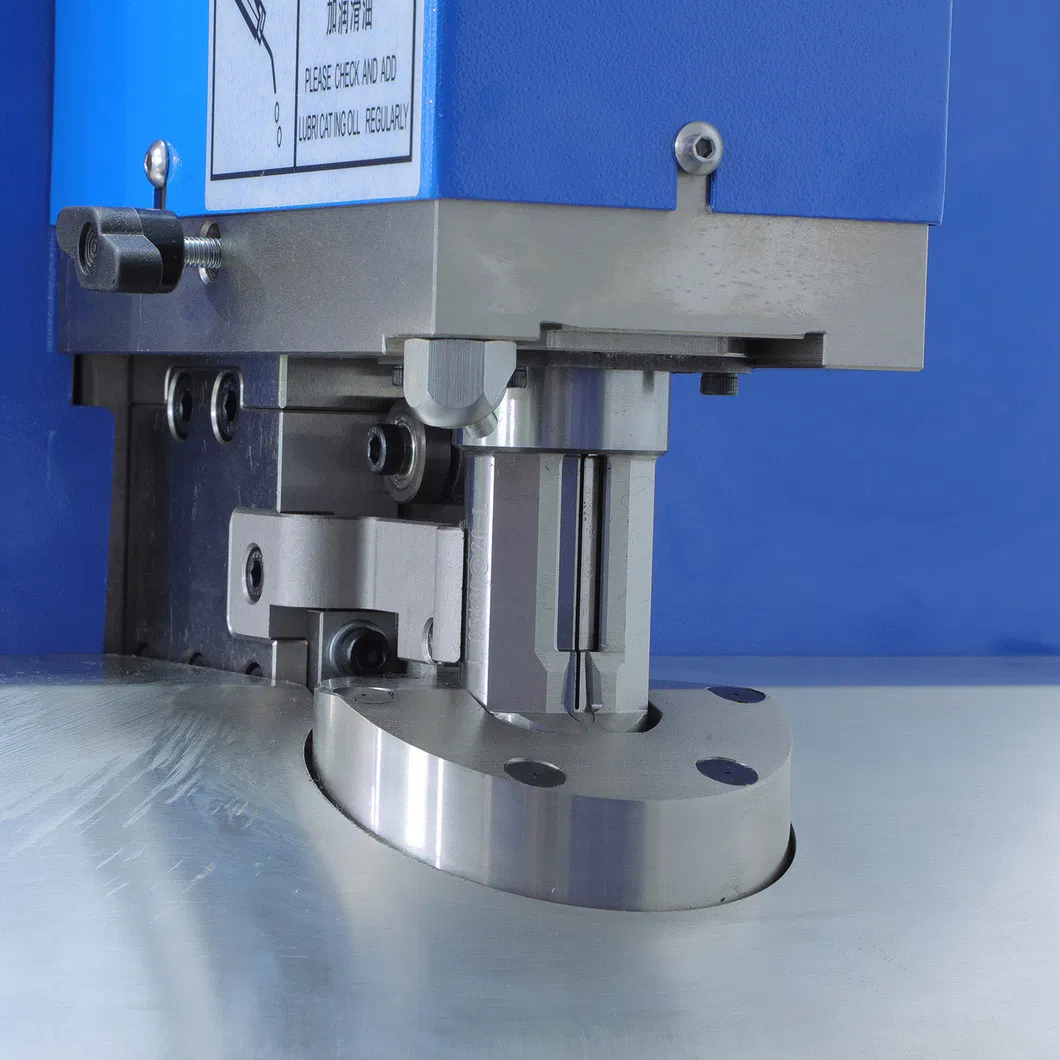

Bending: Perfect for boxes, toys, and electronics.
Broaching: Tungsten saw blade for longer lifetime.
Nicking: Tungsten blade with gaps from 0.2mm to 0.8mm.
Software: Easy to learn interface in English, Spanish, and Russian.

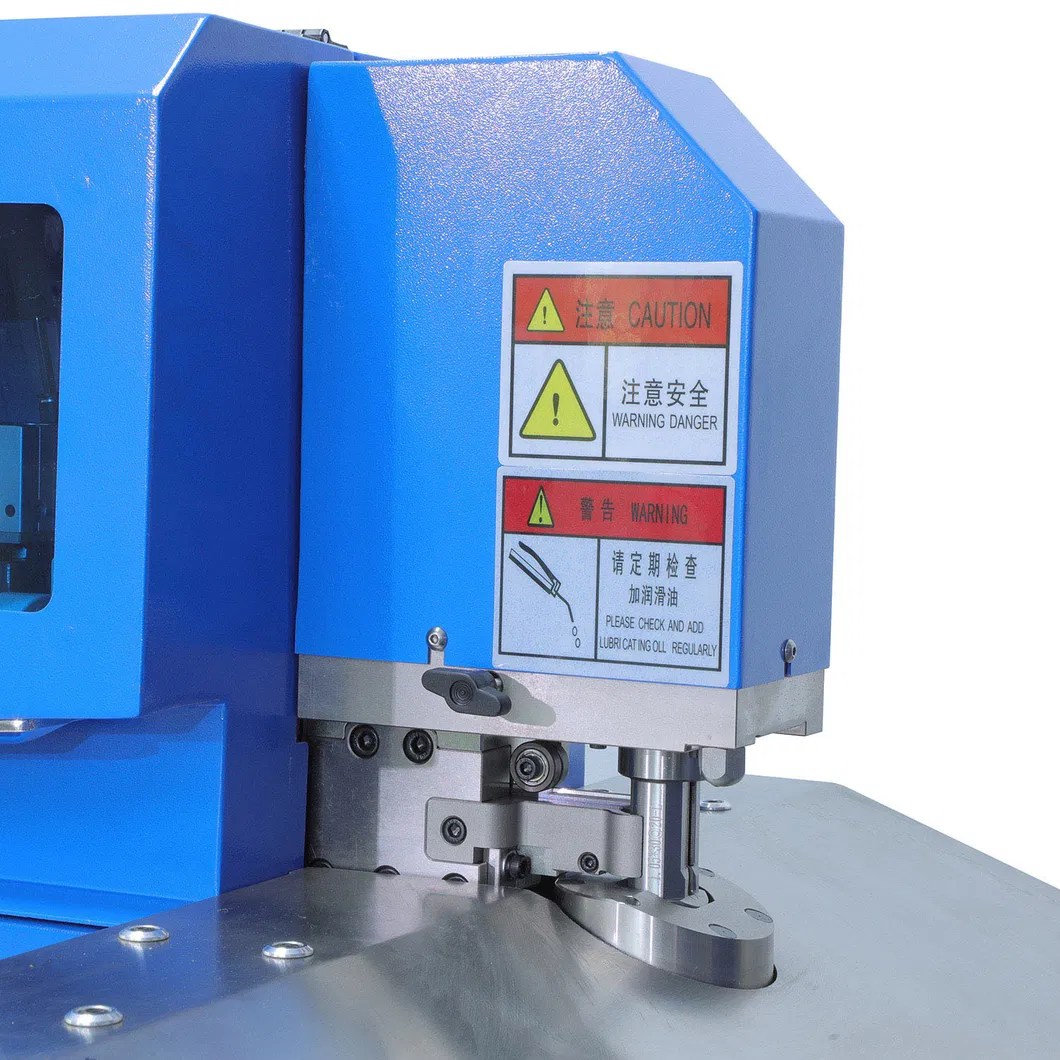

Details & Applications

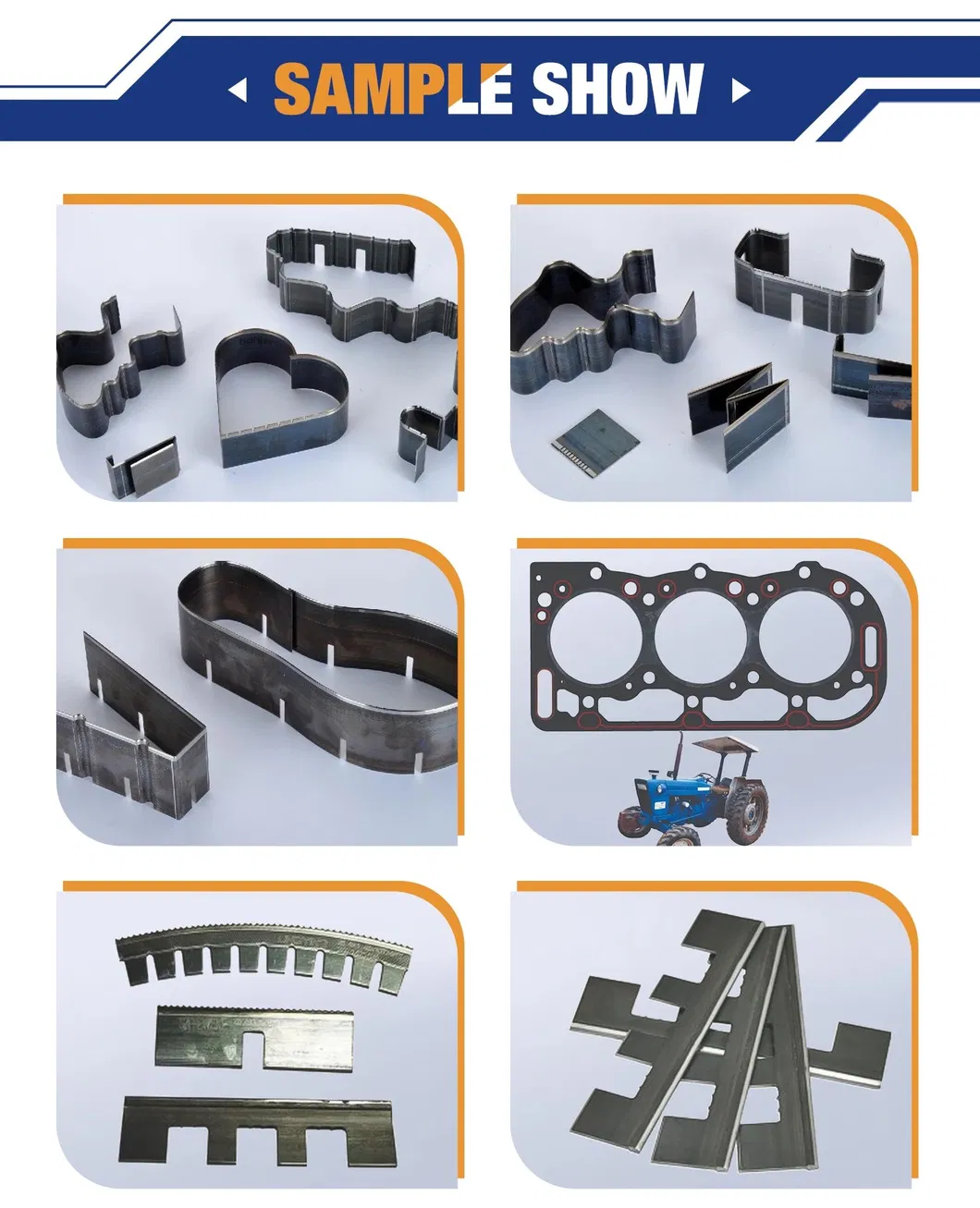

Applications: Suitable for making cutting die boards in packing and printing industries. Widely used for corrugated boxes, shoe dies, blister dies, labels, acrylic dies, leather, and foam cutting.

Quality Assurance & Packaging

Frequently Asked Questions (FAQ)

How can I learn to operate the Auto Blade Bender Machine?

We provide a comprehensive user manual and CD with training videos. Additionally, online support via WhatsApp, Skype, and TeamViewer is available. We also offer free training at our facility.

What support is available if the machine has a problem?

Our English-speaking engineers are available 7*24 hours via video call or TeamViewer to diagnose and solve issues. Most problems are resolved efficiently through remote assistance.

How long do the spare parts last?

With over 10 years of experience, we maintain a full stock of spare parts. Most standard parts are designed to last at least one year under normal operating conditions.

What file formats does the machine support?

The system is compatible with standard industry formats including DXF, DWG, AI, CDR, and PLT.

What is the warranty for the control system?

We offer a lifetime free warranty for the software control motherboard, ensuring long-term reliability for your production.

What materials can the machine handle?

The machine is designed for steel rule die bending, suitable for blade thicknesses of 0.45-1.42mm and heights from 8-60mm.
