Wood Lathe Crving Tools

Type:	Wooden Mold Router
Spindle Layout:	Spindle Over
Spindle Number:	Single-Spindle

Send Inquiry

Product Description

📊

Technical Specifications

Model NO.

MC330

Feed Mode

Manual

Controlling Mode

Artificial

Certification

CE, ISO

Condition

New

Color

Yellow

Spindle Speed

750-3200 Rpm

No of Speed

Variable

Motor(W)

250

Tool Rest

7" or 6"

Face Plate

2" or 6"

HS Code

84589900

Production Capacity

500 Sets/Month

⚙️

Product Overview

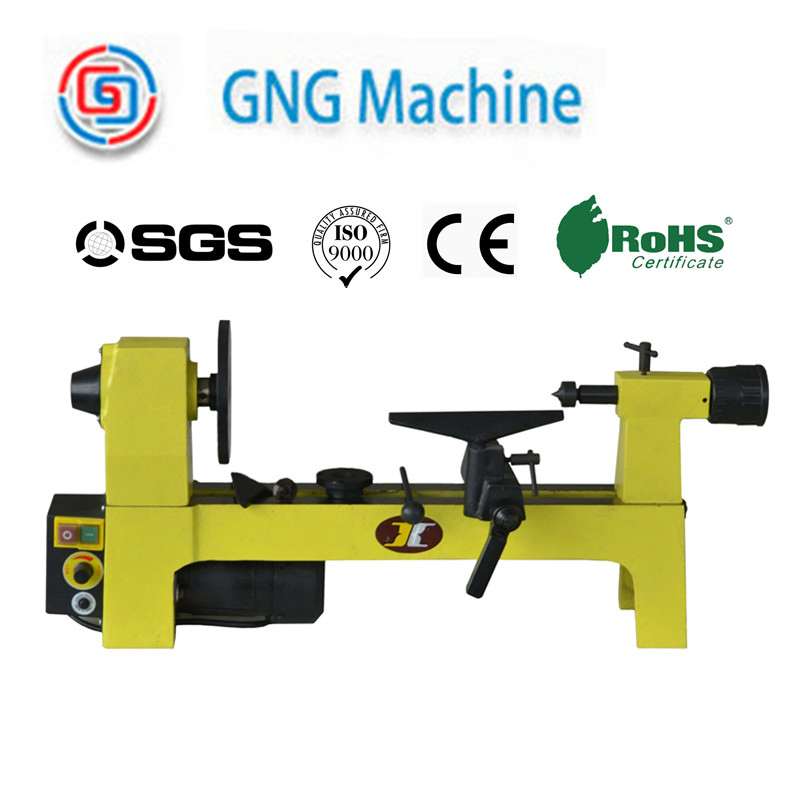

MC330 Wood Lathe Carving Tool

Description: 8"X12" mini wood lathe
Motor(w): 250
No of speed: Variable
Spindle speed(rpm): 750-3200
Swing over bed: 8"
Distance between centers: 12"
Drive spindle: 3/4" 16RH thread or other
Head and tailstock taper: #1 Morse or other
Face plate: 2" or 6"
Tool rest: 7" or 6"
N.G.Weight(kgs): 20/21
Packing size(mm): 710X335X190

Main Characters

Easy speed change.
Solid headstock and lathe bed construction.
6" cast iron offset tool rest.
3" face plate, spur and ball bearing live center included.
Powerful totally enclosed fan cooled motor.

Main Features

One of the most commonly used small machines in woodworking production.
Performs rough and fine turning on the end face, section and cone of wood.
Can use the forming tool to process quickly and accurately.
Easy to operate motor control system.
Two belt transmission ratios with high torque when turning large diameter.
Quick construction hoist change capability.
Cast iron structure for high stability and vibration-free operation.
Matching cast iron bracket available.
Compatible with extended operation platforms for large workpieces.

🖼️

Product Gallery

Frequently Asked Questions

What is the maximum workpiece size for the MC330?

The MC330 mini wood lathe features an 8" swing over bed and a 12" distance between centers, making it ideal for small to medium woodworking projects.

Is the spindle speed adjustable?

Yes, the lathe features variable speed control ranging from 750 to 3200 RPM, allowing you to adjust the speed according to the material and detail required.

What kind of motor does this wood lathe use?

It is equipped with a powerful 250W totally enclosed fan-cooled motor designed for stable and long-term operation.

Does the machine stay stable during operation?

Yes, the MC330 is built with a heavy-duty cast iron structure for the headstock and bed, ensuring high stability and vibration-free operation.

What accessories are included in the standard package?

The package typically includes the 6" cast iron offset tool rest, a 3" face plate, and a spur and ball bearing live center.

Can I use this lathe for large diameter turning?

The lathe has two belt transmission ratios that provide high torque specifically for turning larger diameter workpieces within its 8" swing capacity.
