Product Description

⚙️ Basic Information

Model NO.

MK361A

Spindle Number

Single-Spindle

Feed Mode

Manual

Controlling Mode

Artificial

Certification

CE, ISO

Condition

New

Voltage

380V/50Hz (Customizable)

Net Weight

48-51 Kg

Shaft Speed

2800 Rpm

Specification

495*305*220mm

📋 Product Description

MK361A Vertical Single-Axis Grooving Machine

The MK361A vertical single-axis woodworking grooving machine, commonly known as a square chisel grooving machine or "eye-catching machine," is primarily designed for processing square or rectangular gutters on wooden components and frames. This machine is an essential tool for the wood processing industry and individual households engaged in woodworking reclamation.

📊 Technical Specifications

Motor Power Rating	750W (Output 550W)
Voltage	220V
Motor Speed	2840 rpm
Knives Sizes	1/2 inch & 3/8 inch
Workbench Size	220 * 160MM
Maximum Opening Depth	128MM
Drill Chuck	Φ1-Φ13
Machine Weight	45KG

⭐ Key Features & Characteristics

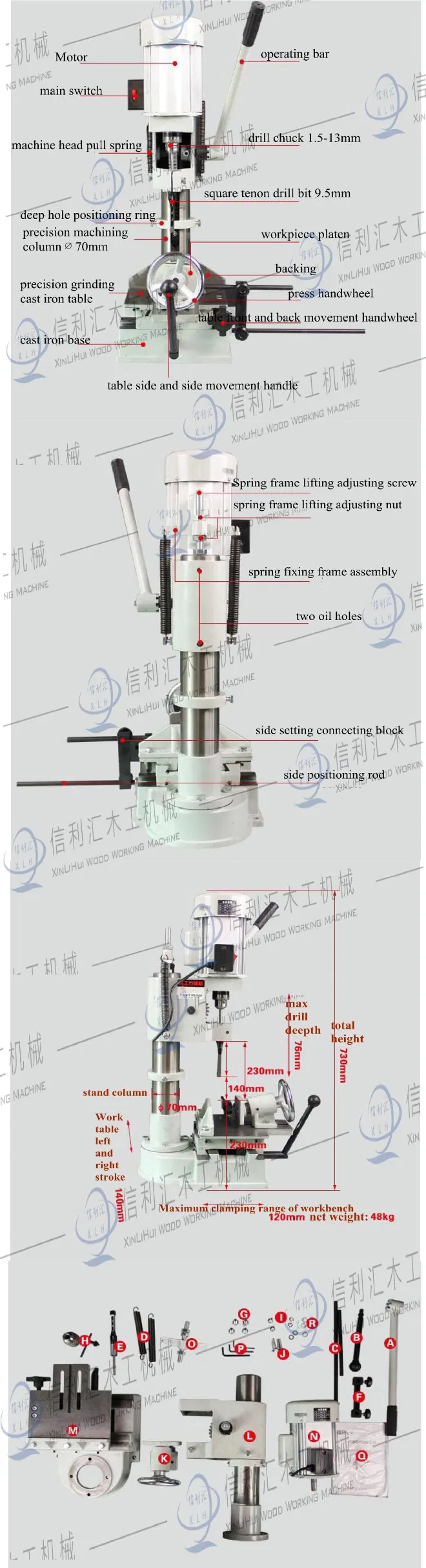

Compact Construction: Composed of a main body, spring frame lifting adjustment, and column sleeve vertical adjustment for stable operation.
User-Friendly: Equipped with a 220V motor, making it highly accessible for various working environments.

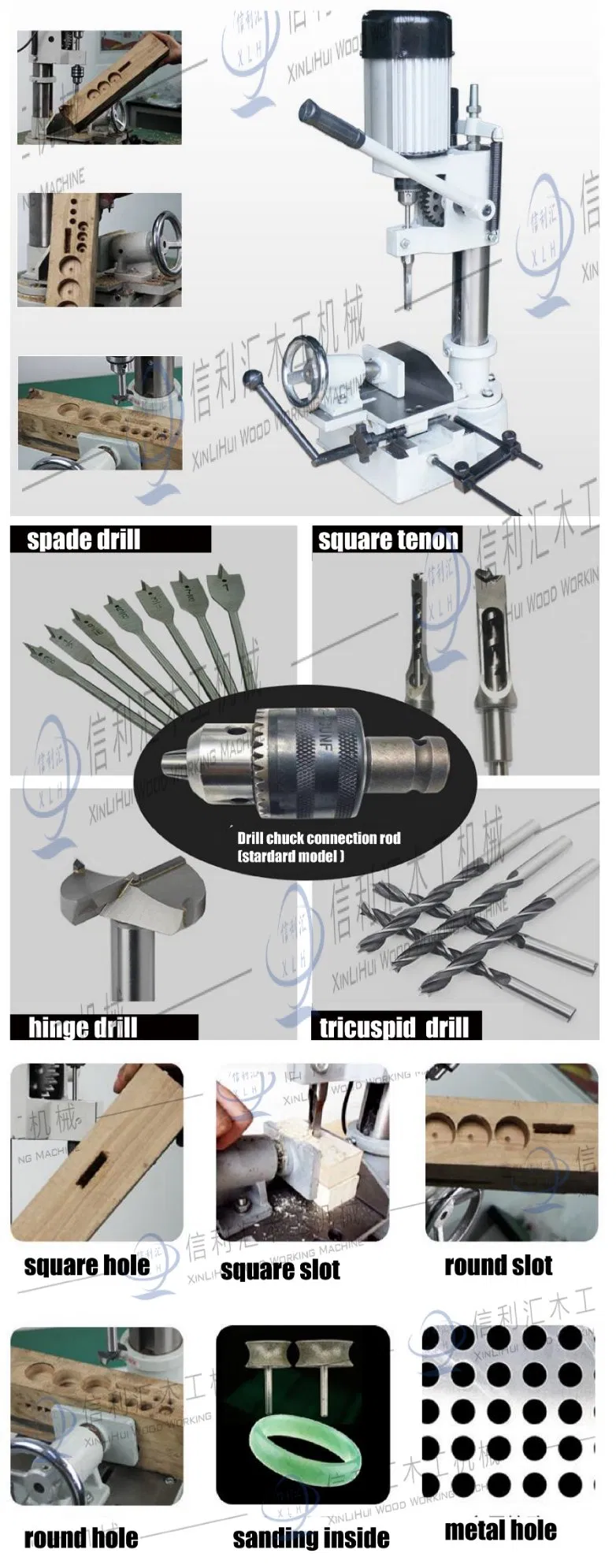

Precision Cutting: Uses a hollow square chisel with an internal drill bit to convert round holes into square bores efficiently.
Versatility: Capable of machining rectangular grooves through lateral workpiece movement.
Reliable Quality: Flexible, reliable, and designed for long-term stability.

❓ Frequently Asked Questions (FAQ)

What is the primary function of the MK361A?

It is a specialized woodworking machine used to create square or rectangular grooves (mortises) in wood pieces, typically for joint connections.

Can the voltage be customized for different regions?

Yes, while the standard motor uses 220V, the machine specifications indicate that 380V/50Hz 3-phase options can be customized based on your needs.

How does the square chisel work?

The machine uses a hollow square chisel with a rotating drill bit inside. The drill removes most of the material, while the sharp edges of the square chisel square off the corners.

What is the maximum depth the machine can cut?

The MK361A has a maximum opening depth of 128mm, making it suitable for a variety of wooden frame thicknesses.

Is this machine suitable for small home workshops?

Absolutely. Its compact and lightweight design (approx. 45-51kg) makes it an ideal tool for both industrial wood processing and individual households.

Does the machine come with warranty and spare parts?

Yes, the product typically includes a 12-month warranty covering free spare parts and service support.
