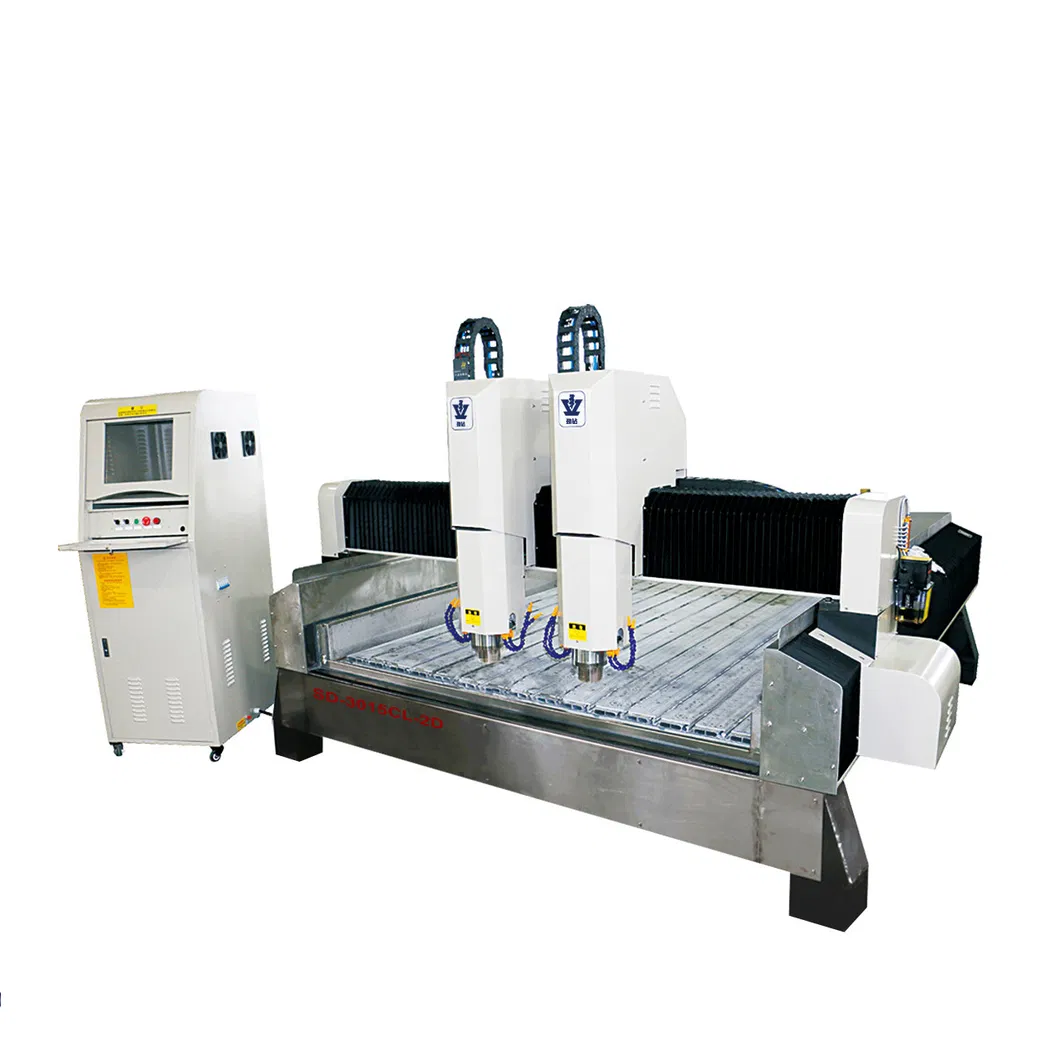

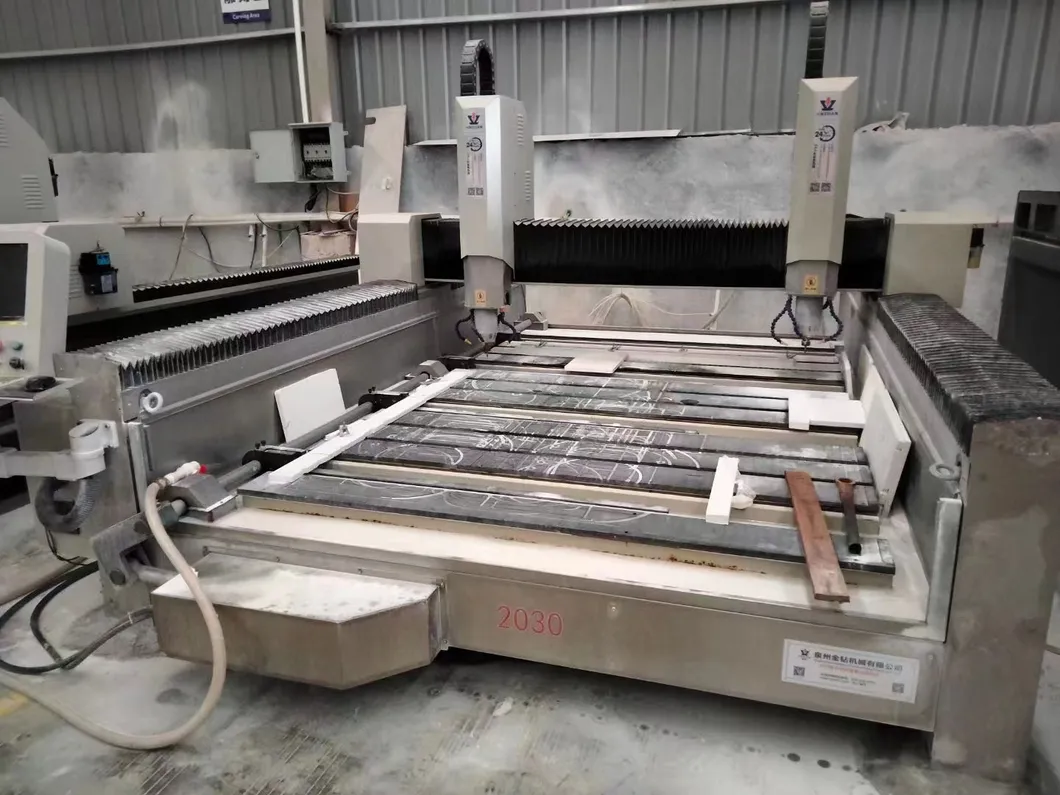

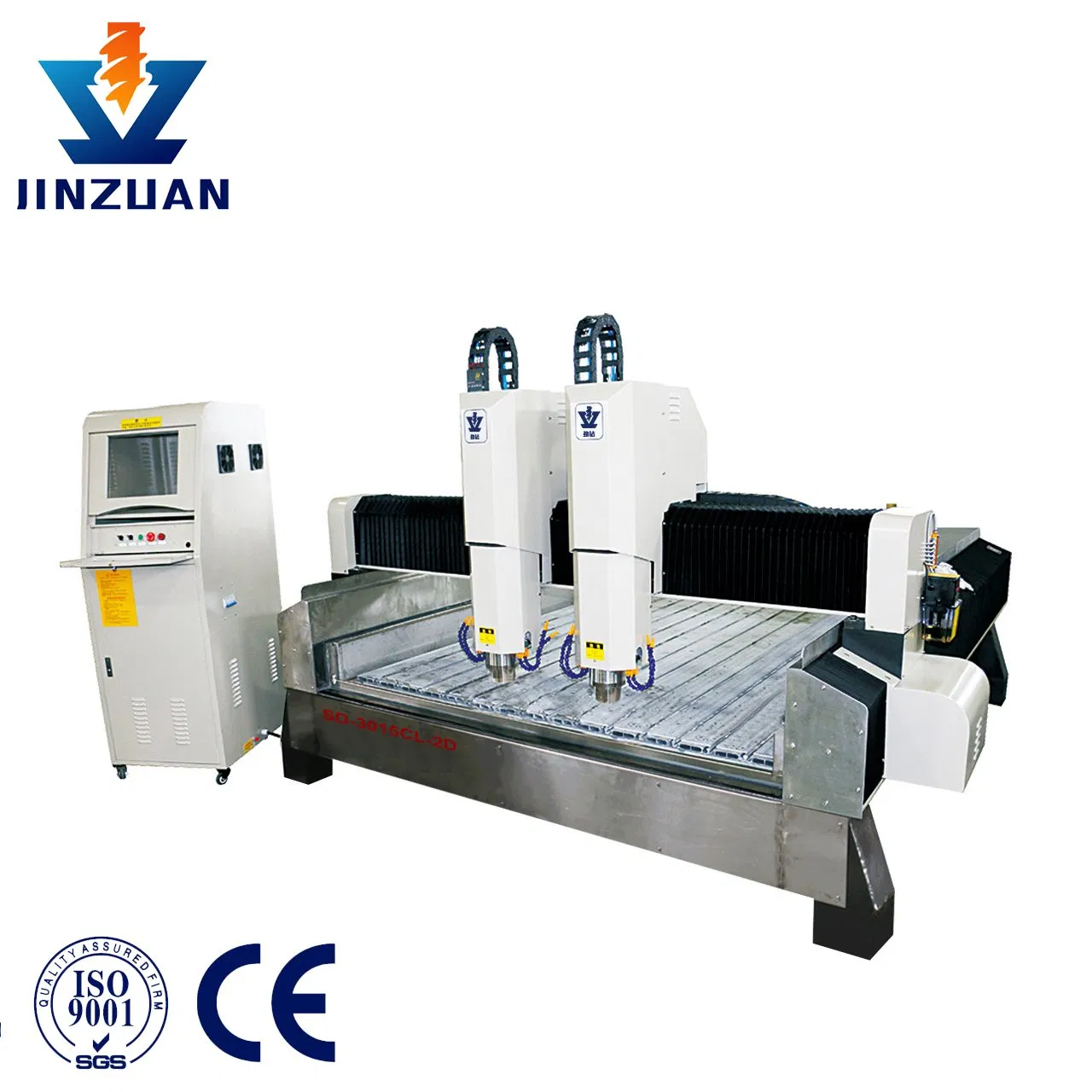

Precision Water Cooled Spindle Stone CNC Router

1 / 5

Precision Water Cooled Spindle Stone CNC Router

Customization:	Available
After-sales Service:	Provided
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

JZ-3015-2D

Function

Line Engraving, Intaglio, Lettering

Application Material

Granite, Marble, Quartz Sandstone

Automation

Automatic

Control

CNC

Motor Power

High Power

Certification

CE, ISO

Machine Body

Thickened Steel (10mm)

Drive

Servo Drive

Control System

Nc Studio

Product Description

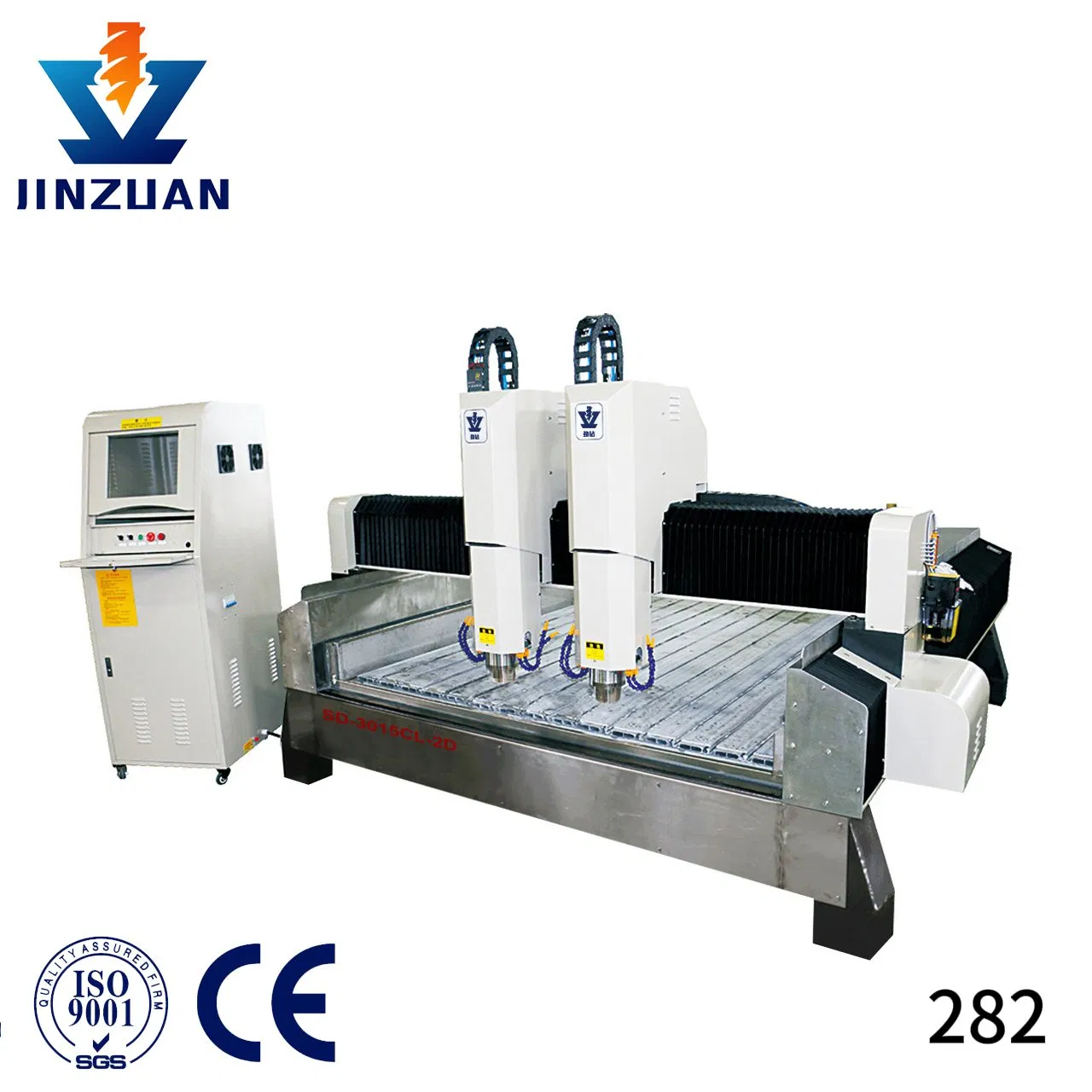

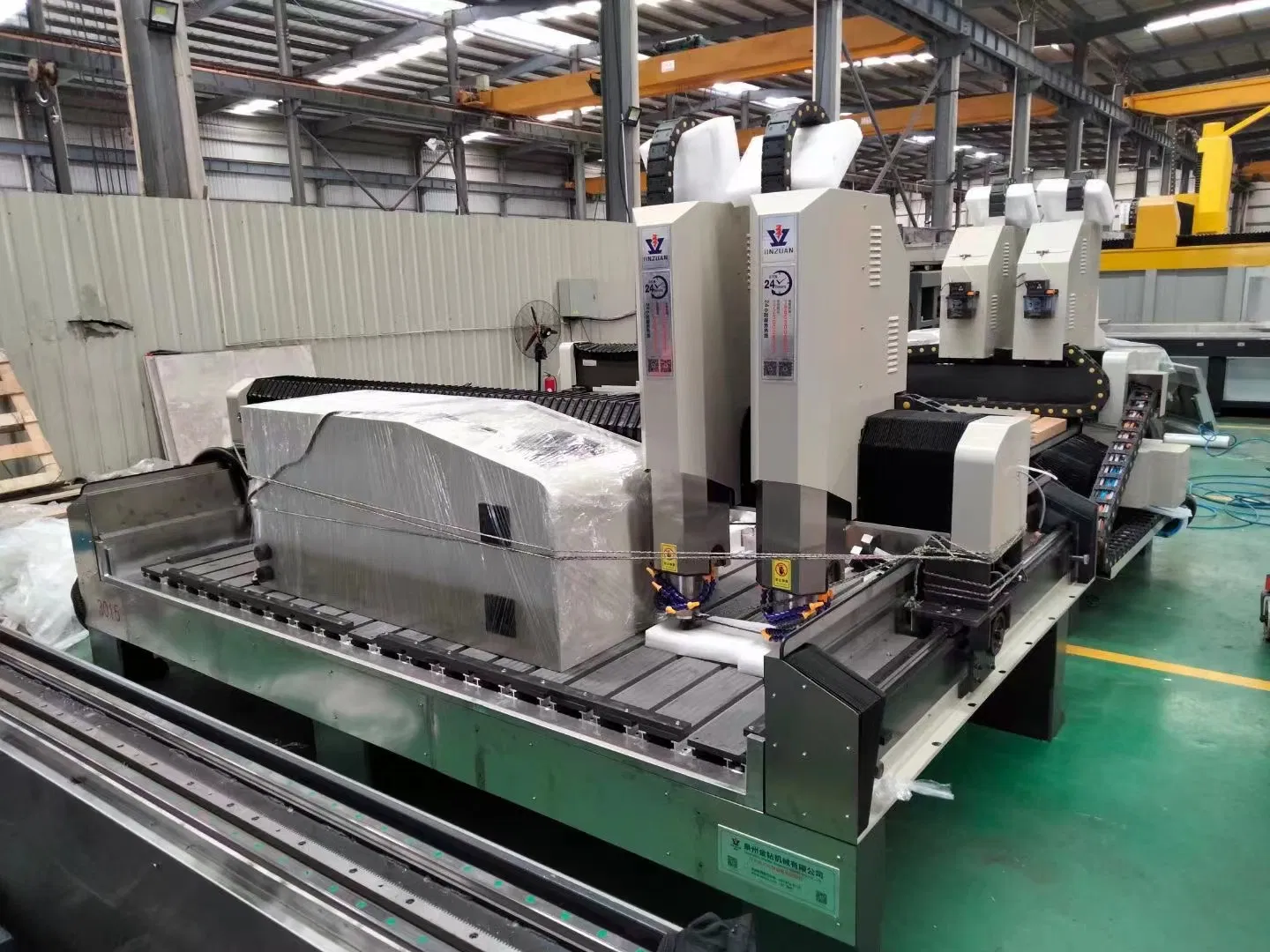

Precision Water Cooled Spindle Stone CNC Router
Professional engraving machine designed for granite and marble with superior cutting effects. Optimized mechanical structure ensures exquisite carving and vivid patterns. High precision and efficiency without structural deformation.

Technical Parameters

Model No.	JZ-3015-2D
Platform Dimension	3000*1500mm
Working Size	25001400mm for 1 piece; 14001400mm for 2 pieces
Working Table	Aluminum T-Slot Table with PVC Plate
Linear Guide Rail	Y Axis PMI-25 (Two Rails); X Z Axis PMI-30
Spindle Speed	6000-24000rmp/min
Lubrication	Automatic Lubrication
Coolant System	Industrial Coolant System
Operating Voltage	AC220V/50HZ or AC380V/50HZ
Positioning Accuracy	±0.03mm
Machine Dimension	430023002300mm
Weight	3000kg

Key Features

■

Heavy Duty Structure: Adopts three-layers steel structure with tempering aging treatment. Rigid and non-deforming with a bearing capacity of over 4 tons.

■

High Performance Drive: Full servo drive and full servo motor with reducer. Z-axis equipped with a brake for high speed, precision, and stability.

■

Smart Monitoring: LED lights flash during operation, stopping, or fault alarming.

■

Memory Function: CNC digital control with power-off memory, allowing tools to continue carving from where they left off.

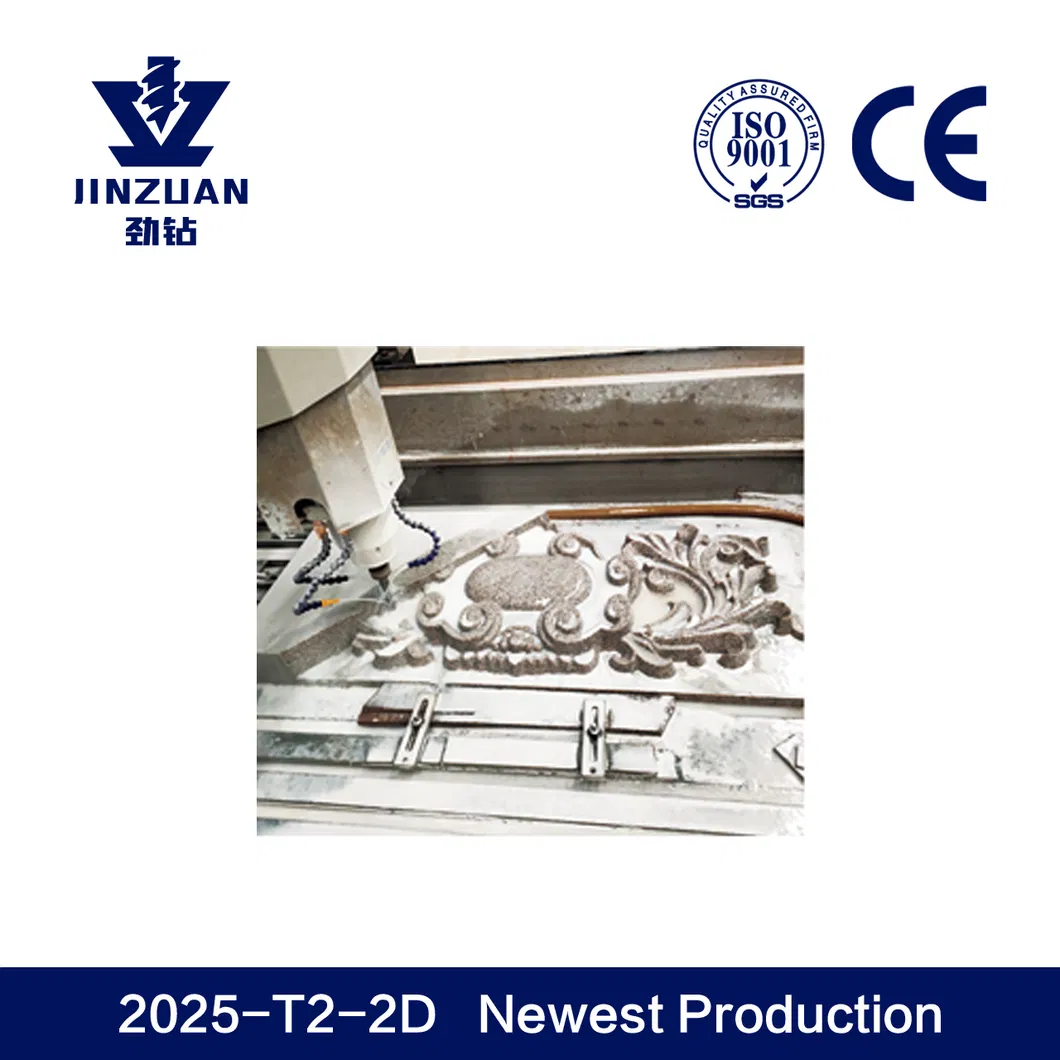

Detailed Applications

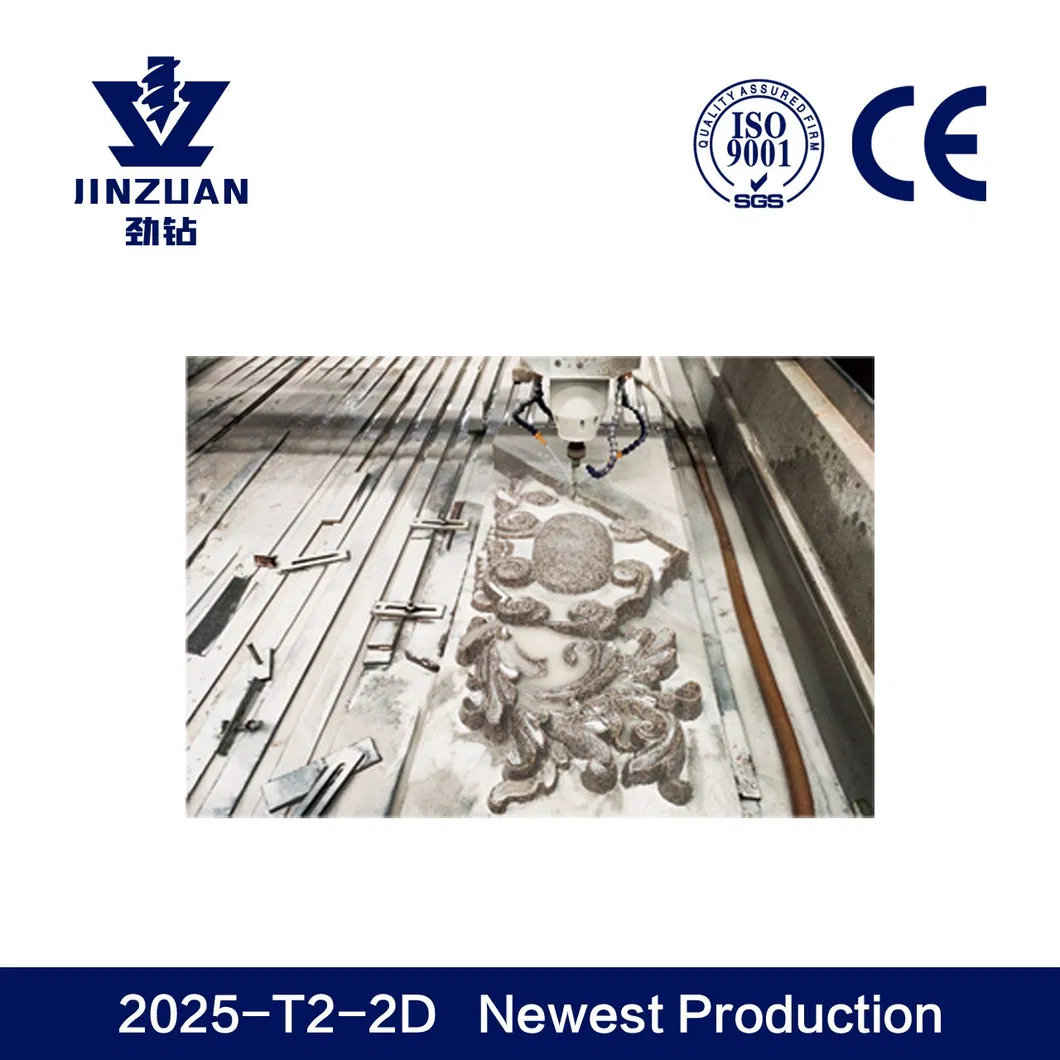

▸Bas-reliefs and 3D engraving

▸Line engraving, cutting, and edge inversing

▸Funeral tablets, gravestones, and milestones

▸Furniture, fireplaces, and commemorative plates

▸Countertops, sink holes, and shower trays

▸Roman columns, caps, and bases

Packaging & Manufacturing

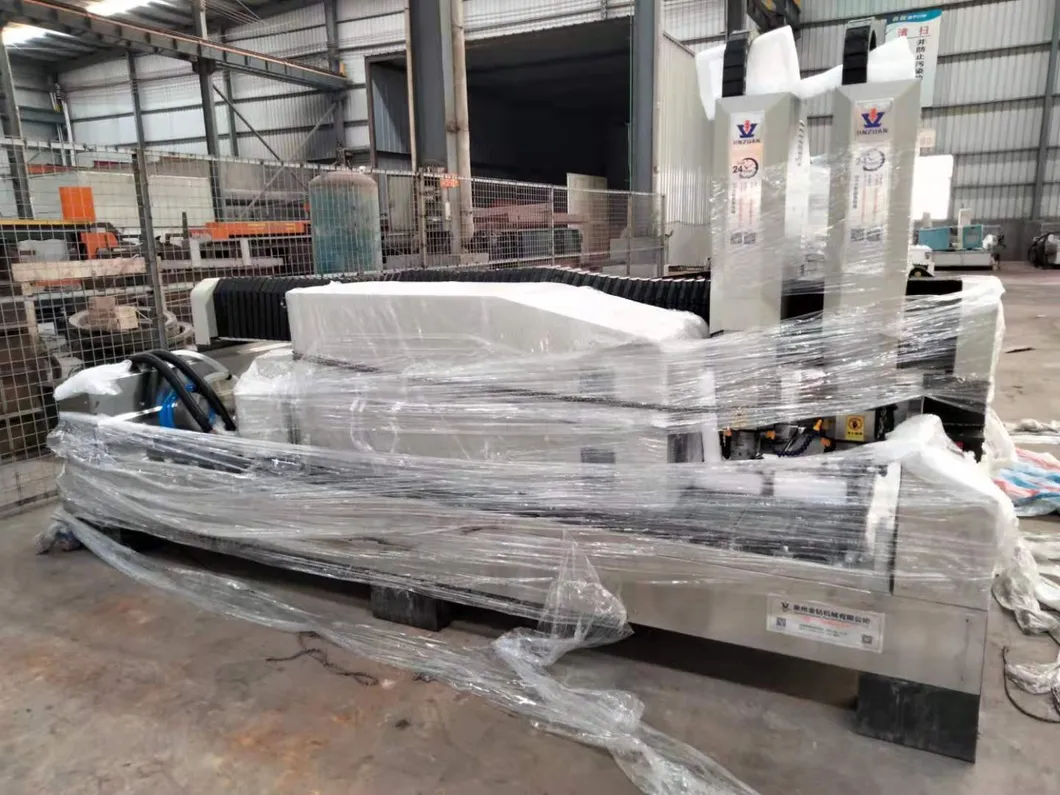

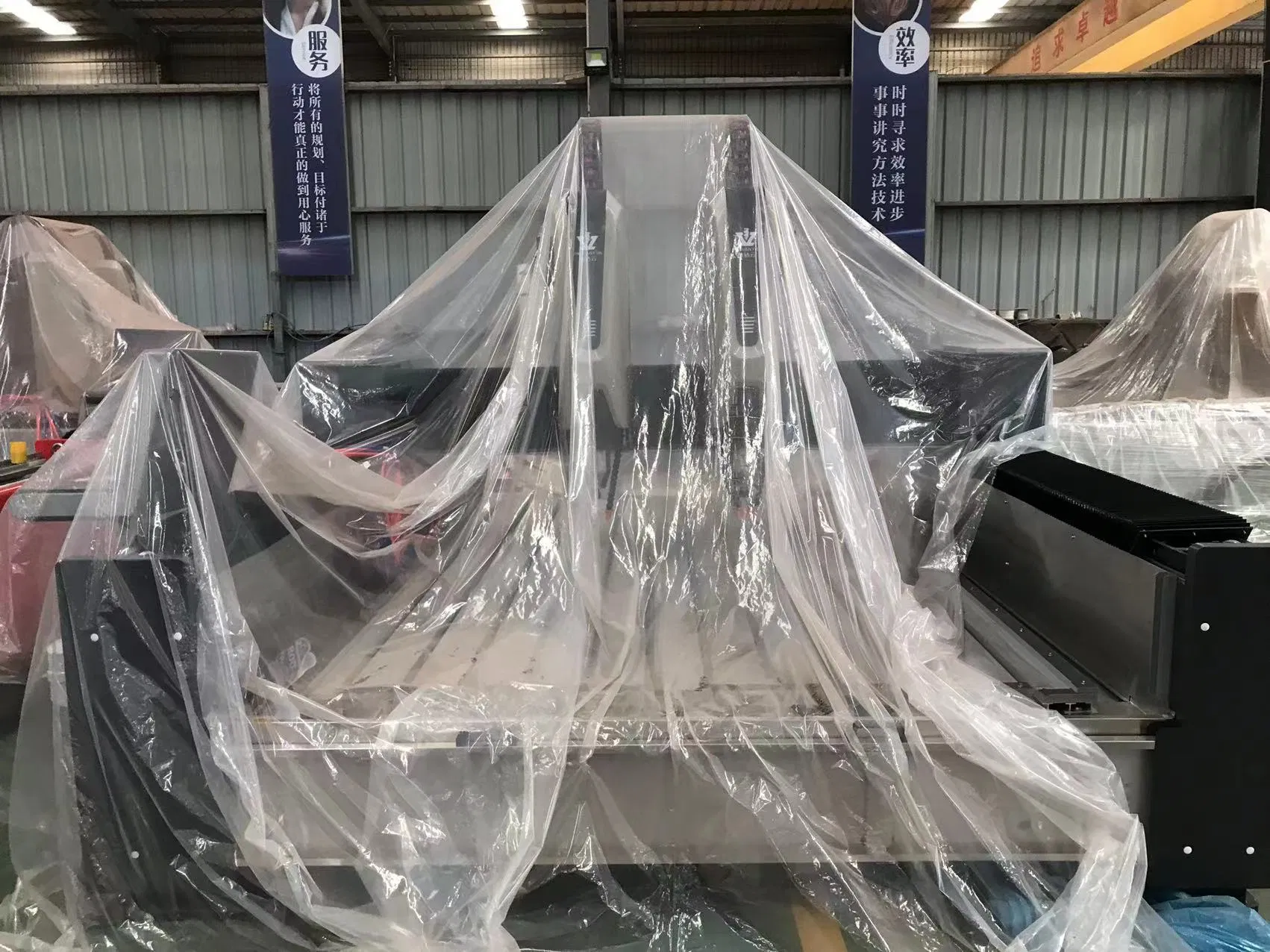

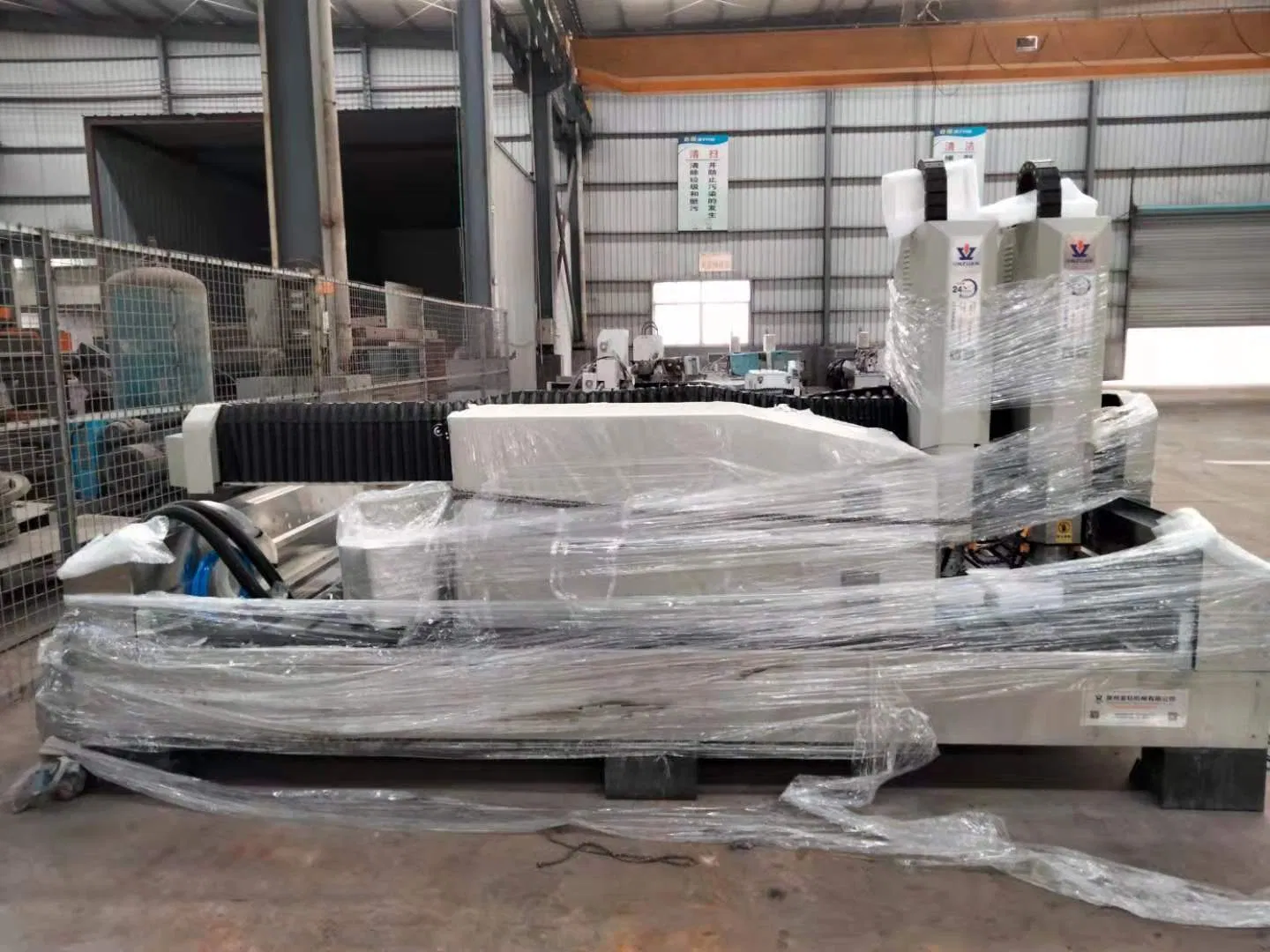

Packaging meets strict requirements for rust, moisture, pressure, and impact resistance to ensure safe transportation and arrival at the site in perfect condition.

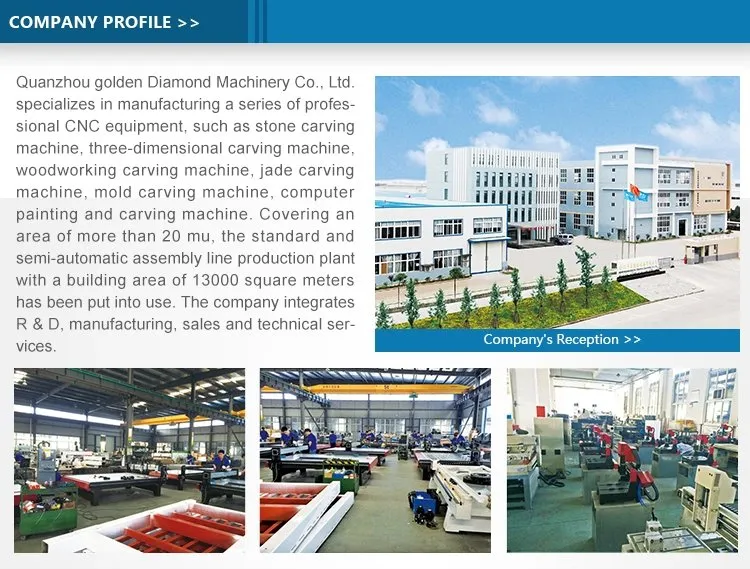

Established in 2014, our technology center focuses on stone CNC processing technology, research, and manufacturing. With numerous national patents, our products meet CE and ISO 9001 standards, serving clients in over 100 countries.

Frequently Asked Questions

What is the standard payment process?

We typically require a 30% deposit via TT, with the remaining 70% balance due before shipping.

How long does shipping and production take?

The production lead time is approximately 30 days. Shipping duration depends on the destination port and will be confirmed upon order.

What kind of technical support do you offer for installation?

We provide comprehensive support including English manuals, installation videos, 24/7 online messaging support, and free on-site training at our facility for software and operation.

Which materials can this CNC router process?

It is ideal for marble, bluestone, and hard granite. It can also engrave glass over 5mm thick and various materials in the metal and woodworking industries.

Is the machine body durable for heavy stone processing?

Yes, the machine uses a 10mm thickened steel structure with a three-layer design and tempering aging treatment, supporting loads over 4 tons without deformation.

Can the control system be customized?

Yes, we support control system customization. Options include Nc Studio, Shanlong, and RichAuto DSP control systems based on your preference.
