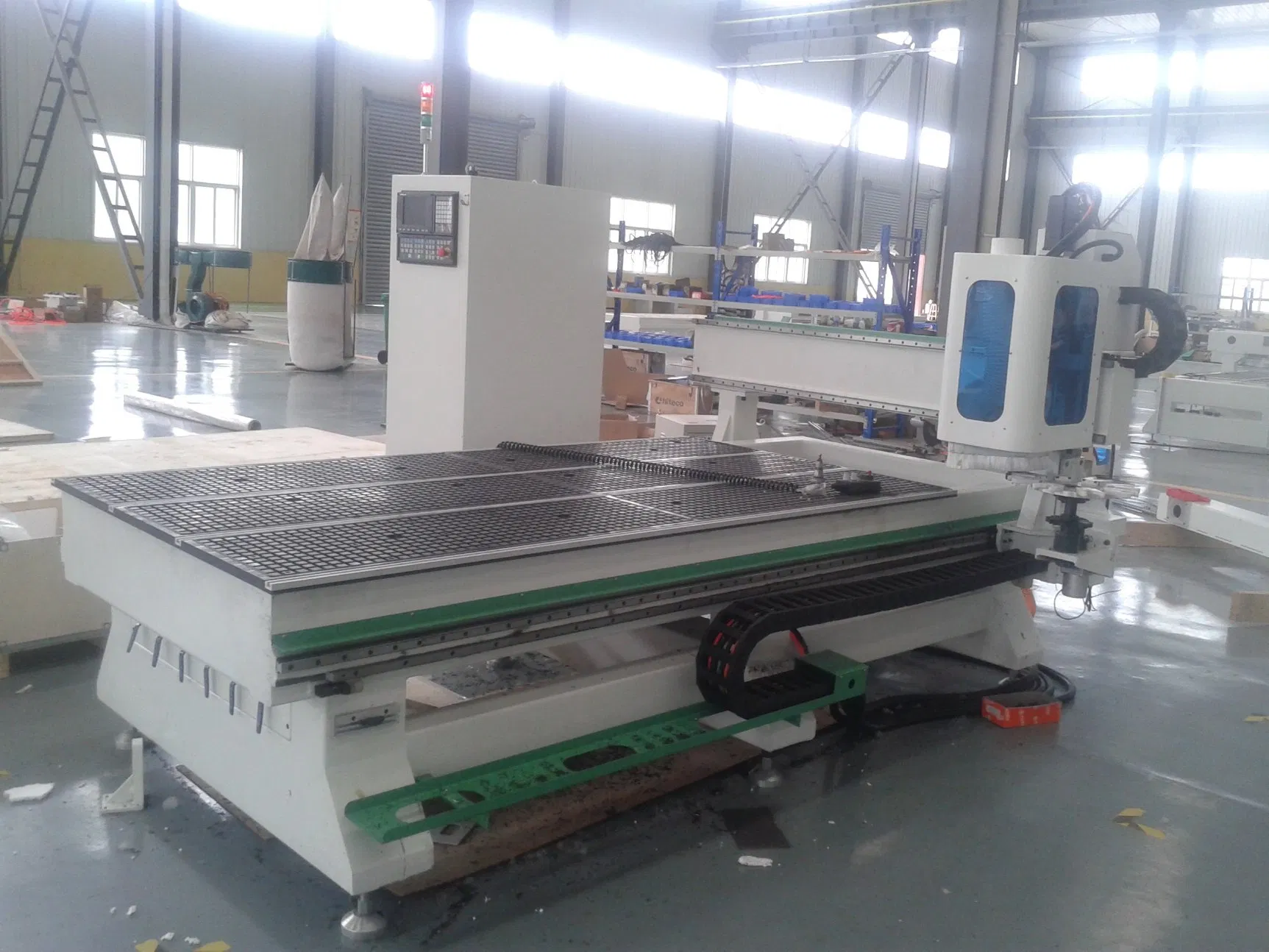

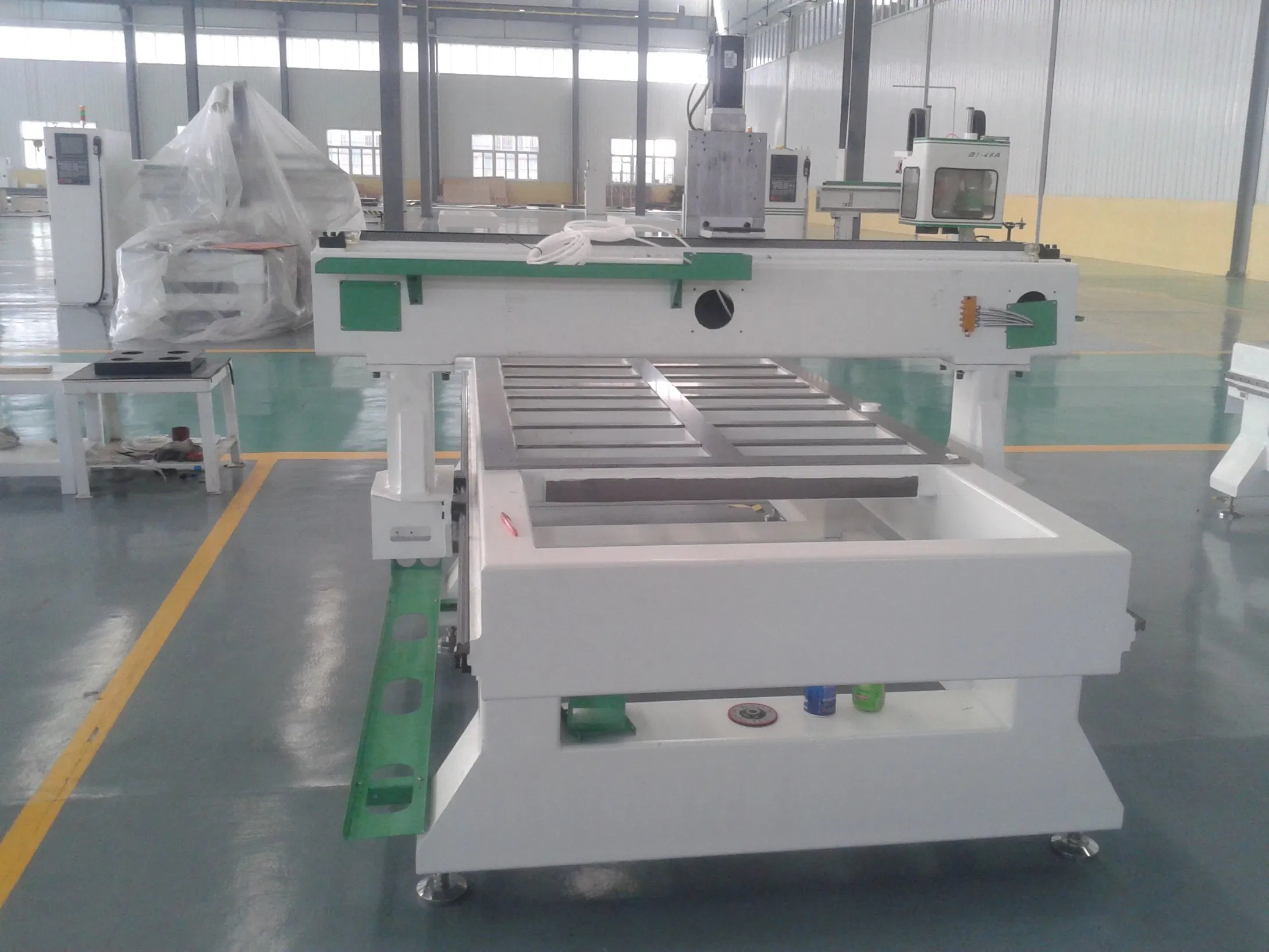

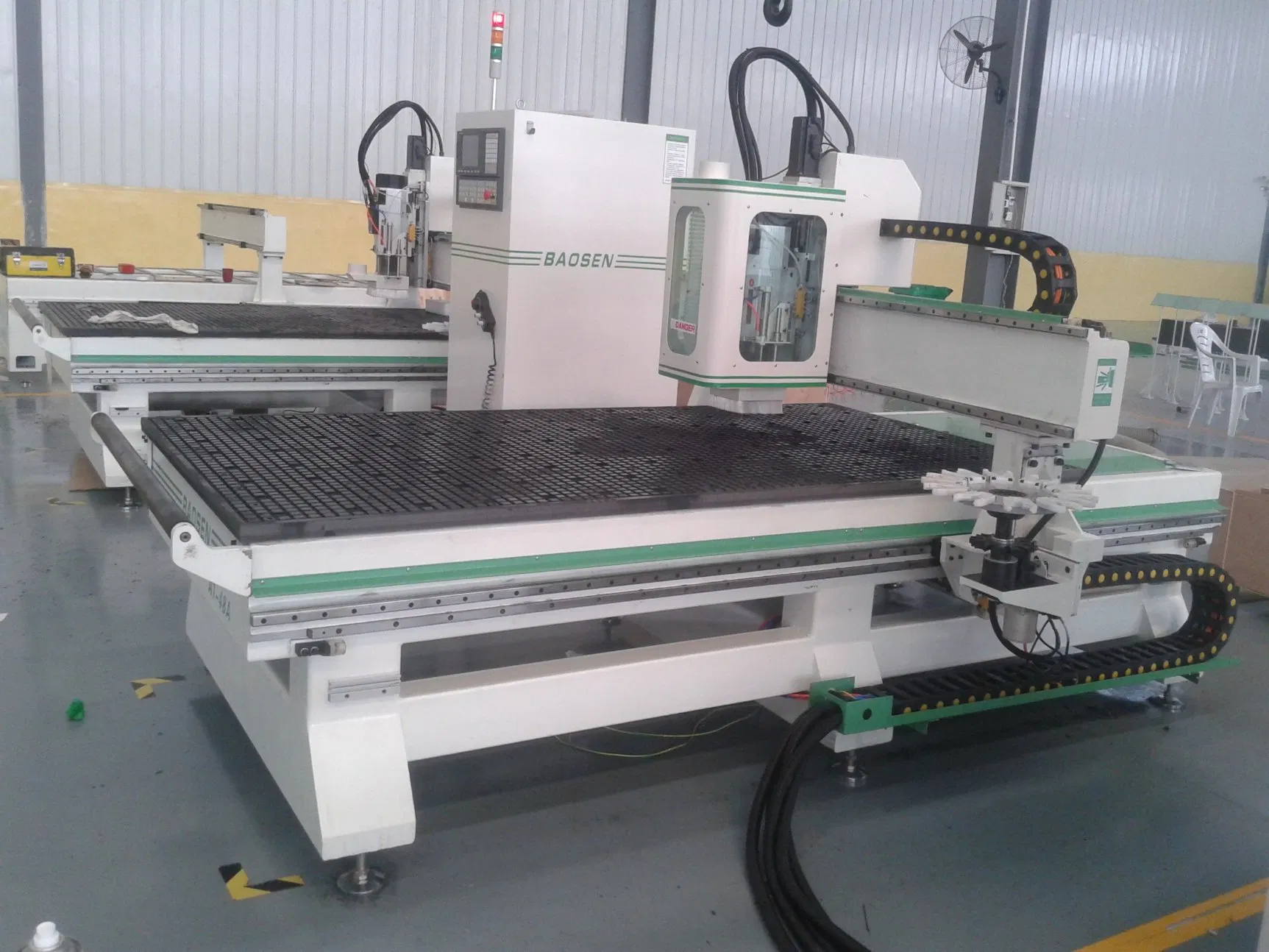

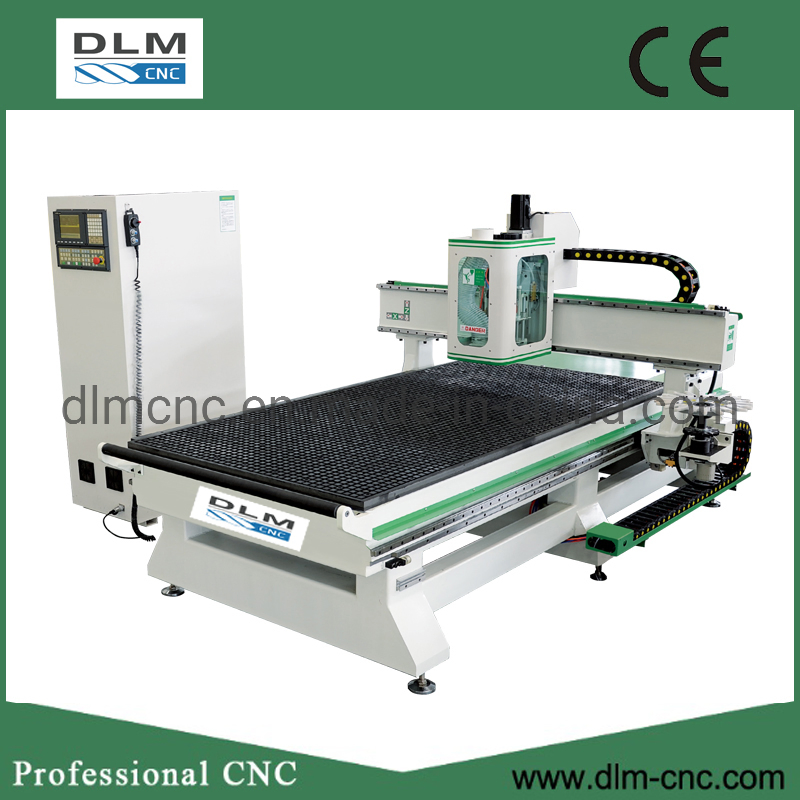

1325 Linear Type Atc CNC Woodworking High Precision Machinery Tool

1 / 5

1325 Linear Type Atc CNC Woodworking High Precision Machinery Tool

Customization:	Available
After-sales Service:	24 Hours Online
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

NA-48

Application

Wood

Control Method

Servo Motor

Processing Precision

0.09~0.1(mm)

Certification

CE, ISO 9001

Spindle

9kw Hsd Spindle/Hqd

Controller

Taiwan Syntec Controller

Origin

China

Product Description

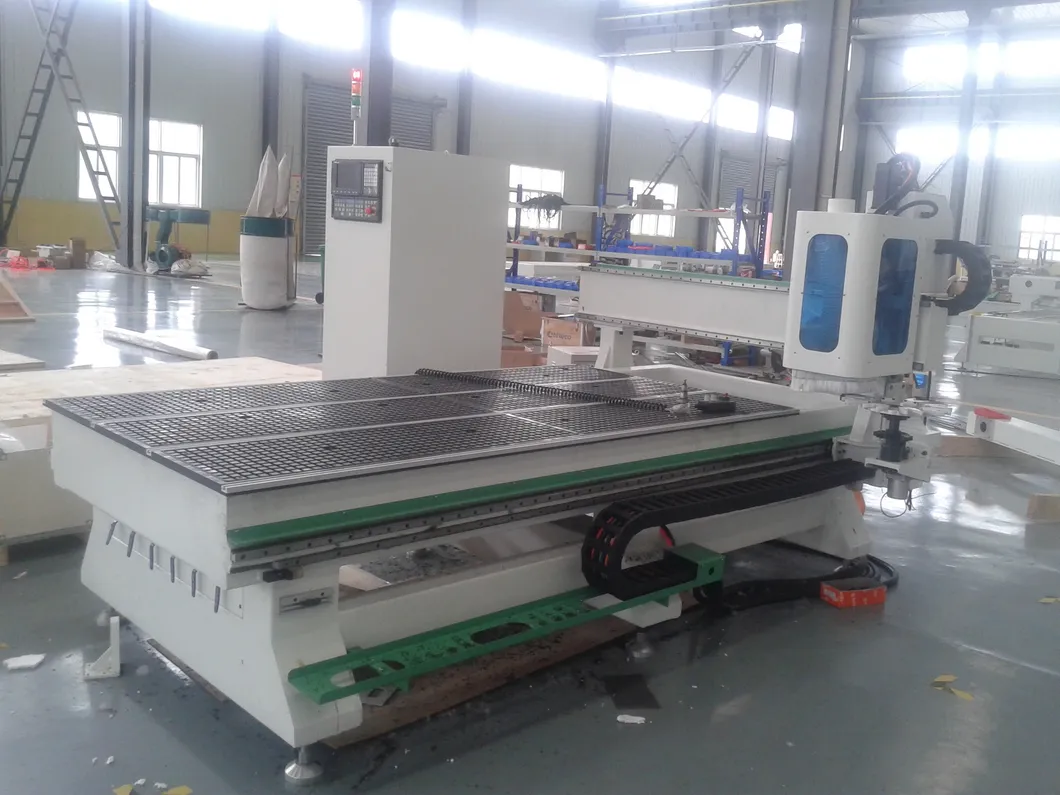

CNC Woodworking Cutting Machinery Tool

NA-series is a light-duty entrance level CNC router with trustworthy quality and functionality that can fulfill the basic needs in advertising, woodworking and furniture industries. Equipped with ATC facilities, this model can greatly enhance the working efficiency and reduce labor cost.

Standard Configuration (NA-48)

Spindle Power	9kw Chinese air cooling spindle/ HSD /Hiteco
Controller	Syntec / NC studio control system
Motor	750w Delta servo motor / Yaskawa servo motor
Gear Reducer	Taiwan planetary gear reducer
Table	double layer PVC vacuum suction table
Vacuum Pump	5.5KW Chinese Becker pump
Tool Magazine	ISO-30 8-slot linear plastic steel tool magazine
Software	Router-8
Transmission	Precision helical rack and pinion drive & Z axis direct drive
Dimensions (X/Y/Z)	3500x1800x2000mm
Net Weight	1800kg

Available Upgrades

Positioning air cylinder
Boring aggregate
Pushing device
Protection enclosure
Laser light screen
Spindle cover / Full-body cover
HSK-63F spindle
8-slot carousel plastic steel tool magazine
Movable vacuum suction chucks
+/-90°spindle horizontal processing design
OSAI controller
12KW air cooling spindle
Loading & unloading roller table

Applicable Materials

Wood, Solid wood, Acrylic, PVC, MDF, Brass, Aluminum, etc.

Frequently Asked Questions

What are the main applications of the NA-48 CNC router?

The NA-48 is primarily used for wood processing, advertising, and furniture manufacturing. It is an entry-level professional machine designed for high precision and efficiency.

Does this machine support Automatic Tool Changing (ATC)?

Yes, the NA-series comes equipped with ATC facilities, including an 8-slot linear tool magazine, which significantly reduces labor costs and enhances productivity.

Which materials can be processed with this CNC tool?

It is compatible with a wide range of materials including solid wood, MDF, acrylic, PVC, and non-ferrous metals like brass and aluminum.

What control system does the machine use?

The standard configuration features the Taiwan Syntec Controller or the NC Studio control system for reliable and precise movement management.

What is the processing precision of the NA-48?

The machine offers a processing precision of 0.09 to 0.1 mm, ensuring high-quality output for detailed woodworking and industrial tasks.

Is the machine certified for international standards?

Yes, the equipment is fully certified with CE and ISO 9001 standards, ensuring it meets strict safety and quality requirements.
