Jinan CNC Woodworking Engraving and Milling Machinery Tool
Jinan CNC Woodworking Engraving and Milling Machinery Tool
Jinan CNC Woodworking Engraving and Milling Machinery Tool
Jinan CNC Woodworking Engraving and Milling Machinery Tool
Jinan CNC Woodworking Engraving and Milling Machinery Tool
1 / 5
Jinan CNC Woodworking Engraving and Milling Machinery Tool
Jinan CNC Woodworking Engraving and Milling Machinery Tool
Jinan CNC Woodworking Engraving and Milling Machinery Tool
Jinan CNC Woodworking Engraving and Milling Machinery Tool
Jinan CNC Woodworking Engraving and Milling Machinery Tool

Jinan CNC Woodworking Engraving and Milling Machinery Tool

Customization: Available
After-sales Service: 24 Hours Online
Warranty: 1 Year
Send Inquiry

Product Description

📋 Basic Info.
Model NO.
UA-482
Condition
New
Certification
ISO, CE
CNC or Not
CNC
Voltage
380V
Spindle
9kw Air Cooling Spindle / Italy
Controller
Taiwan Syntec Controller
Motor
Yaskawa Servo Motor / Japan
Rack
Helical Racks
Table
Double Layer PVC Vacuum Table
Rail
Taiwan Linear Rail
Dust Collector
3kw / 5.5kw
Production Capacity
600 Sets/ Year
Origin
China
⚙️ CNC Woodworking Machining Center
CNC Woodworking Machining Tool
Technical Specifications
Parameter Details
ModelUA-482
Table size1220mm*2440mm
Max. working stroke1320mm*2540mm
Working height200mm
X & Y Rapid speed80m/min
Z & W rapid speed20m/min
Vacuum pump5.5KW / 160m3/h
Dimensions3500mm*2200mm*2100mm
Net weight3500 kgs
Spindle 14.5KW air cooling spindle / 18000rpm
Spindle 29KW / Italy / 24000rpm / air cooling
ControllerTaiwan Syntec
MotorYaskawa servo motor / Delta servo motor
RailTaiwan linear rail
RackHelical racks
Table designDouble layer PVC table
ATCLinear type / 8 positions
Tool holderISO-30
PackagePlywood box
SoftwareType 3 / ArtCAM

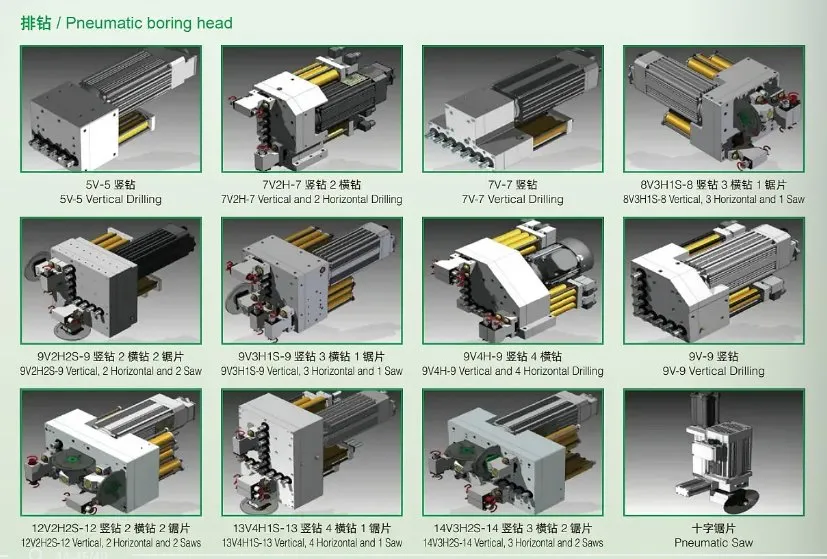

CNC Machining Center Detail
CNC Woodworking Equipment
❓ Frequently Asked Questions
🔹 What type of spindle is used in the UA-482?
The machine is equipped with a high-performance 9kW air-cooling spindle imported from Italy, capable of reaching speeds up to 24,000rpm.
🔹 Which control system drives this CNC machine?
This model features the reliable Taiwan Syntec Controller, known for its precision and user-friendly interface in professional woodworking.
🔹 What are the rapid travel speeds of the axes?
The X and Y axes feature a rapid speed of 80m/min, while the Z and W axes operate at 20m/min, ensuring high production efficiency.
🔹 What kind of table design does the machine have?
It utilizes a Double Layer PVC Vacuum Table, which provides superior suction and stability for various workpiece sizes.
🔹 Is the machine compatible with standard design software?
Yes, the UA-482 is fully compatible with professional software like Type 3 and ArtCAM.
🔹 How is the product protected during international transport?
The machine is securely packed in a robust plywood box to ensure safety and prevent damage during long-distance shipping.
