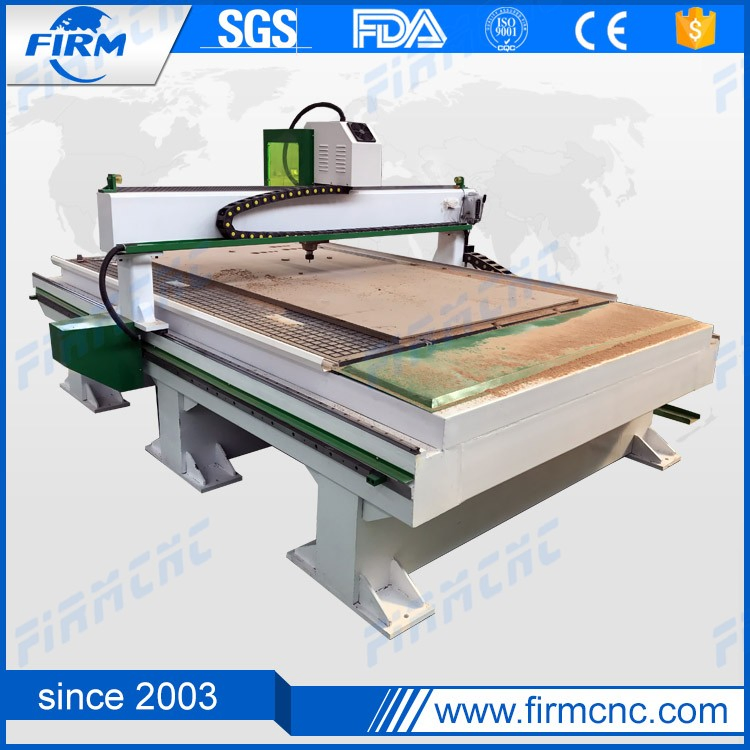

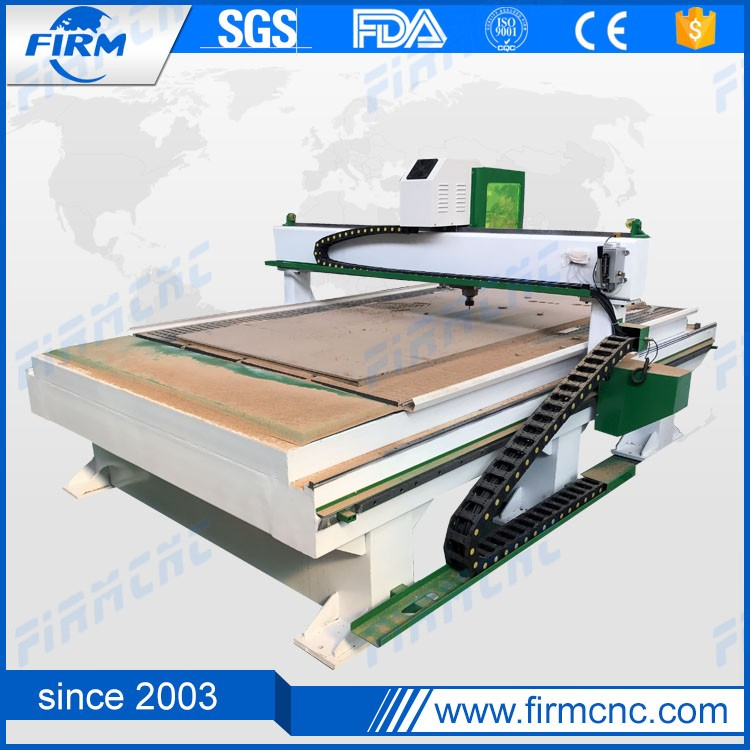

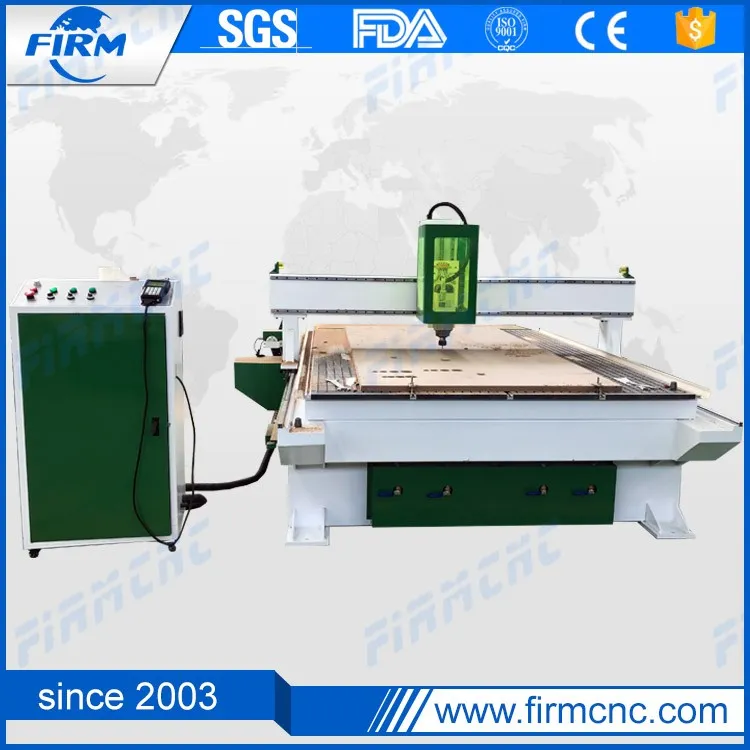

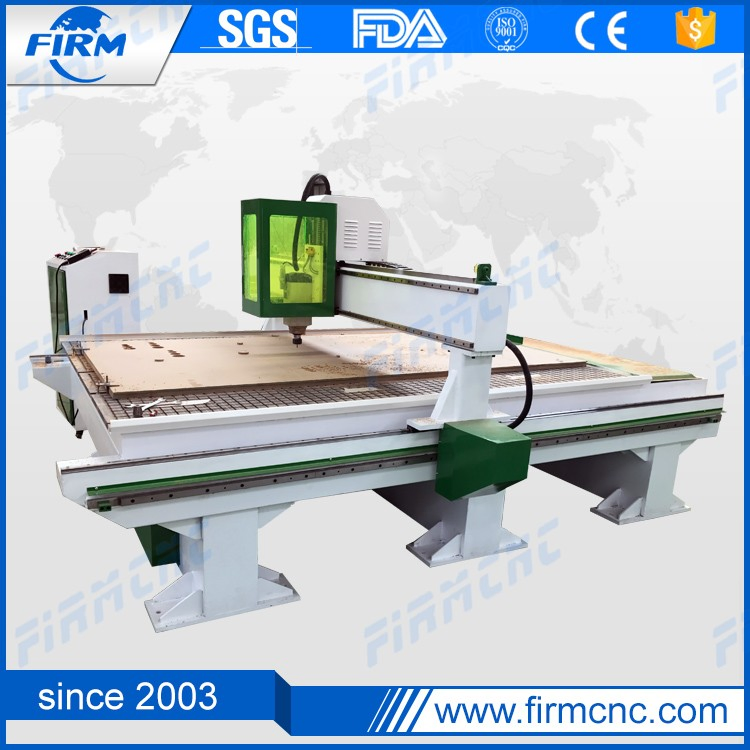

Furniture Door Boards MDF Wooden CNC Woodworking Tool

1 / 5

Furniture Door Boards MDF Wooden CNC Woodworking Tool

Customization:	Available
Type:	Wooden Mold Router
Spindle Layout:	Spindle Over

Send Inquiry

Product Description

Basic Specifications

Model NO.

FM1325

Spindle Number

Single-Spindle

Controlling Mode

CNC

Certification

CE, ISO

Working Area

1300*2500mm

Max. Operating Speed

15m/Min

Spindle

3kw Water-Cooling Spindle

Production Capacity

30 Sets/ Month

★

Product Description

Furniture Door Boards MDF Wooden CNC Woodworking Tool

This wood working machine features an aluminium profile table with T-slots, utilizing material holders to securely fasten moulds. It is designed for processing MDF and wood to create cabinet doors, solid wooden doors, computer desks, and assembly desks. It is also capable of engraving on HDF, wood board, acrylic, and performing plan cutting.

✔

Key Features

Lathe bed made of high-quality cast steel, re-treated for superior strength and stability.
Powerful stepper motor driver and imported linear guide rails for smooth, high-accuracy operation.
High-precision gear wheel and rack transmission, capable of clear 1mm letter engraving.
24000rpm water cooling spindle suitable for long-duration wood product processing.
Advanced control system compatible with multiple instruction formats; supports breakpoint and power-interruption recovery.
Equipped with spare parts from famous brands for stable, high-quality performance.
Supports fast, smooth three-dimensional processing, engraving, and cutting.
Software compatibility with Type3, Artcam, Castmate, Weitai, and more.

⚙

Technical Specifications

Parameter	Specification Details	Customization
Model	FM-1325	Yes
X.Y.Z axis travel	13002500150mm	Yes
Platform dimensions	1340Χ2500mm	-
Max. operating speed	15m/min	-
Max. carving speed	0-5m/min	-
Resolution / Resetting accuracy	0.025mm	-
Carving command	G mode, u00.mmg*.plt	-
Guide rail	Taiwan HIWIN Linear Rail	-
Spindle	3kw water-cooling spindle	Yes
Operating voltage	AC380V/50Hz	Yes
Spindle speed	6000-24000rpm	-
Driving mode	High precision pinion and rack	-
Operating mode	Stepper	-
Compatible Software	Type3, Wentai, Artcam	-

▩

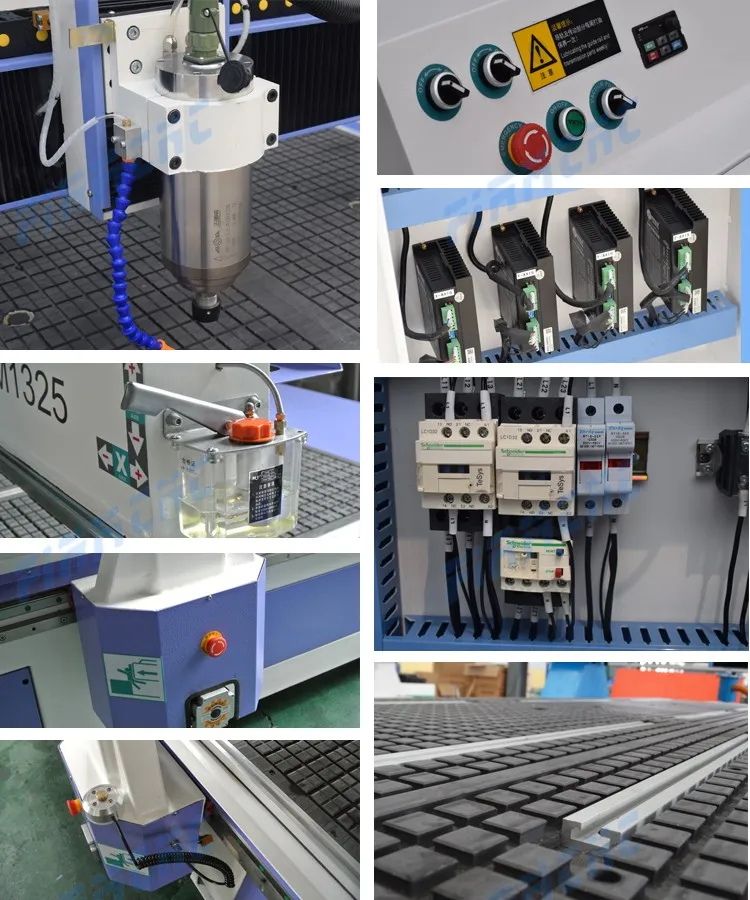

Main Parts & Samples

Frequently Asked Questions

What materials can this CNC machine process?

The FM1325 is ideal for MDF, wood, acrylic, HDF, and solid wood boards. It is widely used for making cabinet doors, computer desks, and furniture components.

What is the maximum spindle speed?

The machine is equipped with a high-performance 3kw water-cooling spindle that reaches speeds between 6000 and 24000rpm.

Is the machine compatible with standard CAD/CAM software?

Yes, it is fully compatible with professional software such as Type3, Artcam, Castmate, and Wentai.

What kind of accuracy does the FM1325 provide?

The machine offers a resolution and resetting accuracy of 0.025mm, ensuring high precision for intricate carving and cutting tasks.

Can the machine resume work after a power failure?

Yes, the advanced control system supports process function recovery in the event of power supply interruption or breakpoints.

Are custom sizes or colors available?

Yes, we can produce wood CNC router machines according to specific requirements, including working size, motor type, and machine color.
