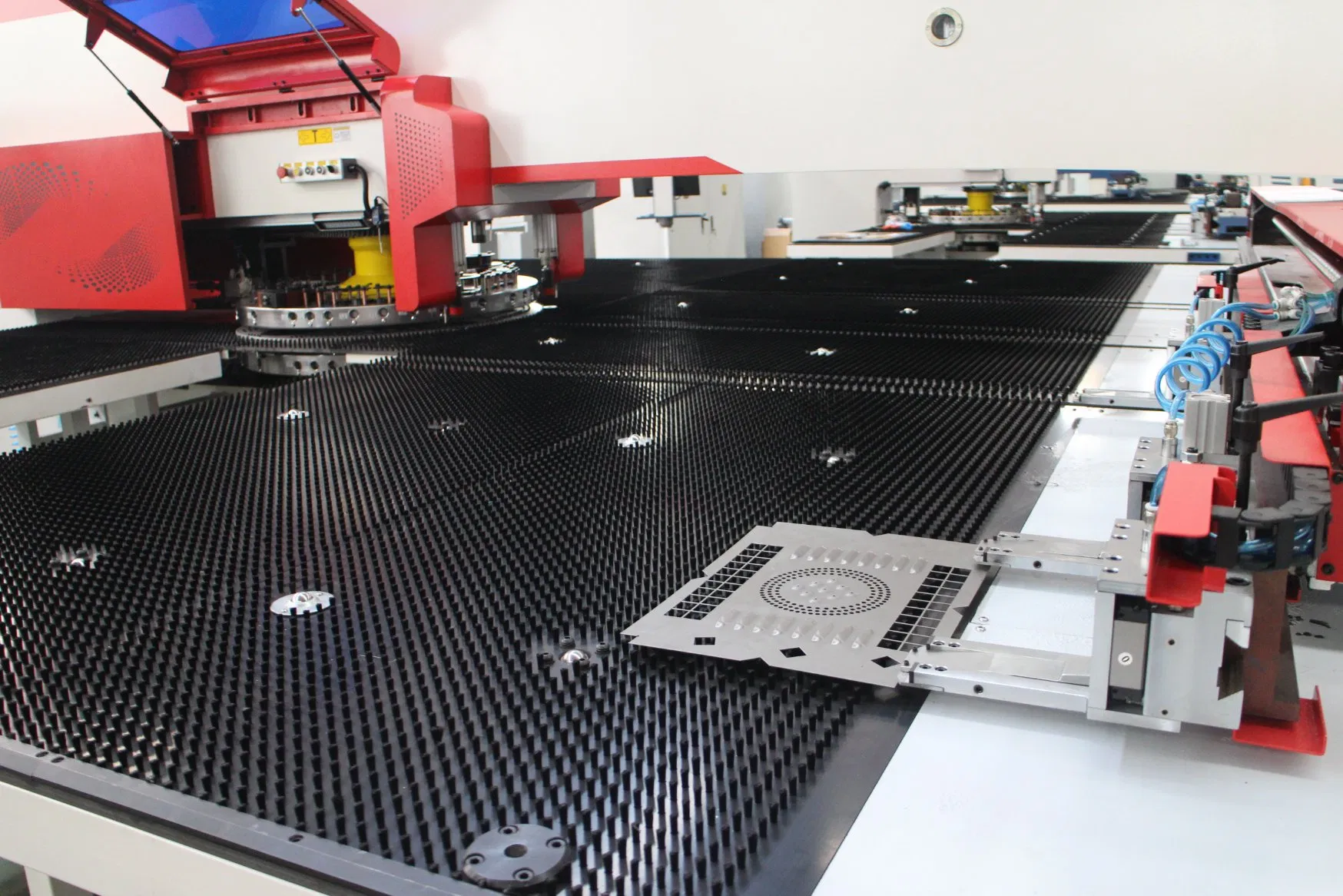

Multi-Functional Punching, Pressing, Perforating, Shearing and Printing

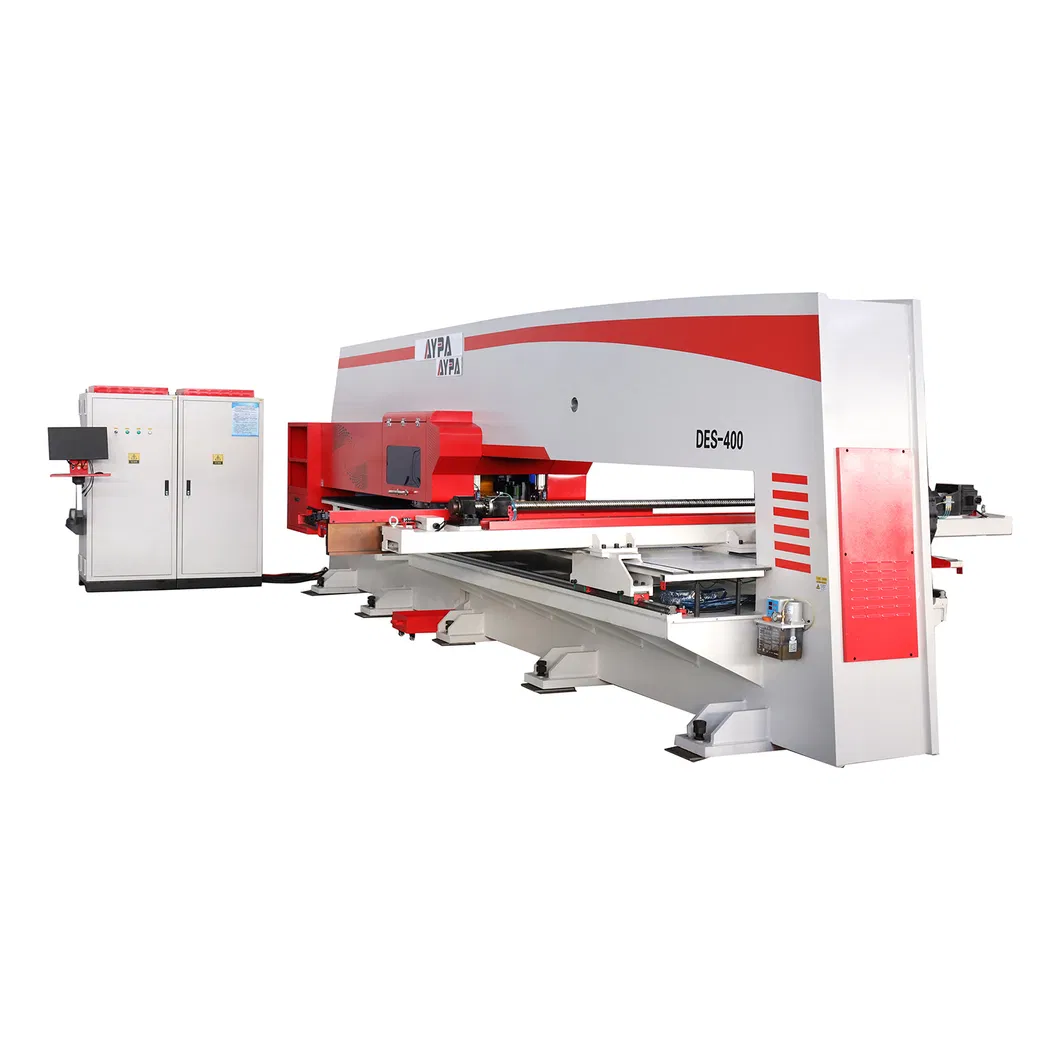

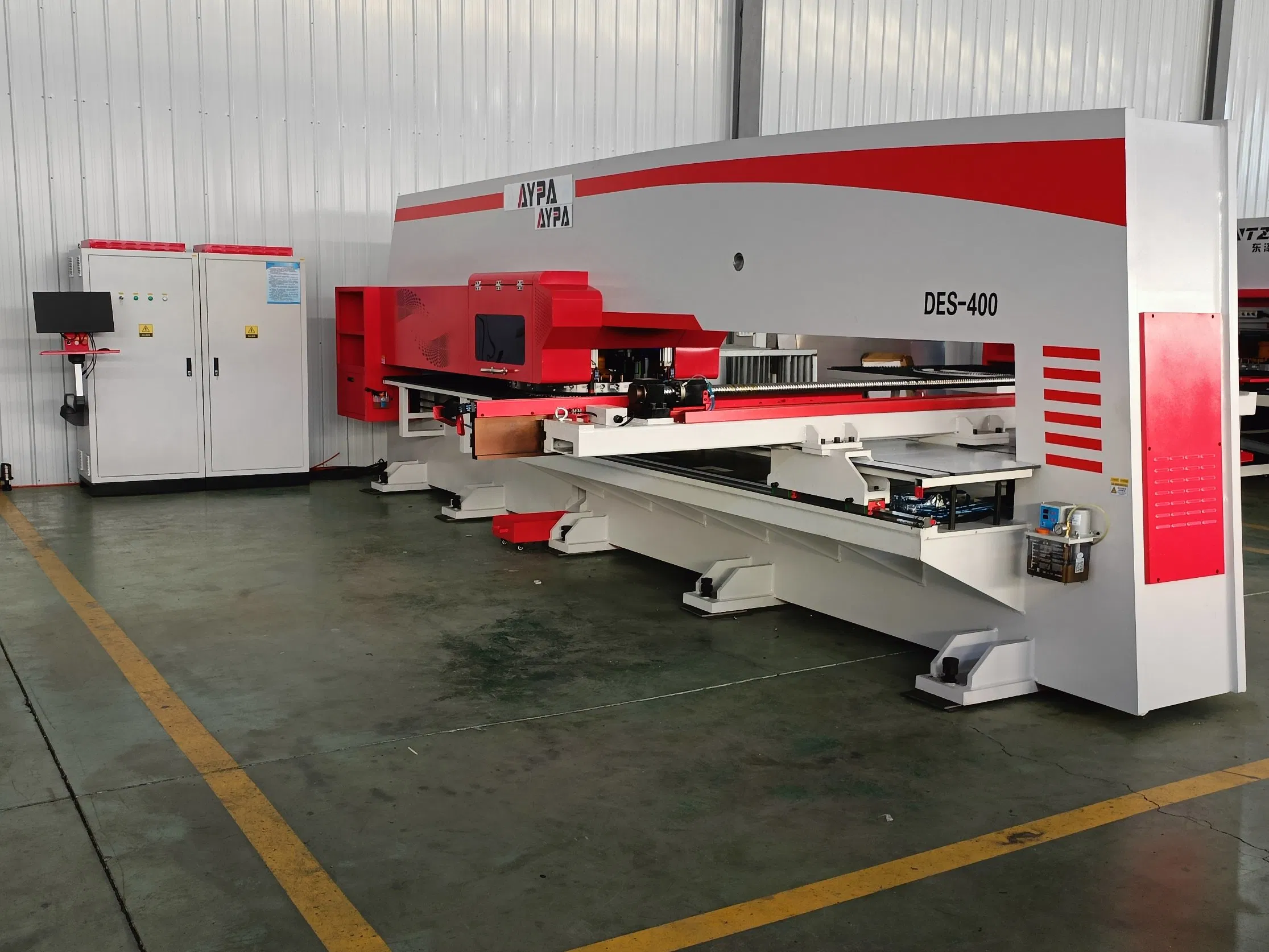

Our turret punch machine is developed for high-precision metal fabrication. It realizes punching, cutting, forming, and rolling functions via advanced CNC control.
From Coil to Completion: The Future of Sheet Metal Fabrication.

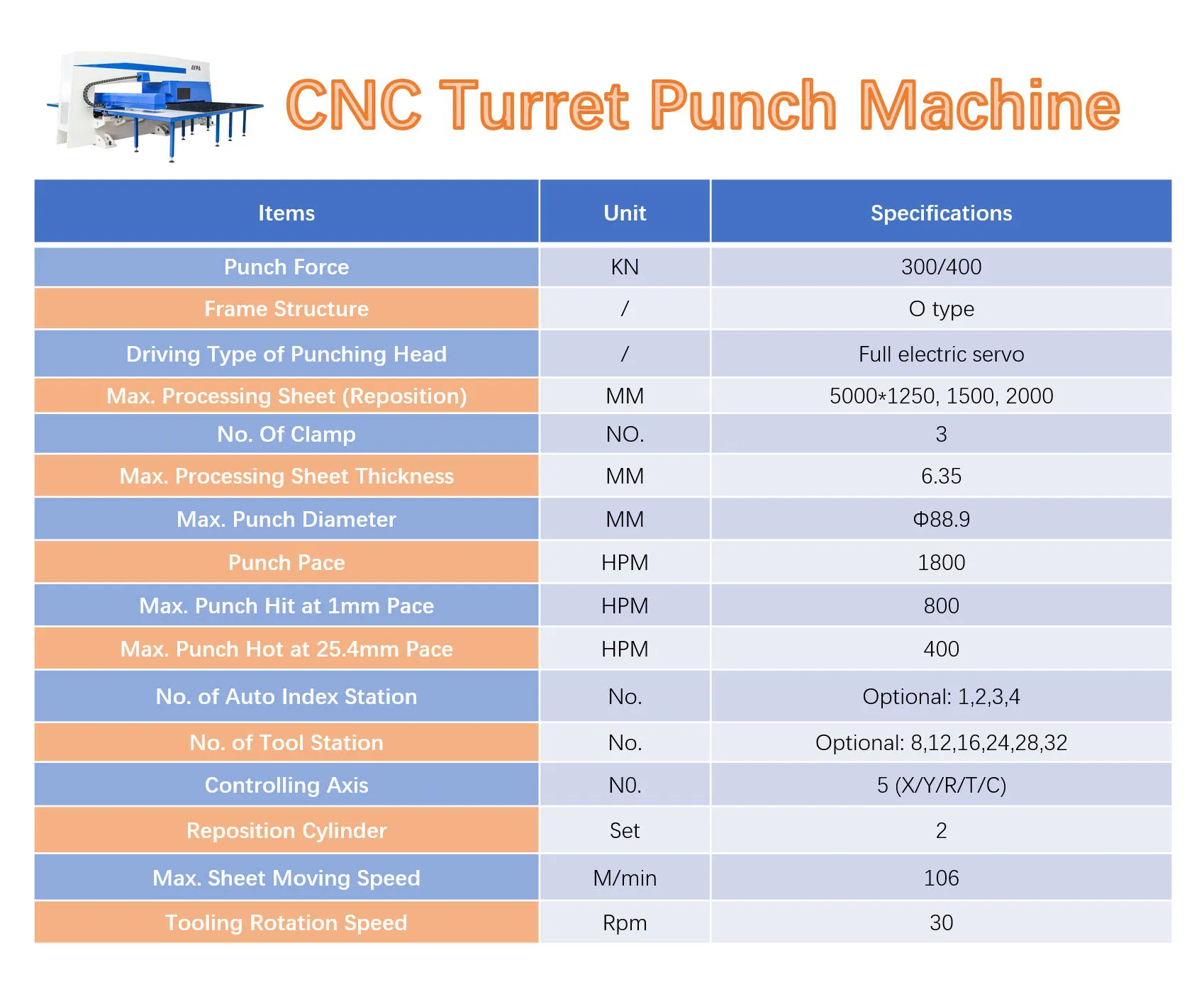

| Items | Unit | Specifications |
|---|---|---|
| Punch Force | KN | 300 |
| Frame Structure | / | O type |
| Driving Type of Punching Head | / | Full electric servo |
| Max. Processing Sheet (Reposition) | MM | 5000*1250 |
| Max. Processing Sheet Thickness | MM | 6.35 |
| Max. Punch Diameter | MM | Φ88.9 |
| Punch Pace | HPM | 1800 |
| Accuracy | mm | ±0.1 |
| Outline Dimension | mm | 5200*5200*2280 |

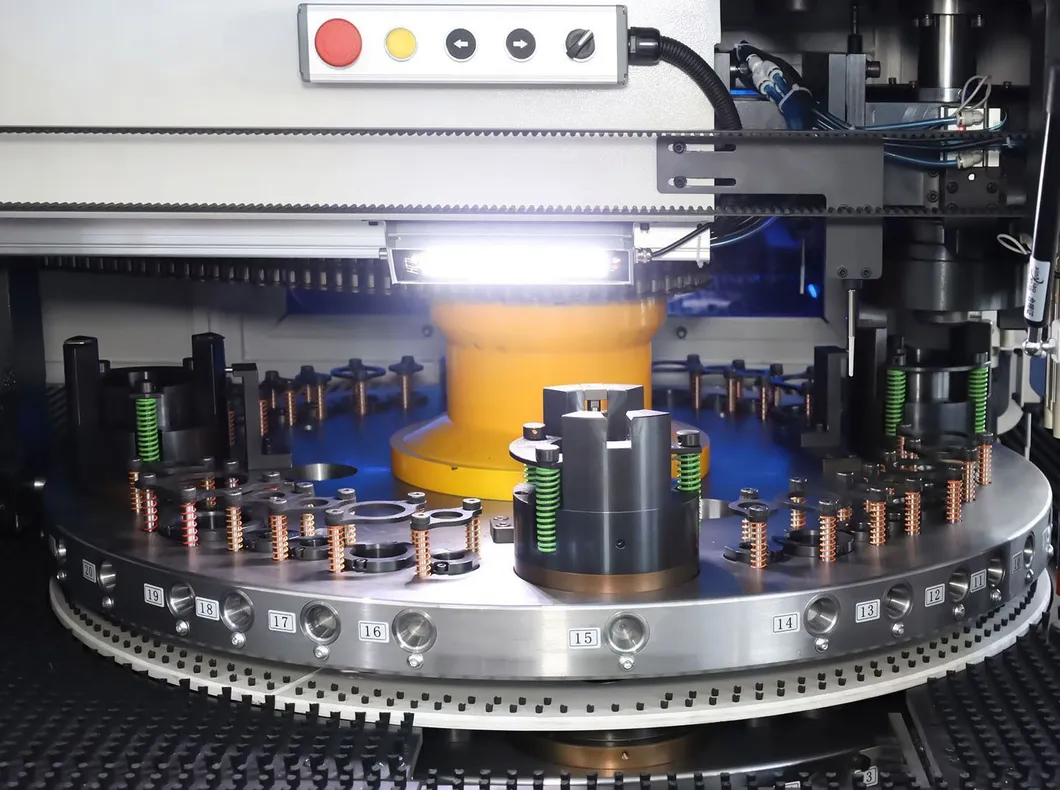

The servo motor allows the turret to rotate at ultra-high speeds, using the shortest path to change tools. This significantly reduces tool change time and ensures quiet operation with less vibration.

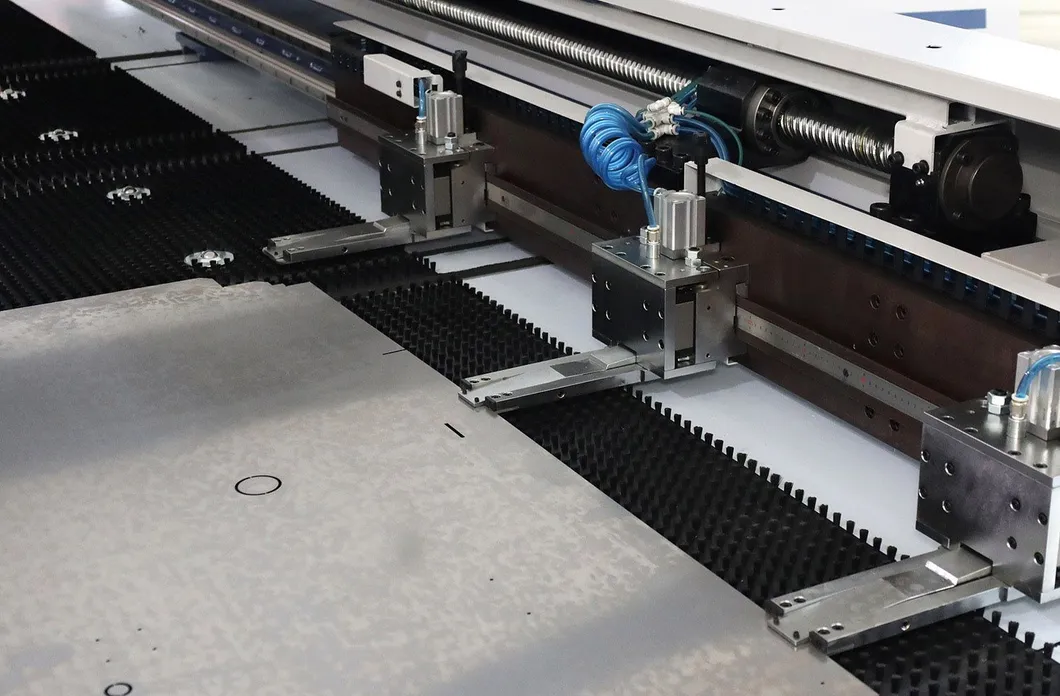

Programmable Pressure: Servo control allows the clamping force to be adjusted automatically based on material thickness. Thin materials won't be deformed, and thick materials are held firmly.

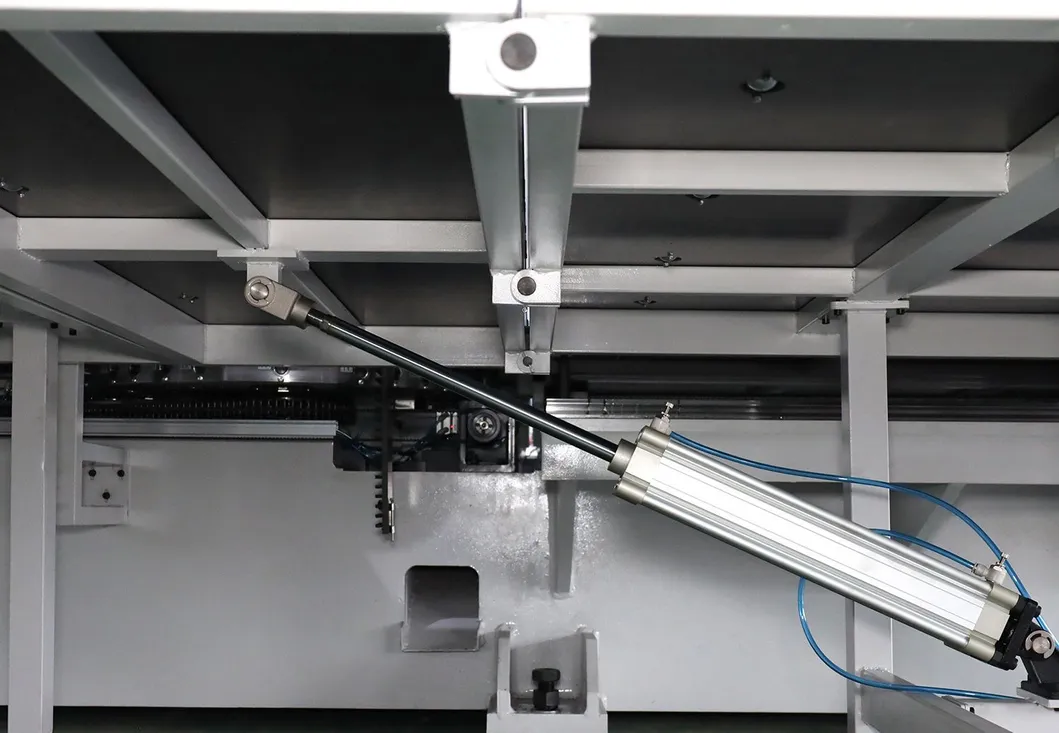

Features automatic height adjustment of brushes or balls. This ensures the sheet is always at the optimal height for punching, reducing friction and protecting the surface finish.
