Deepit Cutter
1 / 5

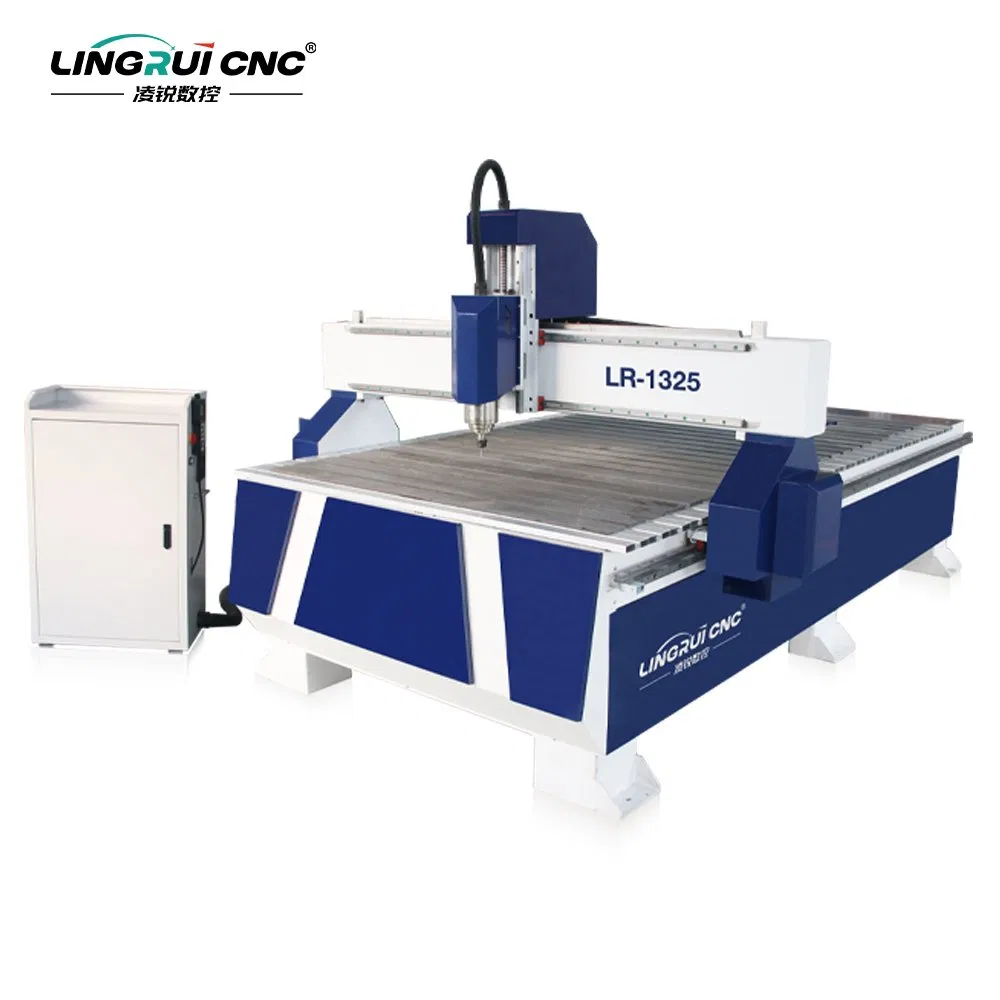

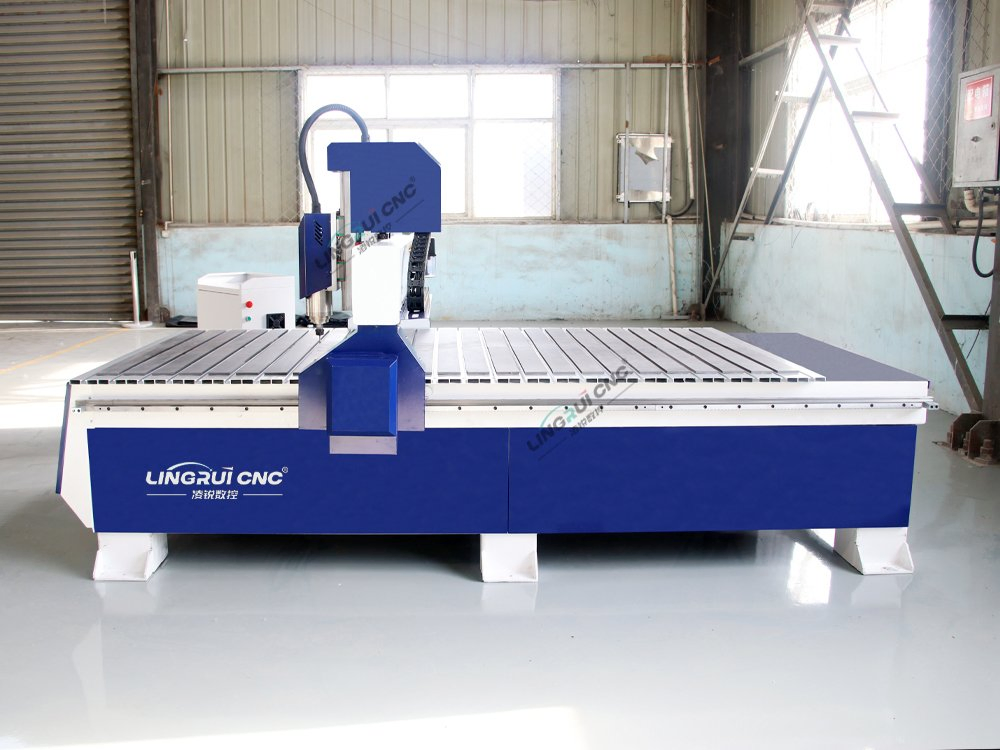

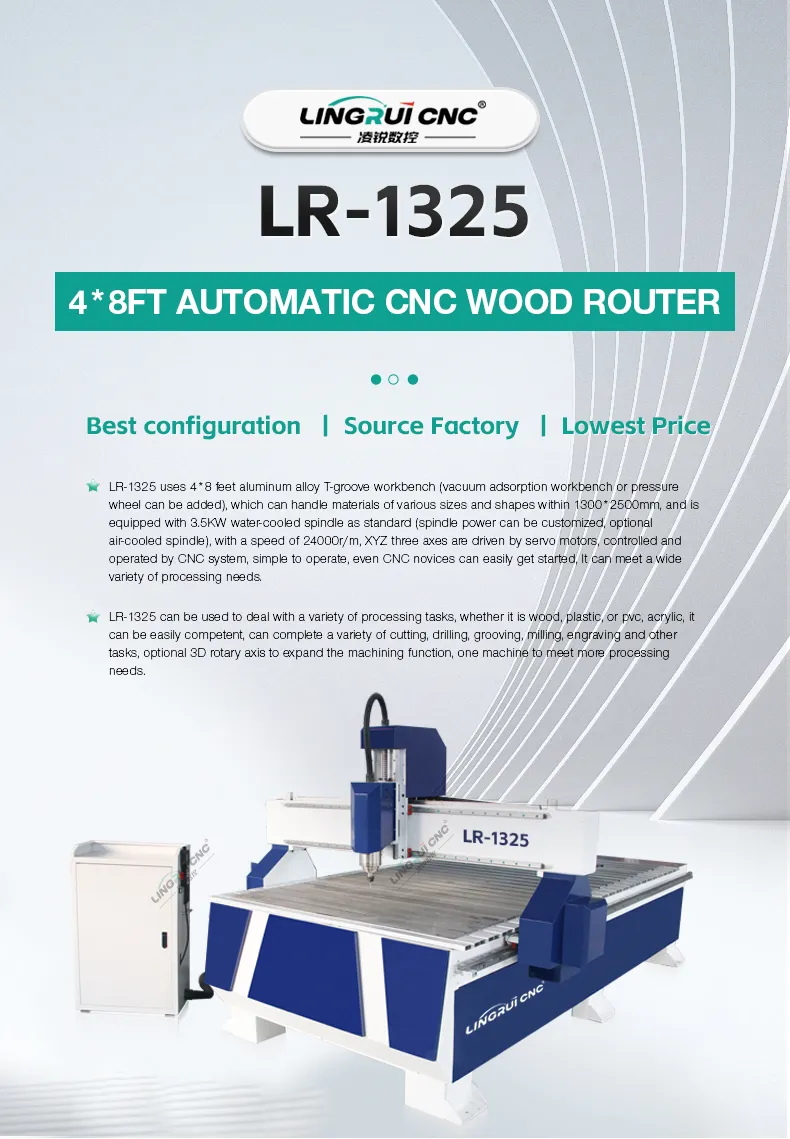

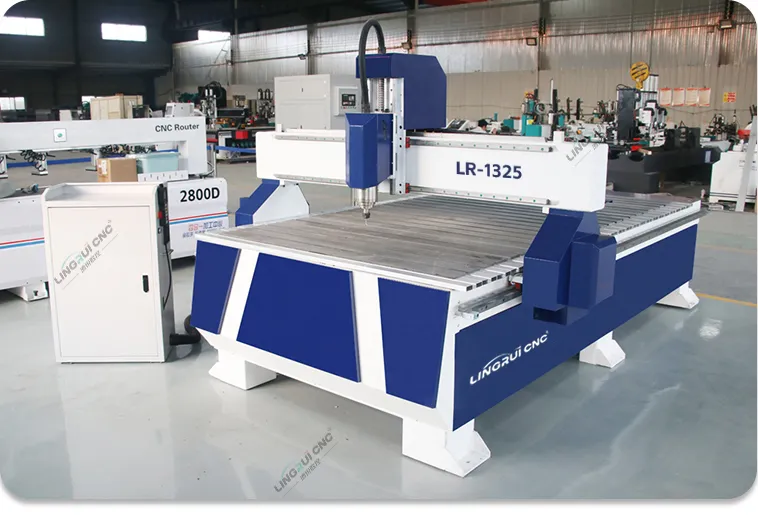

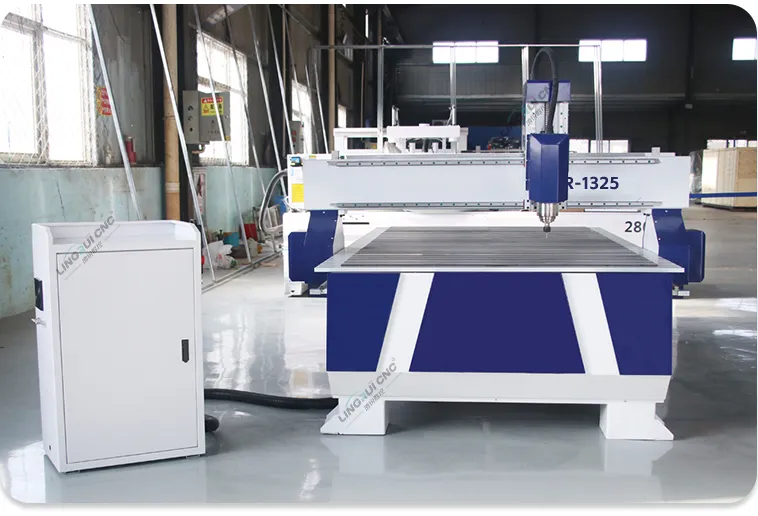

| Model NO. | LR-1325 |
| Condition | New |
| Certification | ISO, CE, RoHS |
| CNC or Not | CNC |
| Voltage | 380V |

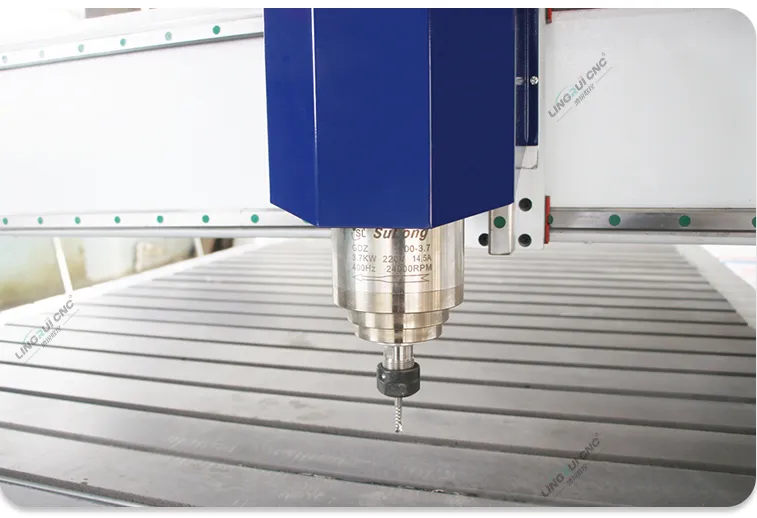

| Spindle Power | 3.5 Kw Water-Cooled Variable Frequency Spindle |
| Drive Mode | Servo Motor/Servo Drive |
| Guide | Taiwan Hiwin High Precision 25 Linear Square Rail |

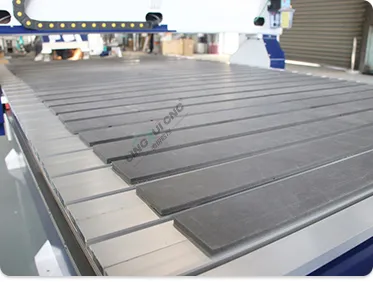

| Mesa | Aluminum Alloy T-Slot Workbench |
| Vacuuming Method | 3kw Double-Drum Dust Collector |

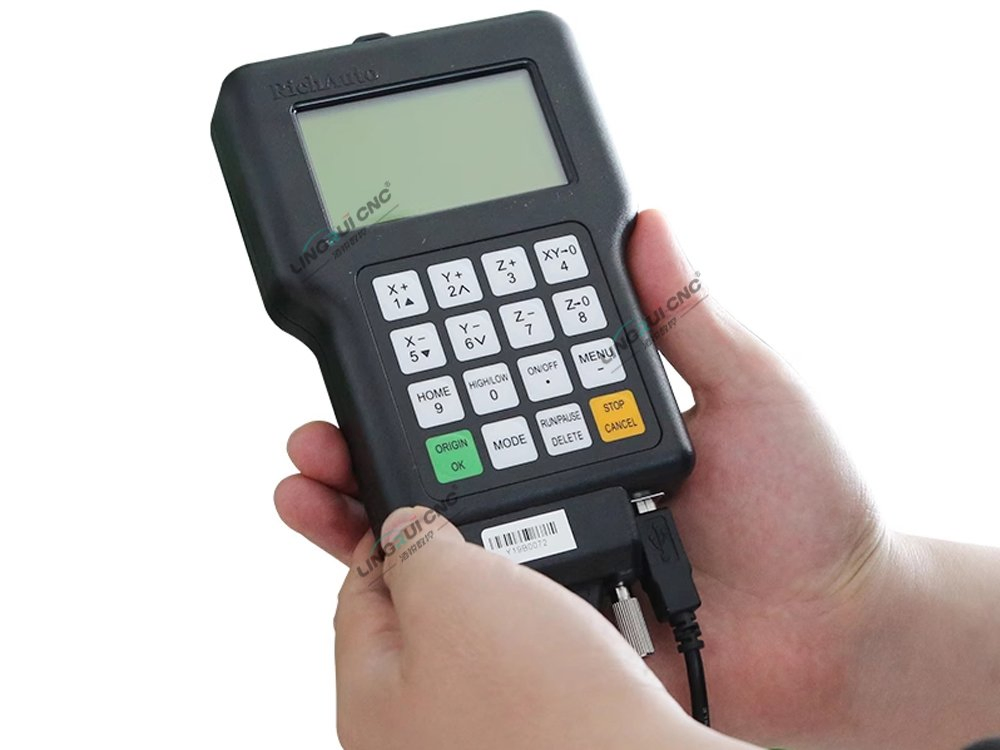

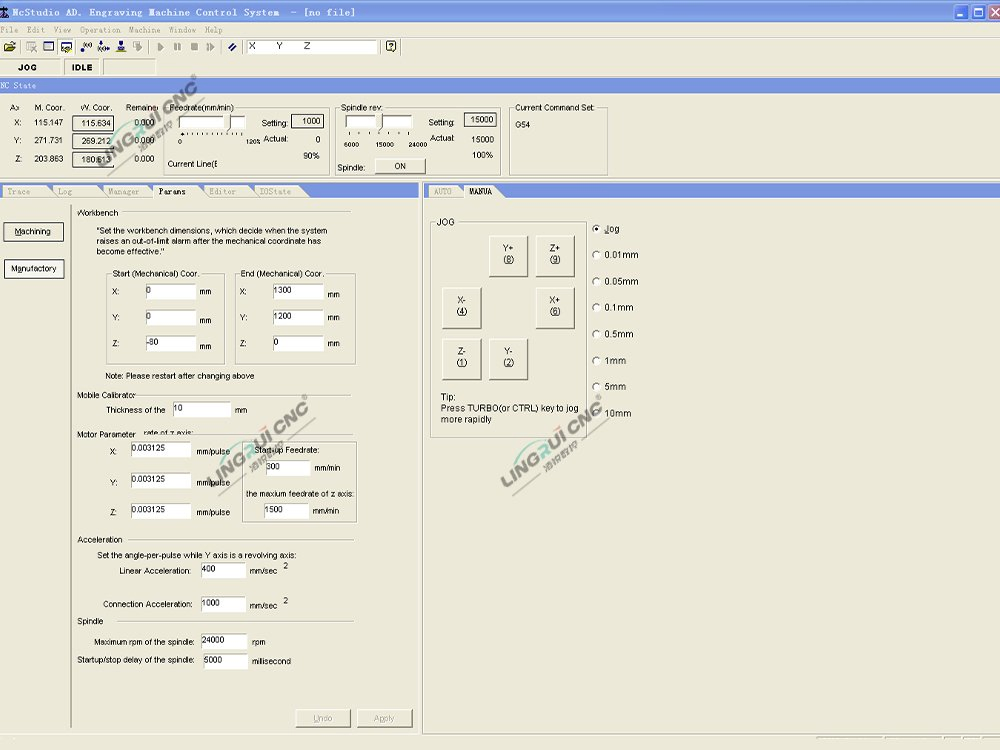

| Control System | Weihong Nc Studio V5.4.49 Optional DSP or Nk105 |
| Security System | 28000mm/Min |
| Maximum Empty Line Speed | 48000mm/Min |
| Frequency Converter | Best/Hpmont Inverter |
| Origin | China |
| HS Code | 8465990000 |
| Production Capacity | 50pieces/Month |
| XYZ work schedule | 1300* 2500 *200mm (customizable) |
| Dragon Gate | Thickened cast iron gantry, cast iron bracket |
| Bed | Machining center bed (heavy duty bed), independent control cabinet |

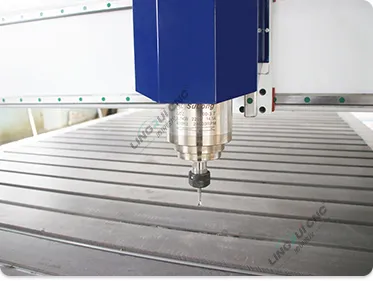

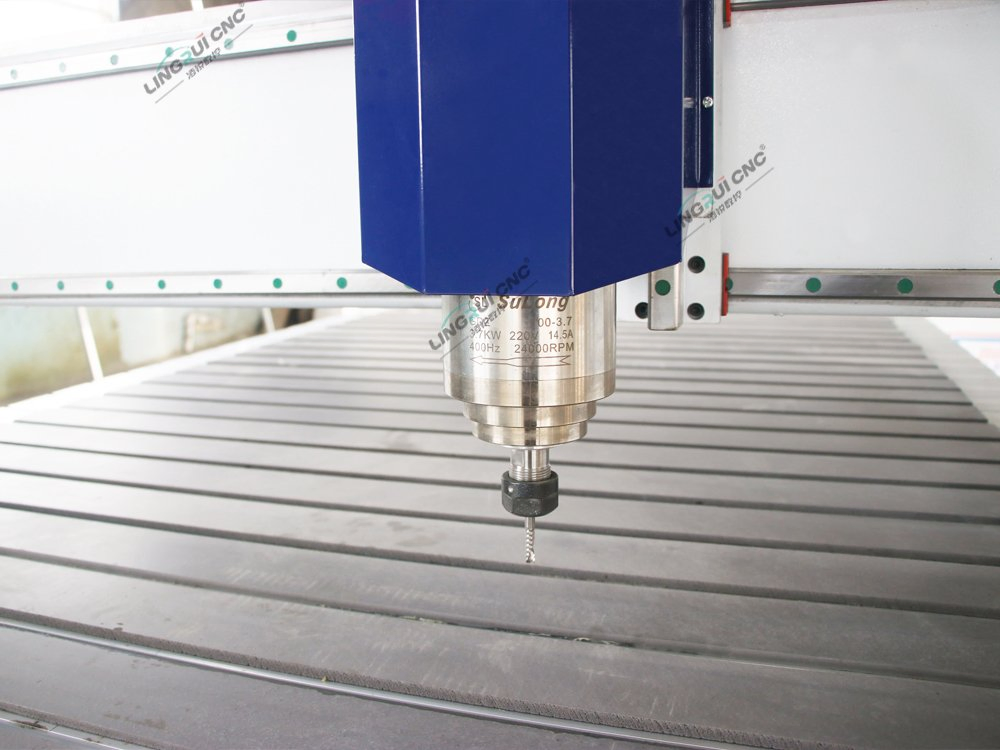

| Spindle power | 3.5 KW high speed water-cooled variable frequency spindle |
| Spindle speed | 6000- 24000r/m |

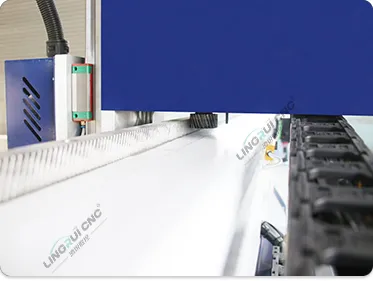

| Transmission mode | XY axis ground helical gear + Z axis TBI screw transmission |
| Compatible Software | Artcam, type3, CAD, CDR, Wentai, Powermill, etc. |
| Repeat positioning accuracy | ±0.02mm |
| Maximum cutting speed | 28000mm/min |
| Machine size | 3100* 2000*1650mm |
| Machine weight | 1200kg |
Applicable materials: Wood board, MDF, artificial board, particle board, plastic, PVC, PCB, acrylic, aluminum, copper, epoxy resin, carbon fiber, artificial stone, etc.
Application industry: Furniture (cabinets, wardrobes, wooden doors), Architectural decoration (stairs, models), Advertising (billboards, logos, acrylic signs), Mold manufacturing (plastic, foam, copper molds).
