1325 CNC Woodworking Machinery Tool

Customization:	Available
After-sales Service:	24 Hours Online
Warranty:	1 Year

Send Inquiry

Product Description

Basic Info.

Model NO.

NA-48

Condition

New

Certification

ISO, CE

CNC or Not

CNC

Voltage

380V

Spindle

9kw Hsd Spindle

Controller

Taiwan Syntec Controller

Table

PVC Vacuum Table

Rail

Taiwan Rail

Rack

Helical

Motor

Delta Servo Motor

Pump

5.5kw Air Cooling Pump

Dust Collector

3kw with Two Bags

Software

Type 3

Inverter

Fulling / Delta

Package

Plywood Box

Specification

1300mm*2500mm

Capacity

600 Sets/ Year

Product Description

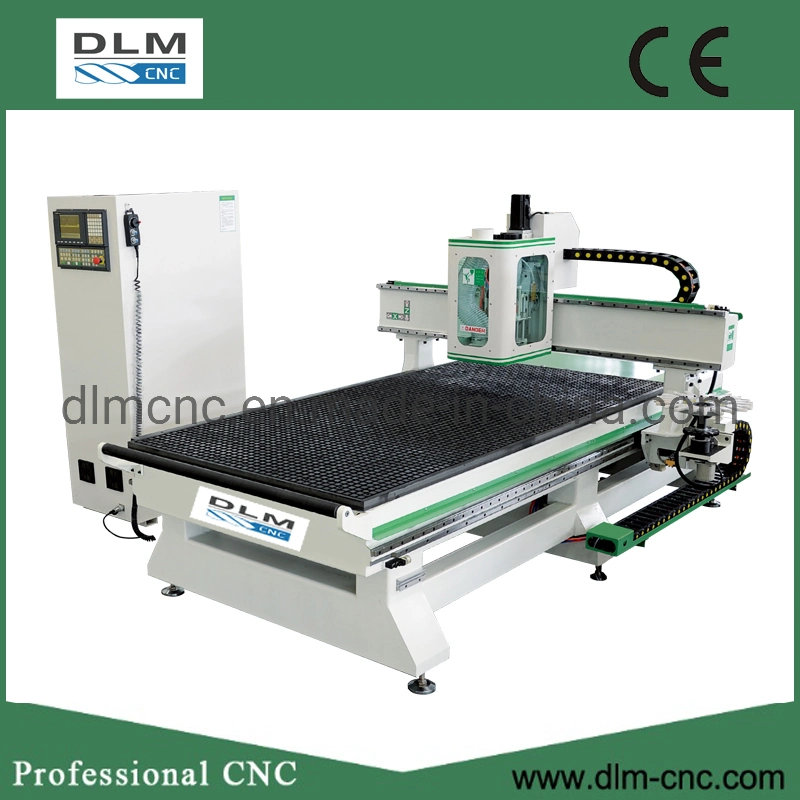

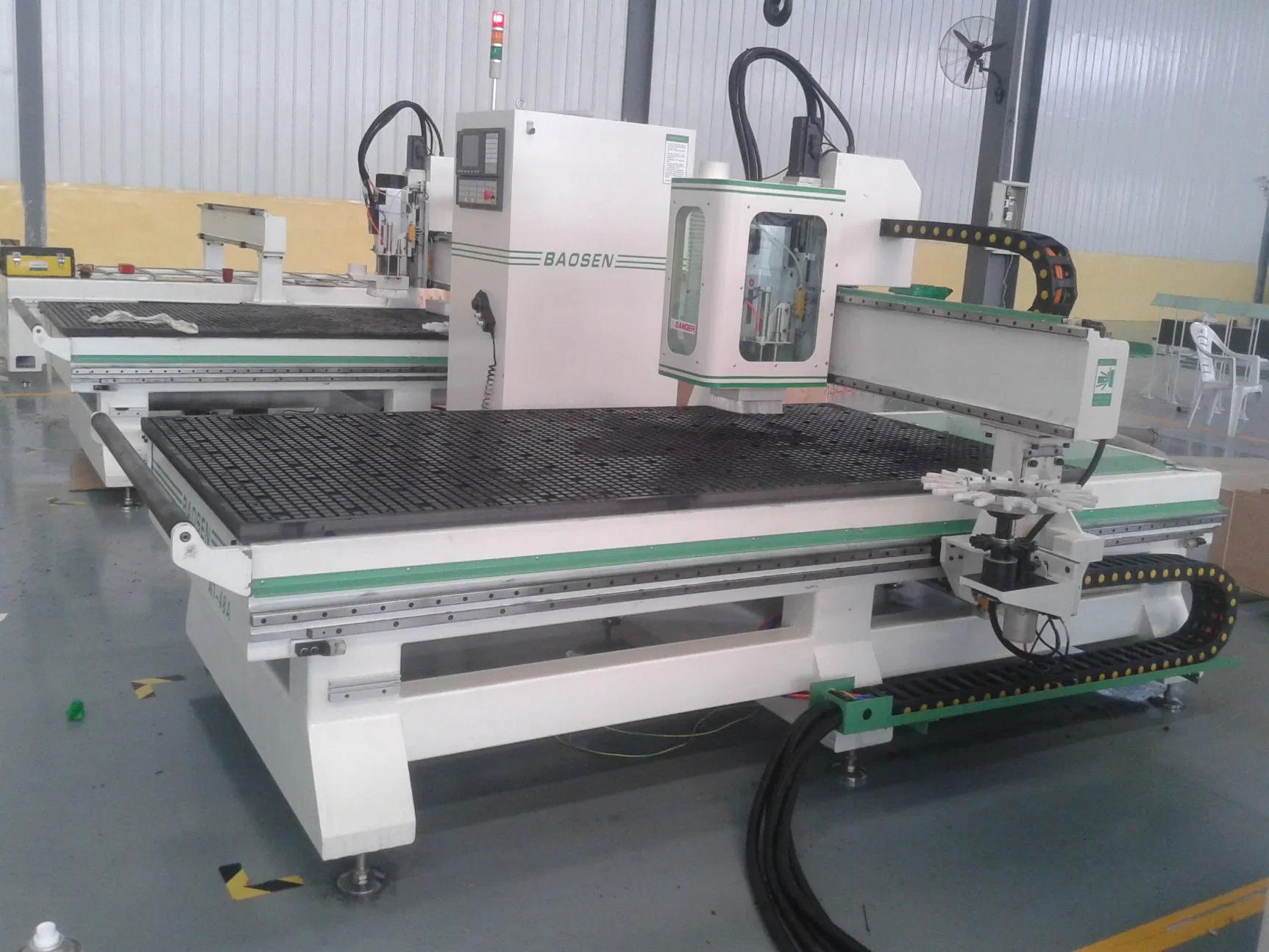

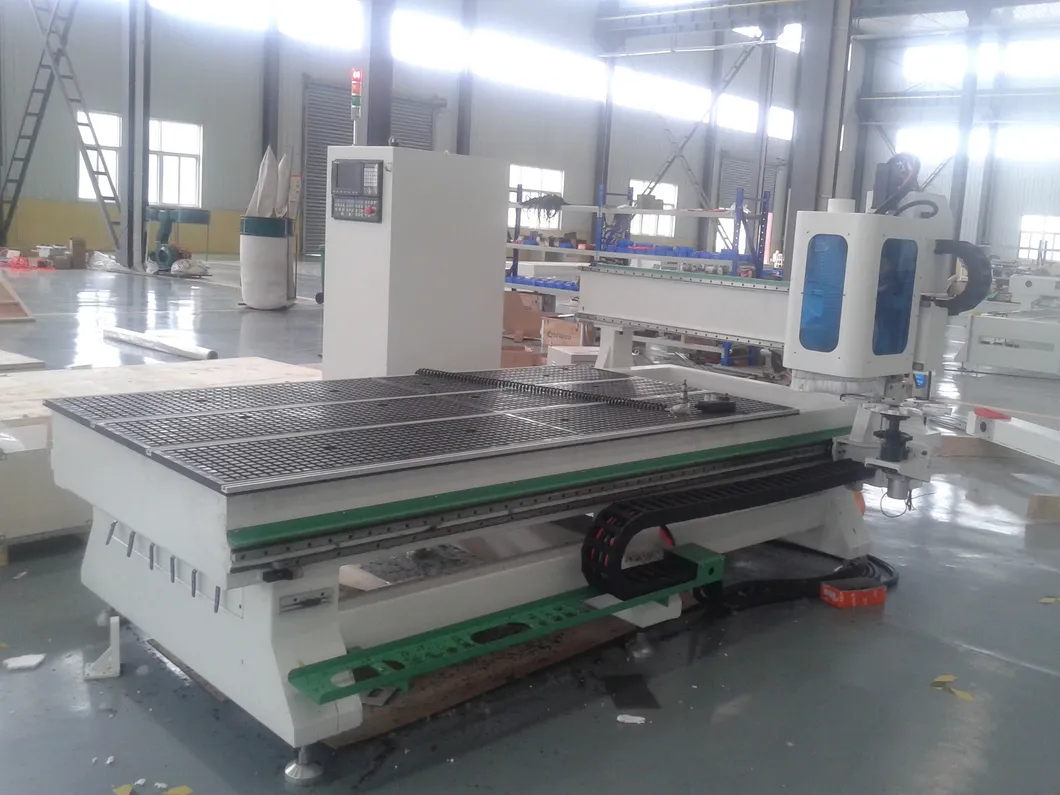

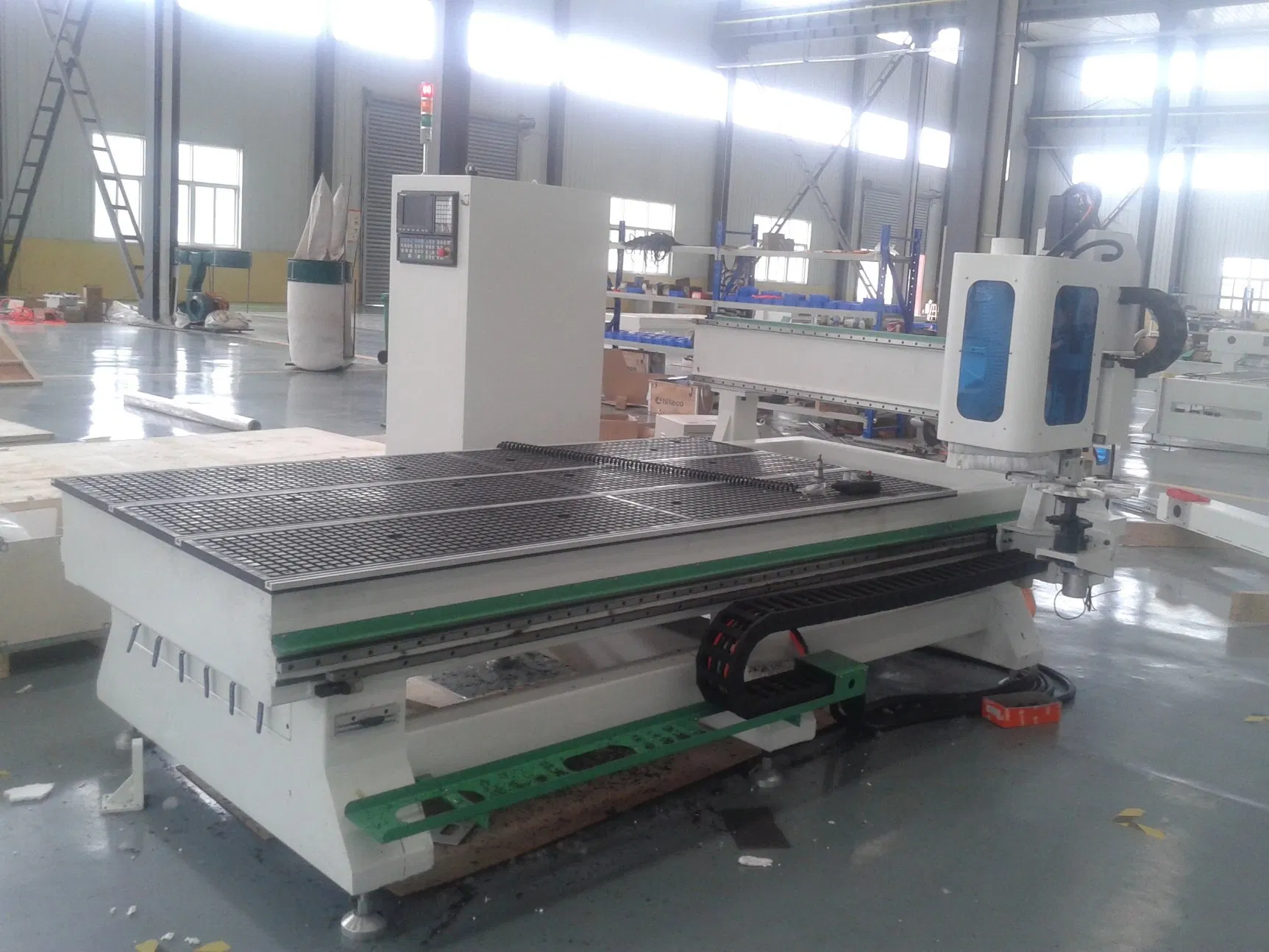

1325 CNC Woodworking Machinery Tool

NA-series is a light-duty entrance level CNC router with trustworthy quality and functionality that can fulfill the basic needs in advertising, woodworking and furniture industries. Equipped with ATC facilities, this model can greatly enhance the working efficiency and reduce labor cost.

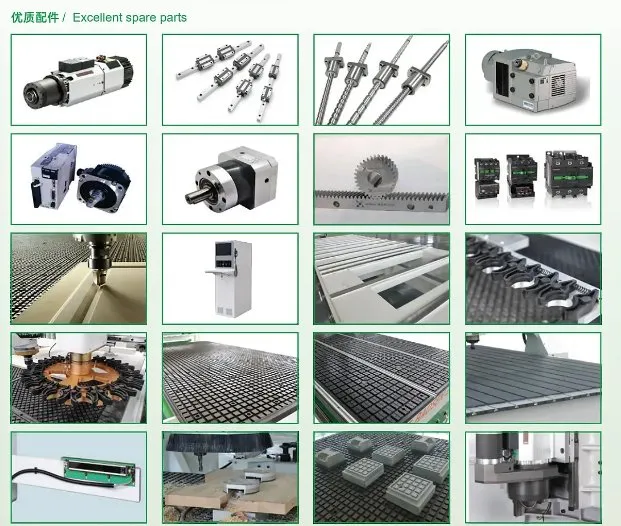

Standard Configuration (NA-48)

Spindle Power	9kw HSD / Hiteco / air cooling
Controller	Taiwan Syntec
Motor	Japanese Jaskawa servo motor/ Delta
Gear Reducer	Japanese Shimpo planetary gear reducer
Table	vacuum suction table
Vacuum Pump	4kw German Becker pump
Tool Magazine	ISO-30 8-slot linear plastic steel tool magazine
Software	Router-8
Transmission	Precision helical rack and pinion drive & Z axis direct drive
Ball Screw	high precision
Guide Rail	Taiwan Hiwin
Table Size	1220x2440mm
Max. Traveling Size (X/Y/Z)	2540x1320x200mm
Max. Workpiece Height	150mm
Dimensions (X/Y/Z)	3500x1800x2000mm
Net Weight	1800kg

Upgrade Options

Positioning air cylinder

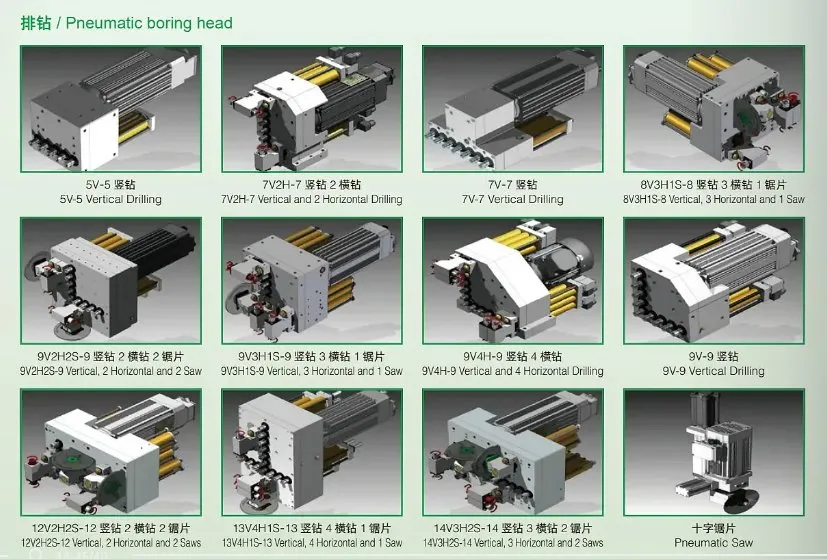

Boring aggregate

Pushing device

Protection enclosure

Laser light screen

Spindle cover

Full-body cover

HSK-63F spindle

8-slot carousel plastic steel tool magazine

Movable vacuum suction chucks

+/-90°spindle horizontal processing design

OSAI controller

12KW air cooling spindle

Aluminum alloy tool magazine

Loading & unloading roller table

floating table

Applicable Materials

Wood, Solid wood, Acrylic, PVC, MDF, Brass, Aluminum, etc.

Frequently Asked Questions

What industries is the NA-series CNC router best suited for?

The NA-series is specifically designed for light-duty entry-level applications in the advertising, woodworking, and furniture industries. It provides professional functionality for small to medium-scale production.

Can this machine handle non-wood materials?

Yes, it is highly versatile and can process materials including acrylic, PVC, MDF, brass, and aluminum, in addition to solid wood.

What are the main technical advantages of the NA-48 model?

The machine features a 9kw HSD spindle, a Taiwan Syntec Controller, and high-precision components like Japanese Shimpo planetary gear reducers and Taiwan Hiwin guide rails for superior accuracy.

Does the machine support automatic tool changes?

Yes, it is equipped with an ISO-30 8-slot linear plastic steel tool magazine, which significantly enhances working efficiency and reduces labor costs through ATC facilities.

What safety and protection upgrades are available?

Optional upgrades include laser light screens, protection enclosures, full-body covers, and spindle covers to ensure a safer working environment.

What is the table type and vacuum system of this CNC router?

The standard configuration features a high-efficiency vacuum suction table powered by a German Becker pump (or 5.5kw air cooling pump) to ensure workpieces remain stable during high-speed processing.
