Basic Information
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Core Components
PLC, Other
Max Work Piece (L*W)
1500*800 mm
Transport Package
Wood Box
Production Capacity
100 Pieces Per Month

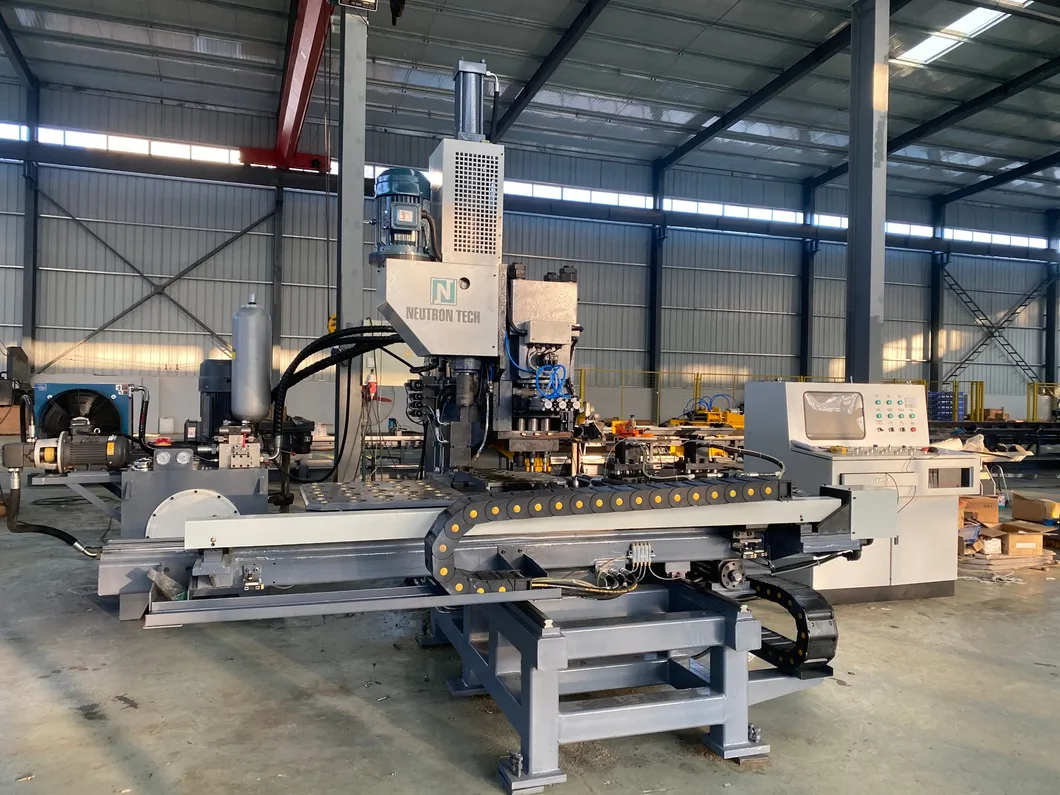

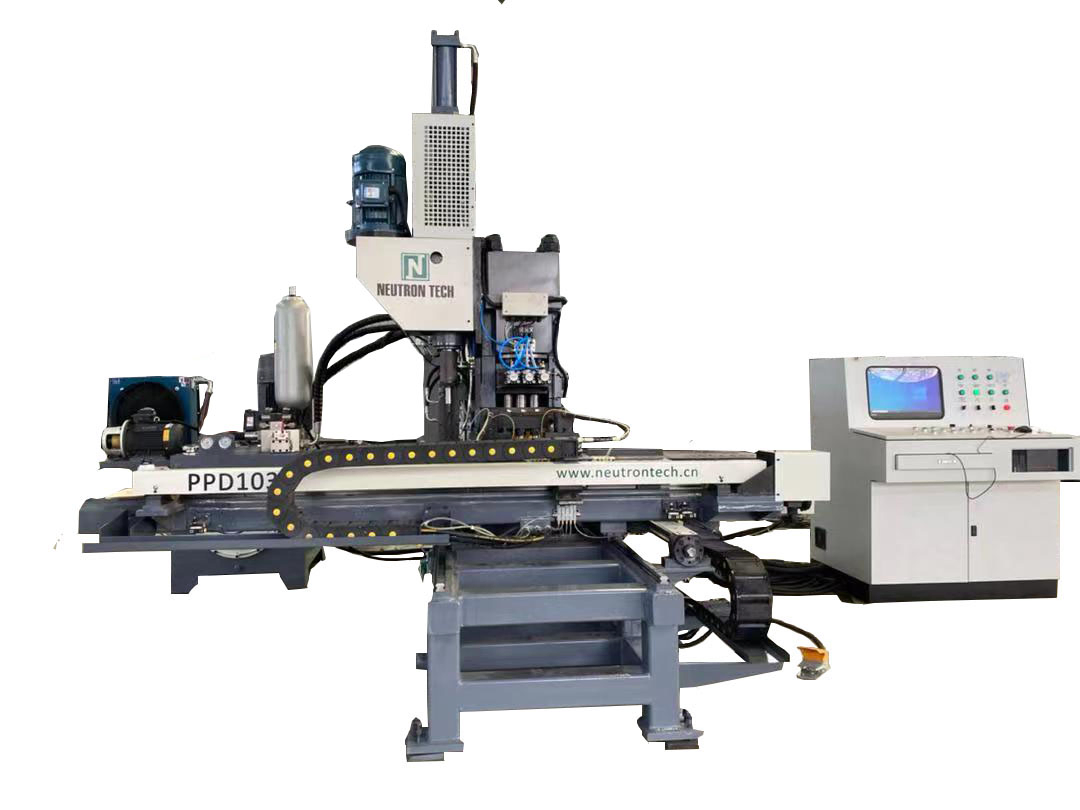

Product Overview

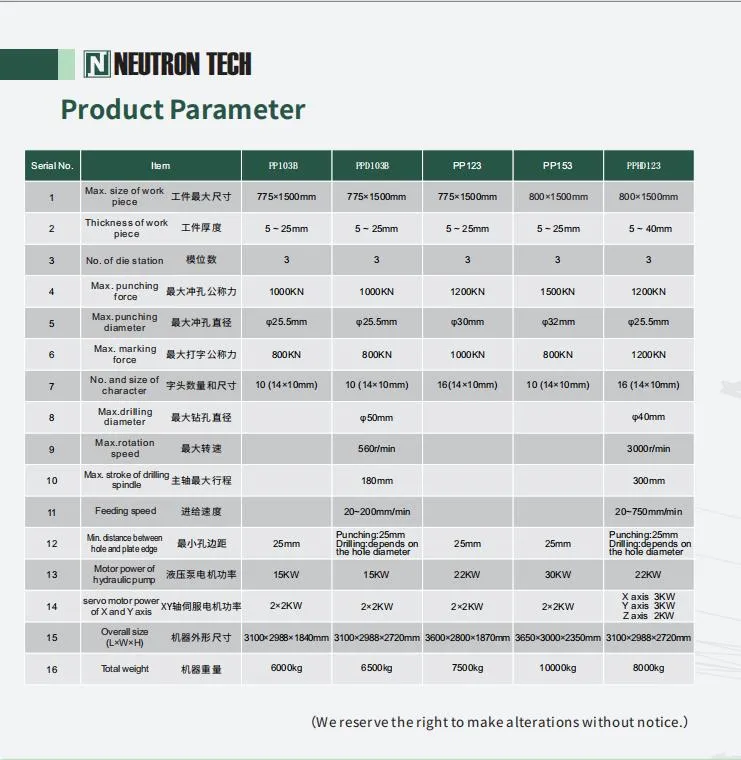

Technical Parameters
- Punching Force: Max. 1000kN
- Workpiece Dimensions: Max. 775×1500mm; Thickness 5 ~ 25mm
- Punching Diameter: Max. φ25.5mm (16Mn, 20mm thickness Q235, 25mm thickness)

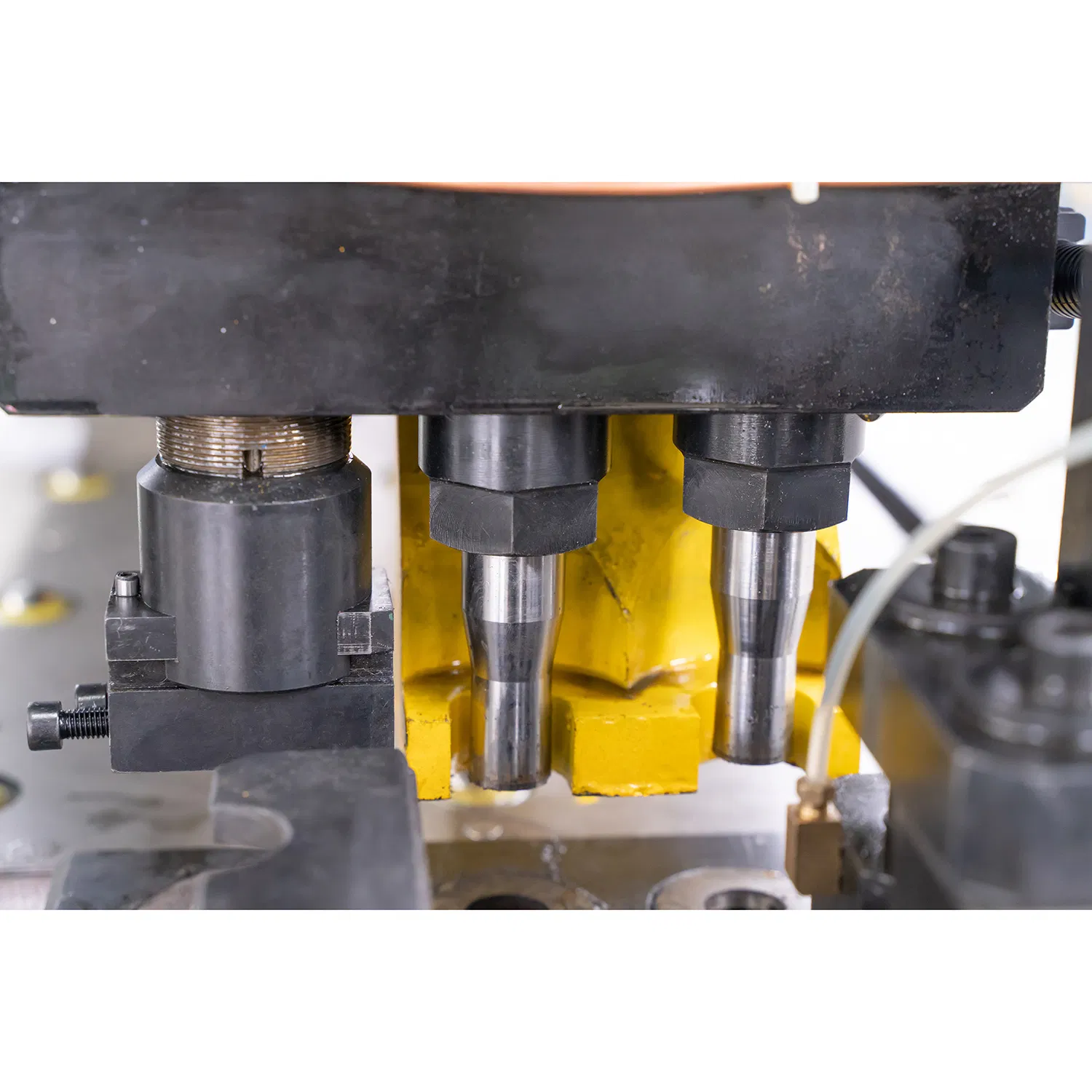

- Die Stations: 3 stations (one can be equipped with stamping die)
- Edge Distance: Punching 25mm; Drilling distance depends on diameter
- Marking System: Max. marking force 800kN; 10 characters (14×10mm)
- Drilling Spindle: φ16 ~ φ50mm; Speed 120~560r/min (5.5kW); Stroke 180mm
- Feeding Speed: 20~200mm/min (hydraulic stepless adjustment)
- Processing Precision: Fits first-rate standards in Steel Tower Classifying Standards
- System Controls: World-famous brand AC servo motors (X and Y axes 2×2kW), PLC and CNC orientation system
- Hydraulics: 15kW motor power; high-quality electromagnetic and overflow valves
- Dimensions: 3100×2988×2720mm; Weight approx. 6500kg

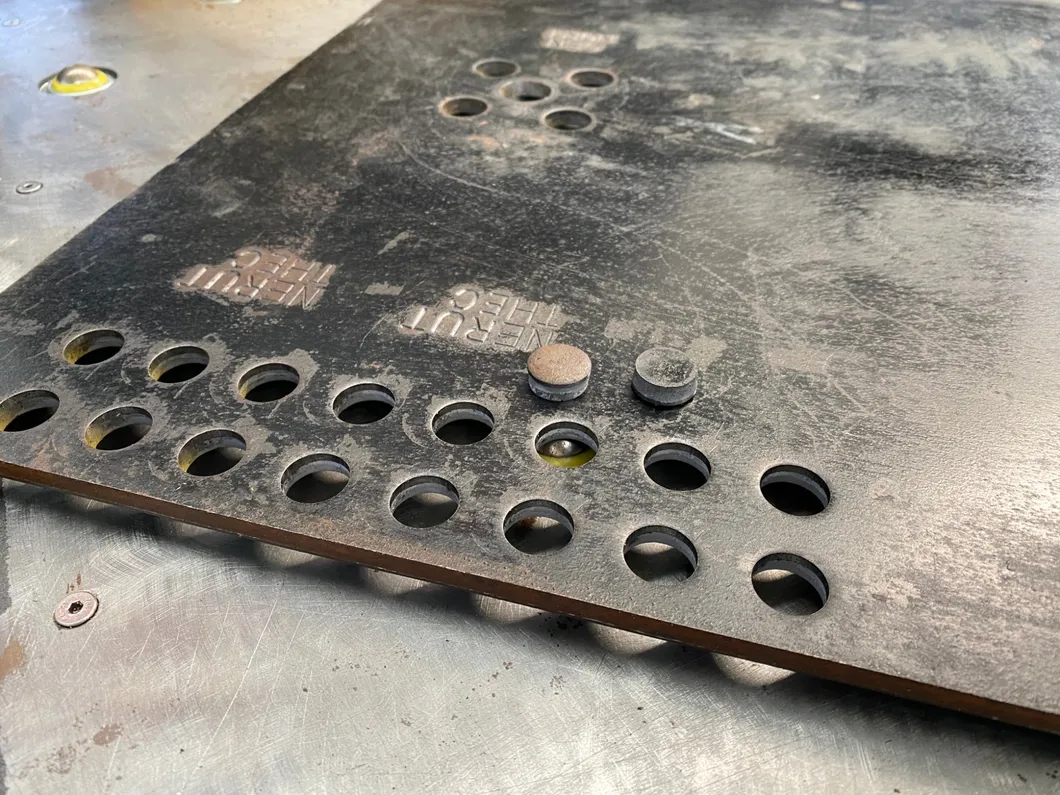

Finished Workpiece & Details
Certifications & Shipping
Frequently Asked Questions
Are you a Manufacturer or a trading company?
We are a professional manufacturer, integrating design, machining, and assembly specifically for angle and plate processing machines.
Do you have stock products ready to deliver?
To ensure fast delivery, we maintain a certain inventory of machines. You are welcome to check the equipment via live demonstration at any time.
How do you deliver the finished products?
Machines are primarily delivered by sea, railway, or road. Urgent parts or documents are shipped via air or express services like TNT, FEDEX, DHL, or UPS.
What are the power and environmental requirements?
The system requires a 380V Three-phase four-wire system (50 Hz). The optimal working temperature range is between 0ºC and 40ºC.
What core components are used in the machine?
We use world-famous brands for critical components, including the PLC, CNC orientation system, AC servo motors, and high-performance hydraulic valves.
What is the processing precision of the PPD103B?
The machine achieves high precision with longitudinal and transverse spacing tolerances of ±0.5mm, meeting first-rate standards for steel tower production.
