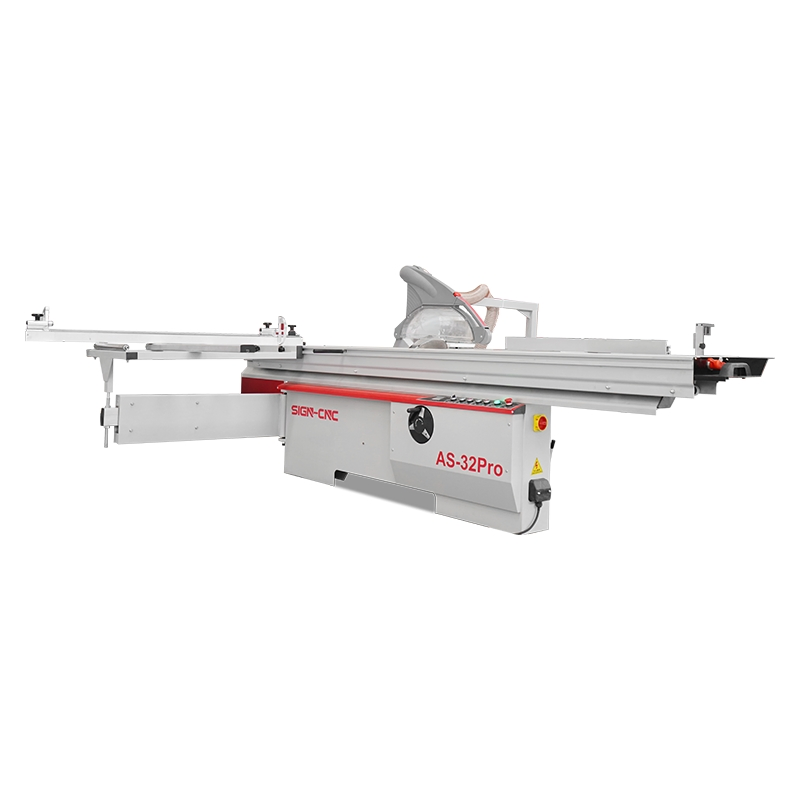

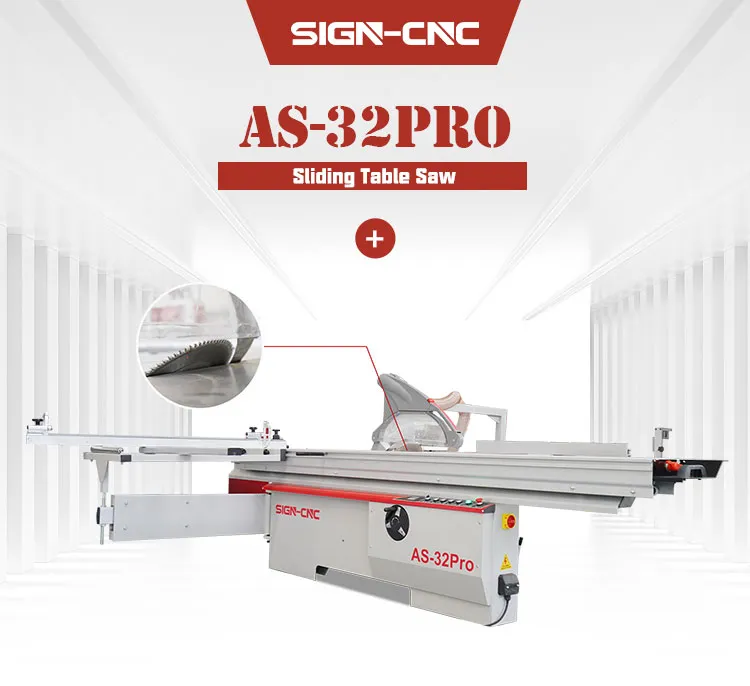

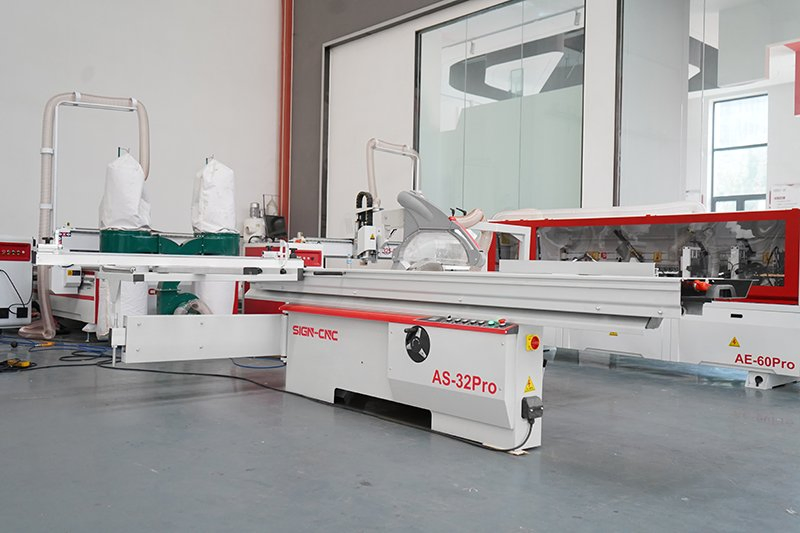

3200 mm Woodworking Machinery Sliding Table Panel Saw with Scoring Blade Panel Saw

Customization: Available
Warranty: Whole Life Technical Service
Type: Table Panel Saw

Product Description

Basic Information

Model NO.
AS-32Pro
Power Type
Electric
Layout
Vertical
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Precision
Precision
Certification
CE
Condition
New
Color
Red
After-sales Service
Whole Life Technical Service

Product Description

The sliding table saw (also known as a panel saw) is one of the core pieces of equipment in the wood processing and furniture manufacturing industry. Its role runs through the key links of panel processing. Its core function revolves around precise cutting, while also taking into account efficiency improvement, process optimization and adaptation to diverse needs. It is an indispensable basic tool in the production of modern panel furniture, custom furniture and woodworking products.

The sliding table saw has a wide range of applications and can process various materials, including engineered wood products (veneered particleboard, fiberboard, plywood, blockboard, and spliced solid wood panels), plastic sheets, aluminum alloys, and thin aluminum sheets.

Key Processing Capabilities:

  • Cutting: Large pieces of board into precise dimensions for furniture components.
  • Secondary Cutting: Specialized handling for small-sized components like drawer side panels.
  • Beveling: Adjustable main saw blade (0-45°) for beveled door panels and furniture edge trim.

Technical Specifications

ModelAS-32Pro
Sliding table length3200 (optional 3000/2800)
Maximum cutting length3100/2900/2700
Maximum sawing width3000mm
Maximum cutting thickness75mm
Spindle diameterΦ30mm
Countershaft diameterΦ20mm
Large saw blade sizeOuter 300mm / Inner 30mm
Small saw blade sizeOuter 120mm / Inner 20mm
Spindle speed4000-6000r/min
Countershaft speed7000-8000r/min

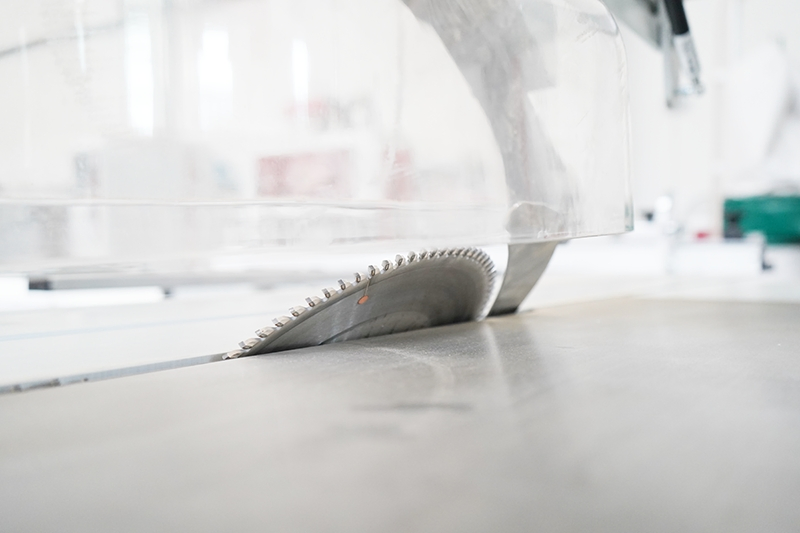

Saw bladesMain saw blade + Scoring saw blade
Tilting saw blade0-45°
Lifting methodElectric lifting saw blade

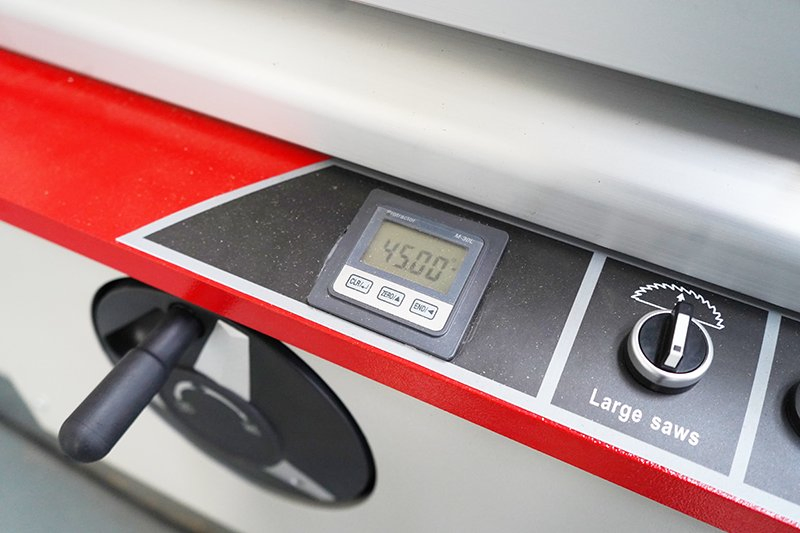

Angle display45° digital display

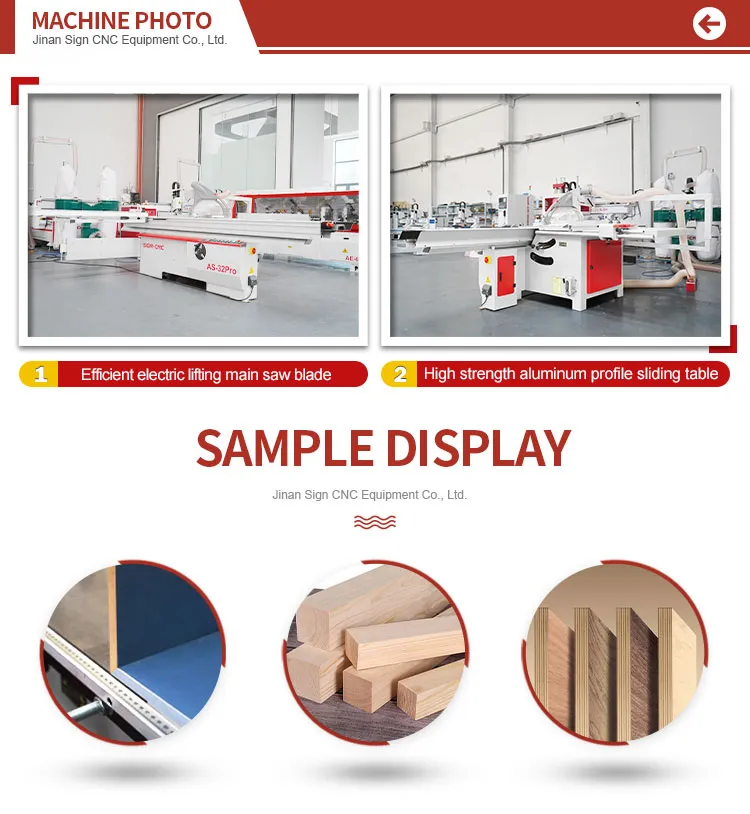

Product Details & Packing

Frequently Asked Questions

What materials can the AS-32Pro sliding table saw cut?
The AS-32Pro is designed to cut various materials including veneered particleboard, fiberboard, plywood, solid wood panels, plastic sheets, and thin aluminum alloys.
Does the machine support beveled cutting?
Yes, the main saw blade can be tilted between 0 and 45 degrees, which is perfect for creating beveled door panels and edge trims.
What is the benefit of having both a main saw and a scoring saw?
The scoring saw blade cuts a shallow groove before the main blade, which prevents chipping on the bottom surface of laminated or veneered boards, ensuring a clean edge.
How is the saw blade height adjusted?
The AS-32Pro features an electric lifting system for the saw blade, allowing for easy and precise height adjustments via the control panel.
What is the maximum cutting thickness?
This model can handle a maximum cutting thickness of 75mm, making it suitable for a wide range of panel sizes and thicknesses.
What kind of packaging is used for transport?
The machine is packed in high-quality plywood cases to ensure maximum protection during international shipping and handling.
