3 Spindles CNC Woodworking Machinery Tool

1 / 5

3 Spindles CNC Woodworking Machinery Tool

Customization:	Available
After-sales Service:	24 Hours Online
Warranty:	1 Year

Send Inquiry

Product Description

📋 Basic Information

Model NO.

NM-483

Condition

New

Certification

ISO, CE

CNC or Not

CNC

Voltage

380V

Spindle

6kw Air Cooling Spindle*3 Sets

Controller

Nk-105 DSP/ Nc Studio

Table

T-Slot Vacuum Table

Rail

Taiwan Linear Rail

Rack

High Helical Racks

Motor

Servo Motor/ Stepper Motor

Software

Type 3 / Arrcam

Pump

7.5kw Water Cooling Pump

Package

Plywood Box

Specification

1500mm* 3000mm

Trademark

DLM

Origin

China

HS Code

84609090

Capacity

600 Sets/Year

⚙️ Product Description

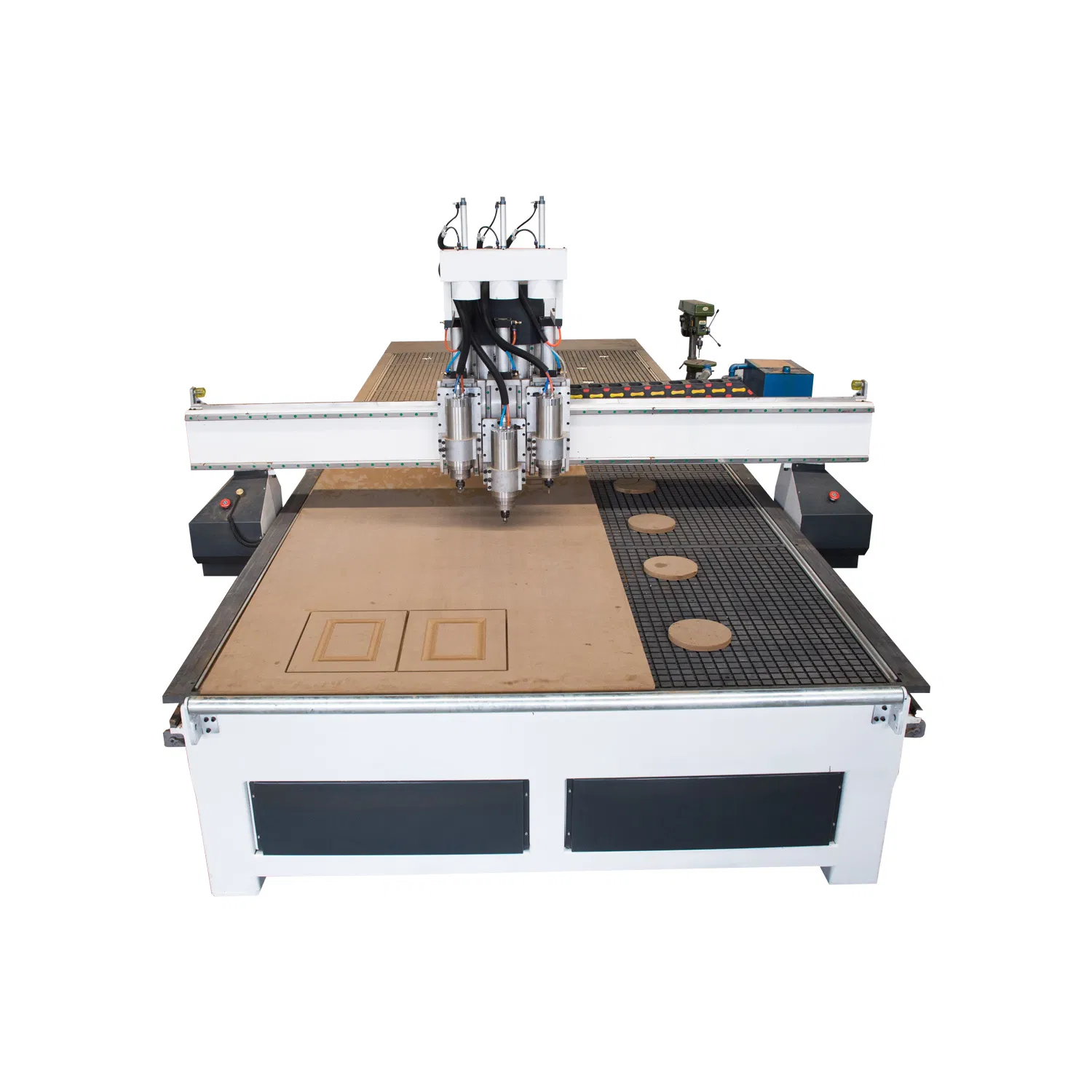

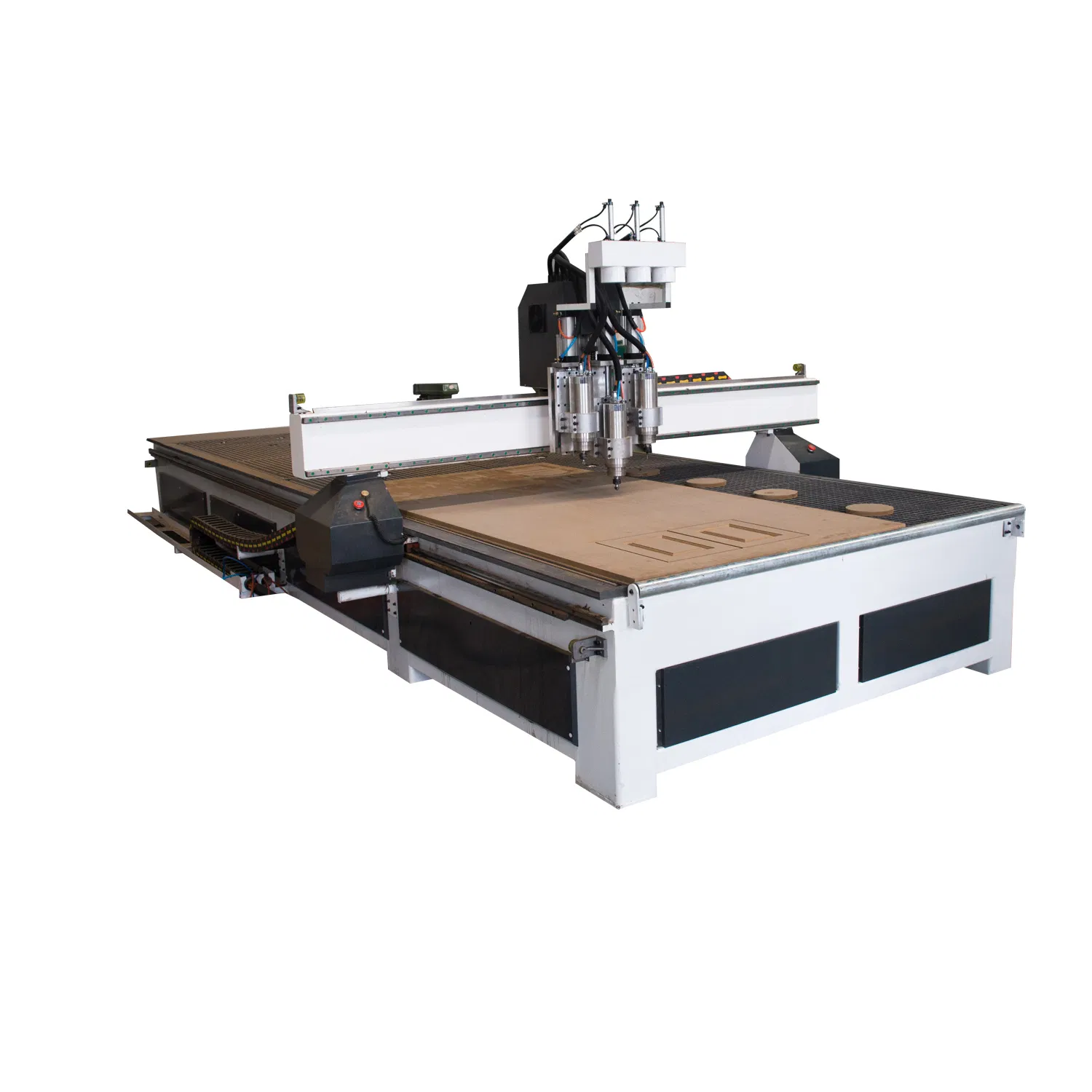

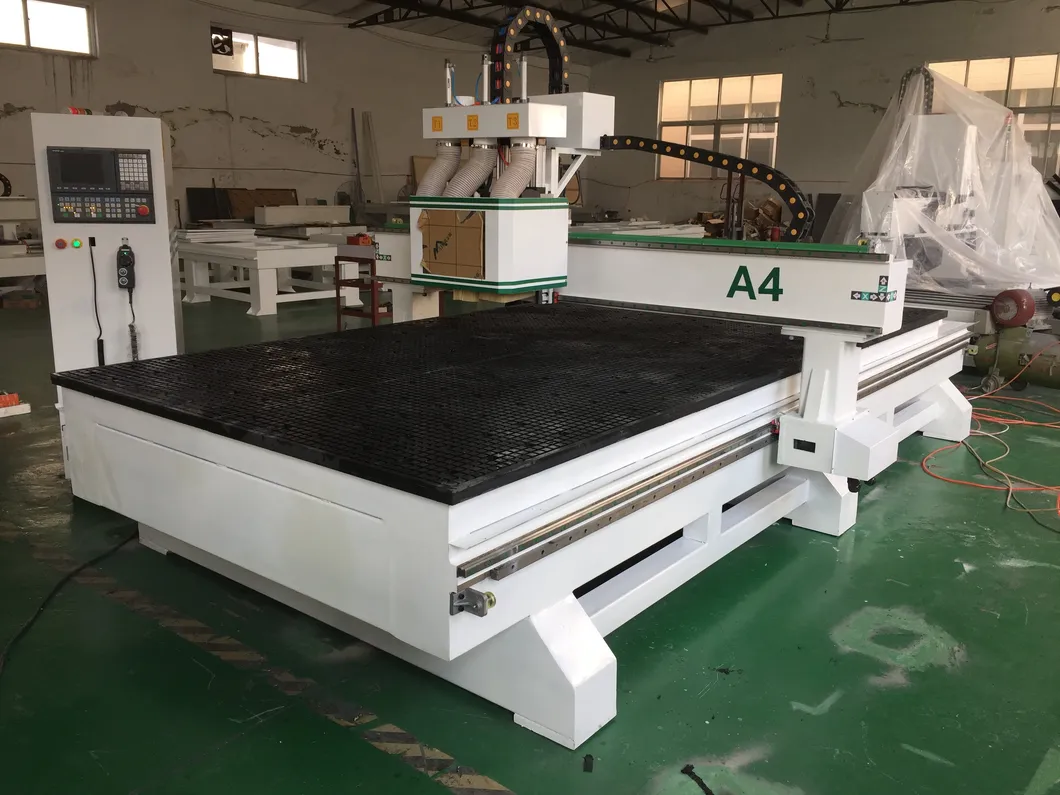

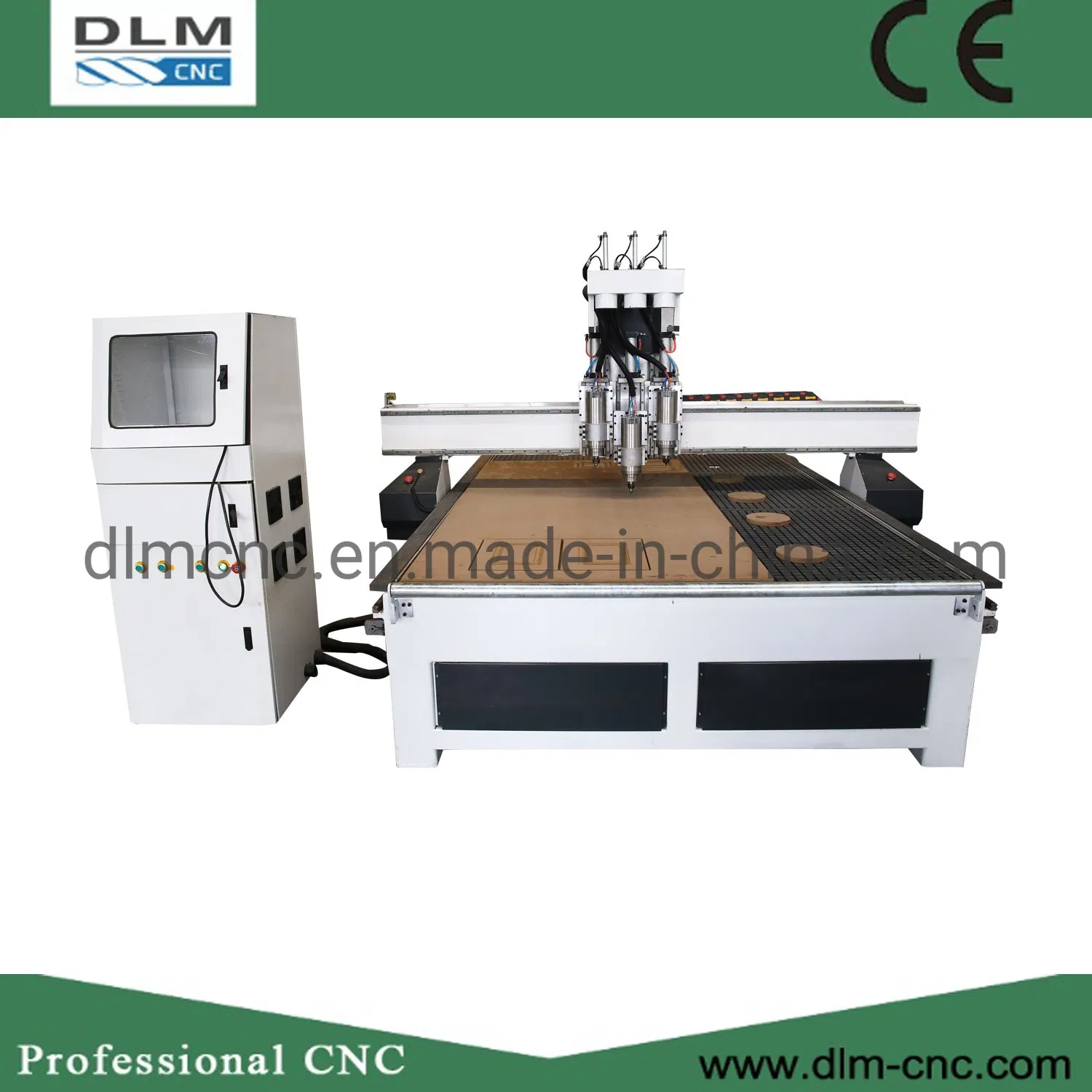

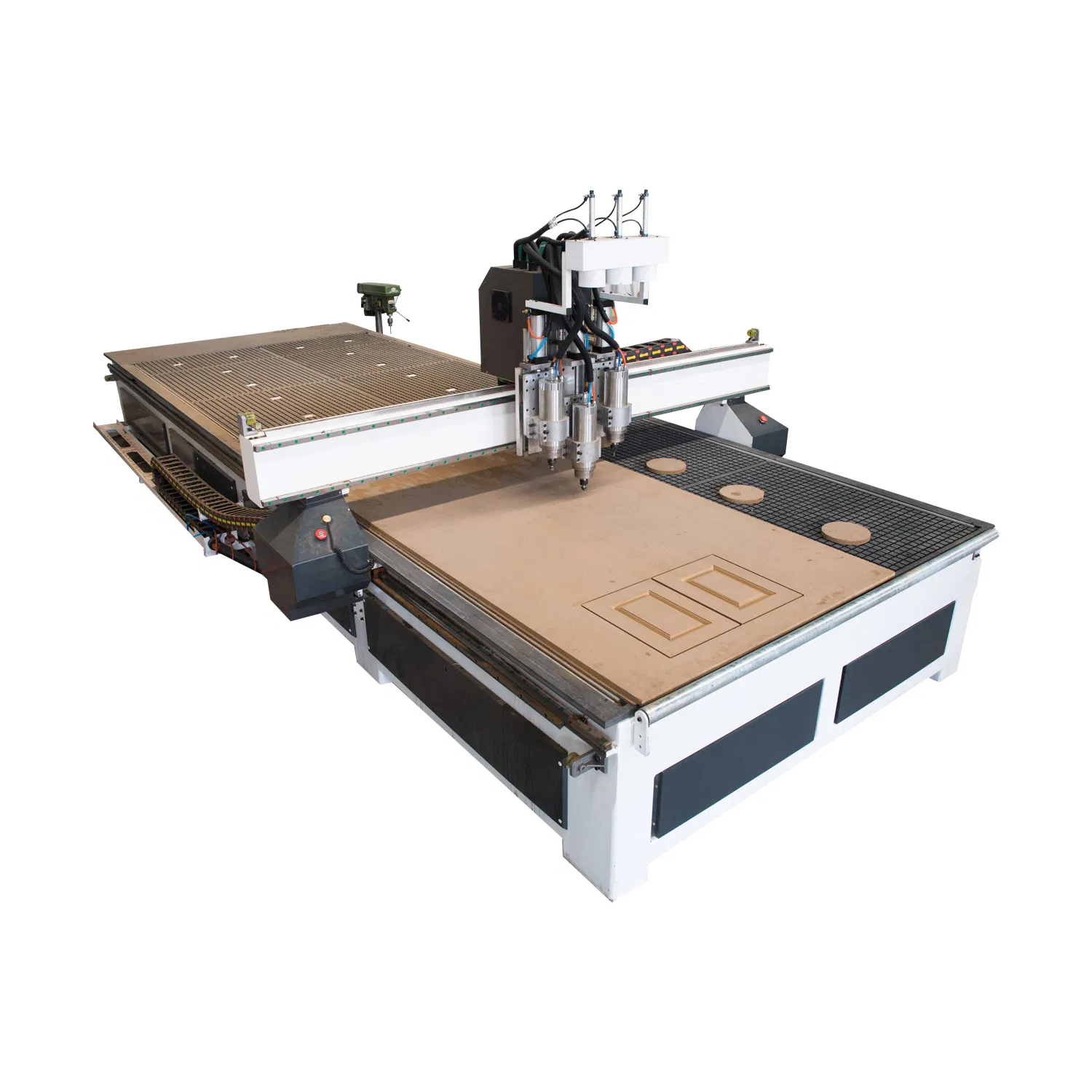

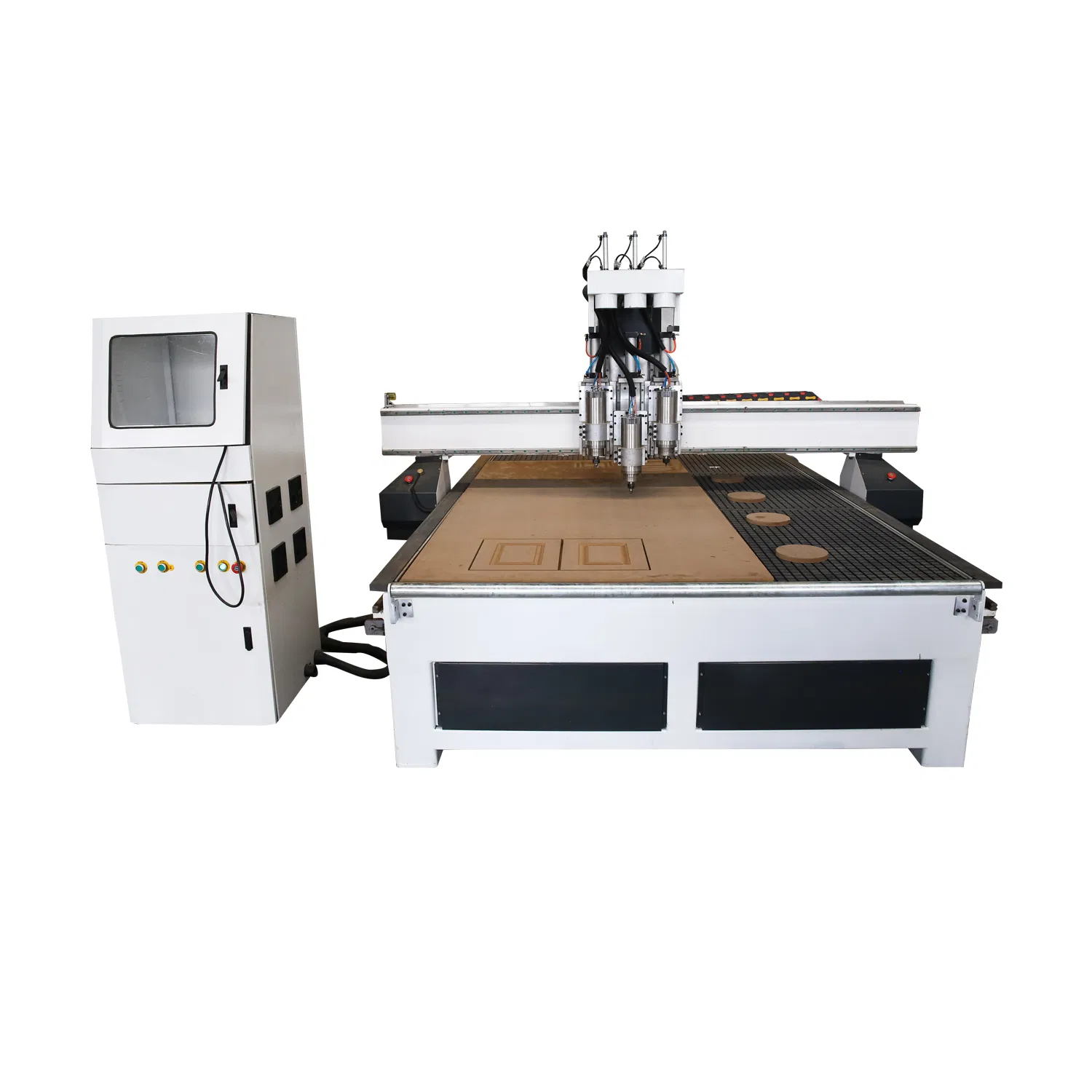

3 Spindles CNC Woodworking Engraver and Cutter - Model NM-483

Key Technical Parameters:

Model	NM-483 (Asynchronous Type)
X-Y-Z axis working area	1,300 x 2,500 x 200mm
Machine size	3100 x 2200 x 1750mm
Resolutions	0.025mm
X-Y movement	Rack and pinion, gear drive/Taiwan
Z movement	Ball screw drive
Guide	Linear 25 square/Taiwan
Max. speed	35,000mm/min
Max. cutting speed	25,000mm/min
Spindle 1-3	6kw (Chinese Fan cooling), 18,000rpm
Inverter power	7.5kw
Drive motors	Stepper / Servo
Working voltage	AC380V/50-60Hz, 3-phase
Command code	G code
Computer interface	USB 2.2
Collet	ER25- 3.175mm, 6mm, 12.7mm
Software	Type3 Software/France
Controls	DSP A15 For Two Spindle
Packing dimensions	3220 x 2280 x 1870mm, 1300 kgs
Standard equipment	1. Auto tool surface sensor 2. Manual oil lubrication system 3. Dust hood 4. T-slot table with mechanical clamps

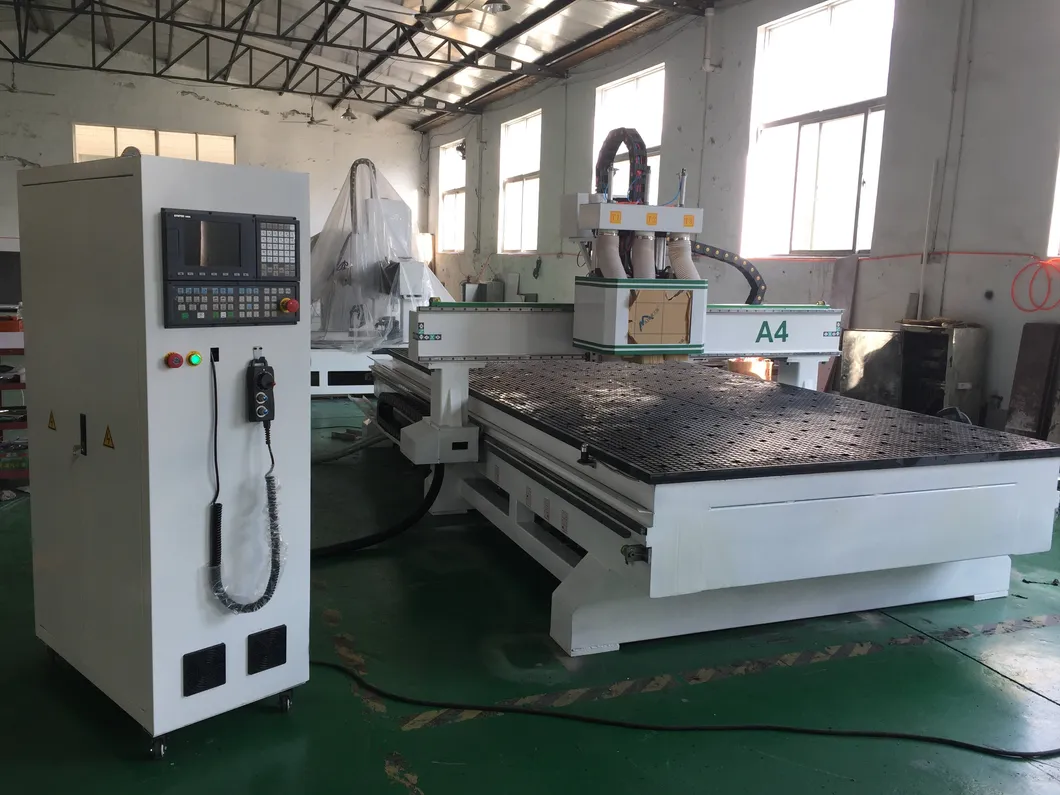

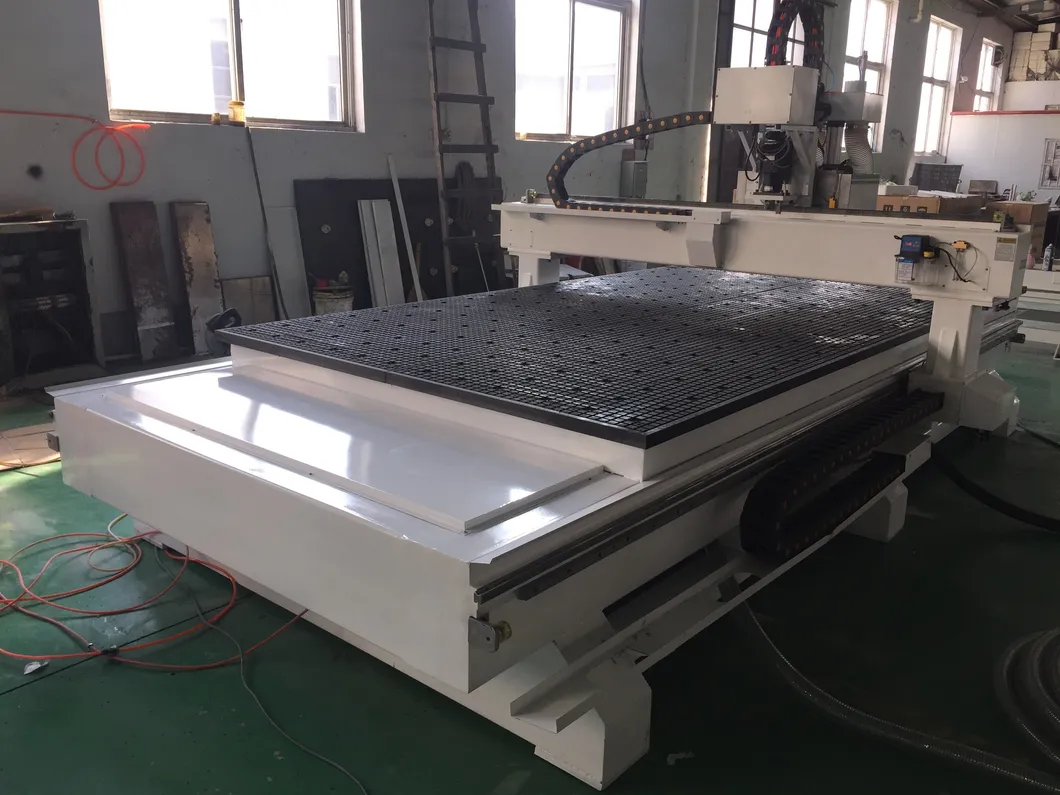

🛠️ Quality Spare Parts & Samples

❓ Frequently Asked Questions

1. What are the primary applications for the NM-483 CNC machine?

The NM-483 is a 3-spindle CNC woodworking engraver and cutter designed for high-efficiency woodworking tasks, including engraving, cutting, and routing on various wood types and composite materials.

2. How do the three spindles work in this model?

The machine features three 6kw air-cooling spindles. These spindles can be configured to work asynchronously, allowing for faster tool changes or multi-step processing without manual intervention, significantly increasing productivity.

3. What kind of table and clamping system does it use?

The machine is equipped with a versatile T-Slot Vacuum table. This allows for both vacuum suction to hold large sheets securely and mechanical clamps for smaller or irregularly shaped workpieces.

4. What are the power and voltage requirements?

The NM-483 operates on a standard industrial working voltage of AC380V, 50-60Hz, 3-phase power supply.

5. Is the machine compatible with standard design software?

Yes, it supports standard G-code command codes and is compatible with professional software like Type 3, Arrcam, and other France-origin Type3 software.

6. What is included in the standard equipment package?

Standard equipment includes an auto tool surface sensor for precise calibration, a manual oil lubrication system for maintenance, a dust hood for a cleaner workspace, and a T-slot table with mechanical clamps.
